L Terminal Circuit Check
L Terminal Circuit CheckDescription
The terminal "2" (L) circuit controls the charge warning lamp. The charge warning lamp illuminates when the ignition switch is set to ON or START. When the generator is providing sufficient voltage with the engine running, the charge warning lamp will go off. If the charge warning lamp illuminates with the engine running, a malfunction is indicated.
Diagnosis Procedure
Regarding Wiring Diagram information, refer to [Charging System: Wiring Diagram].
Step 1-2:

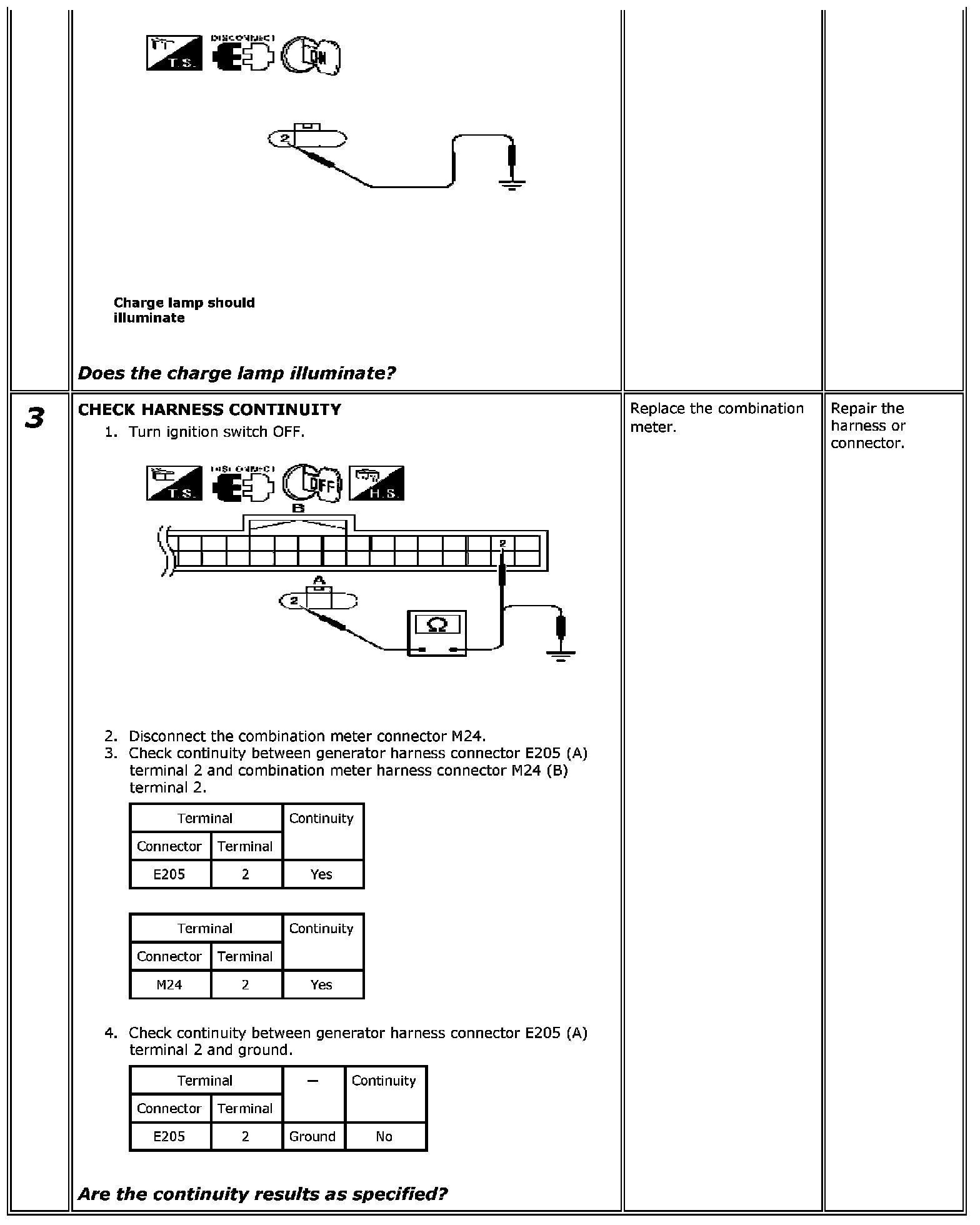

Step 2 (Continued)-3:
