B Terminal Circuit Check

B Terminal Circuit Check

Description
The terminal "1" (B) circuit supplies power to charge the battery and operate the vehicles electrical system.

Diagnosis Procedure
Regarding Wiring Diagram information, refer to [Charging System: Wiring Diagram].

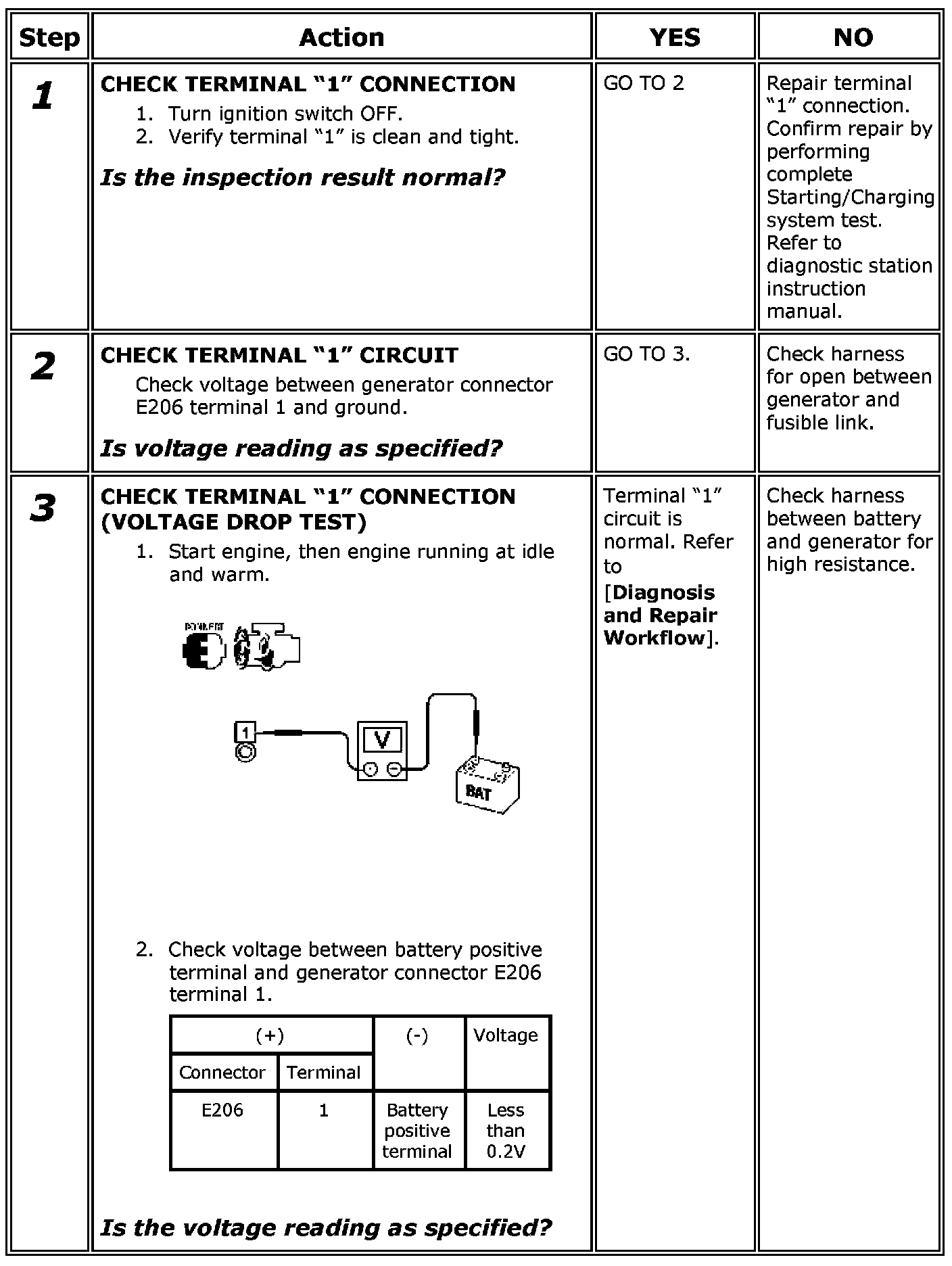

Step 1-3:
