Battery: Removal and Installation

Battery: Removal and Installation

Removal
1. Disconnect both negative and positive battery terminals.






CAUTION: Disconnect negative battery terminal first.

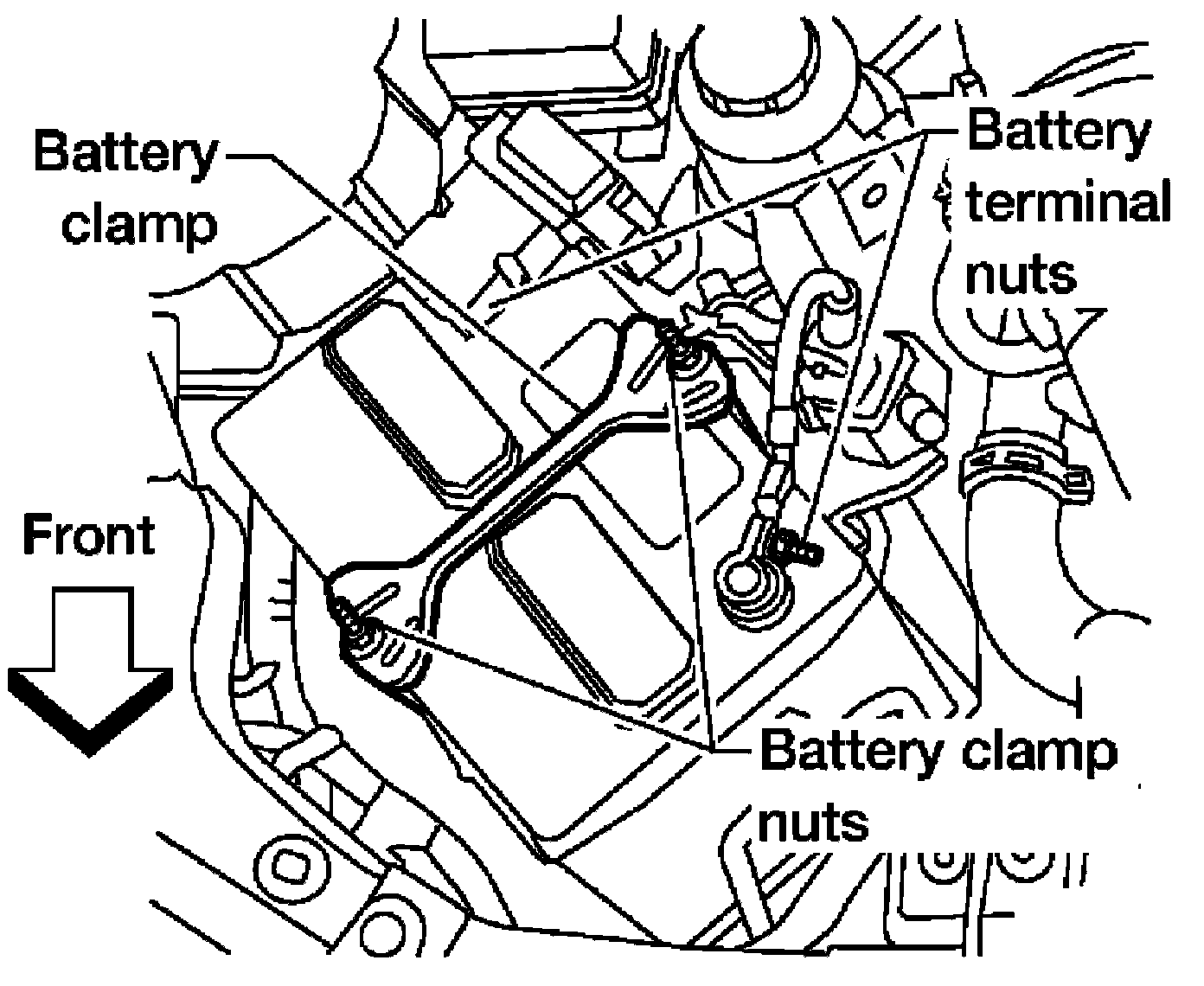

2. Remove battery clamp nuts and battery clamp.
3. Remove battery.

Installation
Installation is in the reverse order of removal.

CAUTION: Connect positive battery terminal first.

Battery clamp nuts : 3.92 N.m (0.40 kg-m, 35 in-lb)
Battery terminal nut : 3.4 N.m (0.35 kg-m, 30 in-lb)

Reset electronic systems as necessary. Refer to [Additional Service When Removing Battery Negative Terminal].
