Diagnosis and Repair Work Flow
Diagnosis and Repair Work Flow

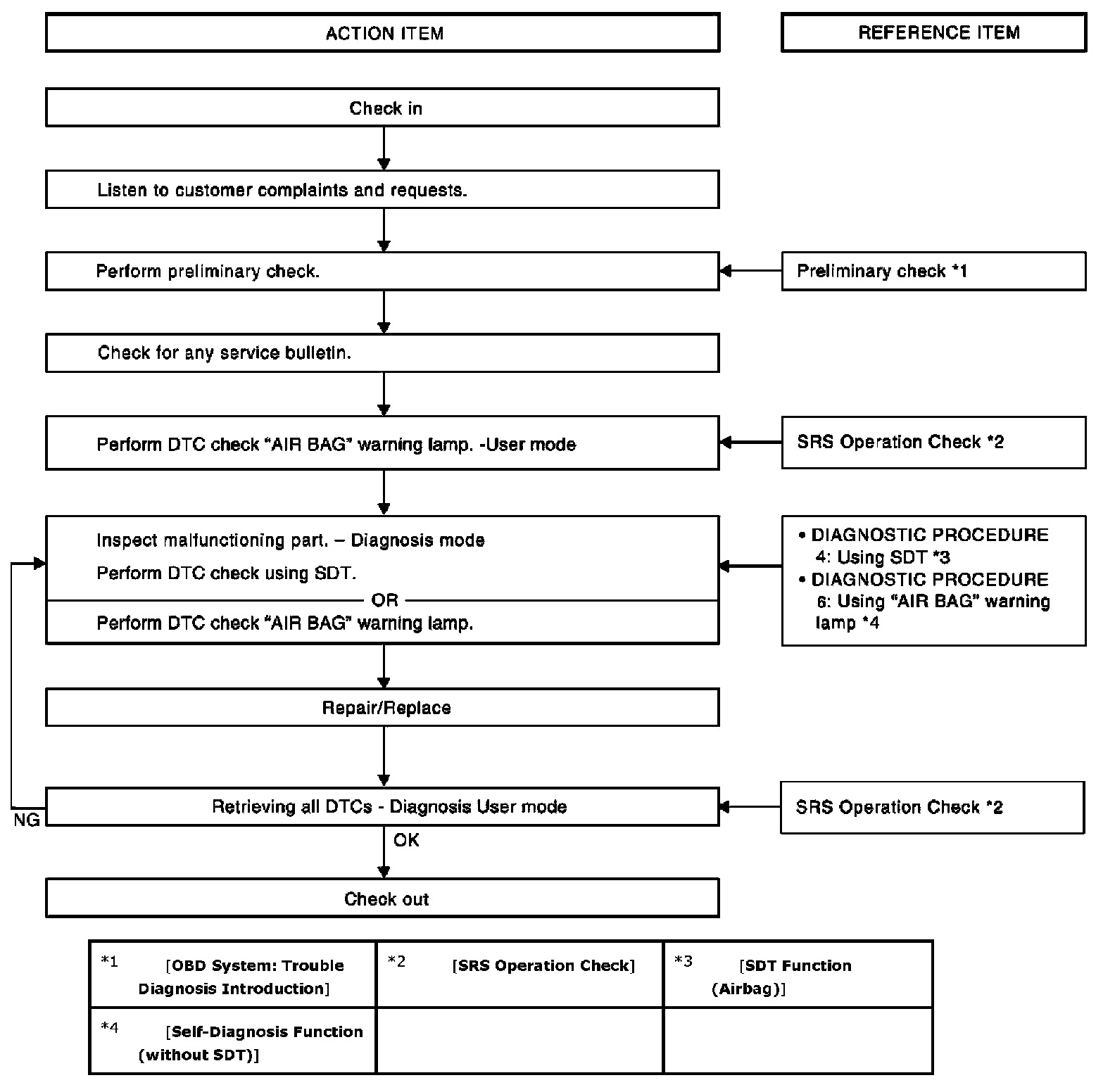

Overall Sequence

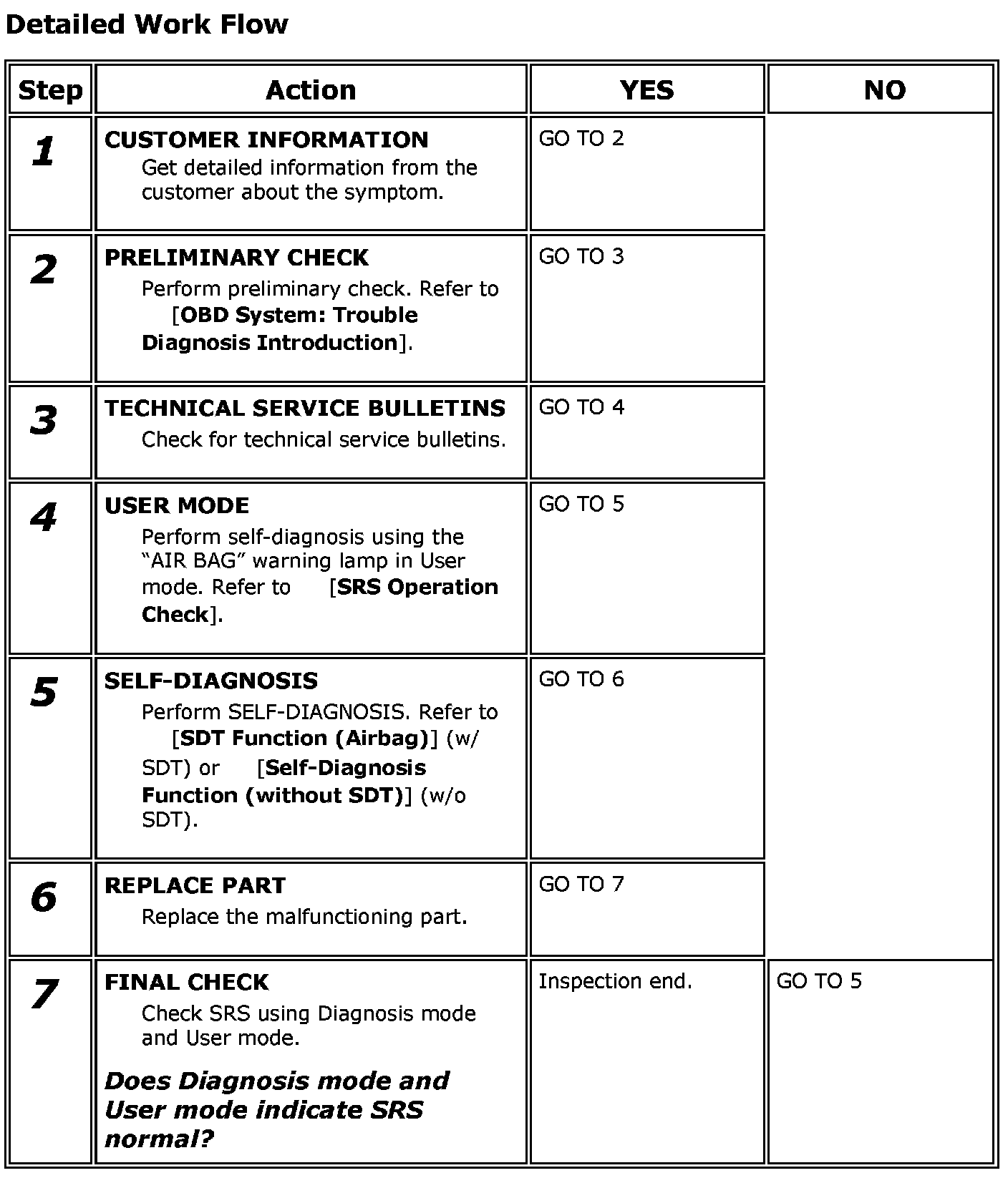

Detailed Work Flow
Step 1-7:
