Seat Belt Buckle Switch: Testing and Inspection

Seat Belt Buckle Switch Signal Circuit Check

Description
Transmits a seat belt buckle switch signal to the combination meter.

Component Function Check

Step 1:

Diagnosis Procedure
Regarding Wiring Diagram information, refer to [Warning Chime System: Wiring Diagram]. Warning Chime System: System Diagram

Step 1:

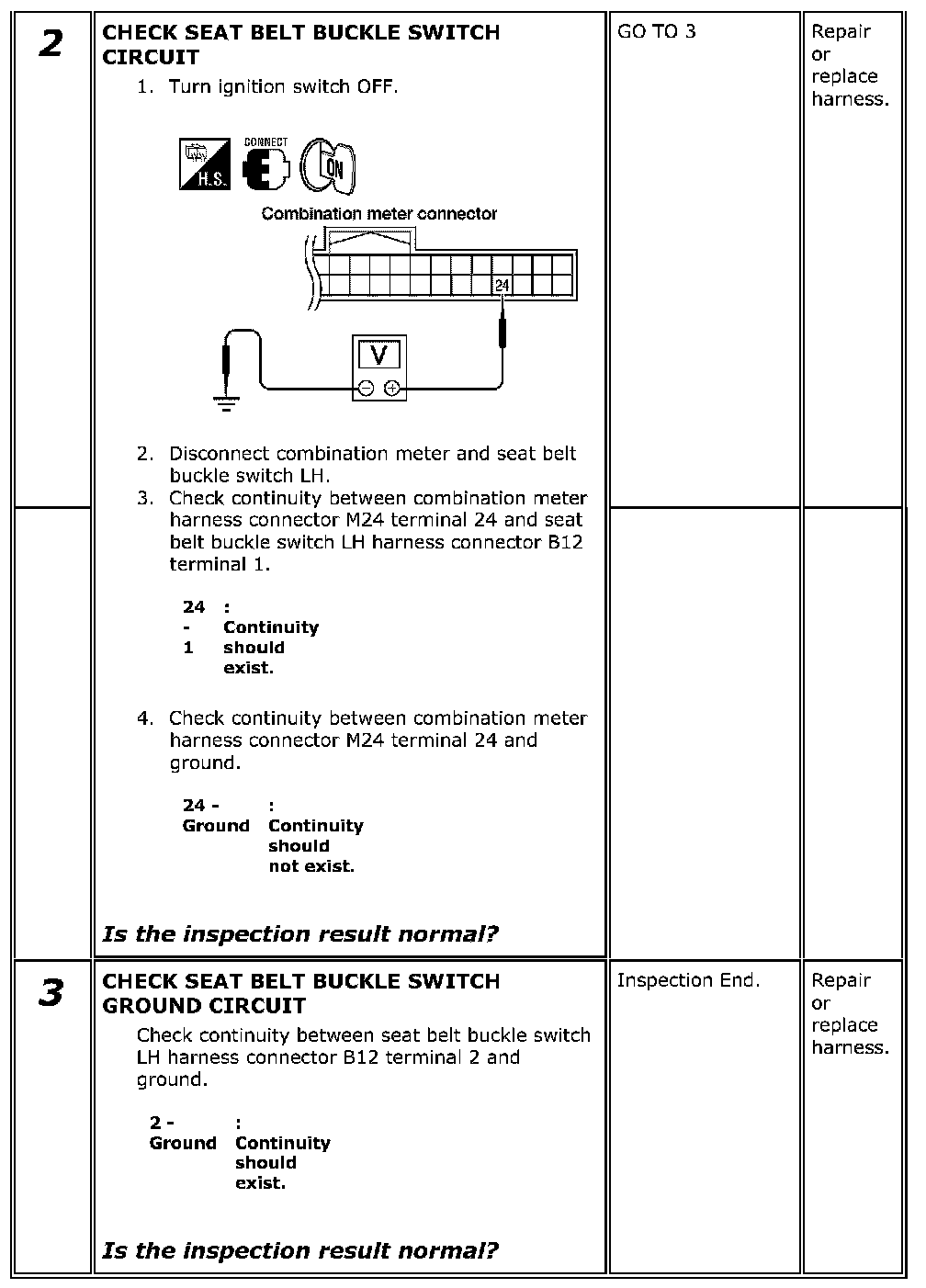

Step 2-3:

Component Inspection
