Ignition Coil: Service and Repair

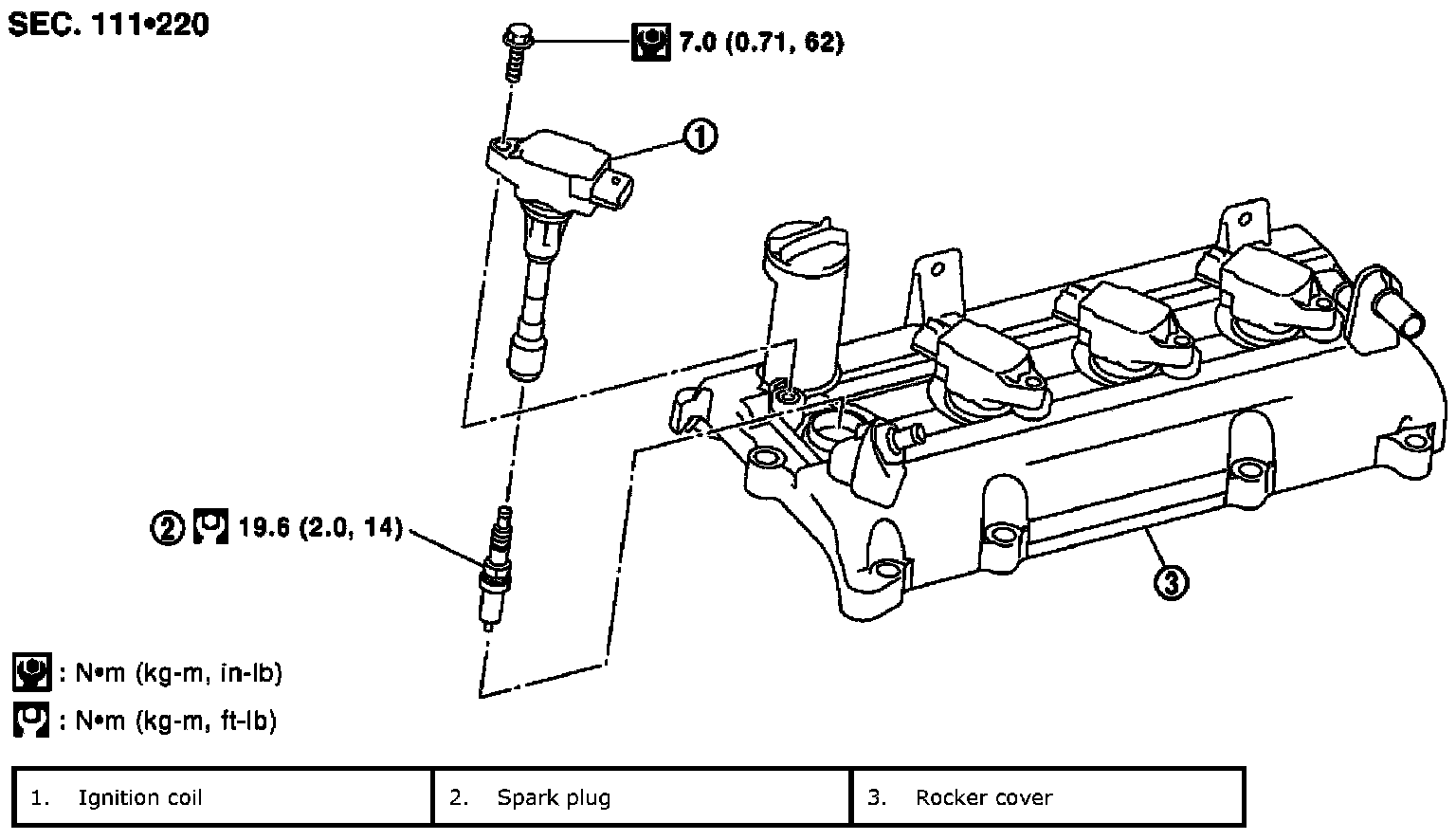

Ignition Coil: Exploded View






Ignition Coil: Removal and Installation

Removal
1. Remove intake manifold (except for ignition coil No.1).
2. Disconnect harness connector from ignition coil.
3. Remove ignition coil.

CAUTION: Do not shock ignition coil.

Installation
Installation is in the reverse order of removal.
