Overhaul

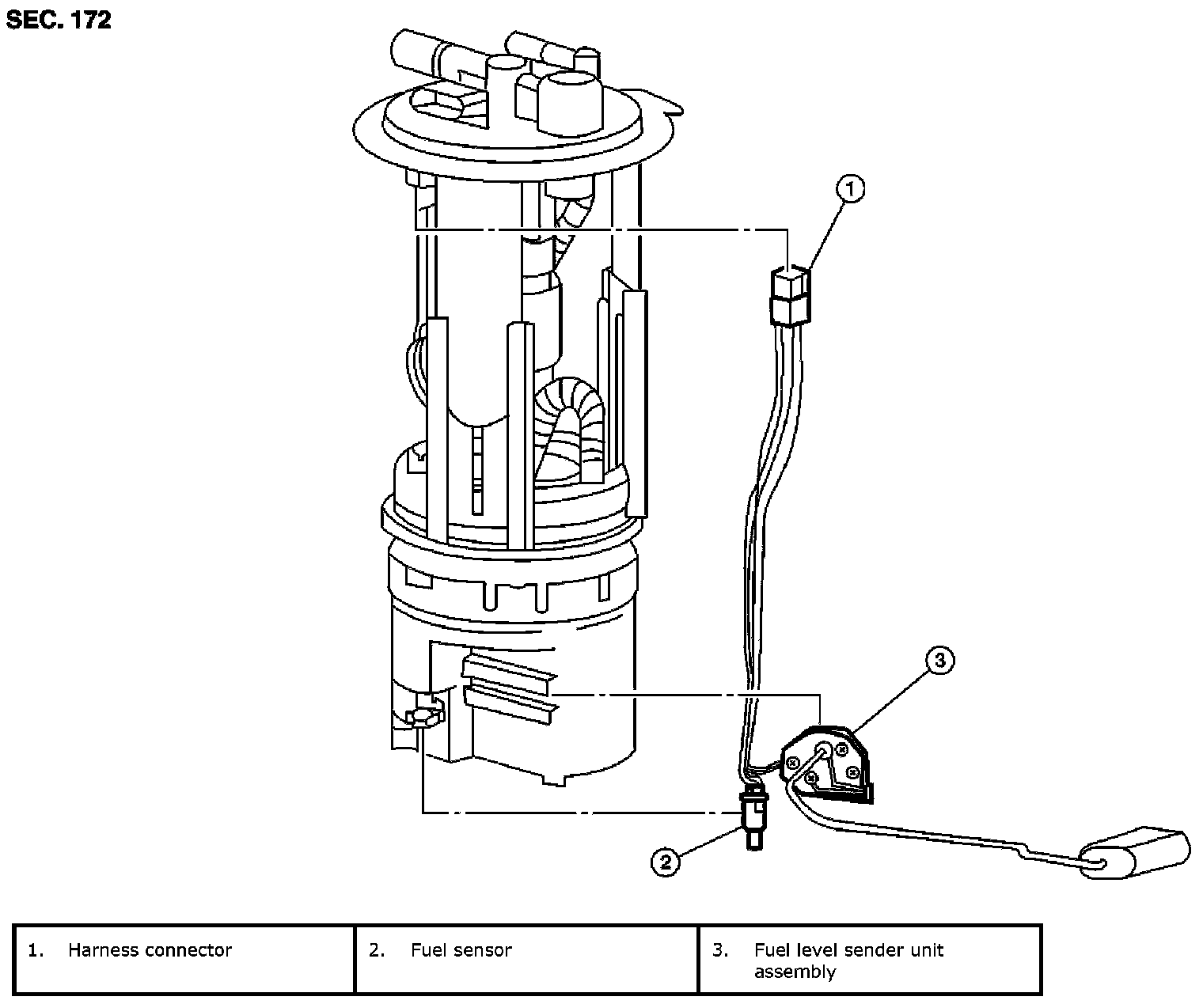

Fuel Level Sensor Unit, Fuel Filter and Fuel Pump Assembly: Disassembly and Assembly






Disassembly
1. Disconnect the harness connector.
2. Remove the fuel sensor.
3. Remove the fuel level sender unit assembly.

Assembly
Assembly is the reverse order of disassembly.
