Self-Diagnosis (Without SDT)

Self-Diagnosis (without SDT)

Self Diagnostic Procedure (without SDT)
1. Turn ignition switch ON.
2. Ground the tire pressure warning check connector to initiate self diagnosis.

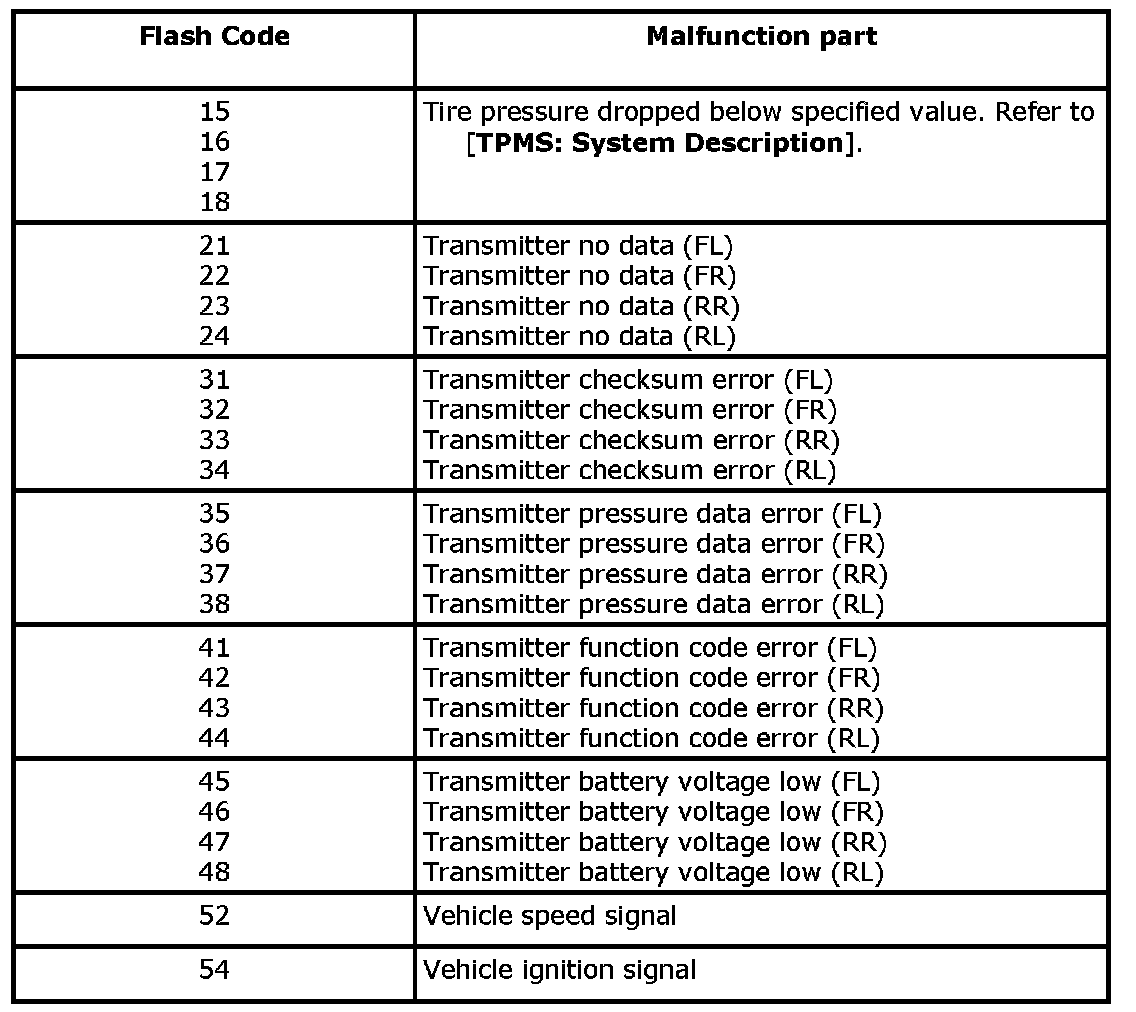

3. Compare the flashing pattern with the flash code chart below.






NOTE: The system is normal when the low tire pressure warning lamp flashes 5 times and continues repeating. Self-diagnosis results are erased automatically by turning the ignition switch "OFF".
