Rear Combination Lamp: Bulb Replacement

Rear Combination Lamp: Bulb Replacement

Removal
1. Remove rear combination lamp.

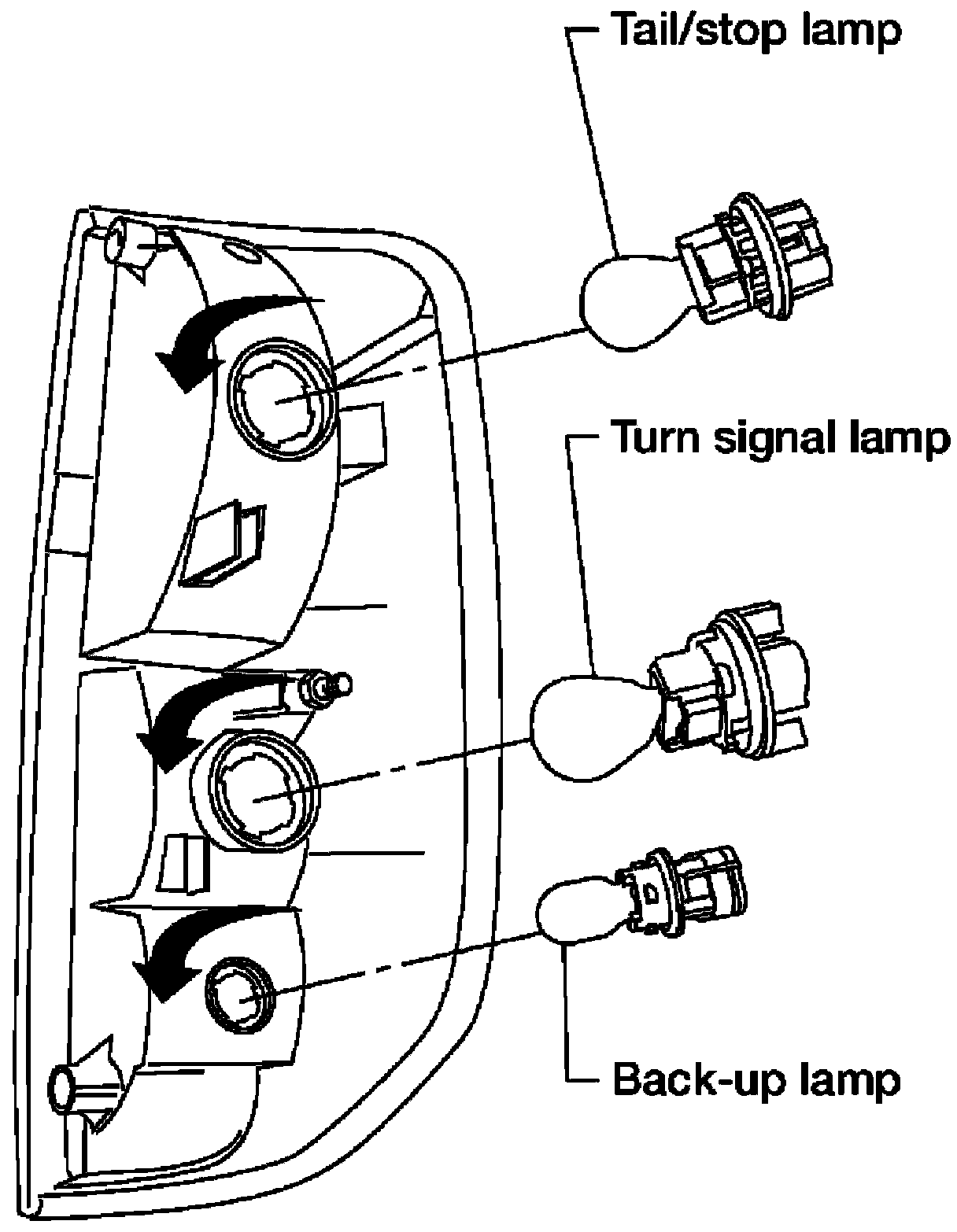

2. Turn bulb counterclockwise to remove bulb socket.
3. Pull bulb straight out away from socket to release.

Installation
Installation is in the reverse order of removal.
