With Power Door Locks

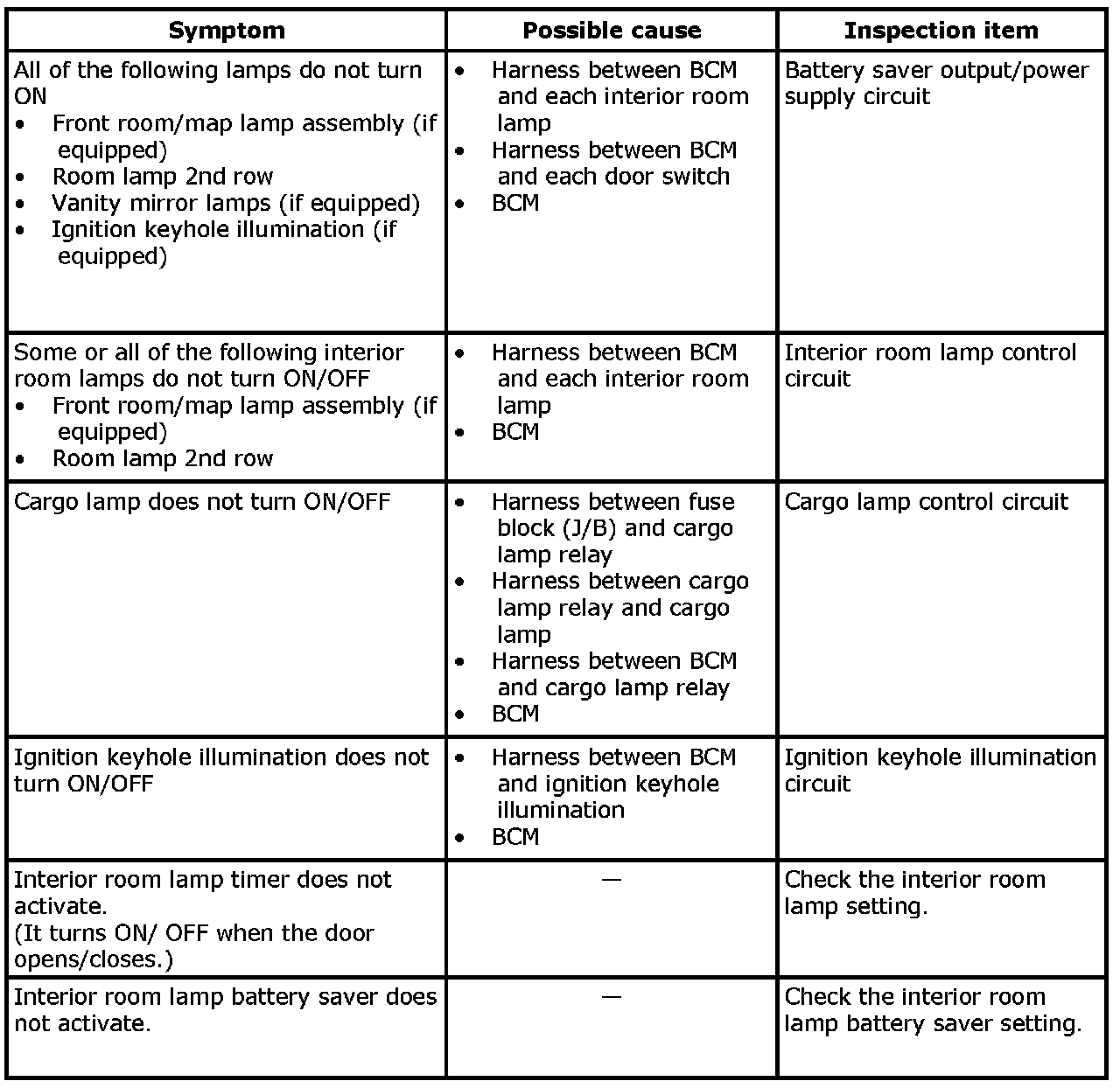

Interior Lighting System Symptoms: Symptom Table [with Power Door Locks]

CAUTION: Perform "DTC check" with SDT before the symptom diagnosis. Perform the trouble diagnosis if any DTC is detected.
