ECU Diagnosis: IPDM E/R (Intelligent Power Distribution Module Engine Room)
ECU Diagnosis: IPDM E/R (Intelligent Power Distribution Module Engine Room)Reference Value

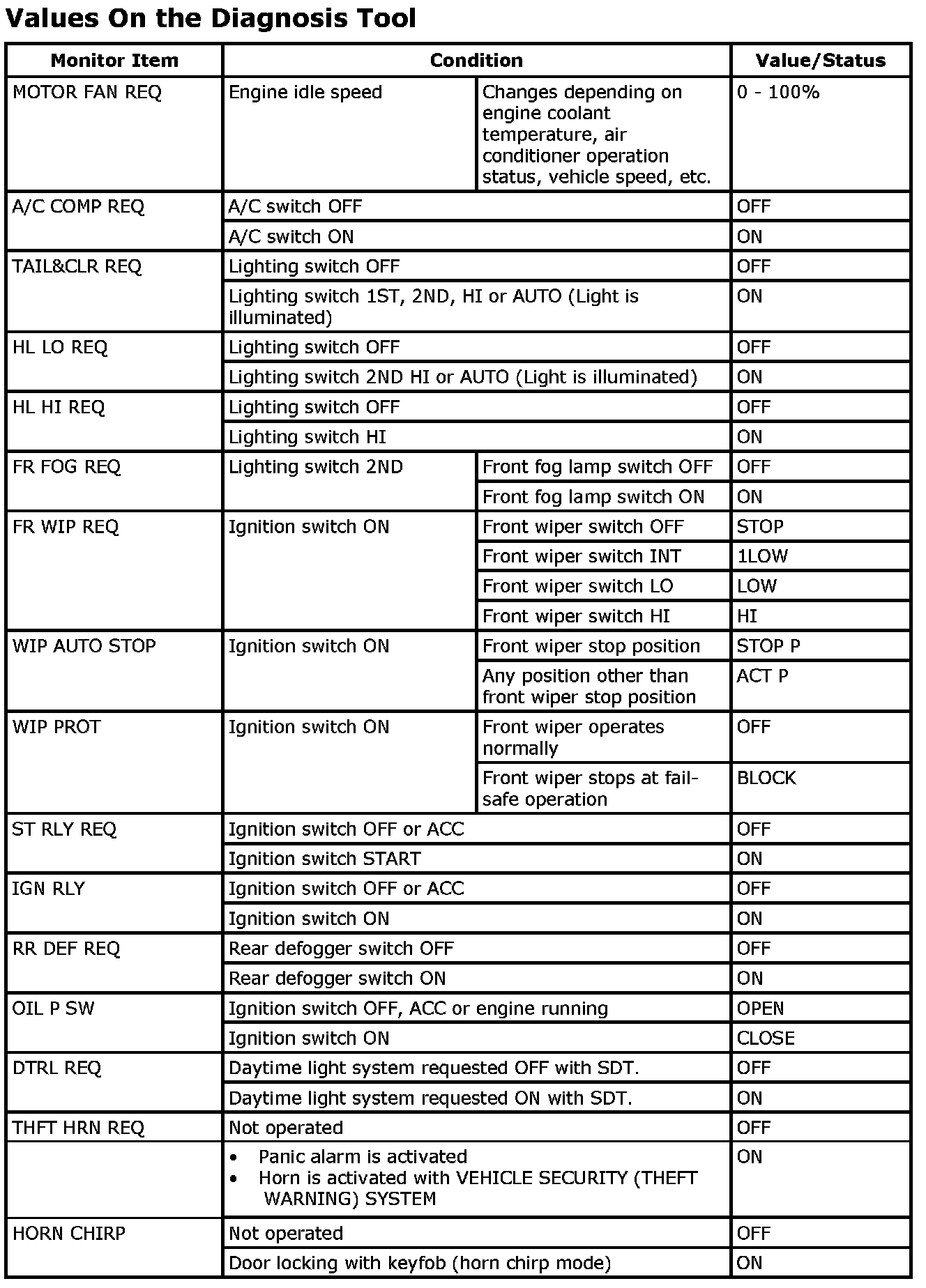

Values On the Diagnosis Tool
Terminal Layout

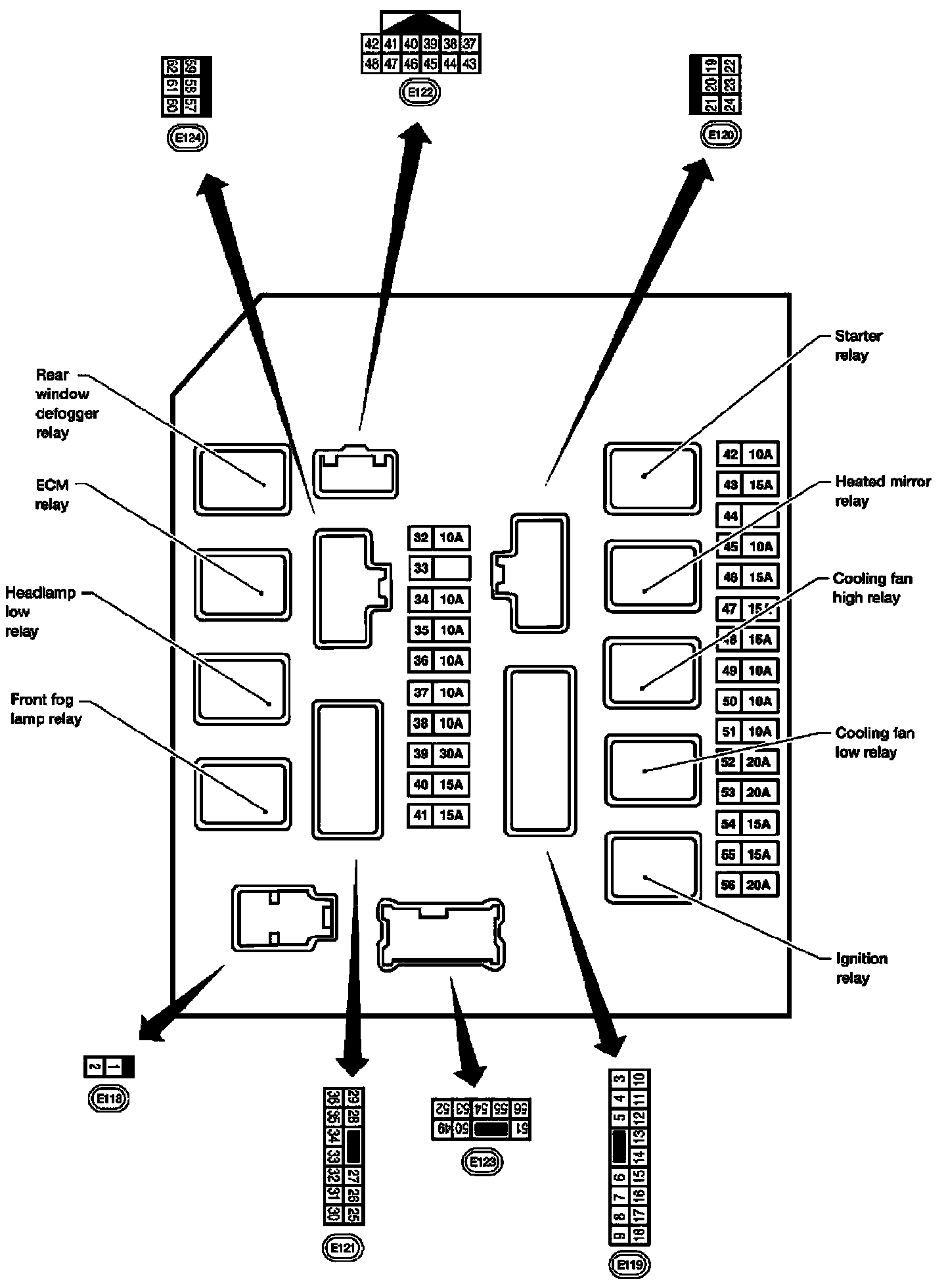

Terminal Layout - Type A

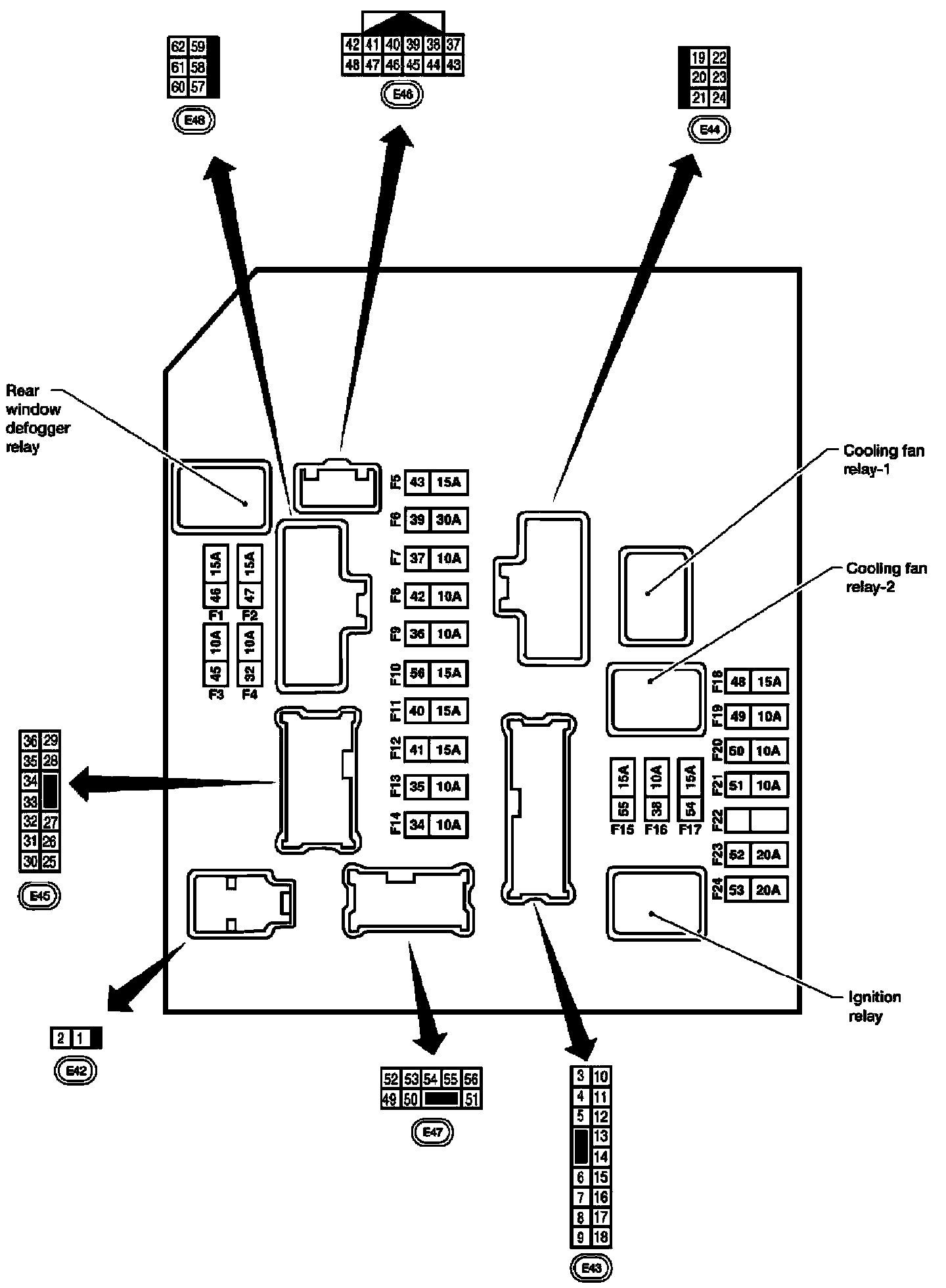

Terminal Layout - Type B

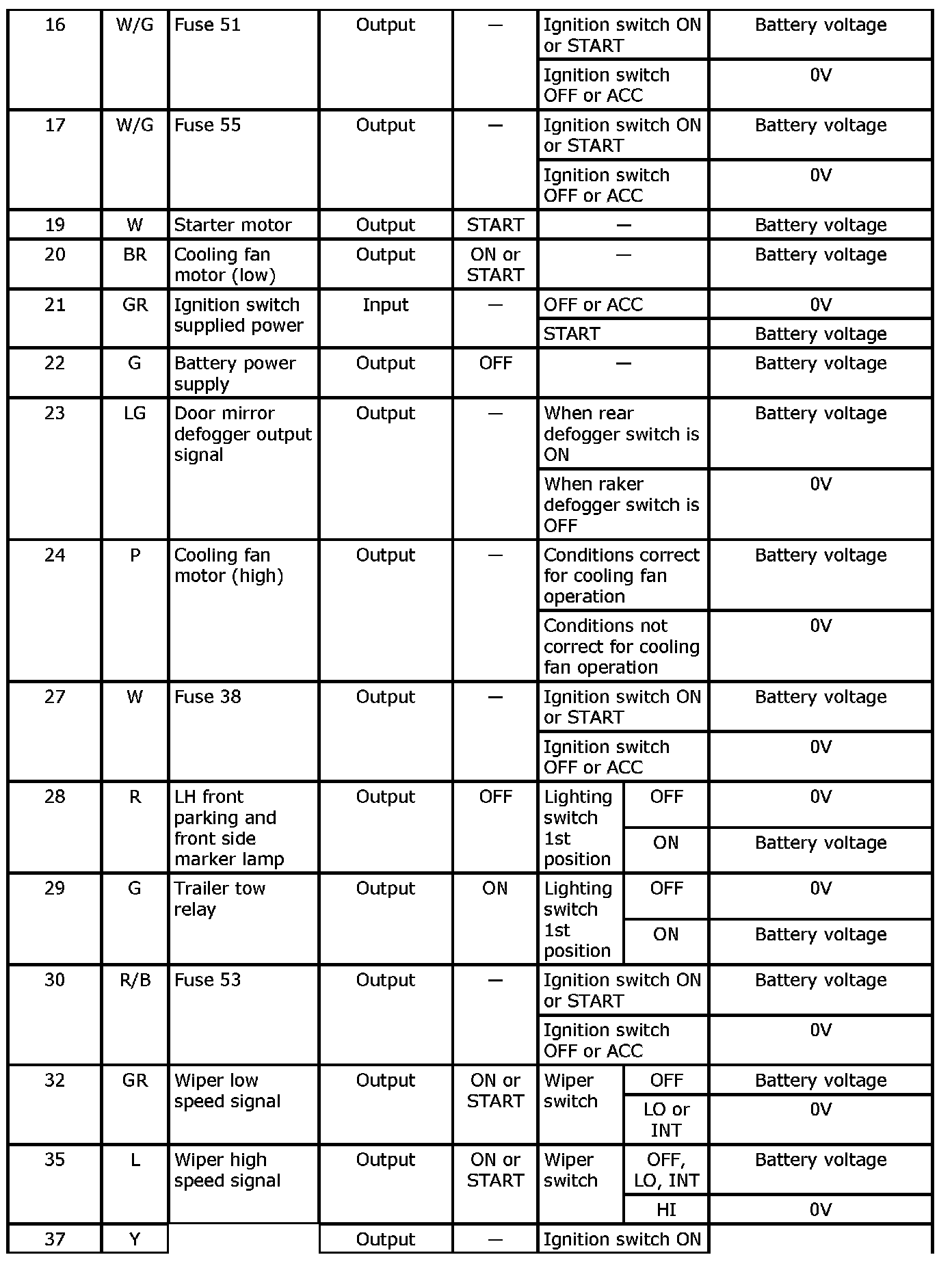

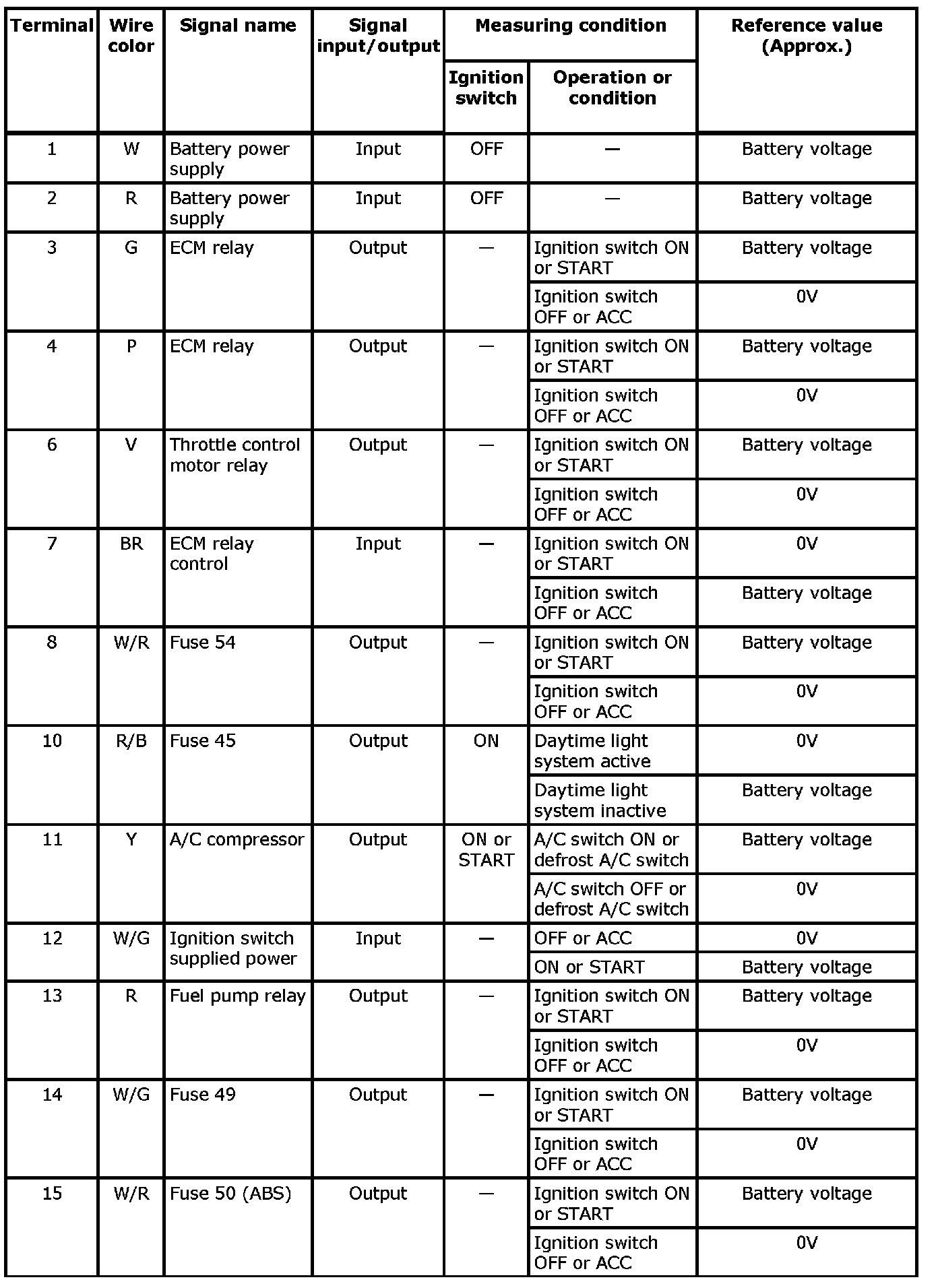

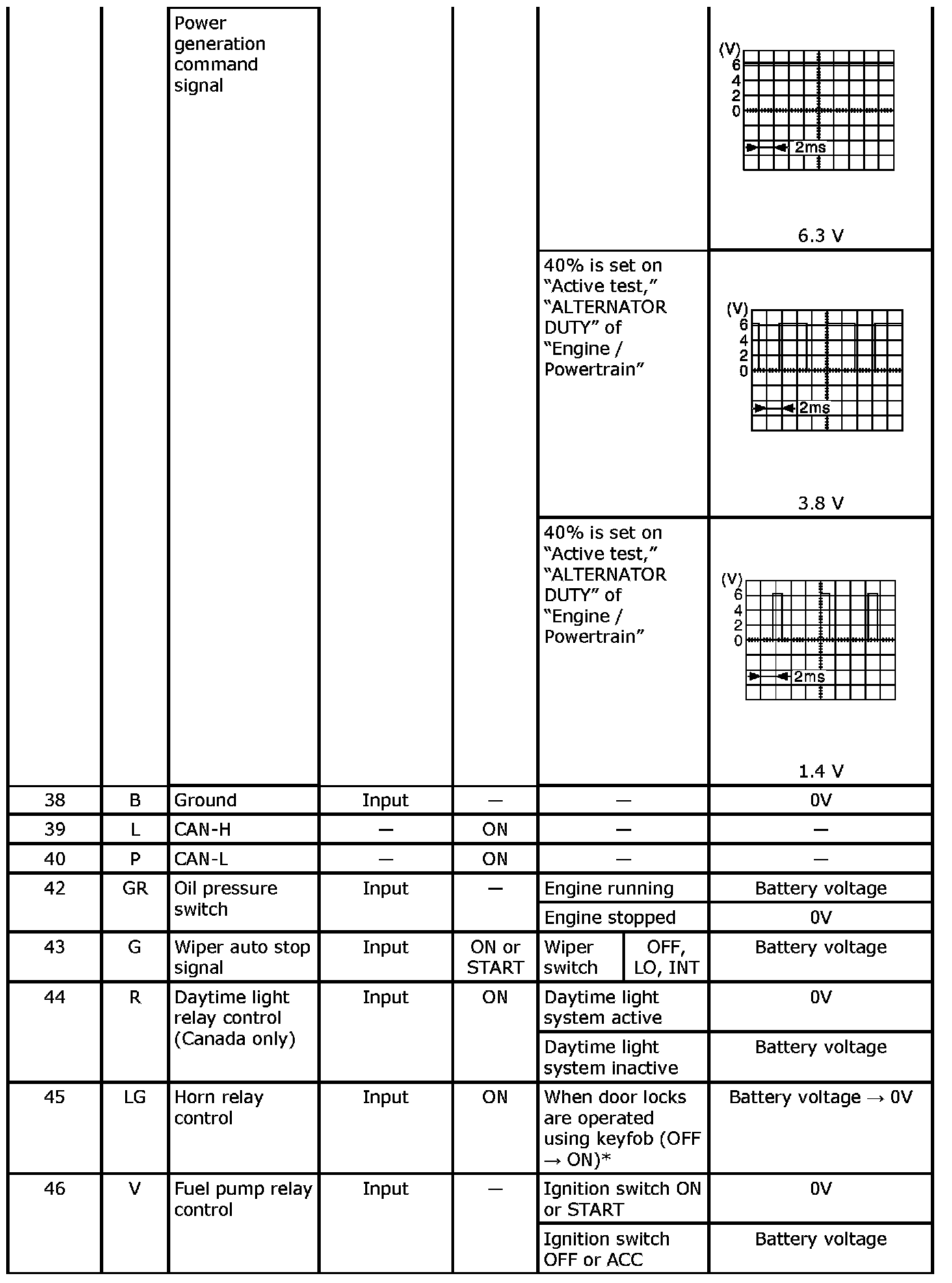

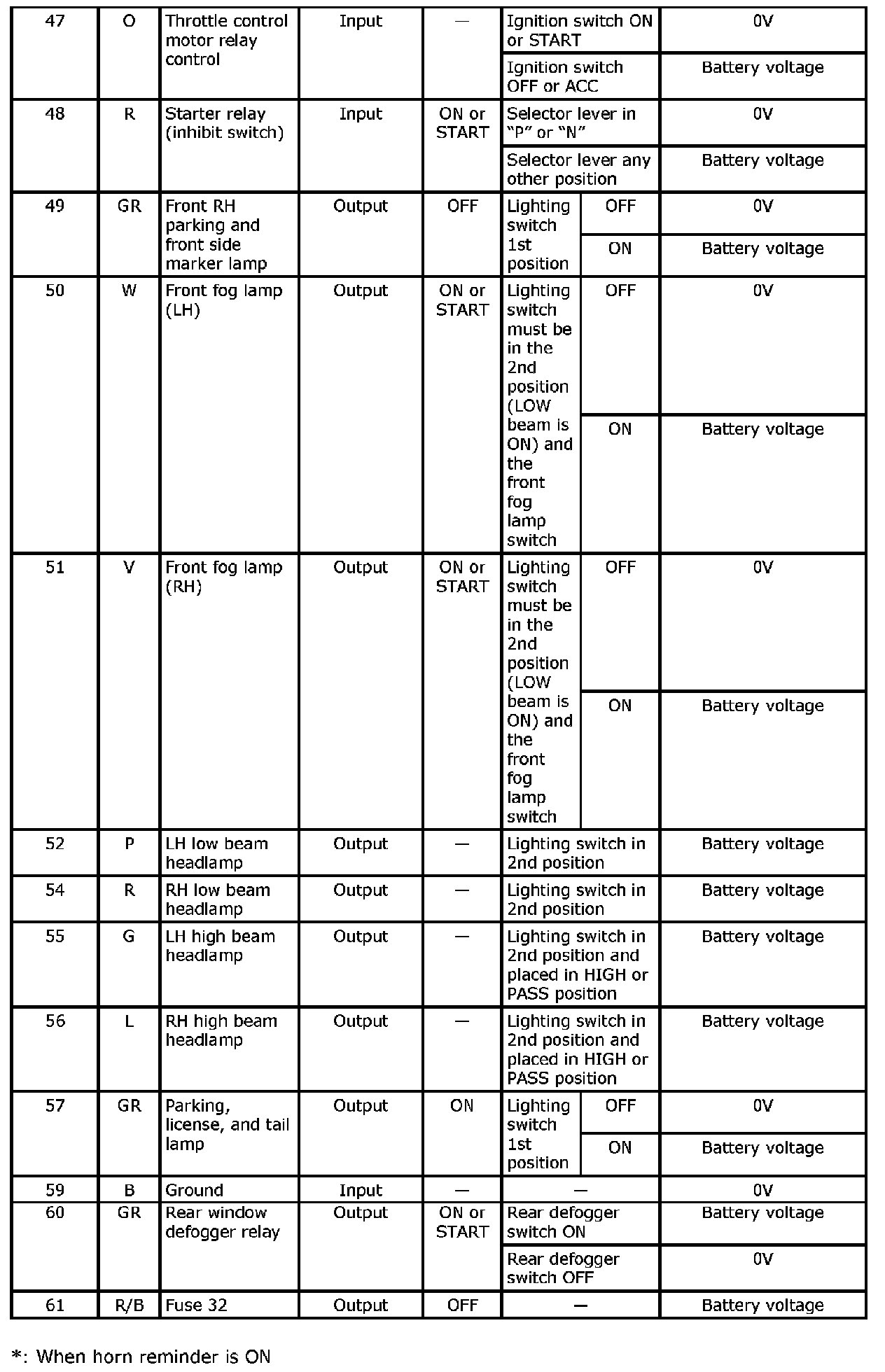

Physical Values
