ECU Diagnosis: BCM (Body Control Module)
ECU Diagnosis: BCM (Body Control Module)
Reference Value

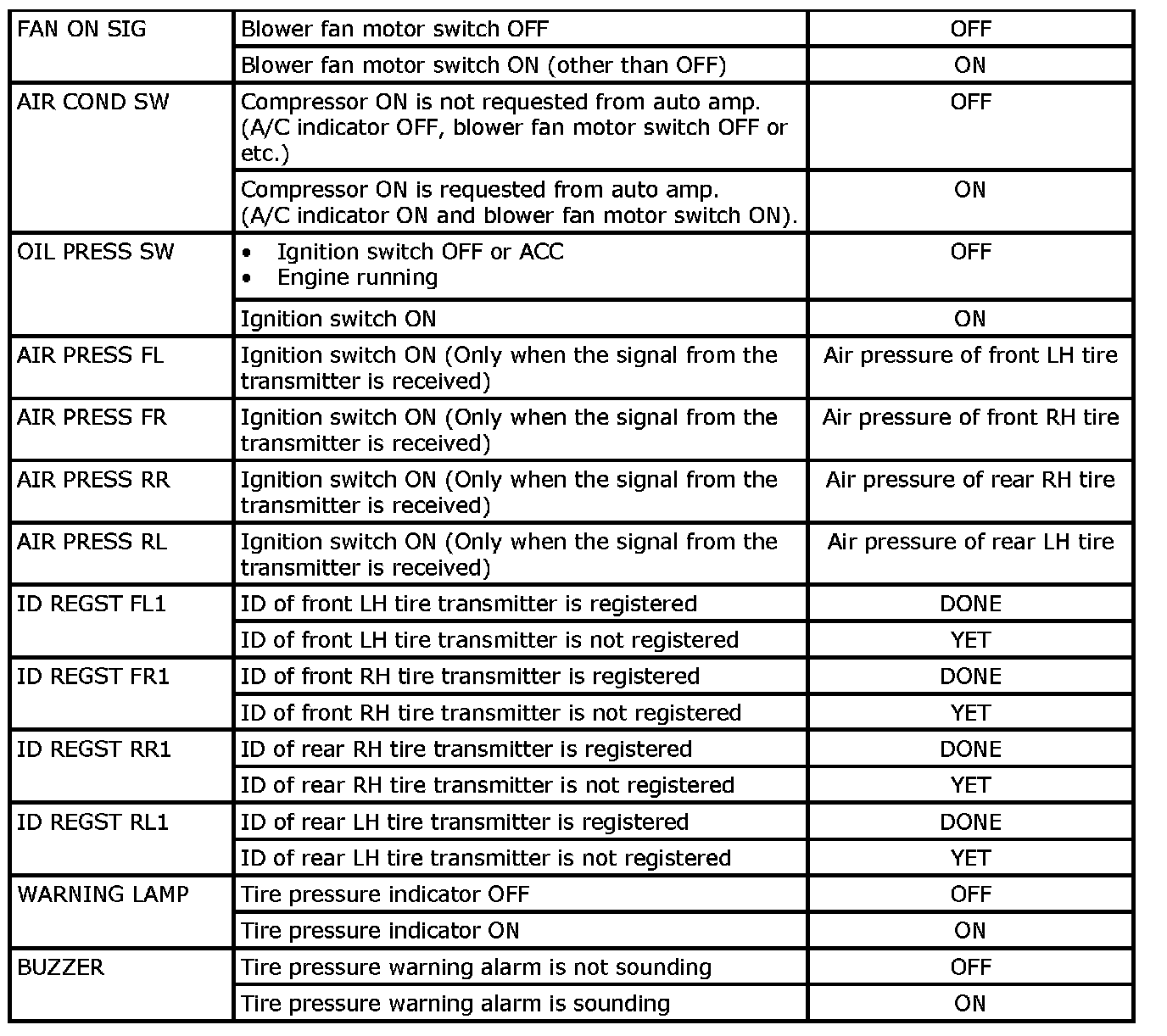

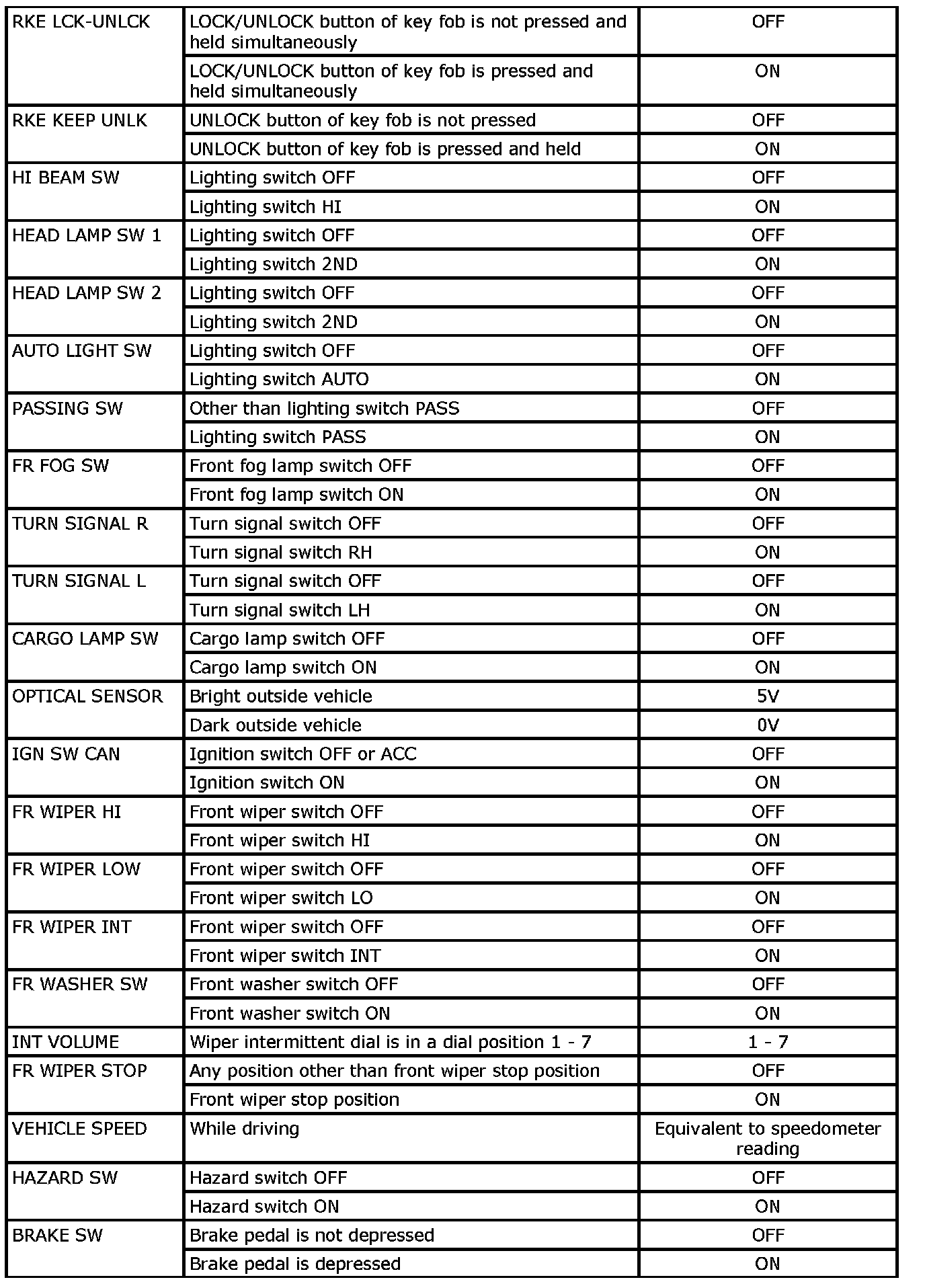

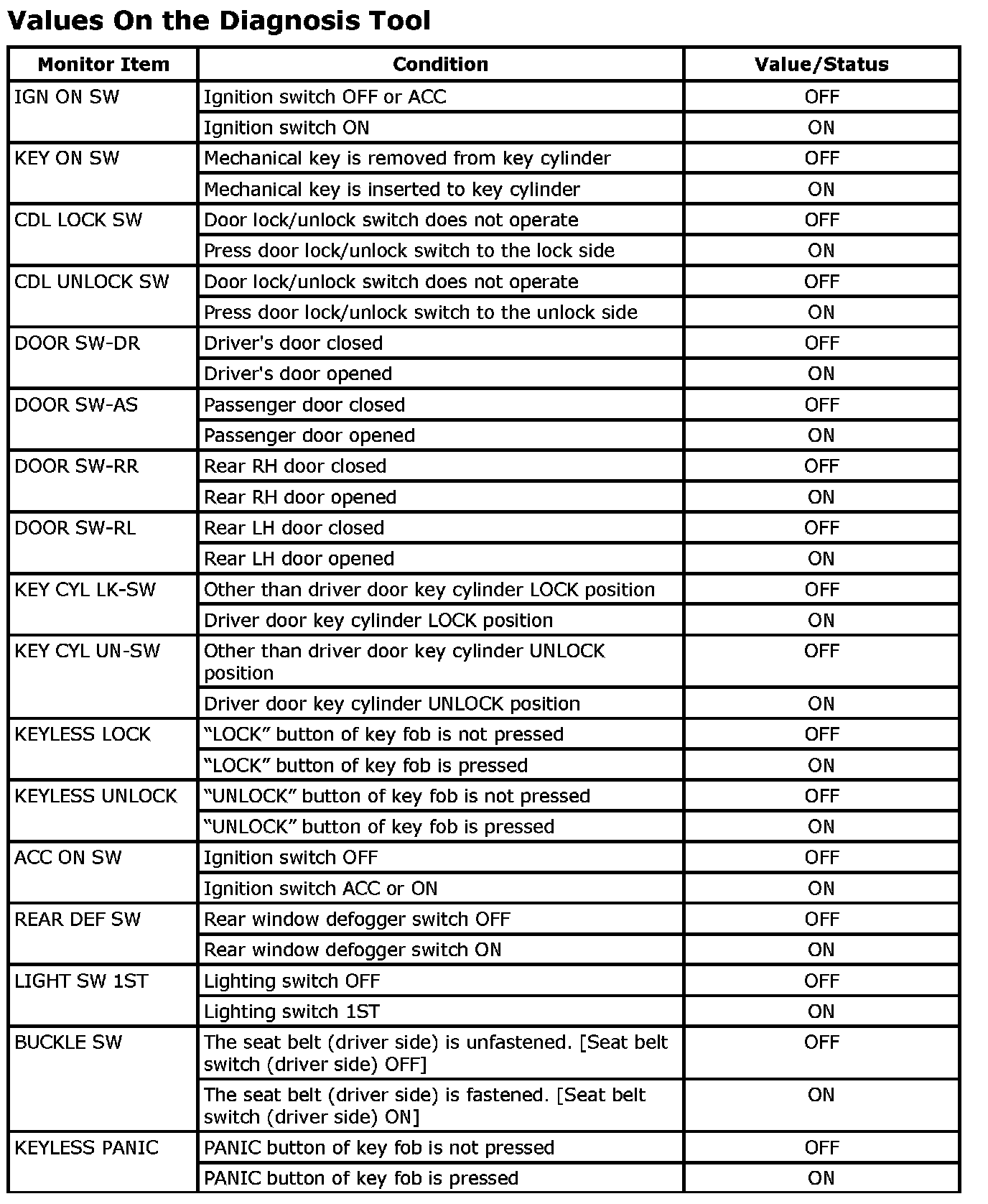

Values On the Diagnosis Tool

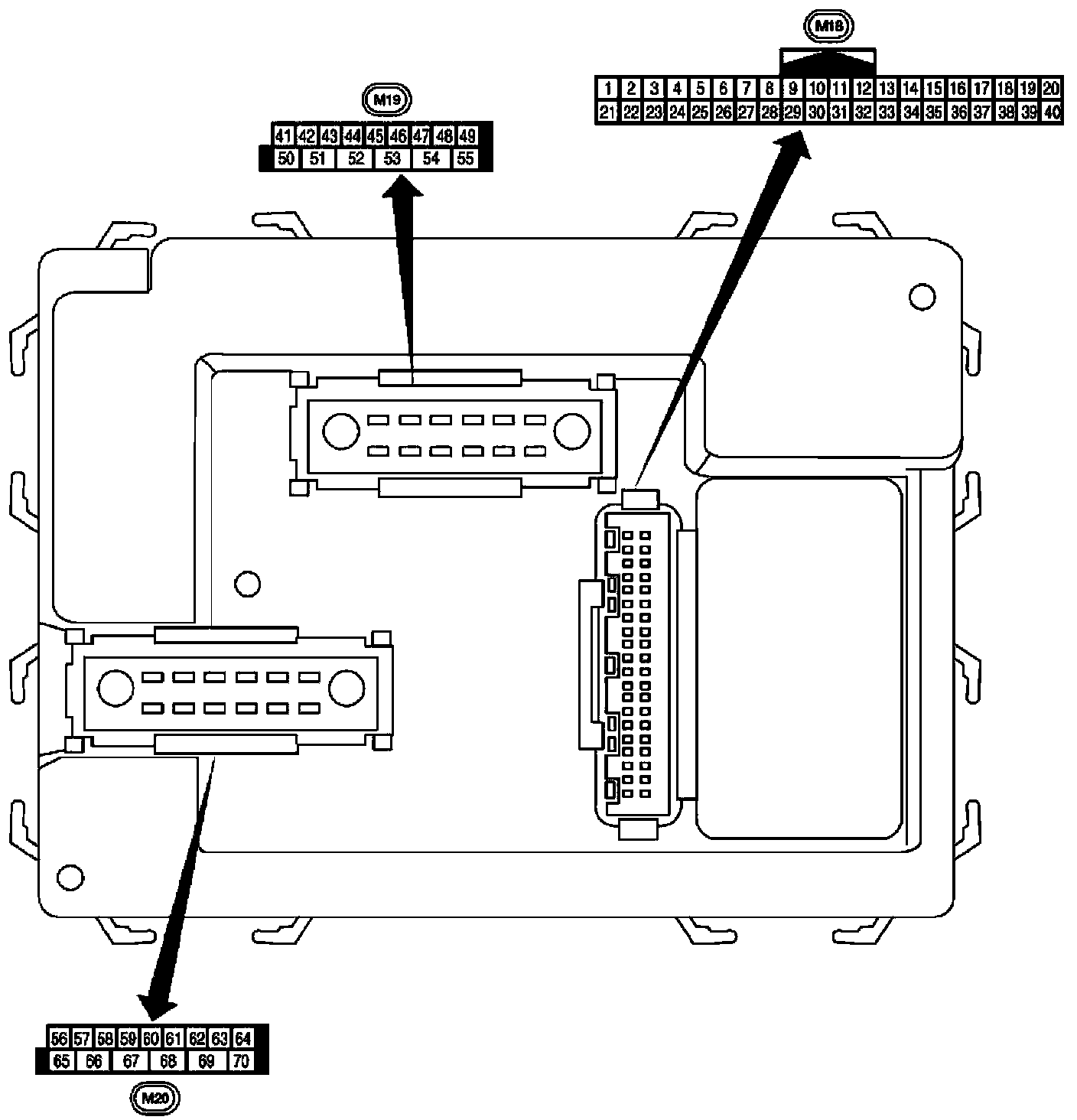

Terminal Layout

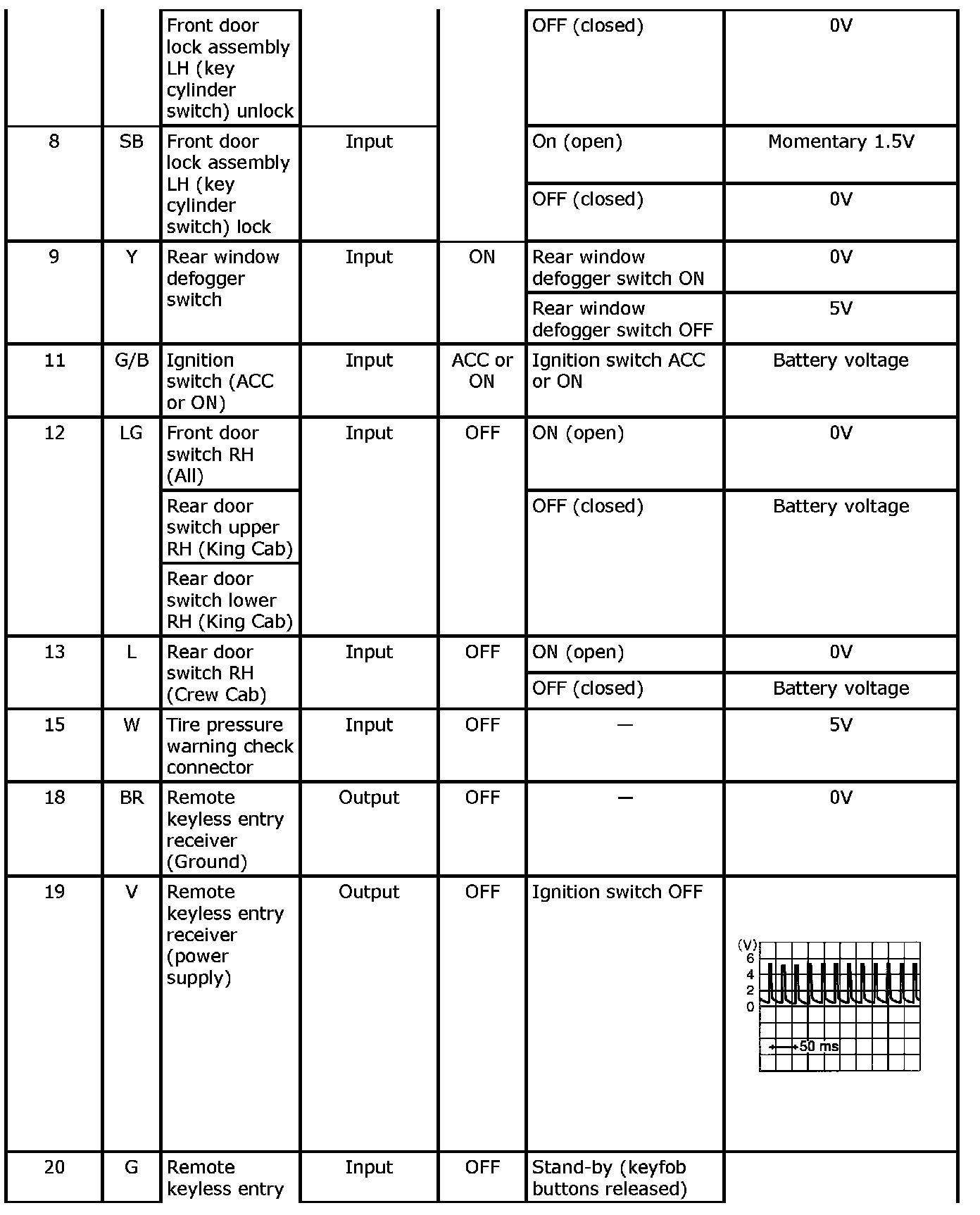

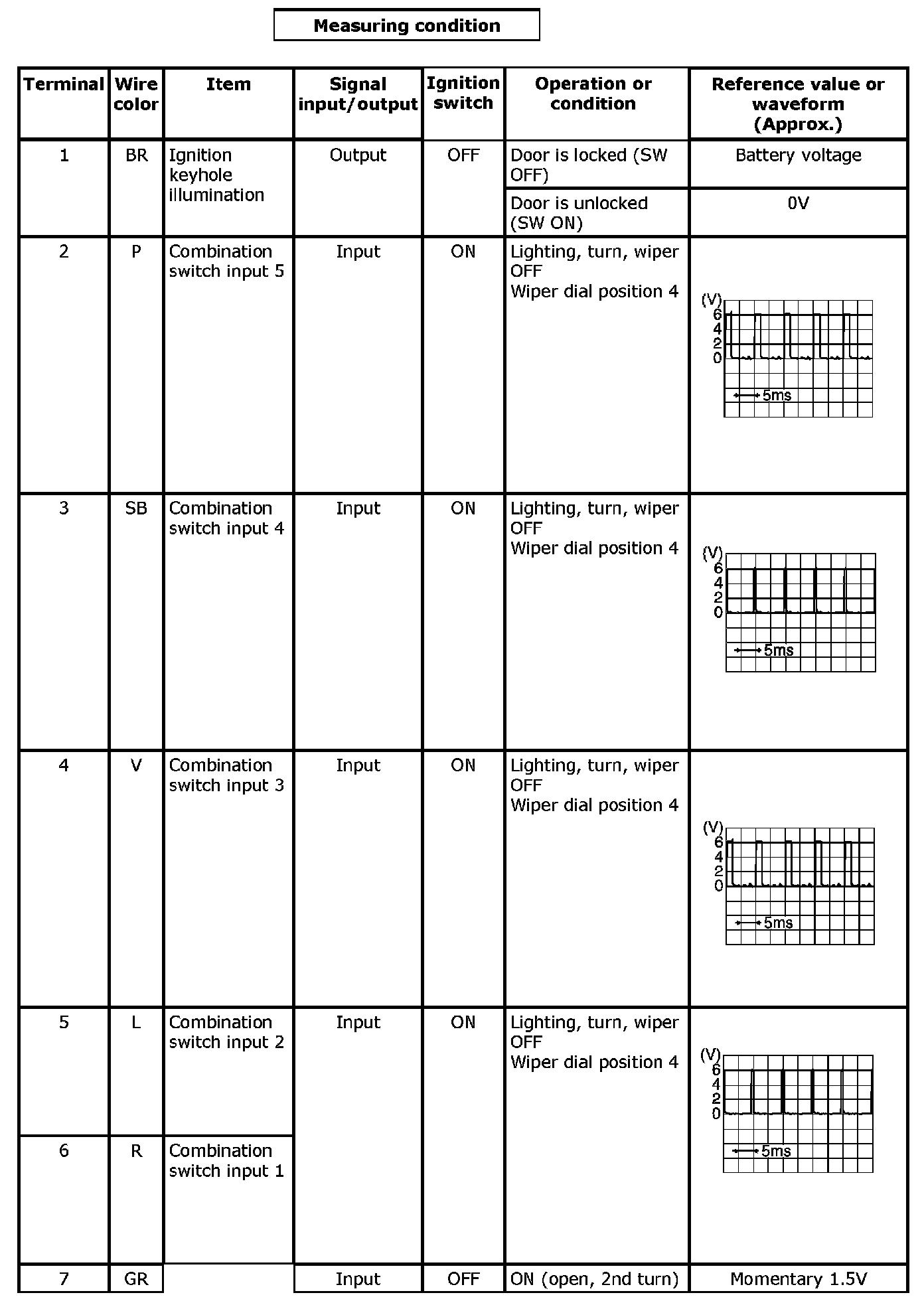

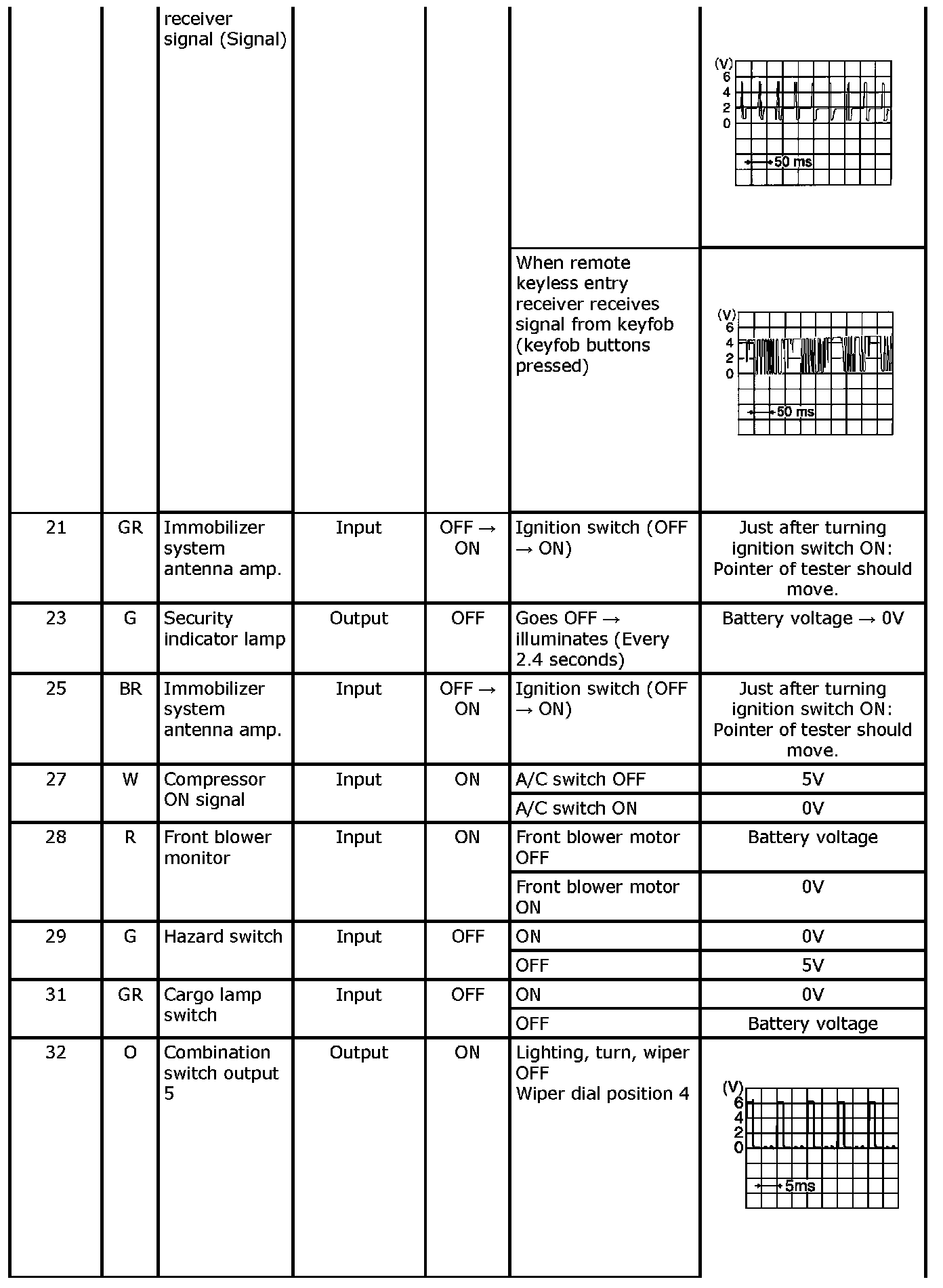

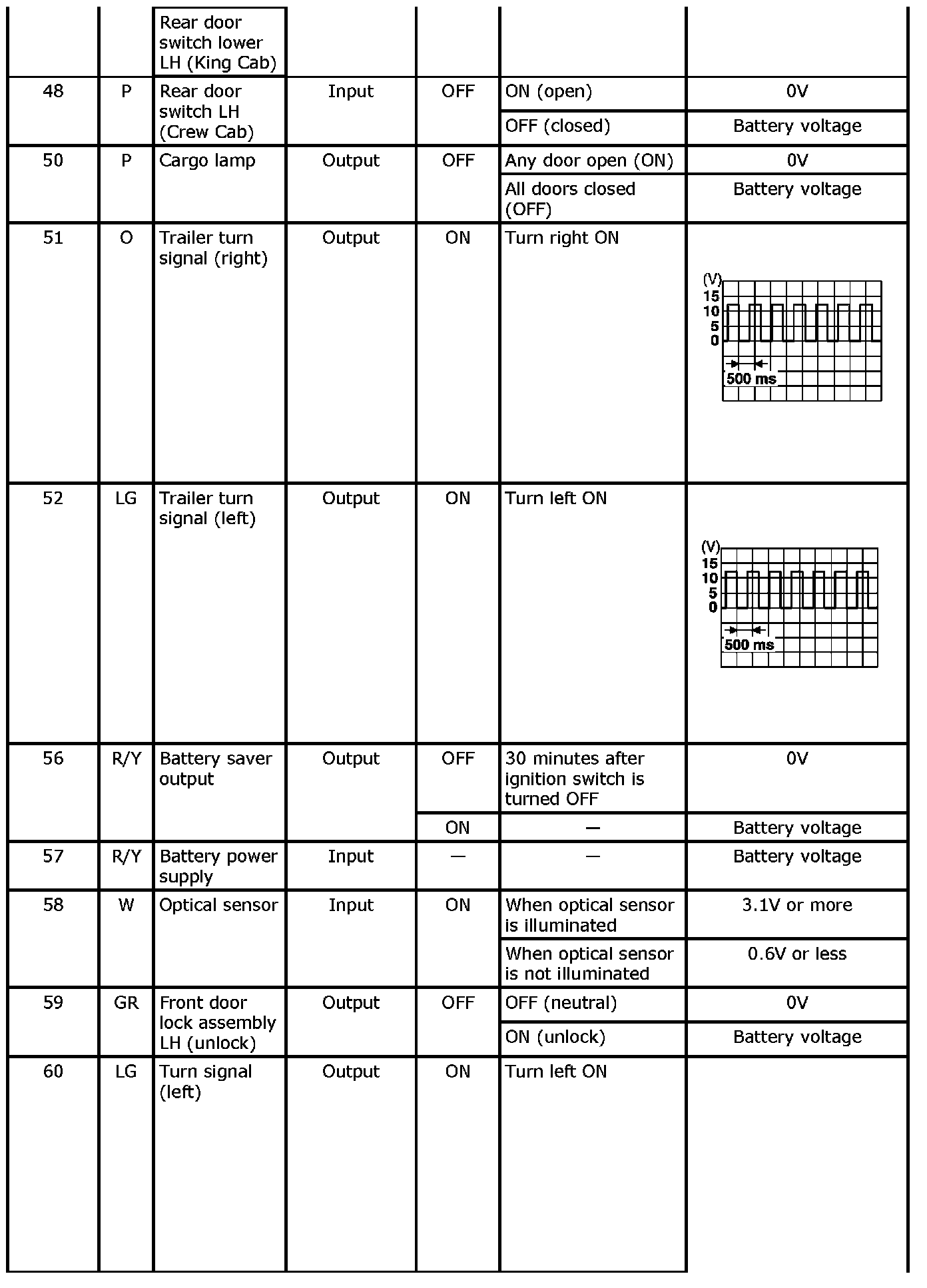

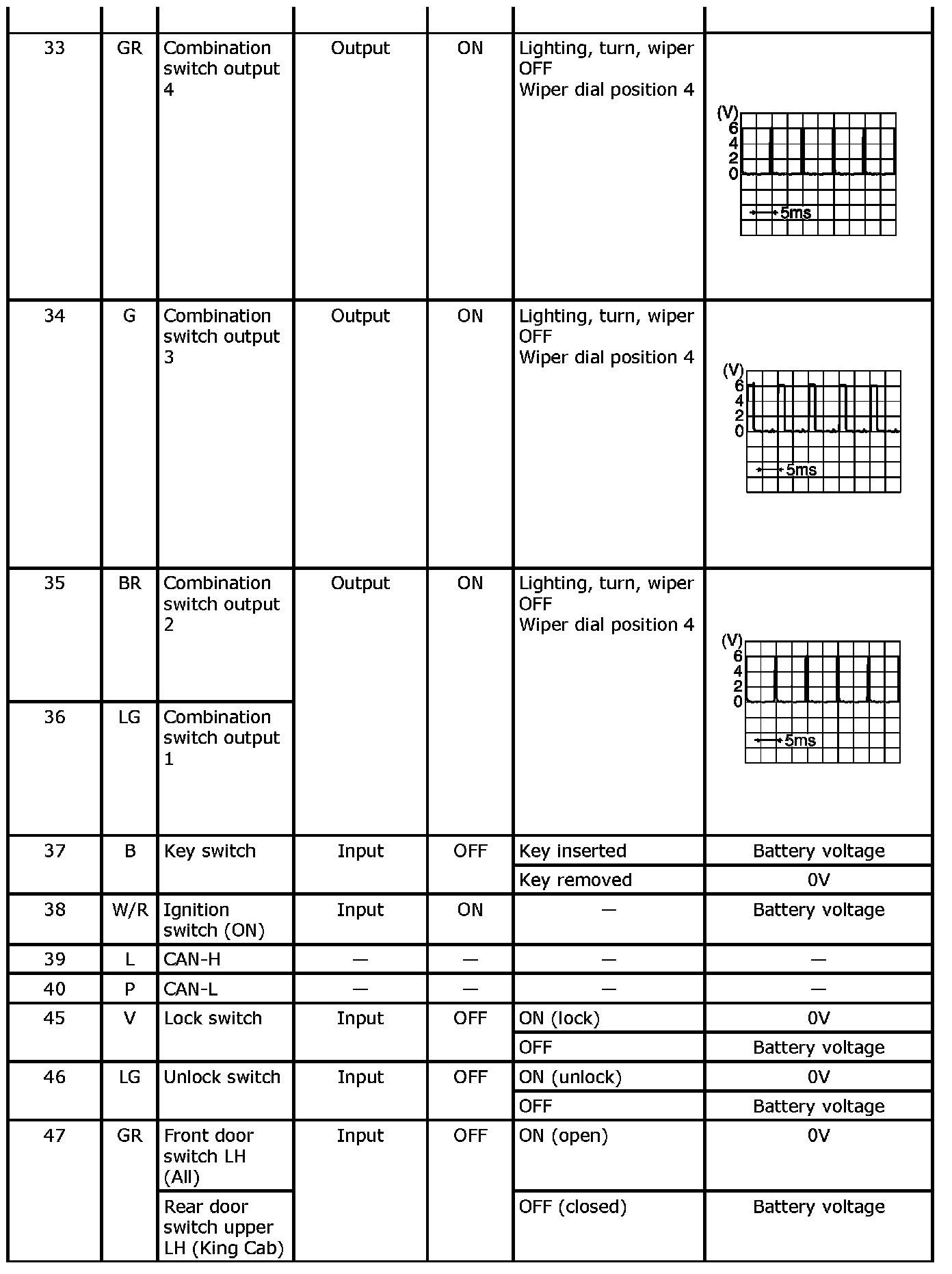

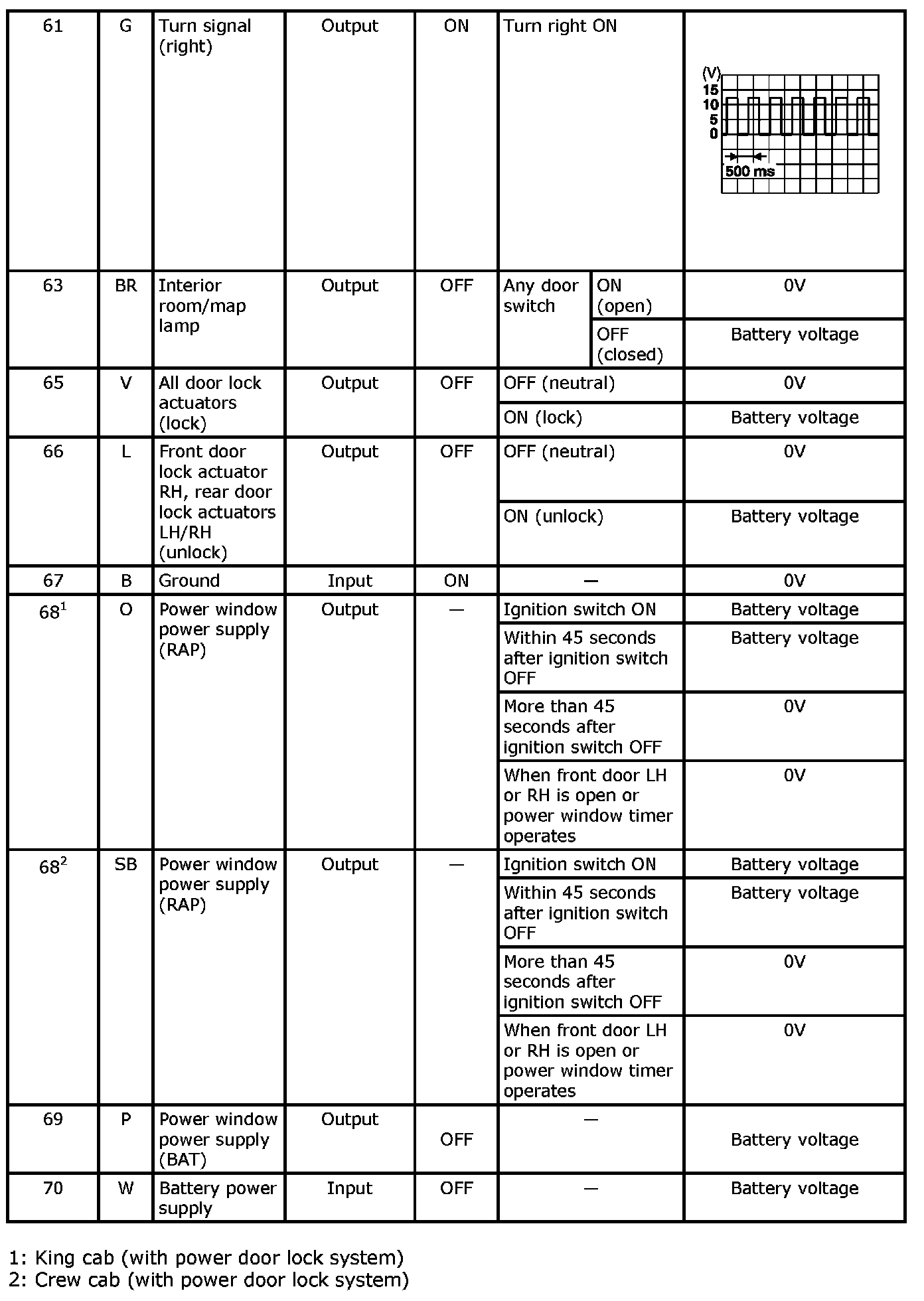

Physical Values
