Power Supply and Ground Circuit Check [BCM]
Power Supply And Ground Circuit Check [BCM]Regarding Wiring Diagram information, refer to [BCM: Wiring Diagram].

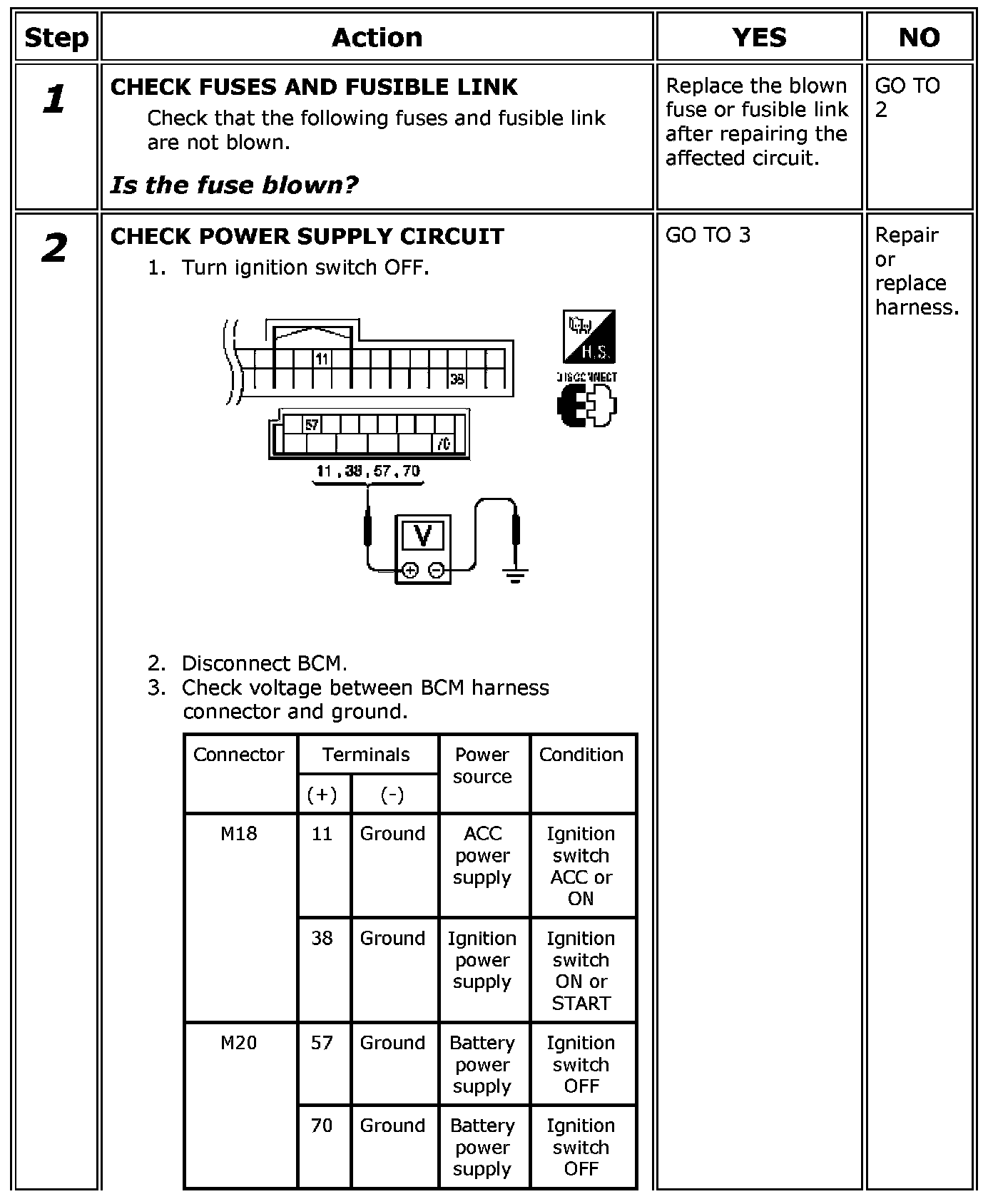

Step 1-2:
Step 2 (Continued)-3:
Regarding Wiring Diagram information, refer to [BCM: Wiring Diagram].
