Parking Lamp Circuit Check

Parking Lamp Circuit Check

Description
The IPDM E/R (intelligent power distribution module engine room) controls the tail lamp relay based on inputs from the BCM via the CAN communication lines. When the tail lamp relay is energized, power flows through fuse 37, located in the IPDM E/R. Power then flows to the front and rear combination lamps.

Component Function Check

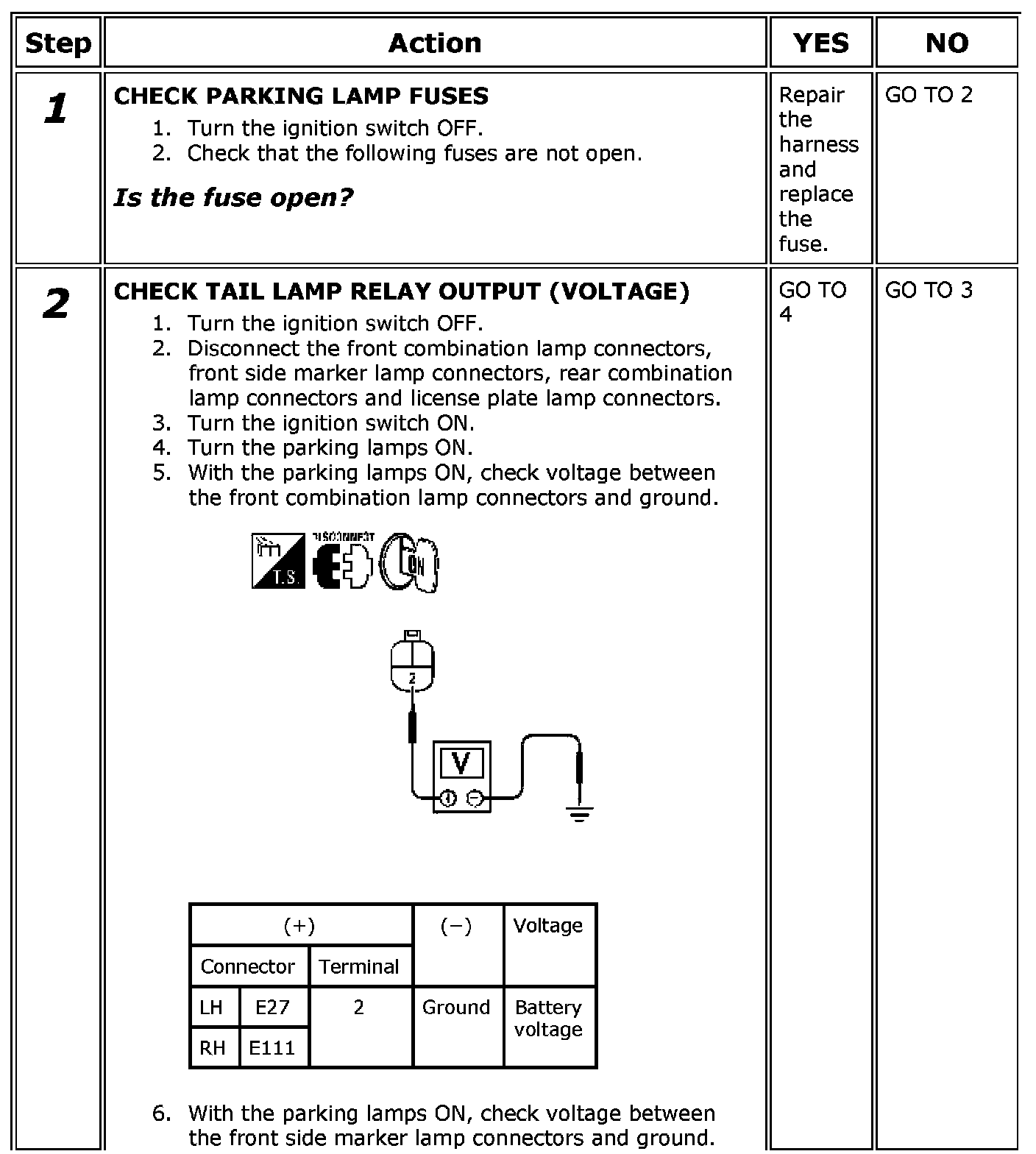

Step 1:

Diagnosis Procedure
Regarding Wiring Diagram information, refer to [Parking, License Plate and Tail Lamps System: Wiring Diagram].

Step 1-2:

Step 2 (Continued):

Step 2 (Continued)-3:

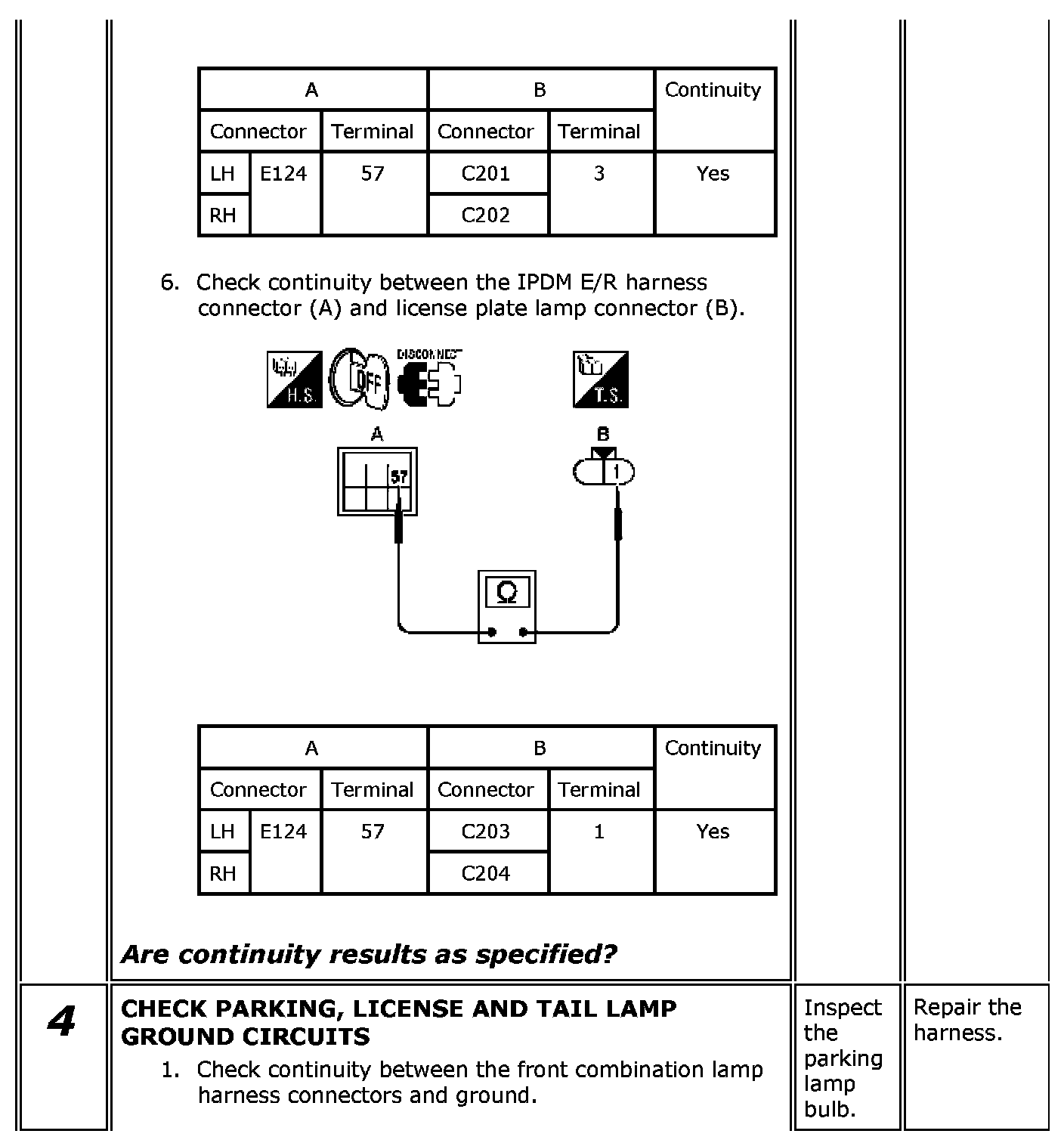

Step 3 (Continued):

Step 3 (Continued):

Step 3 (Continued)-4:

Step 4 (Continued):

Step 4 (Continued):
