Ignition Keyhole Illumination Control Circuit Check [With Power Door Locks]

Ignition Keyhole Illumination Control Circuit Check [with Power Door Locks]

Description
Controls the ignition keyhole illumination (ground side) to turn the ignition keyhole illumination ON and OFF.

Component Function Check

CAUTION: Before performing the diagnosis, check that the following is normal.
- Battery saver output/power supply circuit
- Ignition keyhole illumination bulb

Step 1:

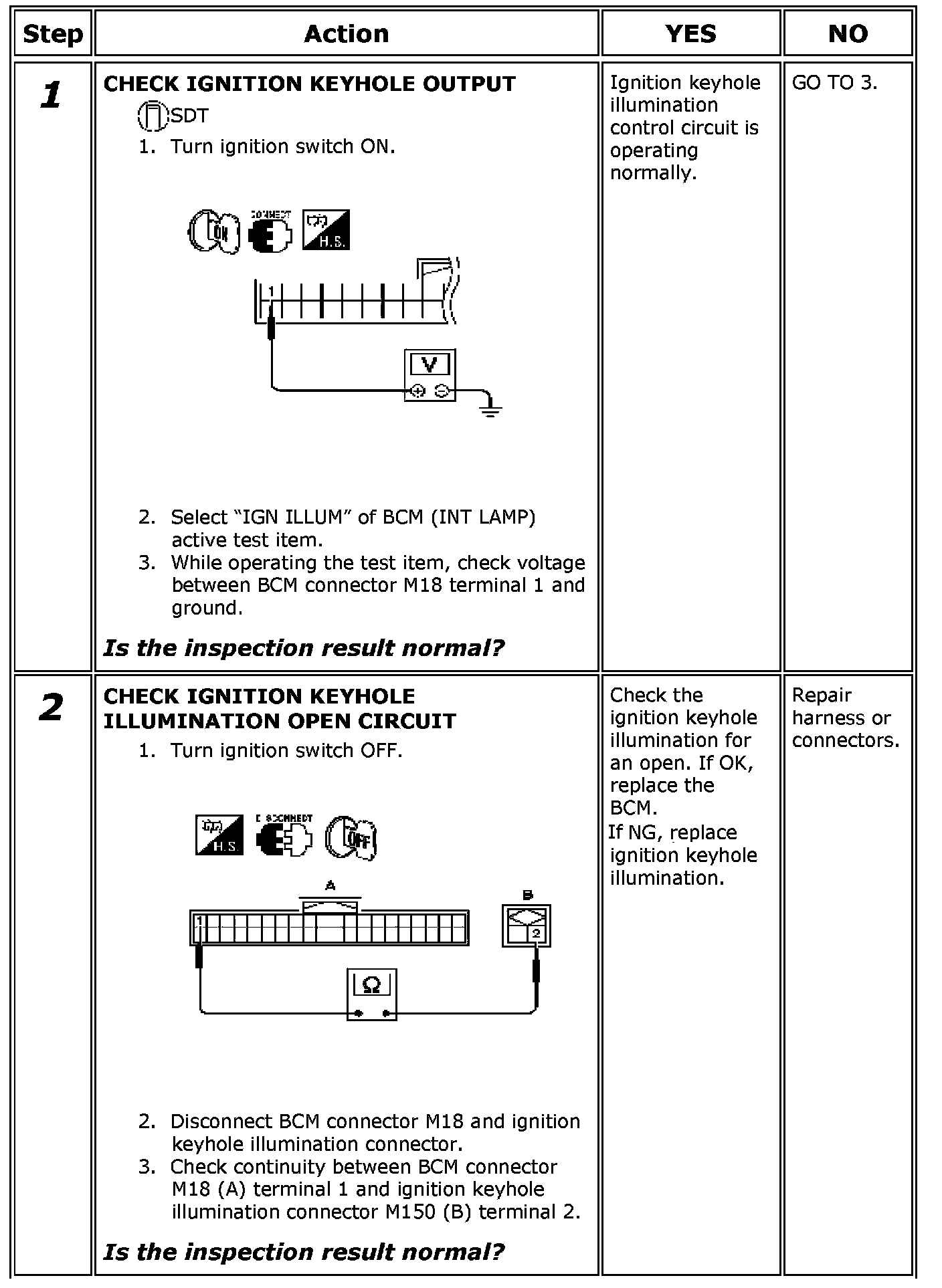

Diagnosis Procedure
Regarding Wiring Diagram information, refer to [Interior Room Lamp Control System: Wiring Diagram [with Power Door Locks]].

Step 1-2:

Step 3:
