Headlamp (HI) Circuit Check
Headlamp (HI) Circuit CheckDescription
The IPDM E/R (intelligent power distribution module engine room) controls the headlamp LH high and headlamp RH high relays based on inputs from the BCM via the CAN communication lines. When the headlamp LH high and headlamp RH high relays are energized, power flows through fuses 34 and 35, located in the IPDM E/R. Power then flows to the front combination lamps to the headlamp high beam.
Component Function Check

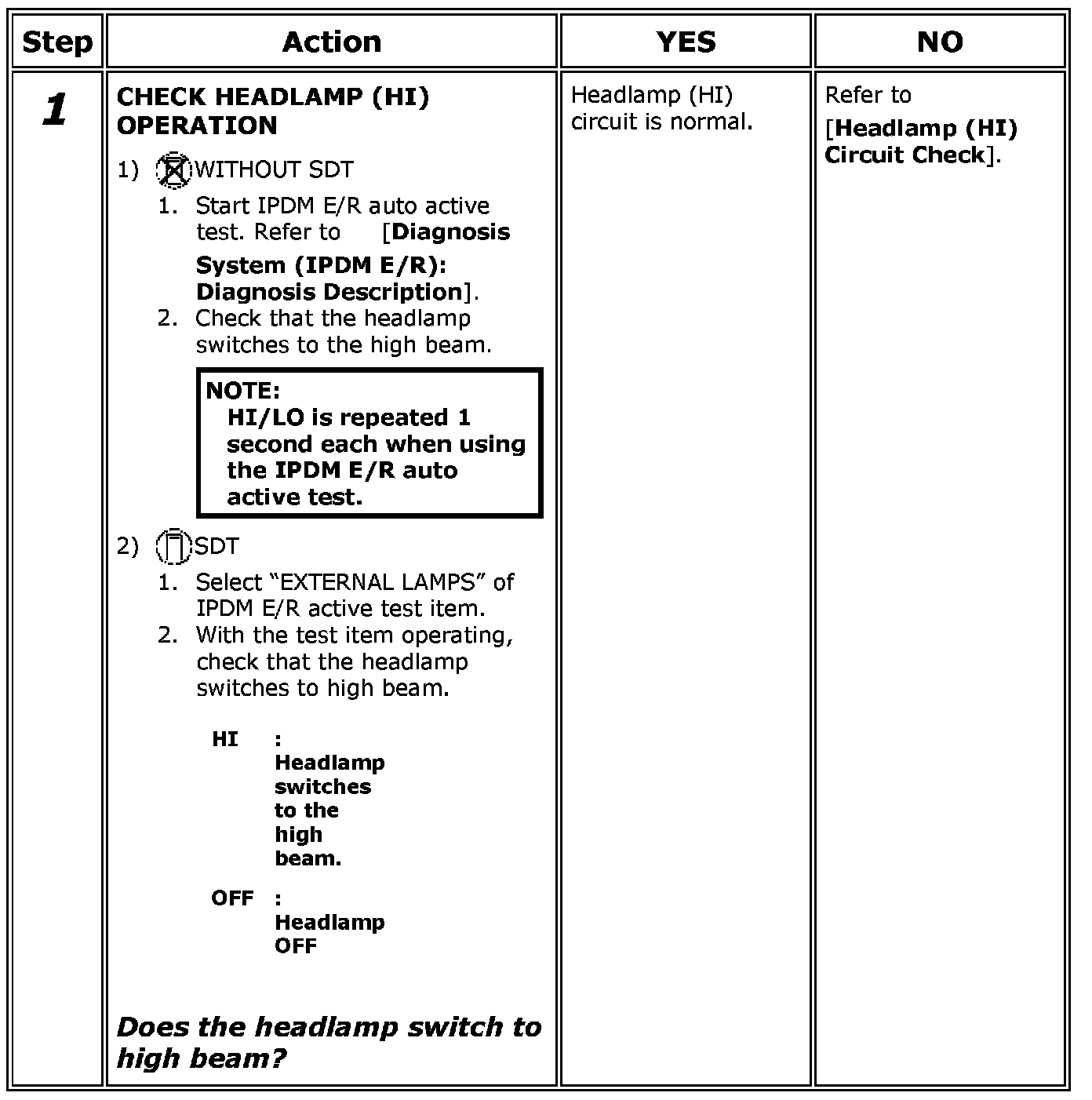

Step 1:
Diagnosis Procedure
Regarding Wiring Diagram information, refer to [Headlamp: Wiring Diagram] (without DTRL) or [Daytime Light System: Wiring Diagram] (with DTRL).

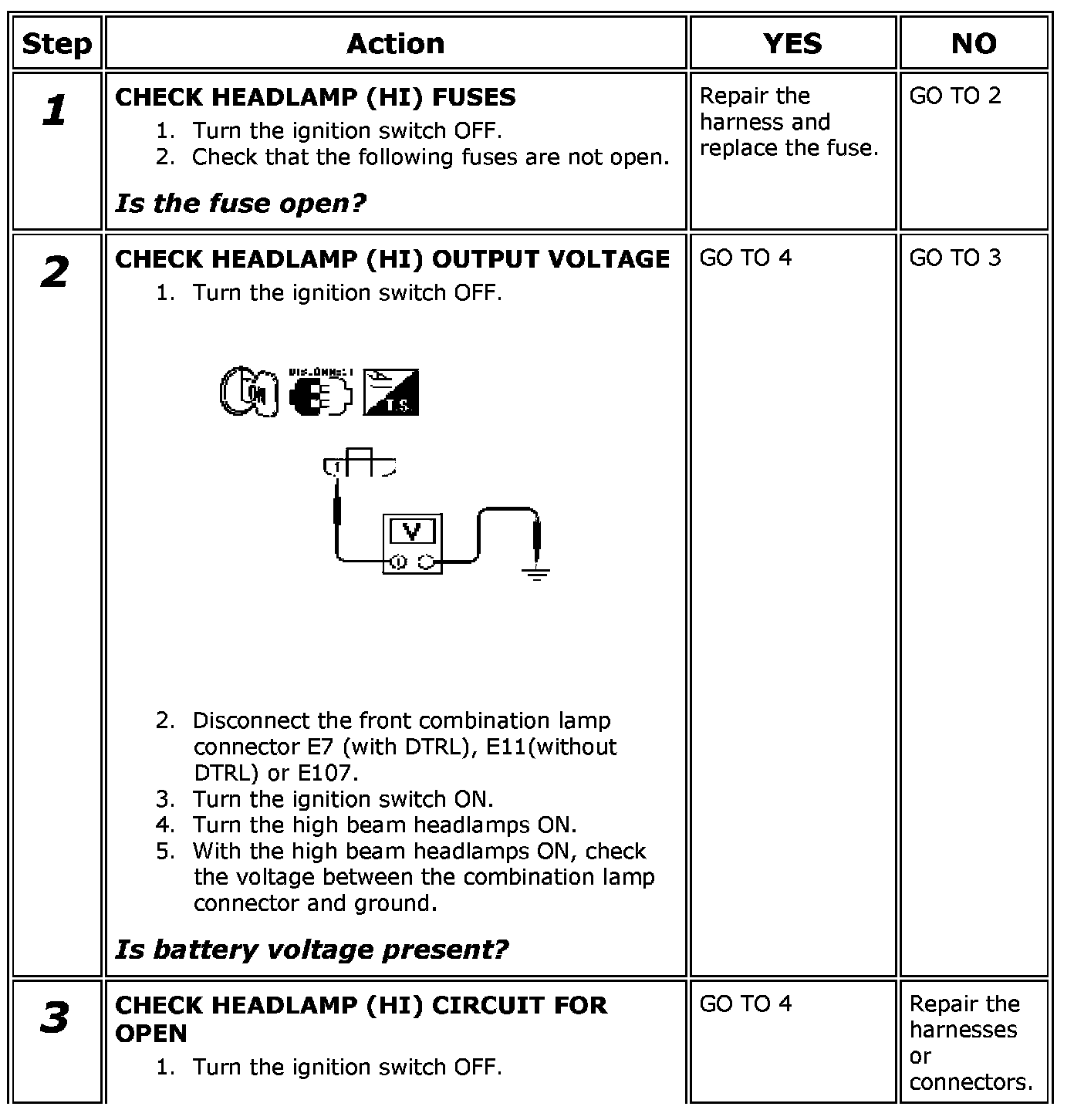

Step 1-3:
Step 3 (Continued)-4:
