Cargo Lamp Control Circuit Check [With Power Door Locks]

Cargo Lamp Control Circuit Check [with Power Door Locks]

Description
Controls the cargo lamp relay coil (ground side) to turn the cargo lamp ON and OFF.

Diagnosis Procedure
Regarding Wiring Diagram information, refer to [Interior Room Lamp Control System: Wiring Diagram [with Power Door Locks]].

CAUTION: Before performing the diagnosis, check that the following is normal.
- Fuse
- Cargo lamp bulb

Step 1:

Step 1 (Continued)-3:

Step 3 (Continued)-4:

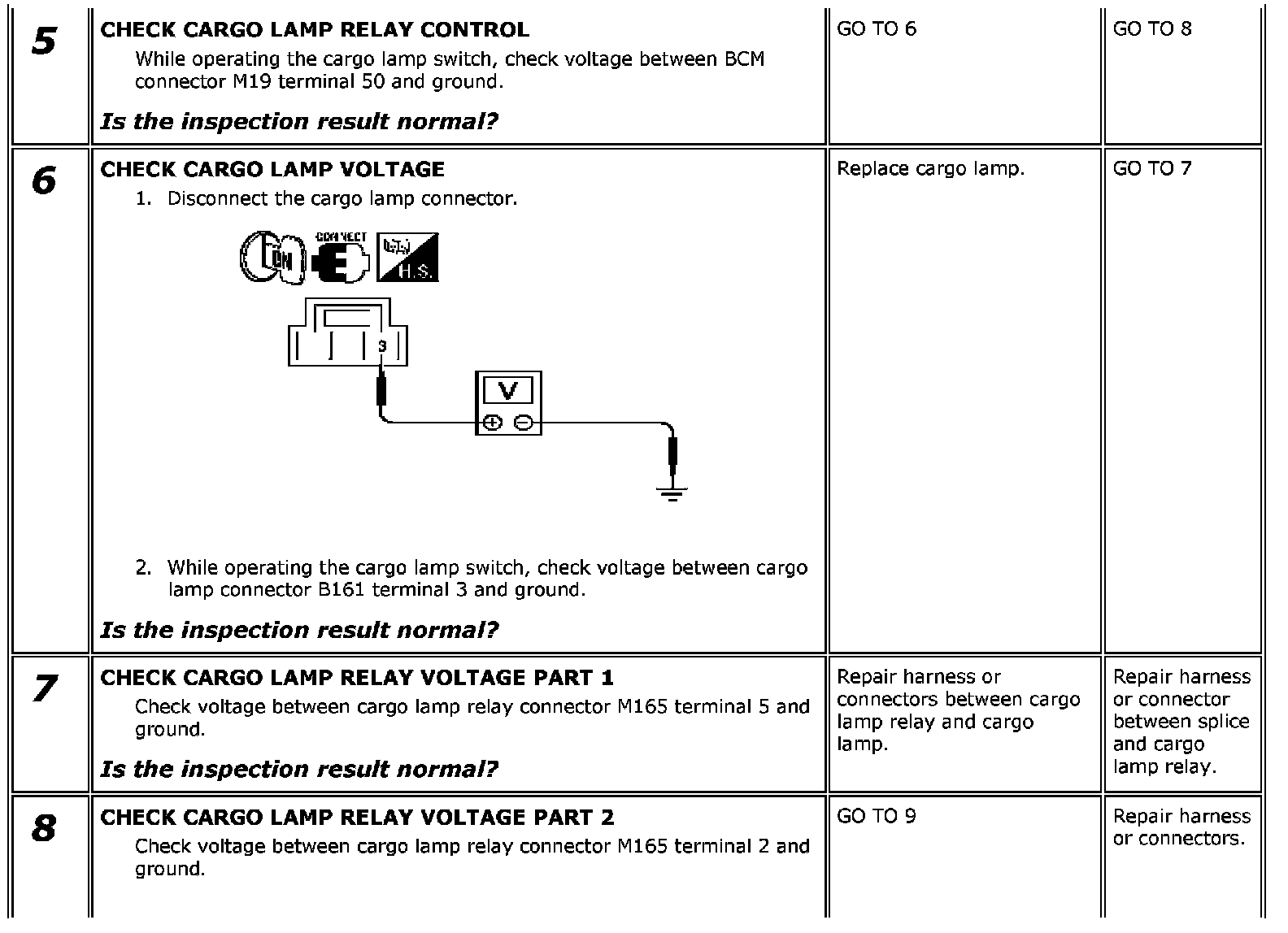

Step 5-8:

Step 8 (Continued)-9:

Component Inspection

Cargo Lamp Switch

Step 1:

Cargo Lamp Relay

Step 1:
