Hazard Warning Switch: Service and Repair

Hazard Switch: Removal and Installation

Removal

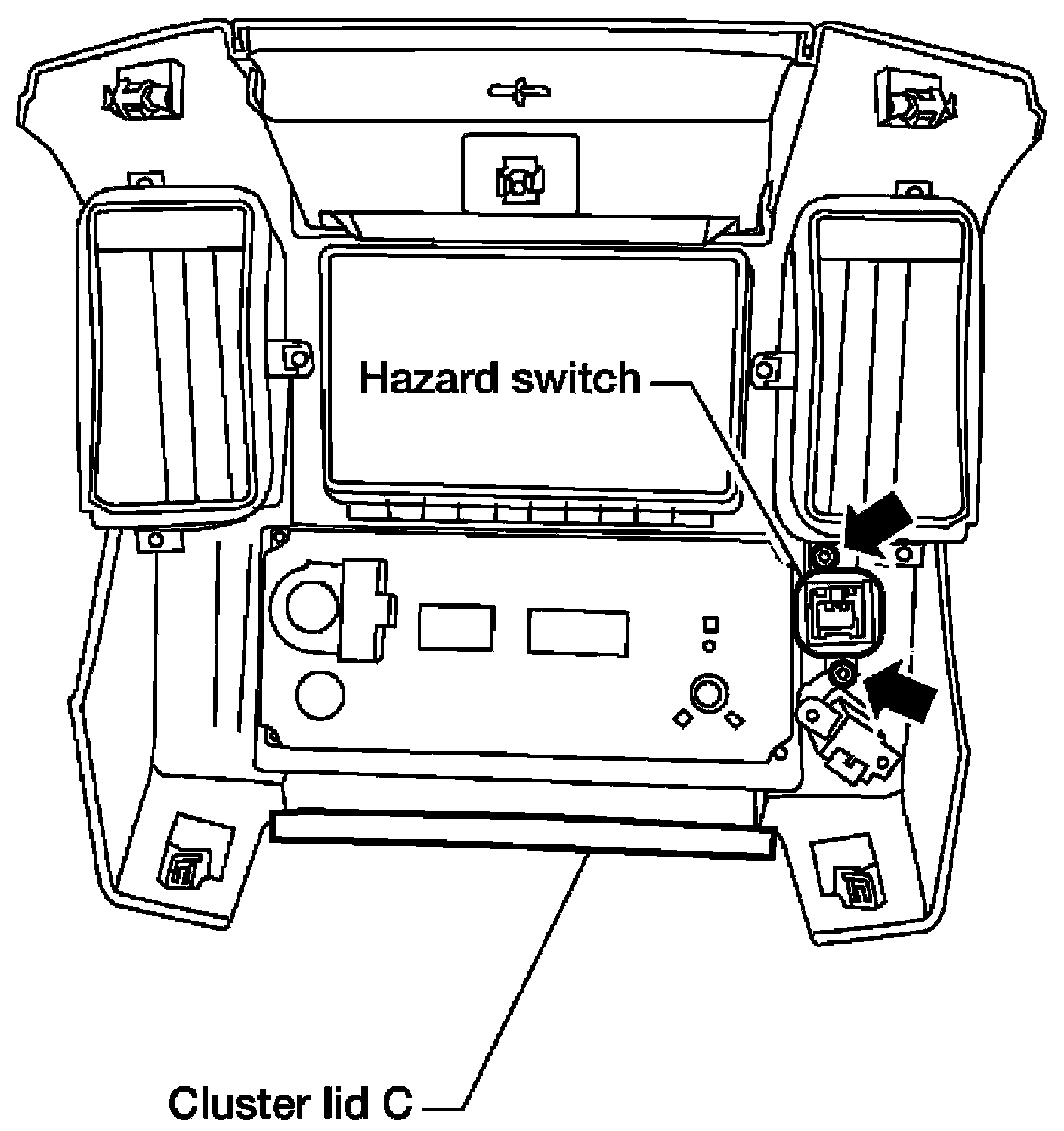

1. Remove cluster lid C. Refer to [Instrument Panel Assembly: Exploded View].
2. Disconnect the hazard switch connector.
3. Remove the screws and remove the hazard switch.






Installation
Installation is in the reverse order of removal.
