Stop Lamp: Removal and Installation

Stop Lamp: Removal and Installation

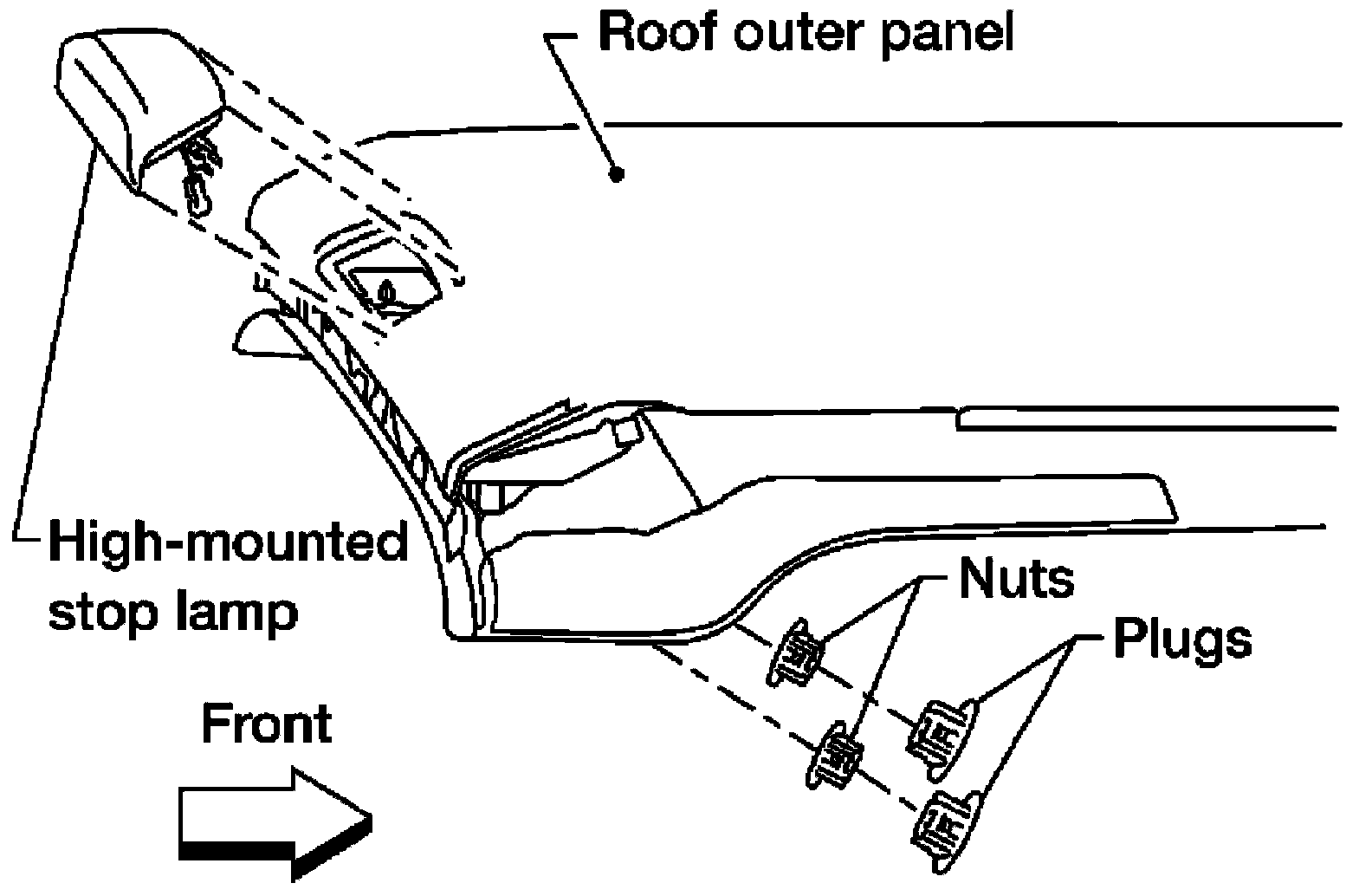

High-Mounted Stop Lamp

Removal
1. Remove plugs on headlining.






2. Remove the nuts and remove high-mounted stop lamp from outside of roof outer panel.
3. Rotate the bulb sockets counterclockwise and remove the high-mounted stop lamp assembly.

Installation
Installation is in the reverse order of removal.

High-mounted stop lamp nuts : 3.38 N.m (0.34 kg-m, 30 in-lb)
