Stop Lamp: Bulb Replacement

Stop Lamp: Bulb Replacement

High-Mounted Stop Lamp

Removal
1. Remove high-mounted stop lamp.

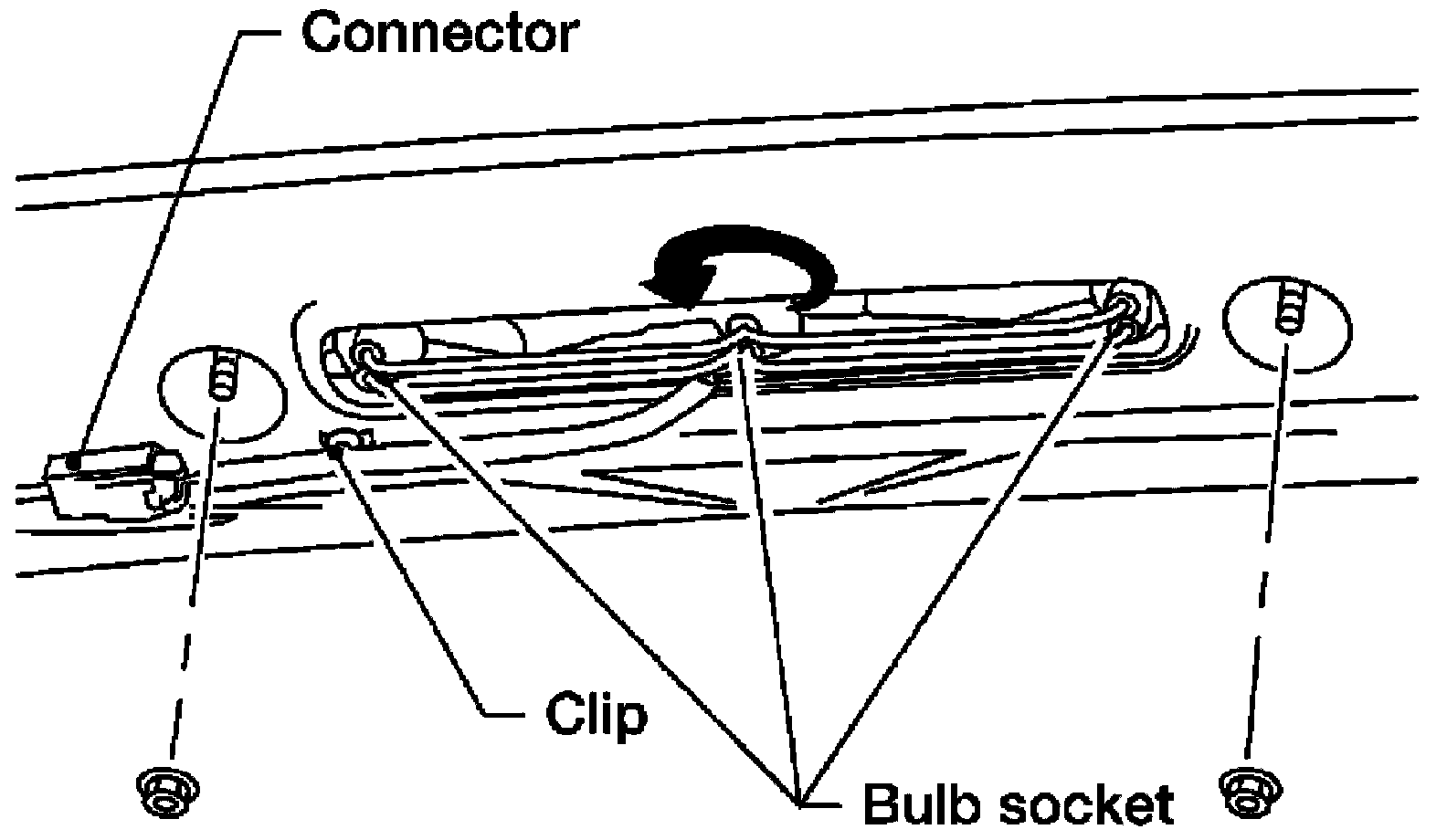

2. Rotate the center bulb socket counterclockwise to release from high-mounted stop lamp assembly.






3. Pull bulb straight out from bulb socket.

Installation
Installation is in the reverse order of removal.
