Backup Lamp: Service and Repair

Rear Combination Lamp: Removal and Installation

Removal

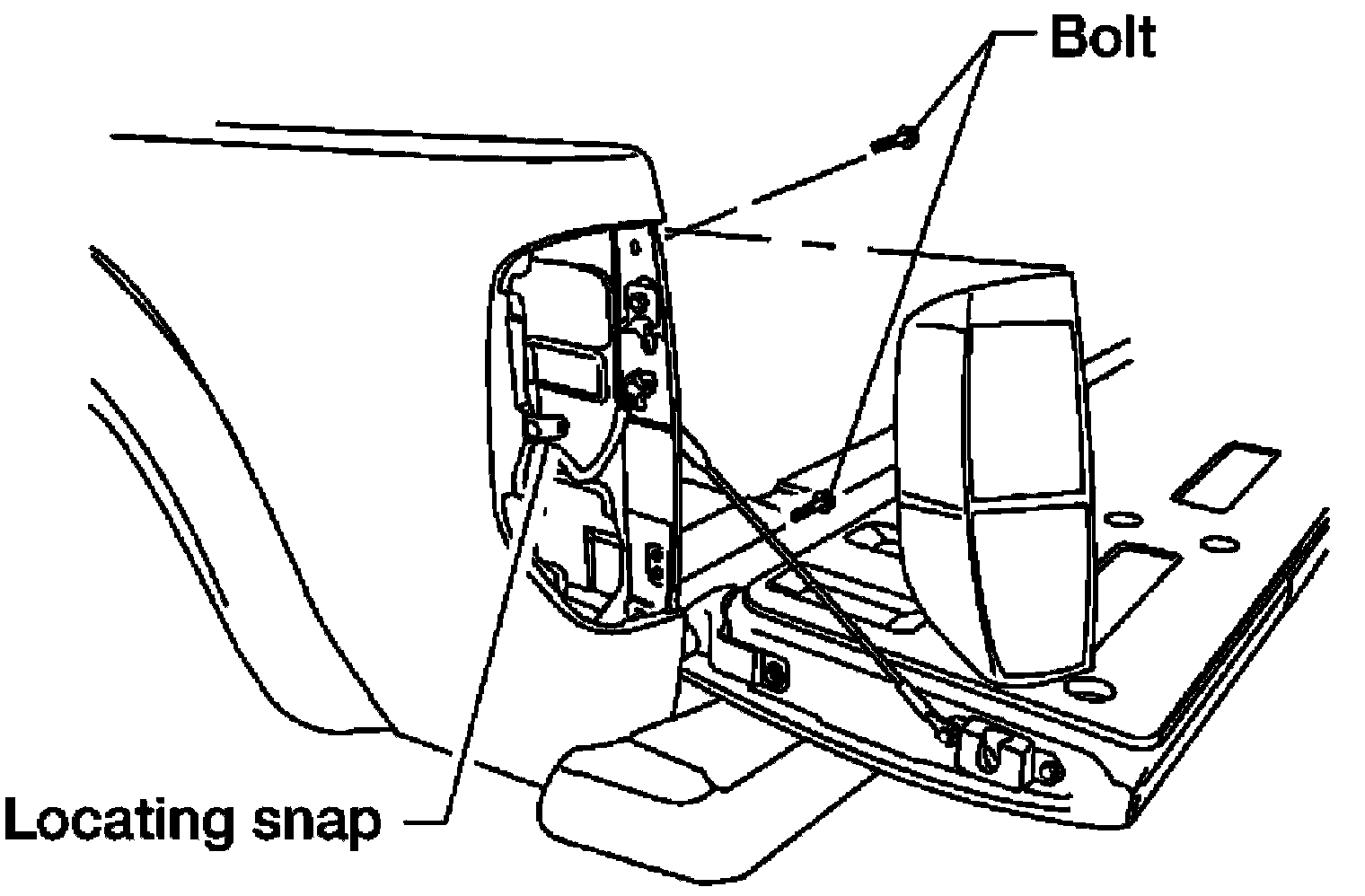

1. Open tailgate and remove rear combination lamp bolts.






2. Pull combination lamp housing rearward to release locating snap.
3. Rotate each bulb socket counterclockwise to unlock it from lamp housing and remove from vehicle.

Installation
Installation is in the reverse order of removal.

NOTE: During installation, align locating snap on body prior to installing bolts.

Rear combination lamp bolts : 2.4 N.m (0.24 kg-m, 21 in-lb)
