SDT Function (Meter / M&A)

SDT Function (Meter / M&A)

SDT can display each diagnostic item using the diagnostic test modes shown following.






DTC Check

Display Item List
Refer to [DTC Index: Combination Meter]. DTC Index: Combination Meter

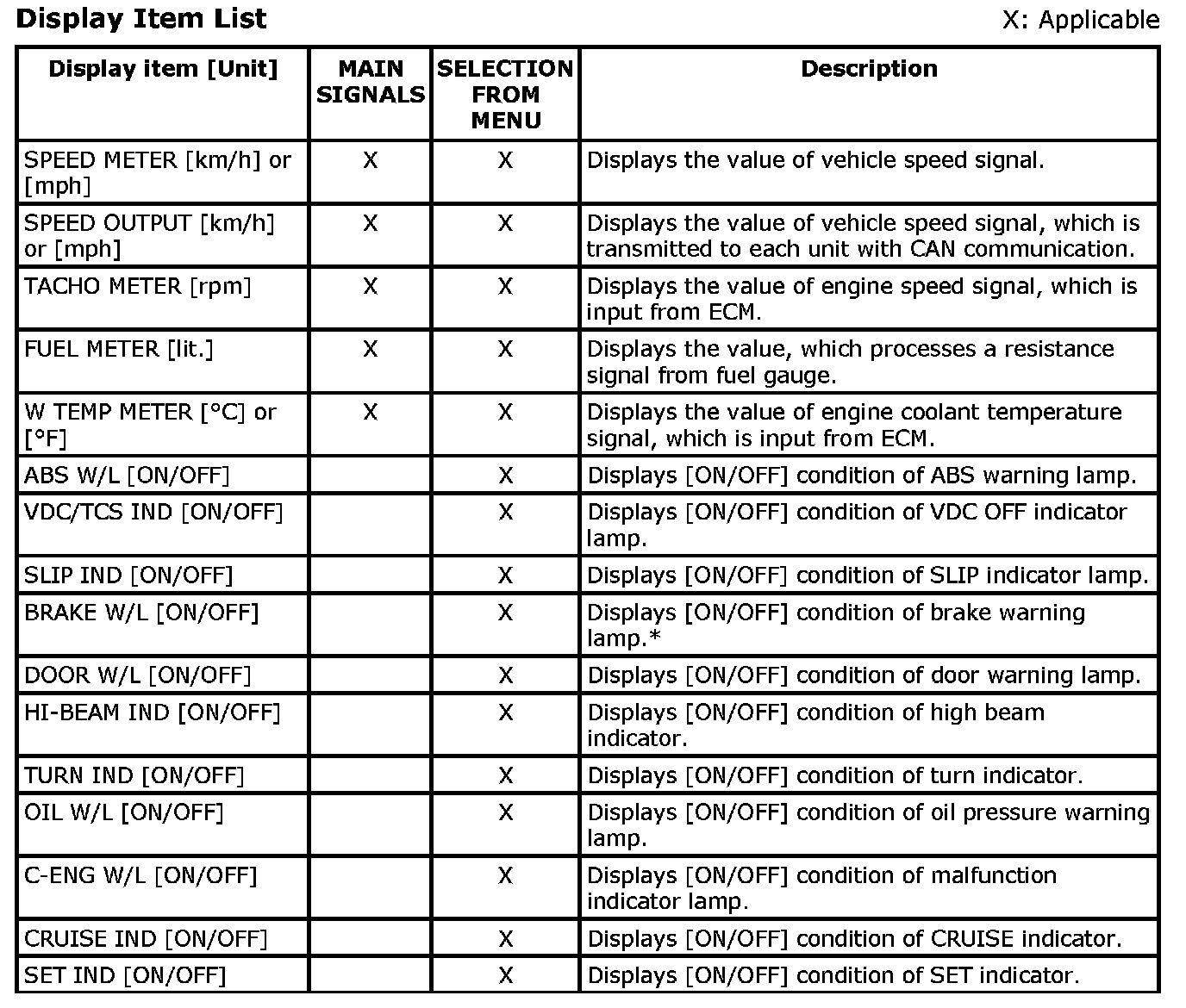

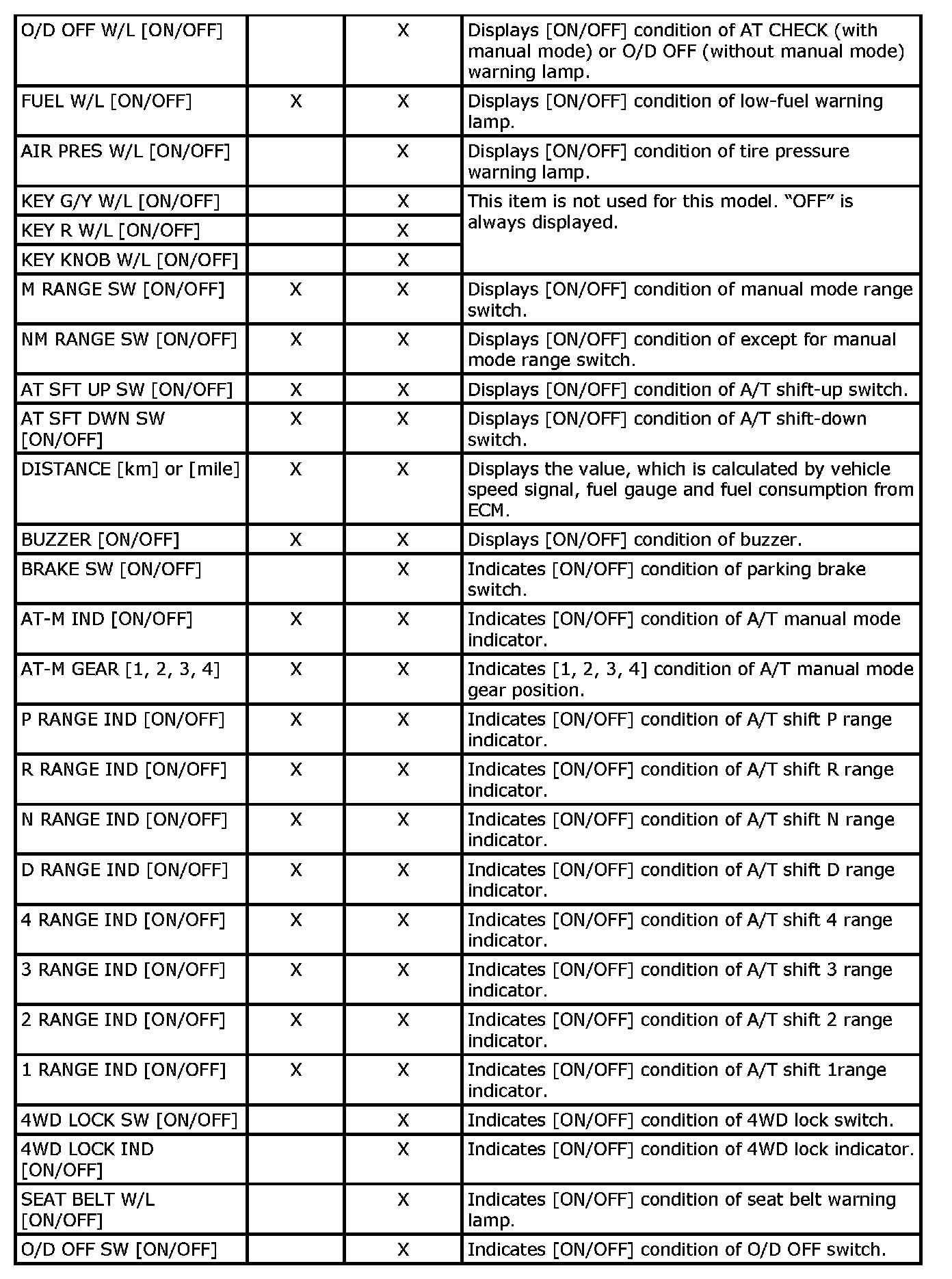

Data List

Display Item List









NOTE:
Some items are not available due to vehicle specification.
*: The monitor will indicate "OFF" even though the brake warning lamp is on if either of the following conditions exist.
- The parking brake is engaged
- The brake fluid level is low
