Pinout Values and Diagnostic Parameters
ECU Diagnosis: Combination Meter
Terminal Layout

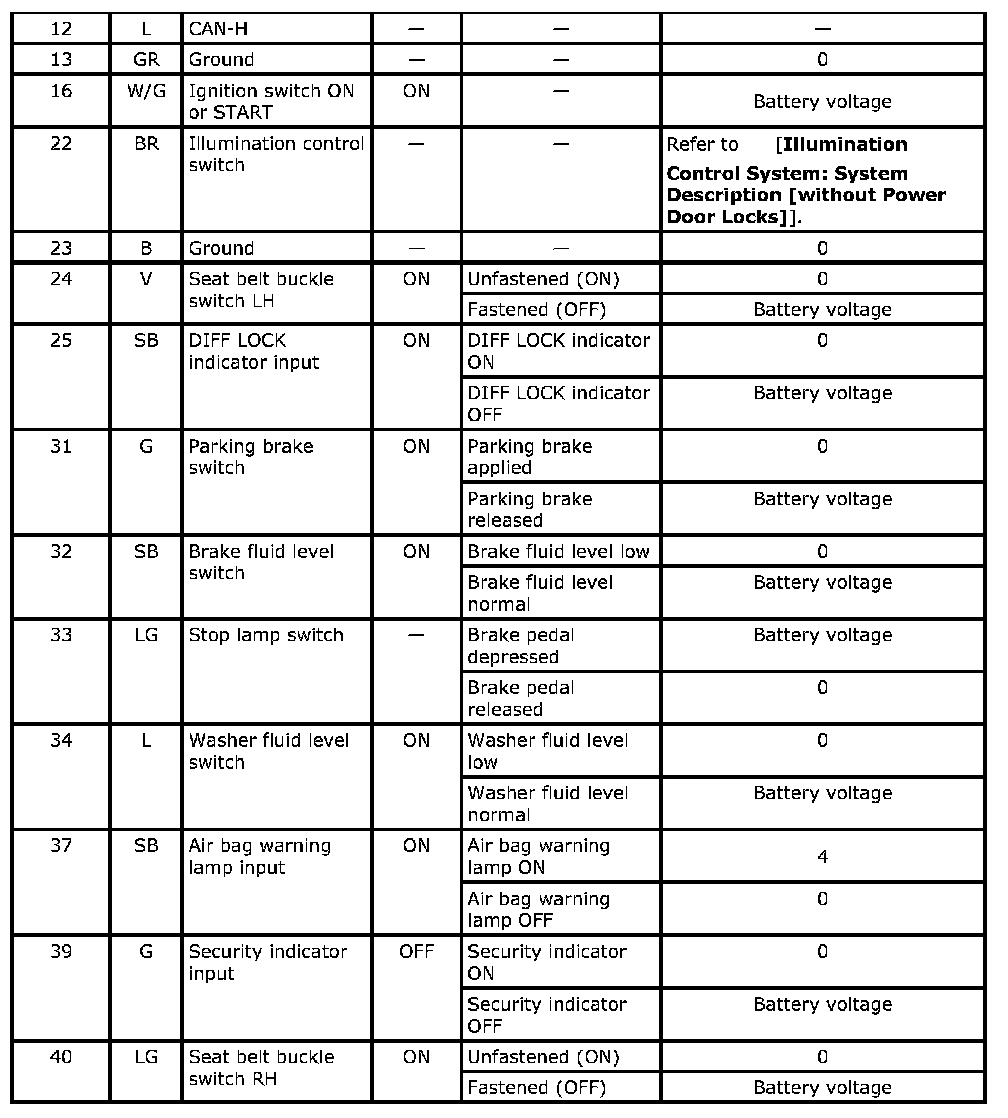

Physical Values
