Component Tests and General Diagnostics

Power Supply and Ground Circuit Check [Combination Meter]

Regarding Wiring Diagram information, refer to [Combination Meter: Wiring Diagram]. Combination Meter

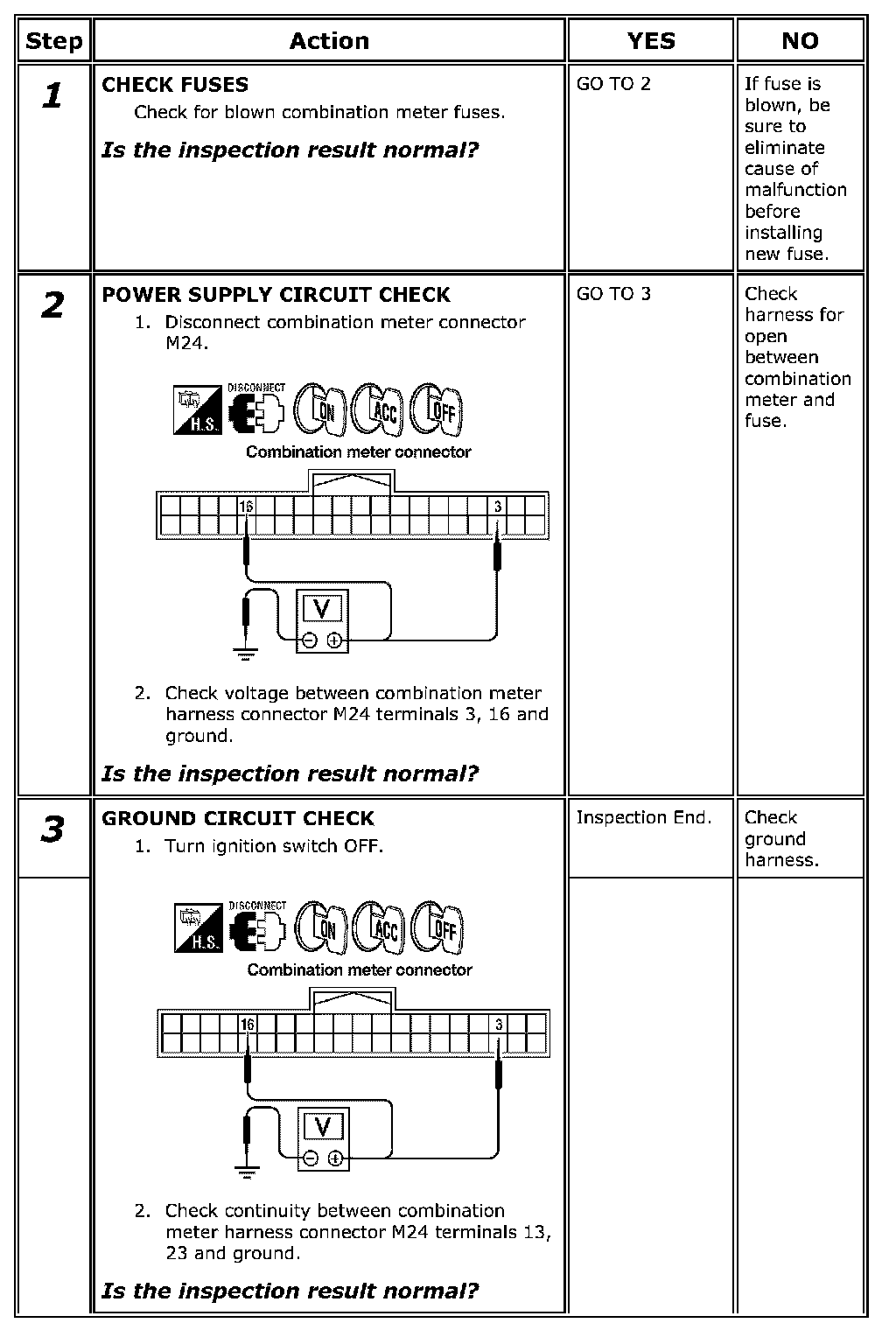

Step 1-3:
