Instrument Cluster / Carrier: Service and Repair

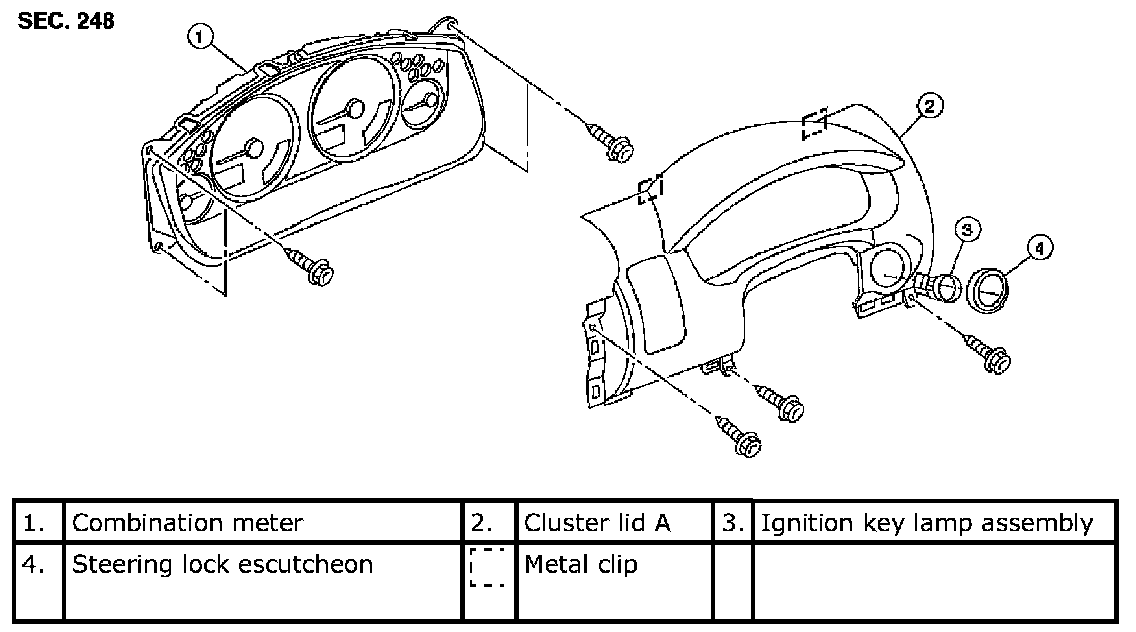

Combination Meter: Removal and Installation






1. Remove the cluster lid A. Refer to [Instrument Panel Assembly: Removal and Installation].
2. Remove the combination meter, using a power tool.
3. Disconnect the combination meter electrical connectors.

Installation
Installation is in the reverse order of removal.
