Heater Control

Heater Control: Wiring Diagram

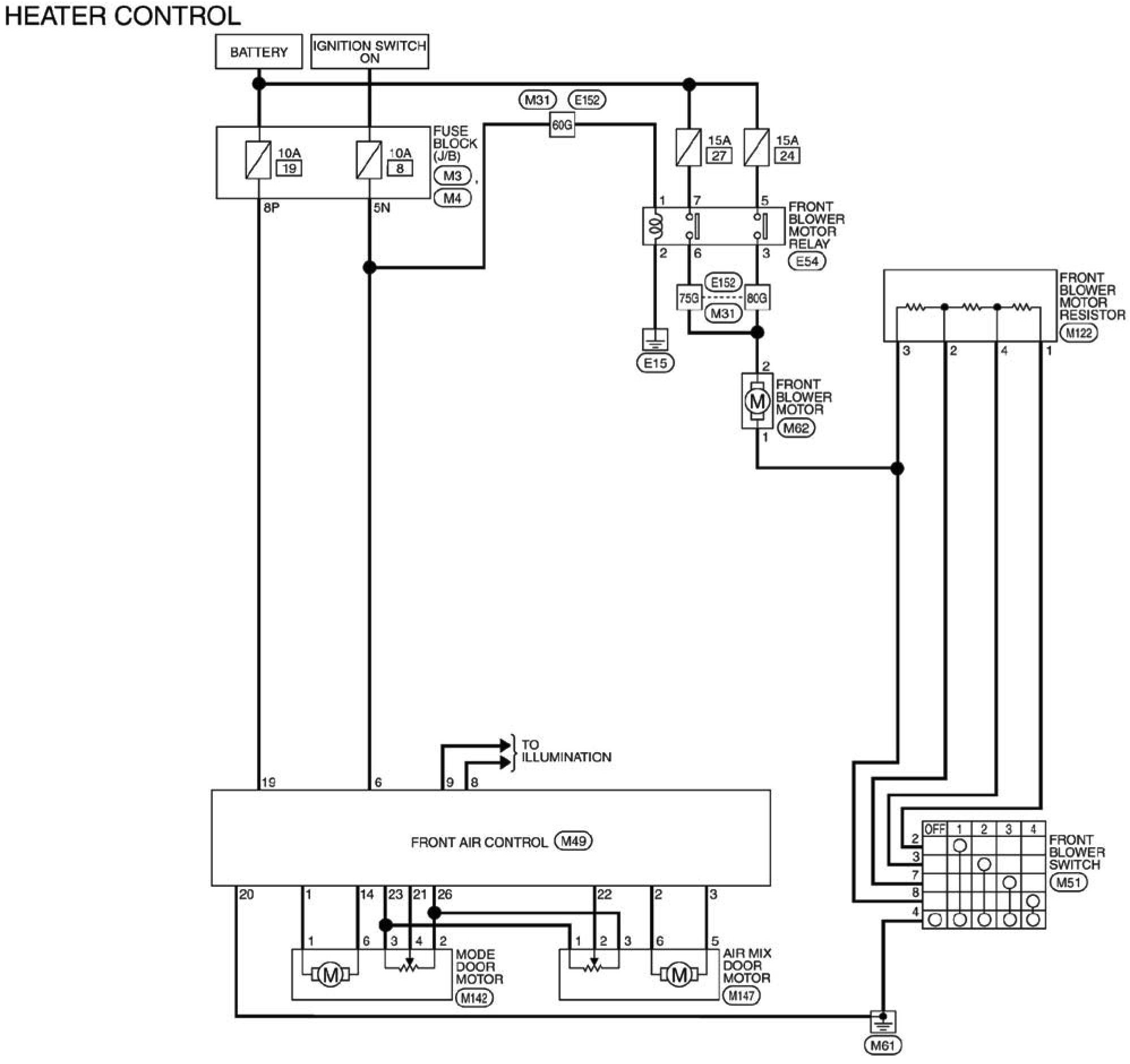

Heater Control:

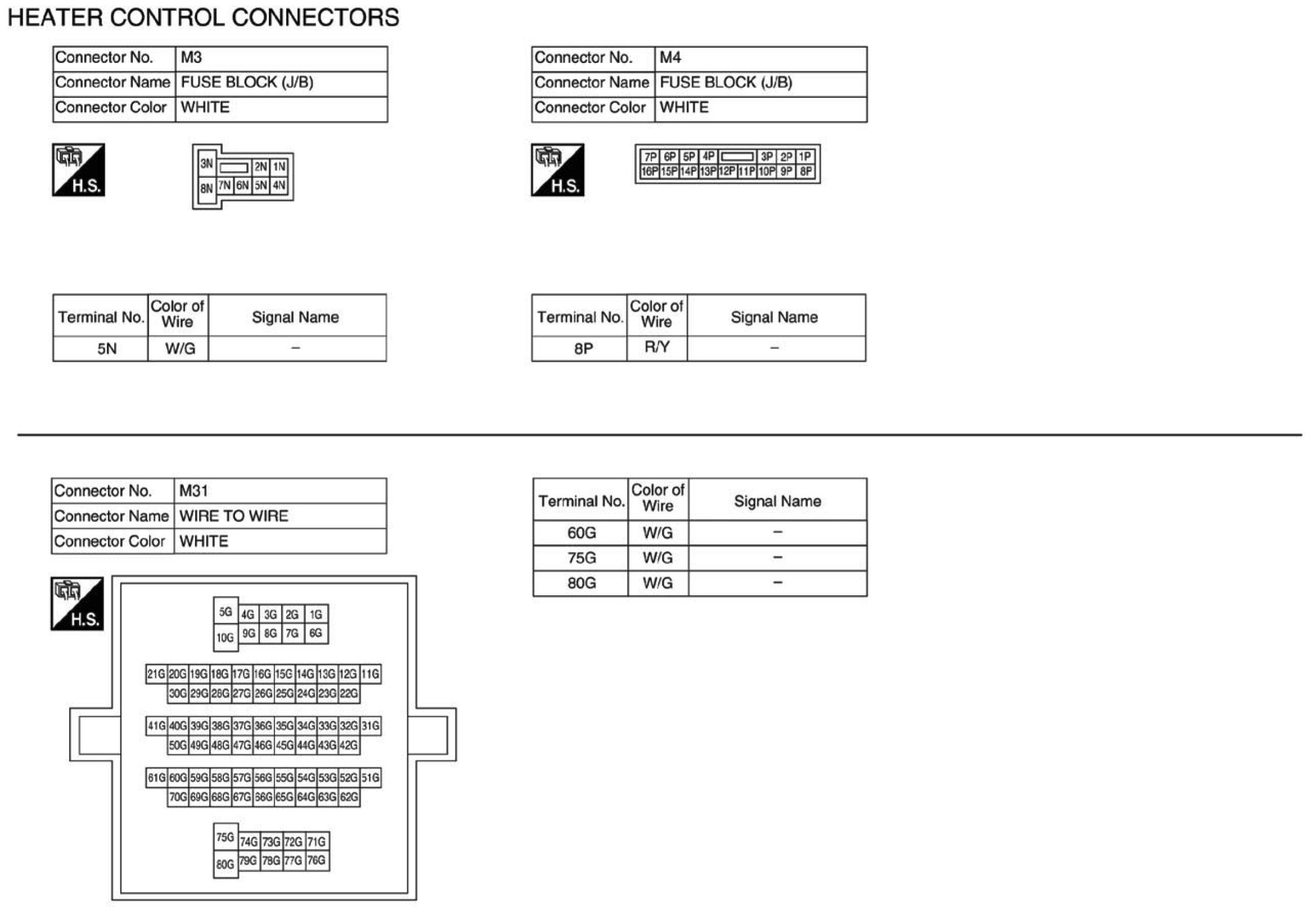

Heater Control Connectors

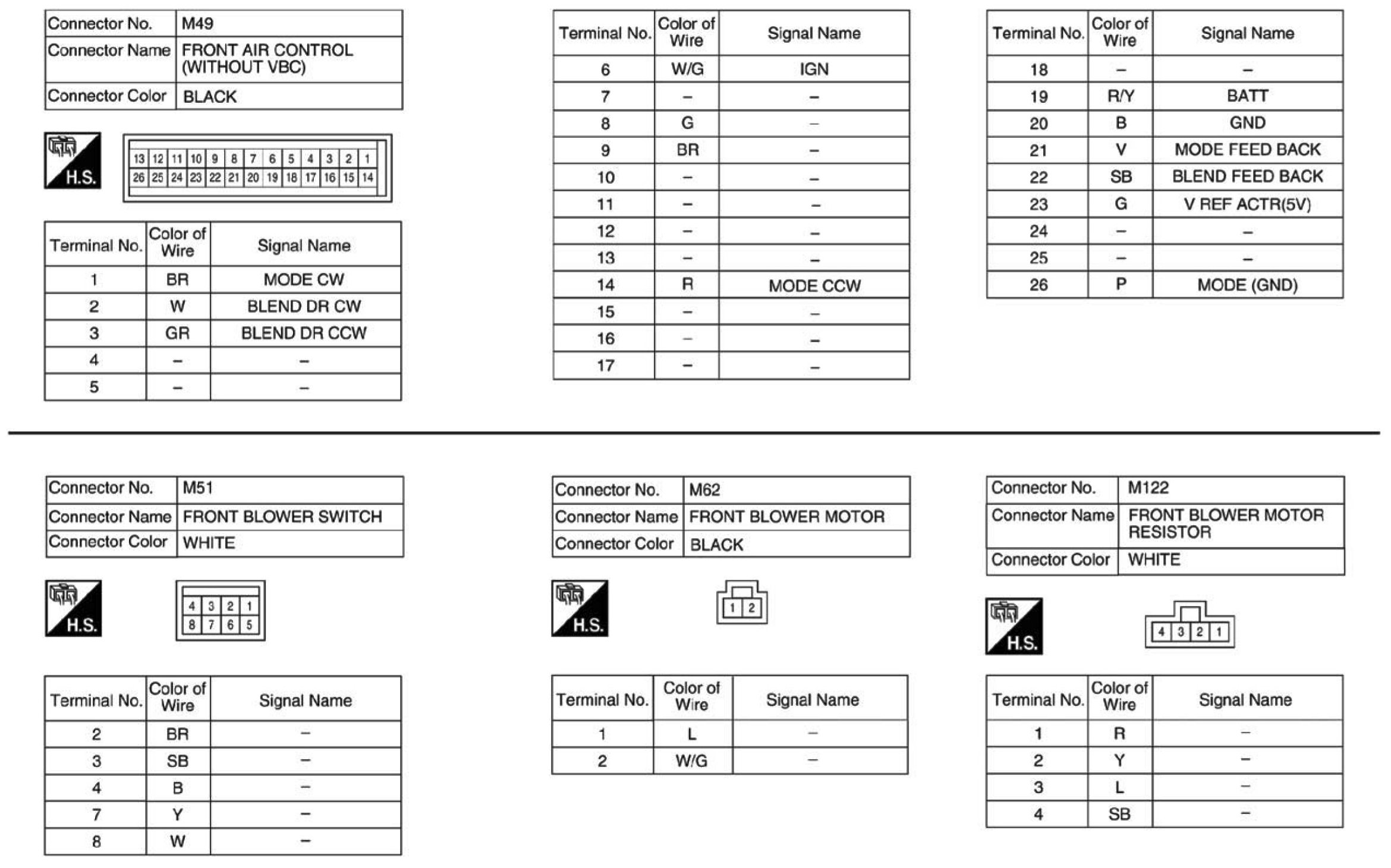

Heater Control Connector (Part 1):

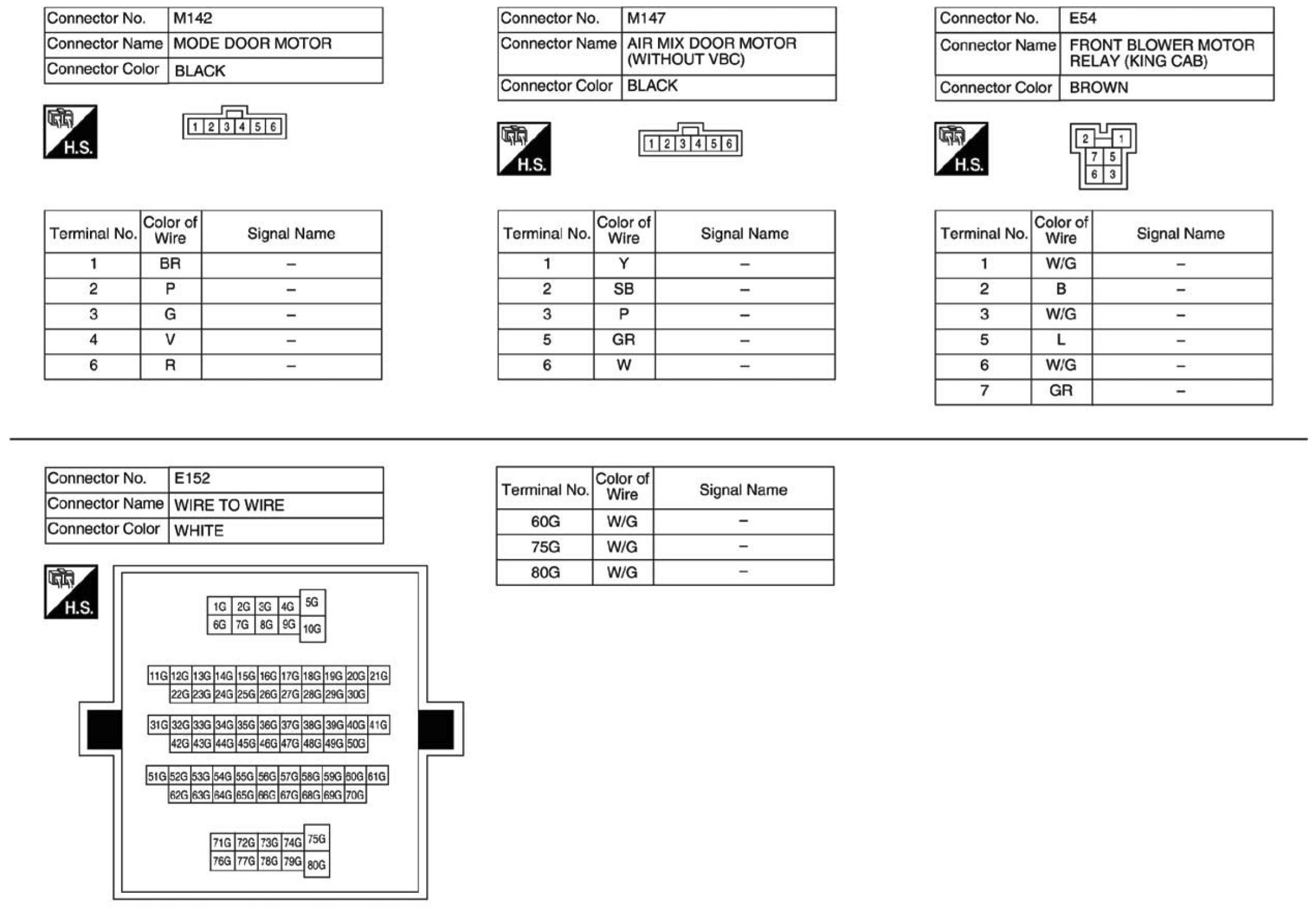

Heater Control Connector (Part 2):




Heater Control Connector (Part 3):
