Blower Motor: Removal and Installation

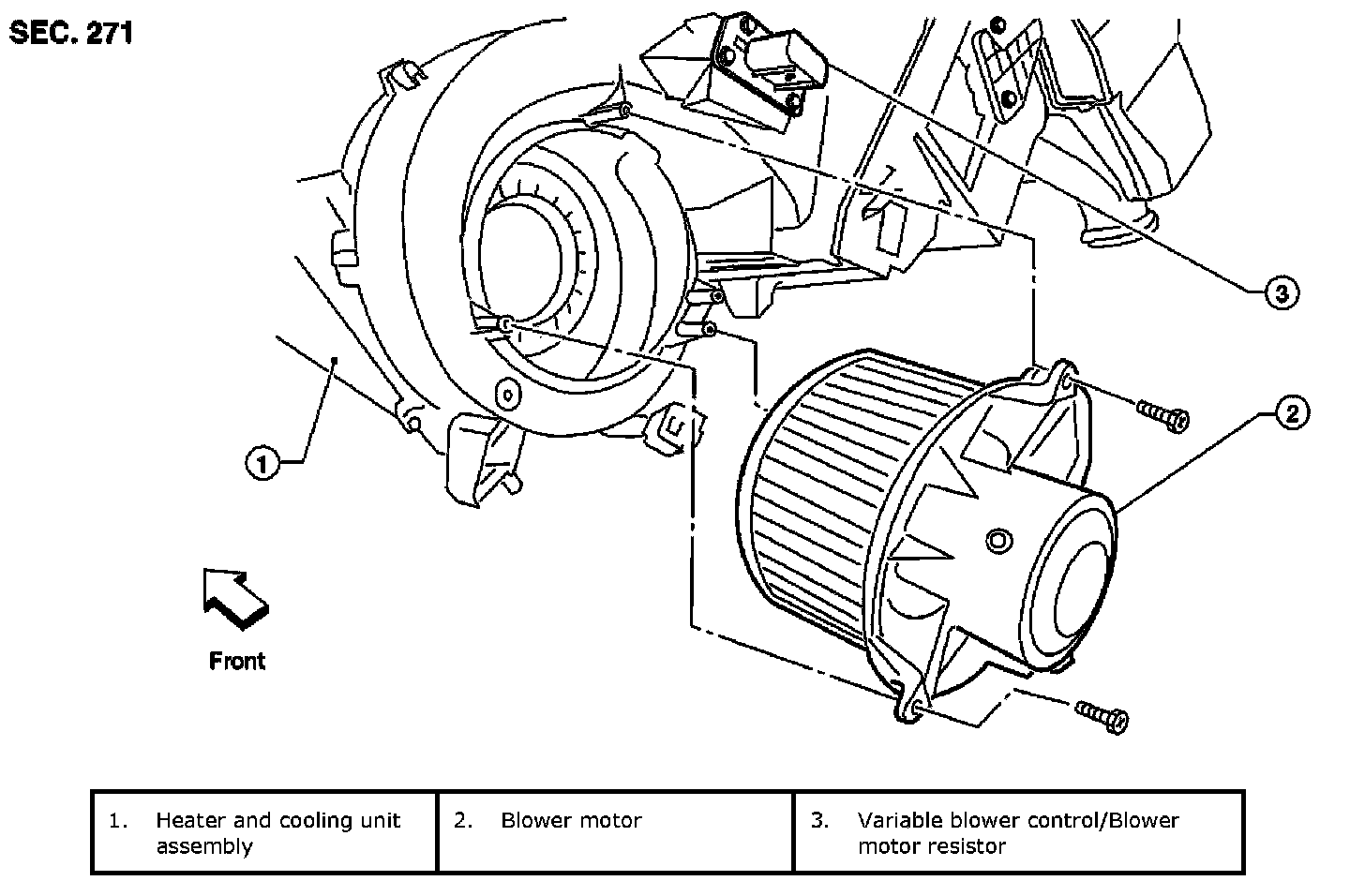

Blower Motor: Component

Blower Motor






Blower Motor: Removal and Installation

Removal
1. Remove the lower glove box assembly. Refer to [Instrument Panel Assembly: Exploded View].
2. Disconnect the blower motor electrical connector.
3. Remove the three screws and remove the blower motor.

Installation
Installation is in the reverse order of removal.
