Blower Motor Resistor: Service and Repair

Front Blower Motor Resistor: Removal and Installation

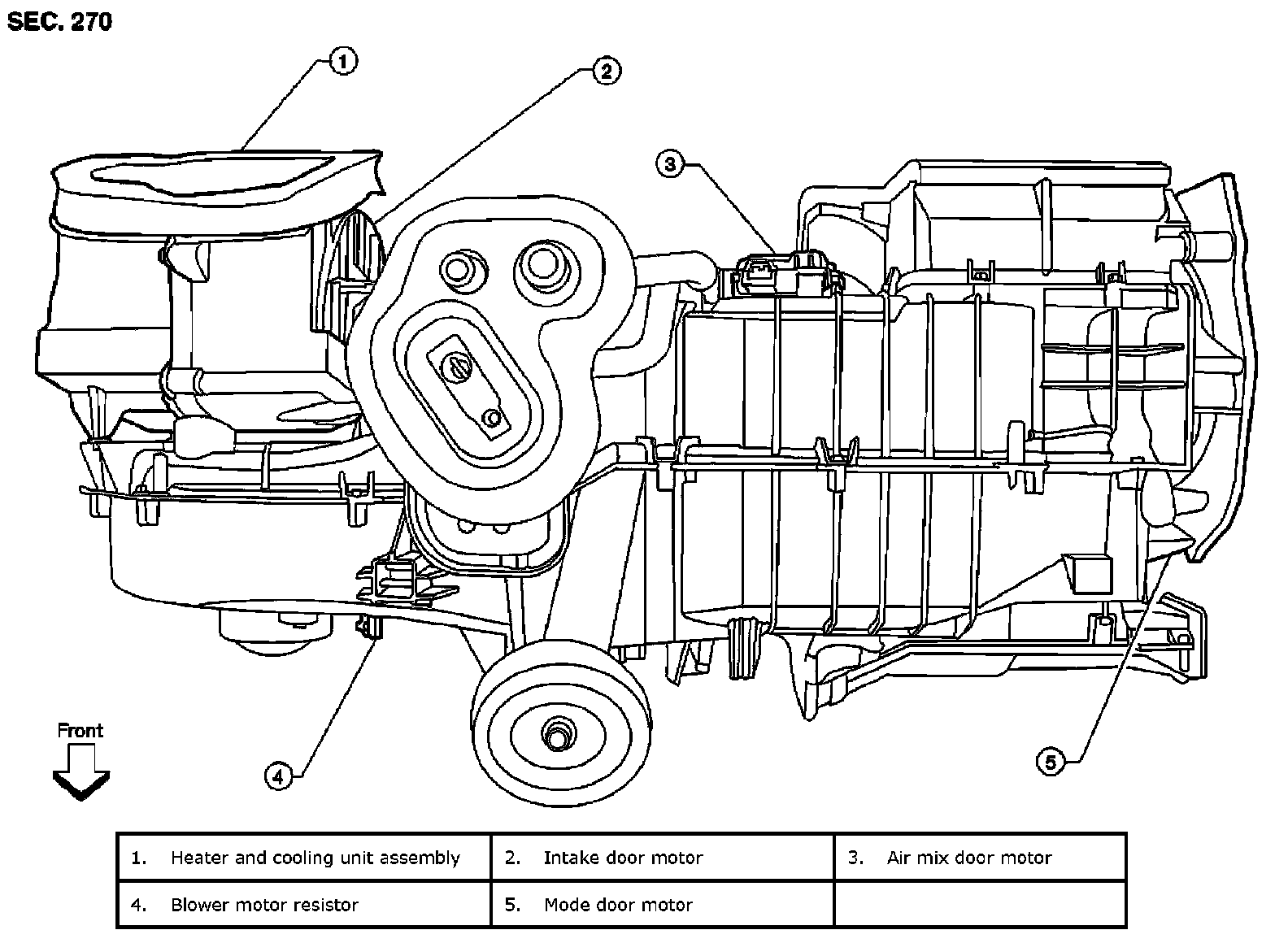

Blower Motor Resistor






Removal
1. Disconnect the blower motor resistor electrical connector.
2. Remove the two screws and remove the blower motor resistor.

Installation
Installation is in the reverse order of removal.
