Cooling System: Testing and Inspection

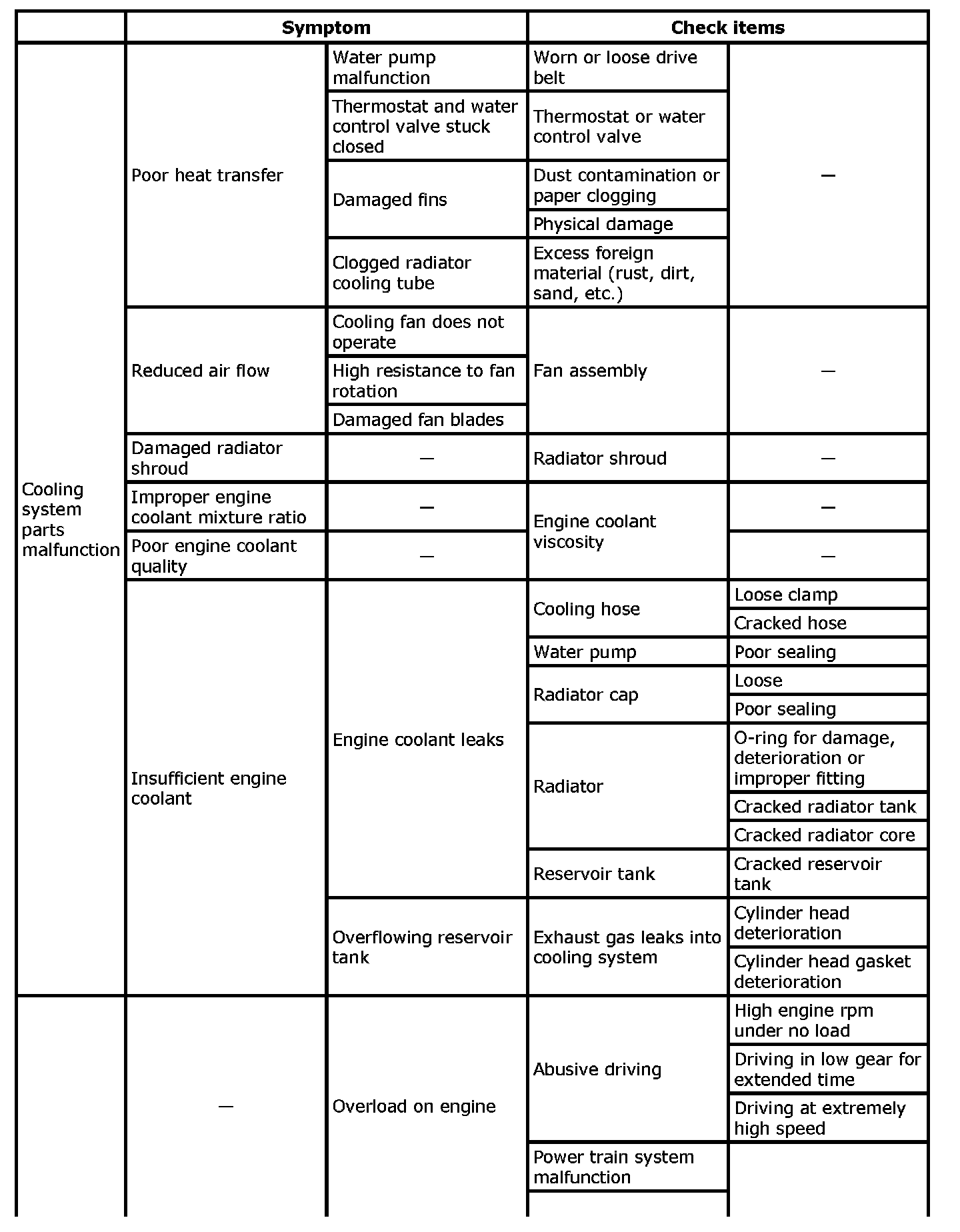

Overheating Cause Analysis: Troubleshooting Chart

Overheating Cause Analysis: Troubleshooting Chart (Part 1):




Overheating Cause Analysis: Troubleshooting Chart (Part 2):
