Towing / Trailer System

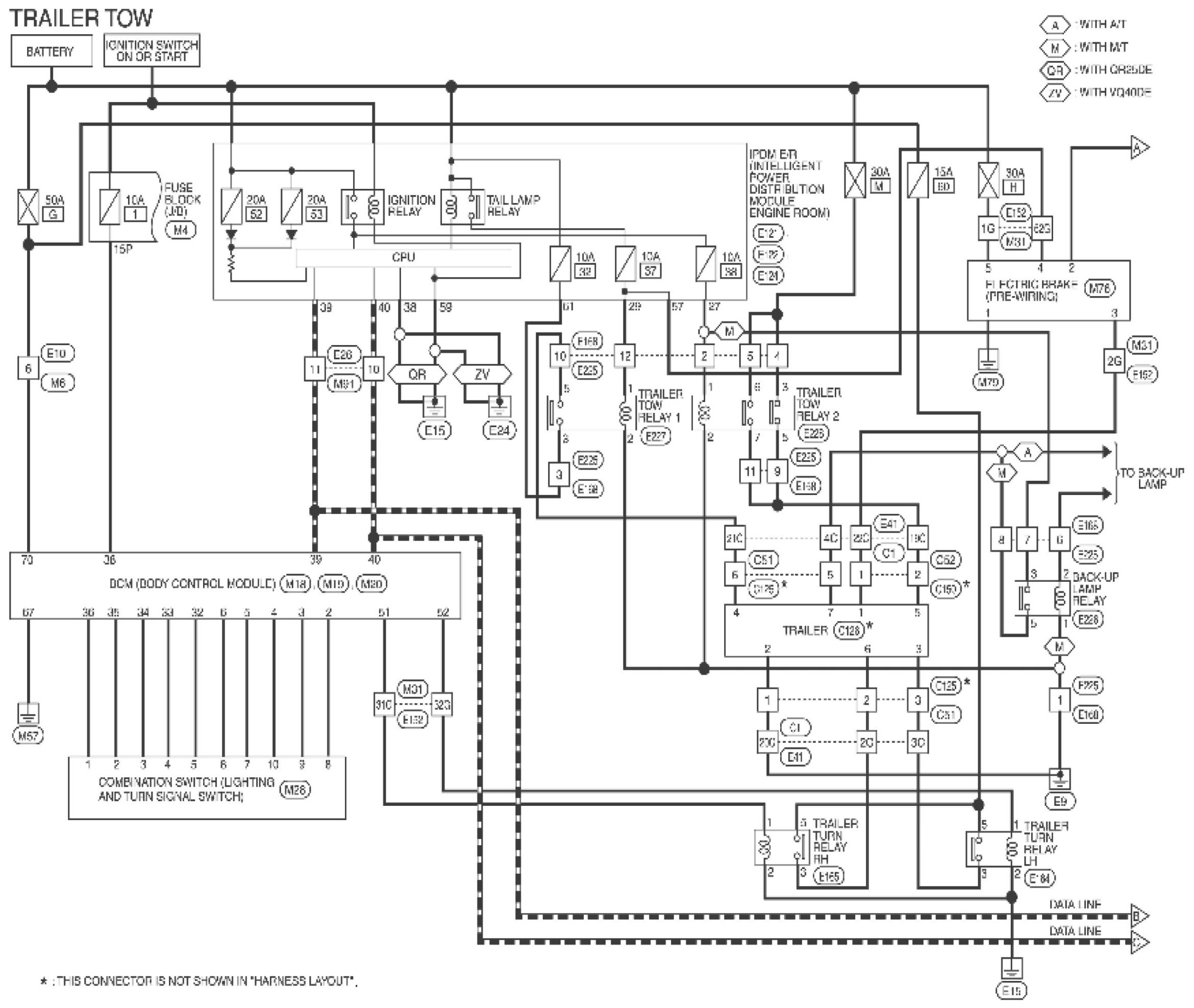

Trailer Tow: Wiring Diagram

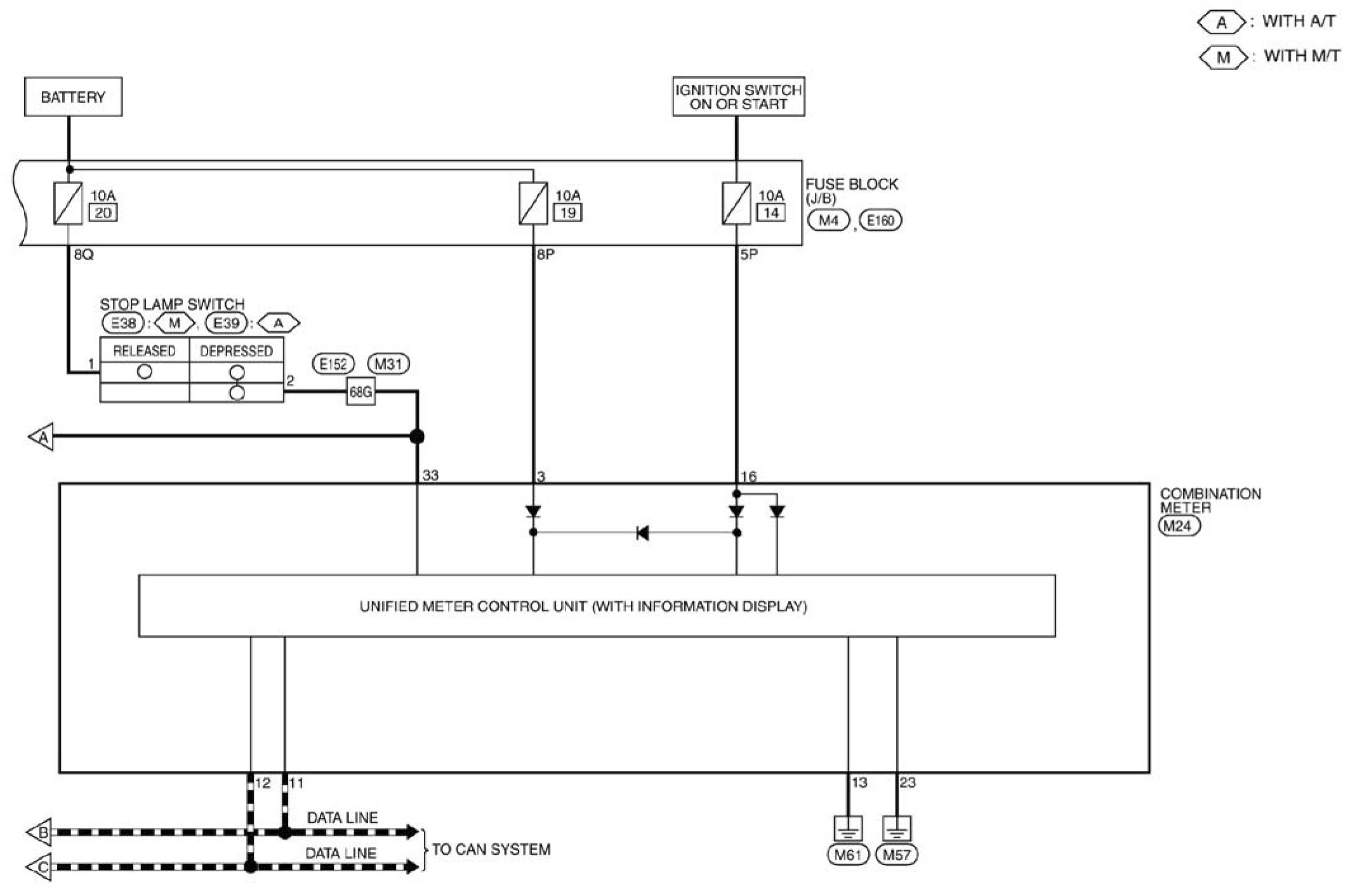

Trailer Tow (Part 1):




Trailer Tow (Part 2):






Trailer Tow Connectors

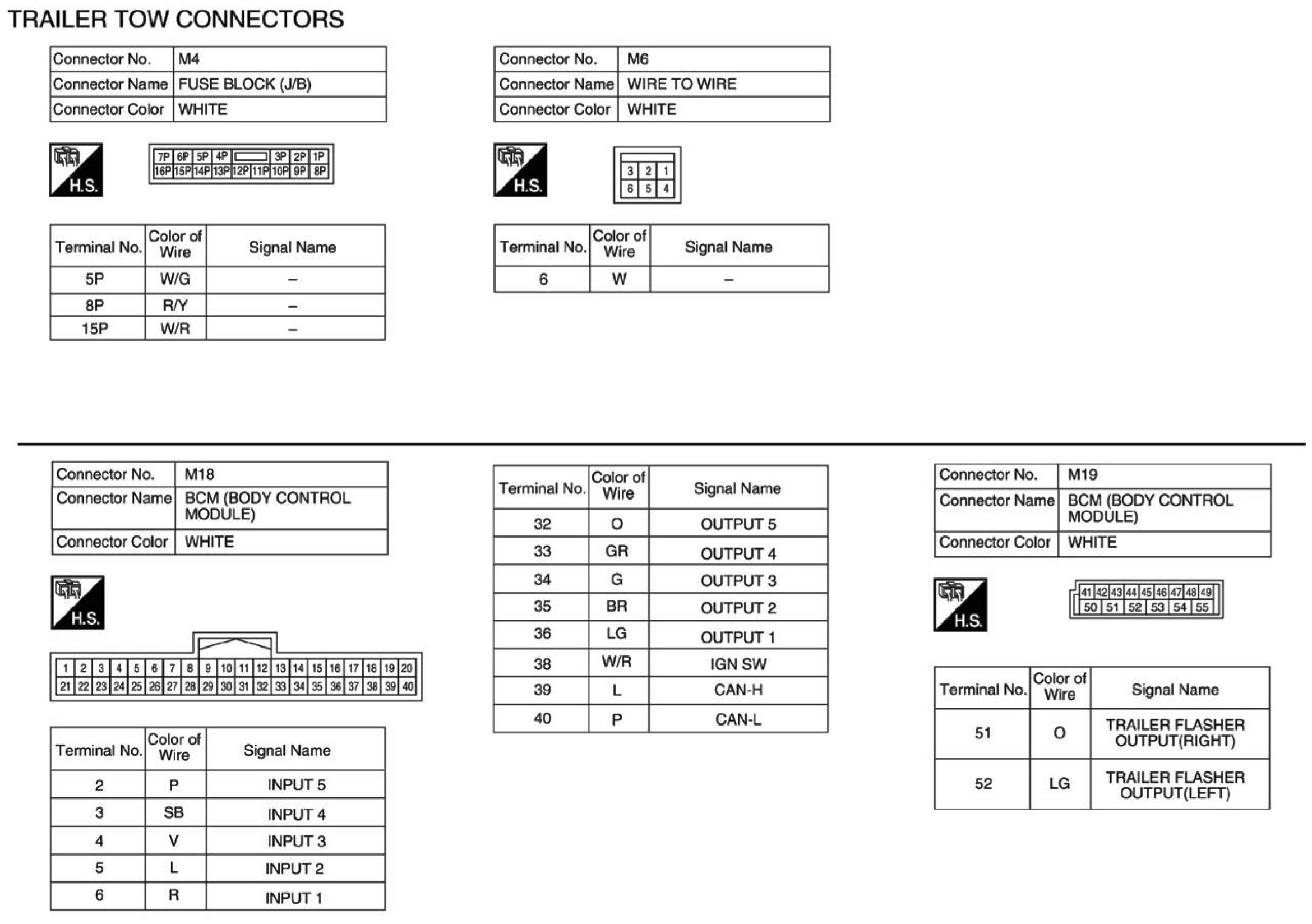

Trailer Tow Connectors (Part 1):

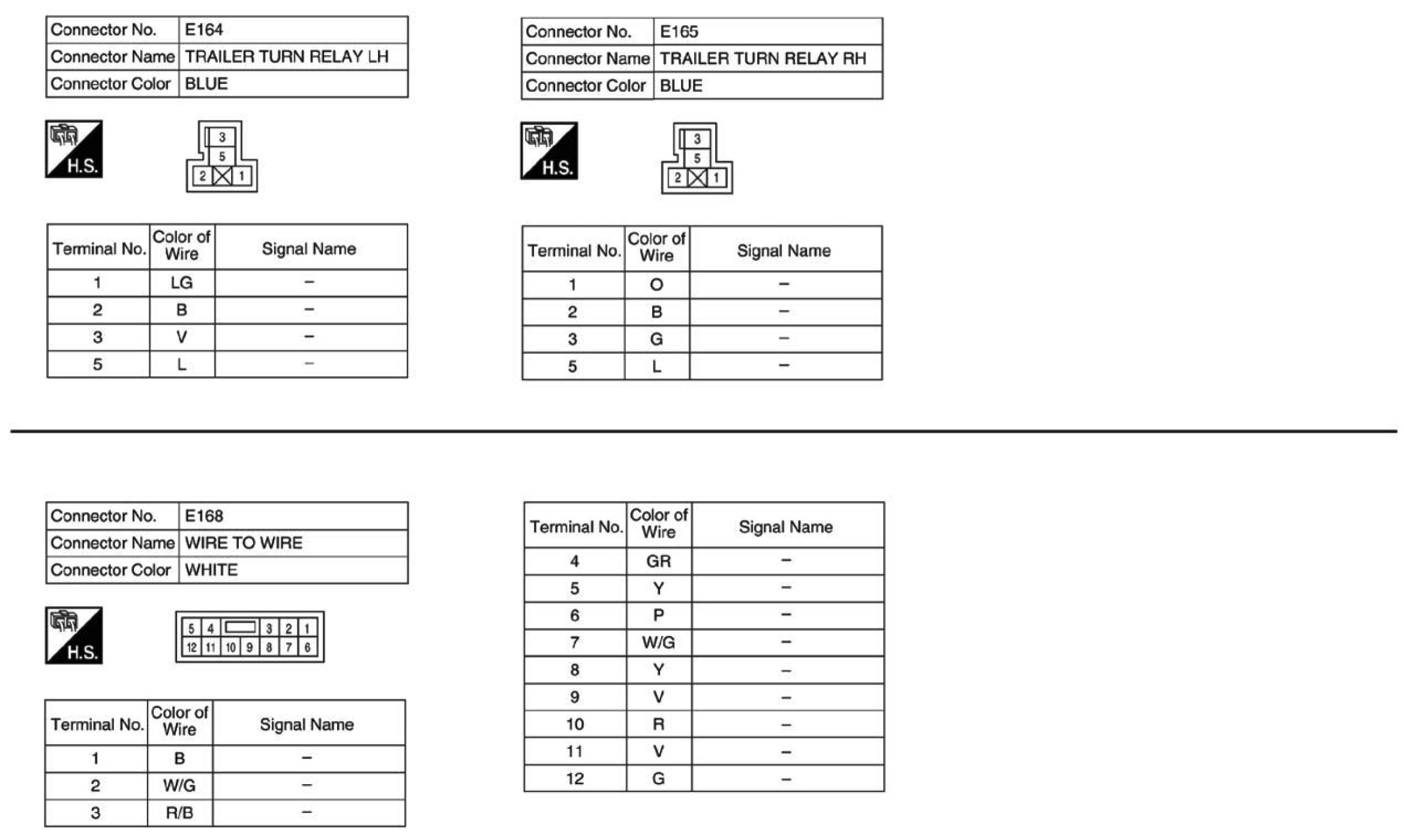

Trailer Tow Connectors (Part 2):

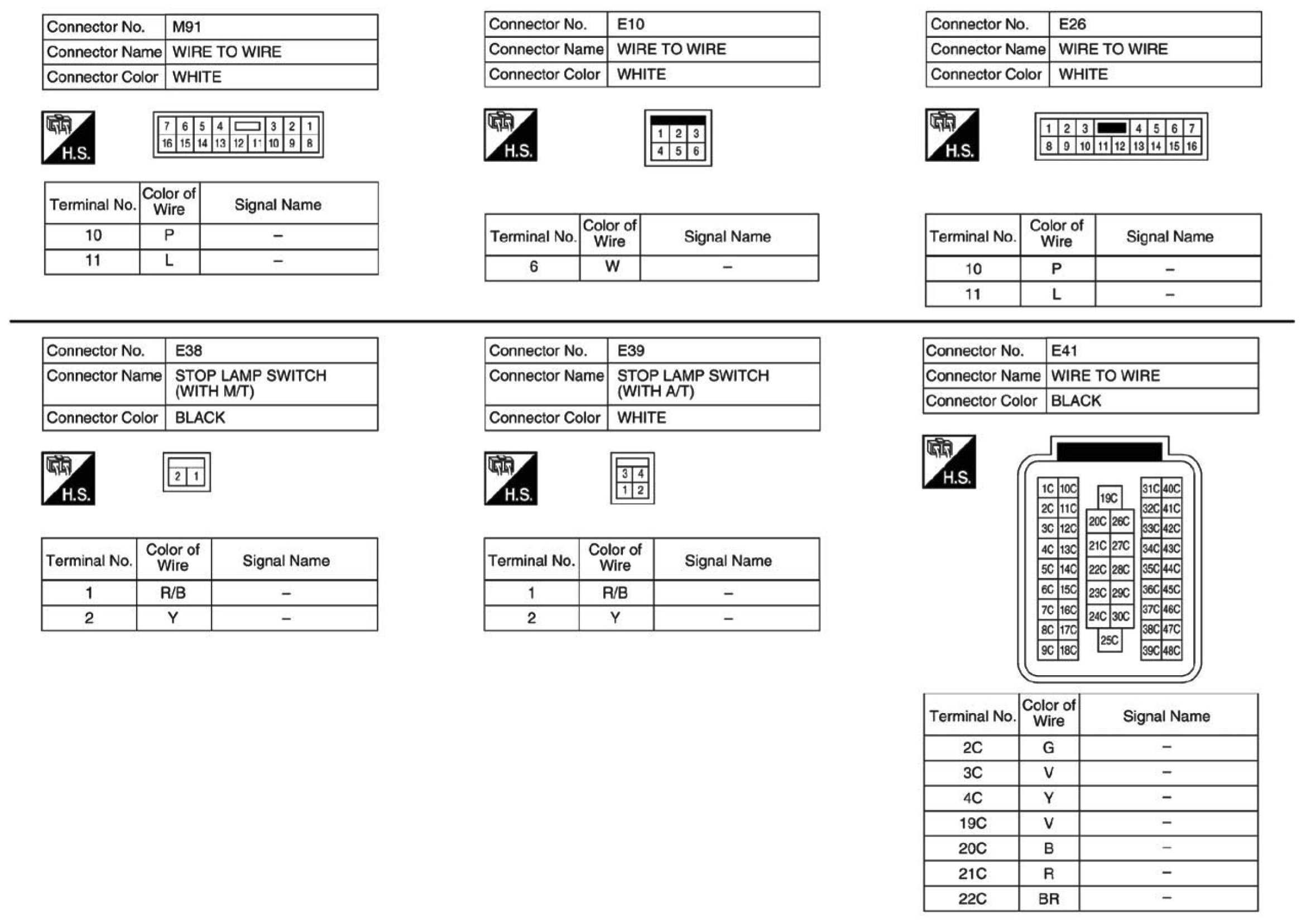

Trailer Tow Connectors (Part 3):

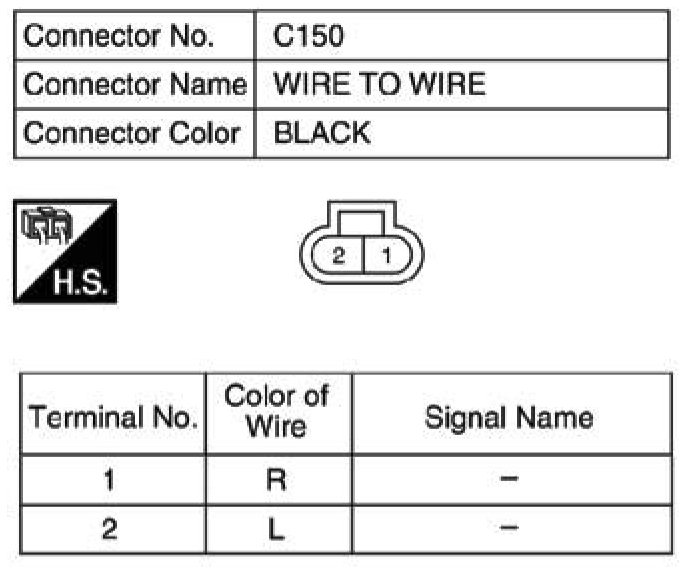

Trailer Tow Connectors (Part 4):

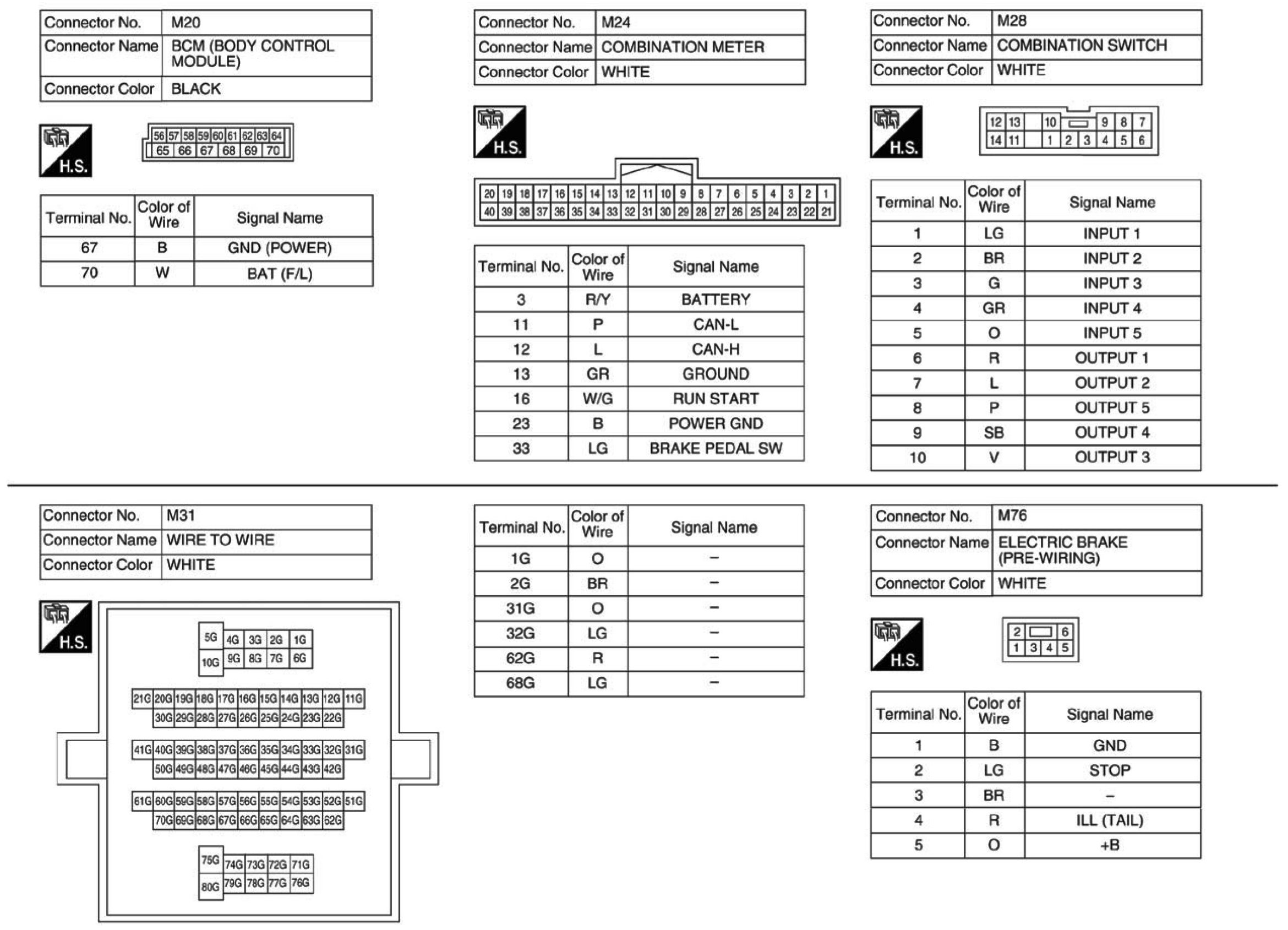

Trailer Tow Connectors (Part 5):

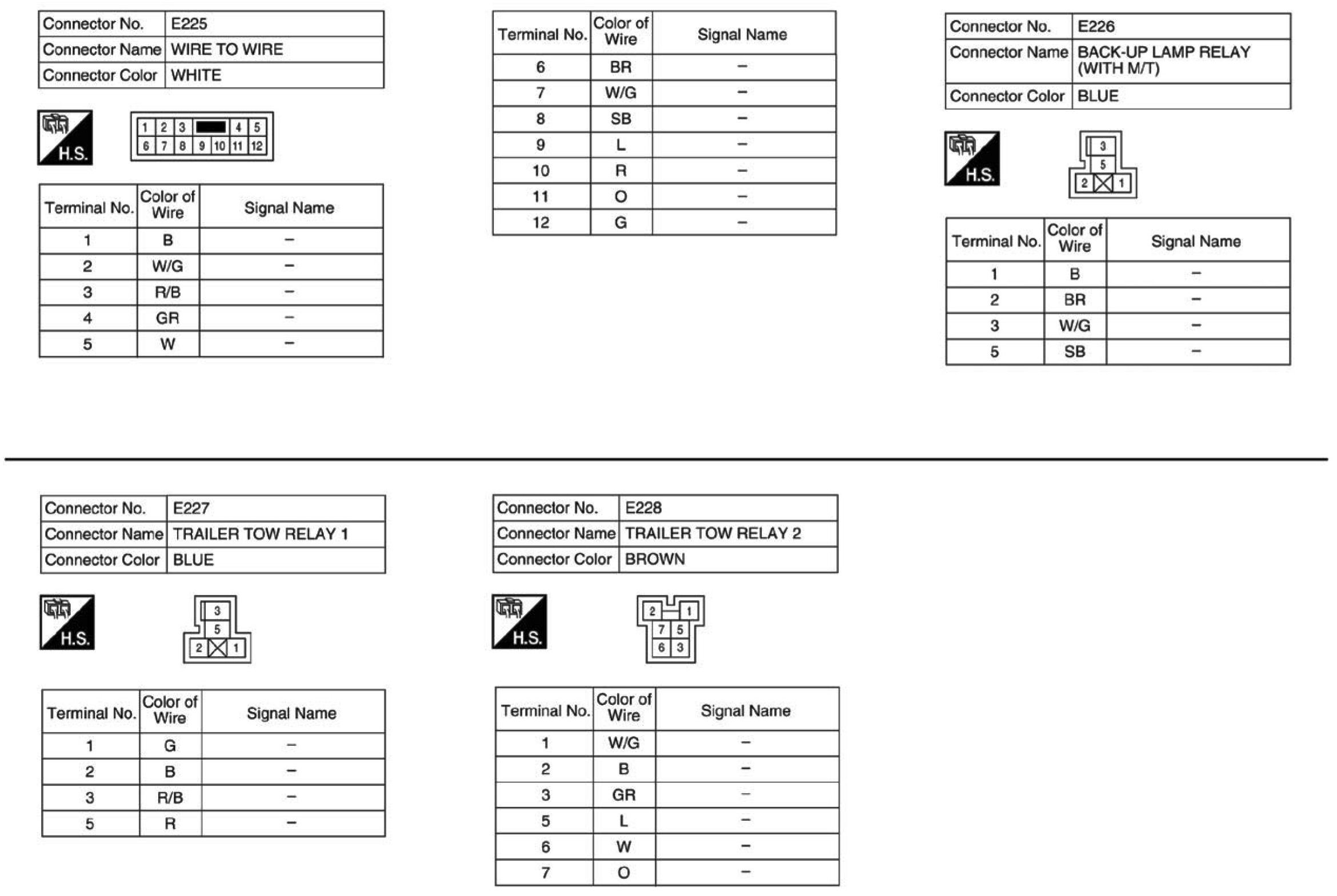

Trailer Tow Connectors (Part 6):

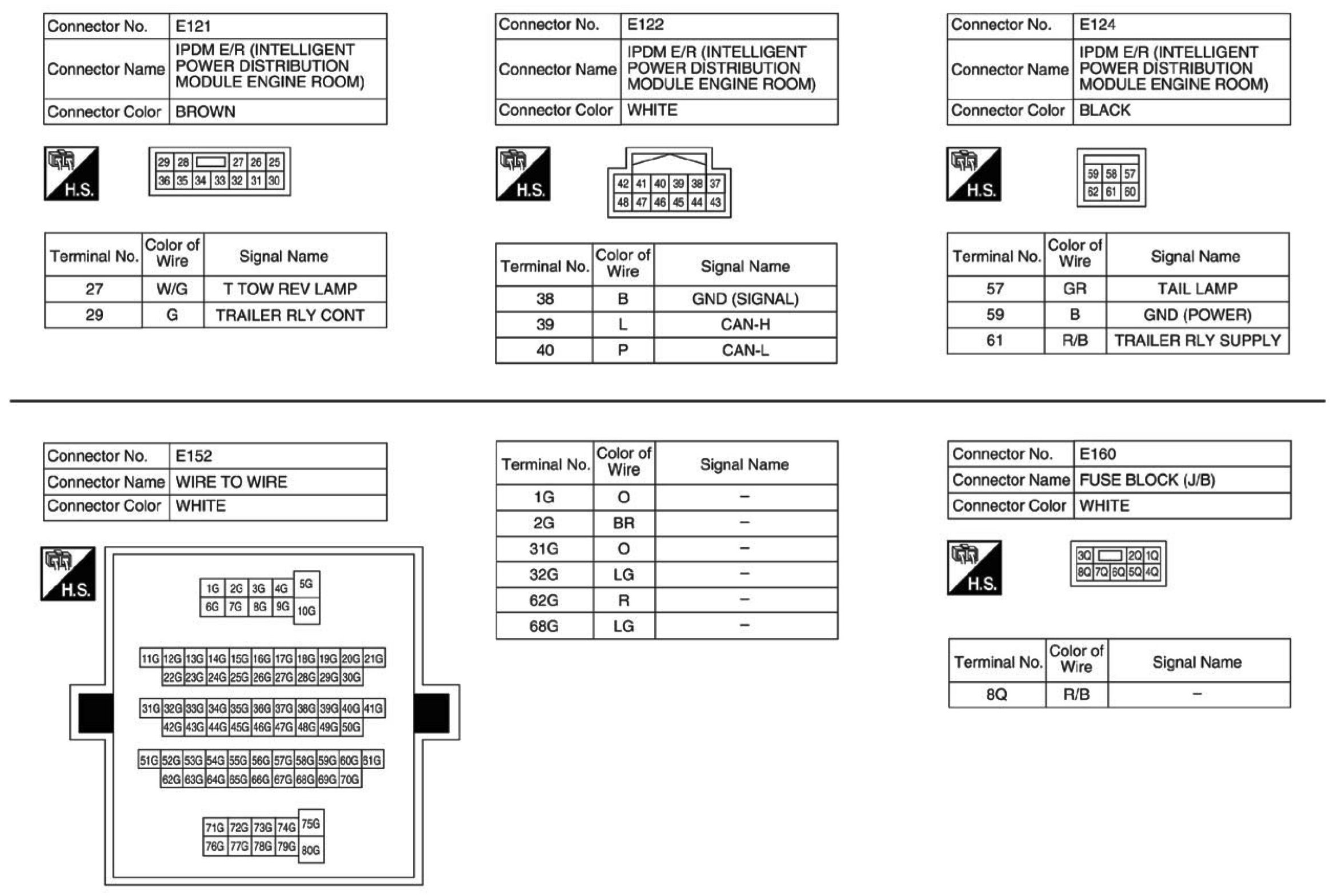

Trailer Tow Connectors (Part 7):

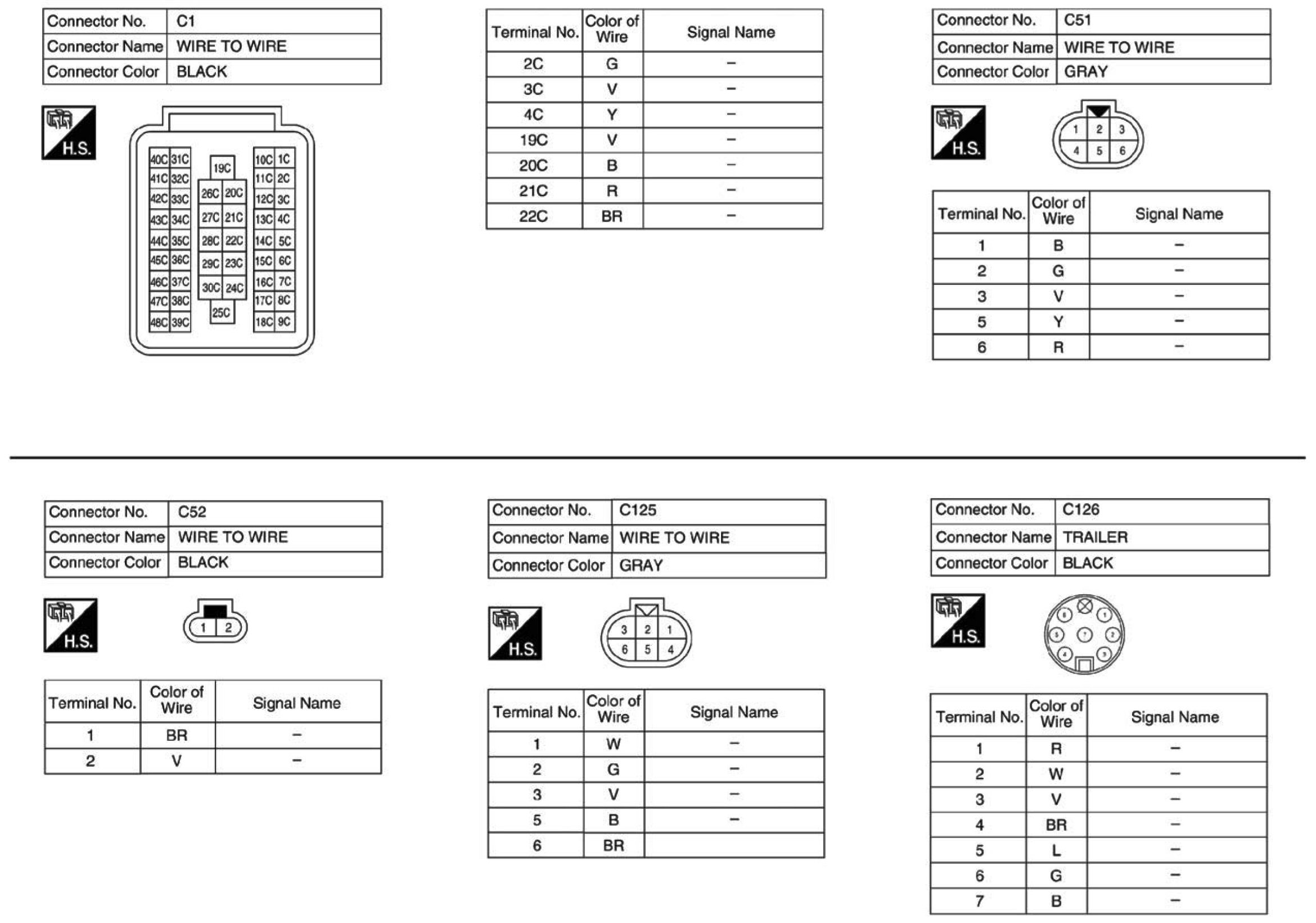

Trailer Tow Connectors (Part 8):
