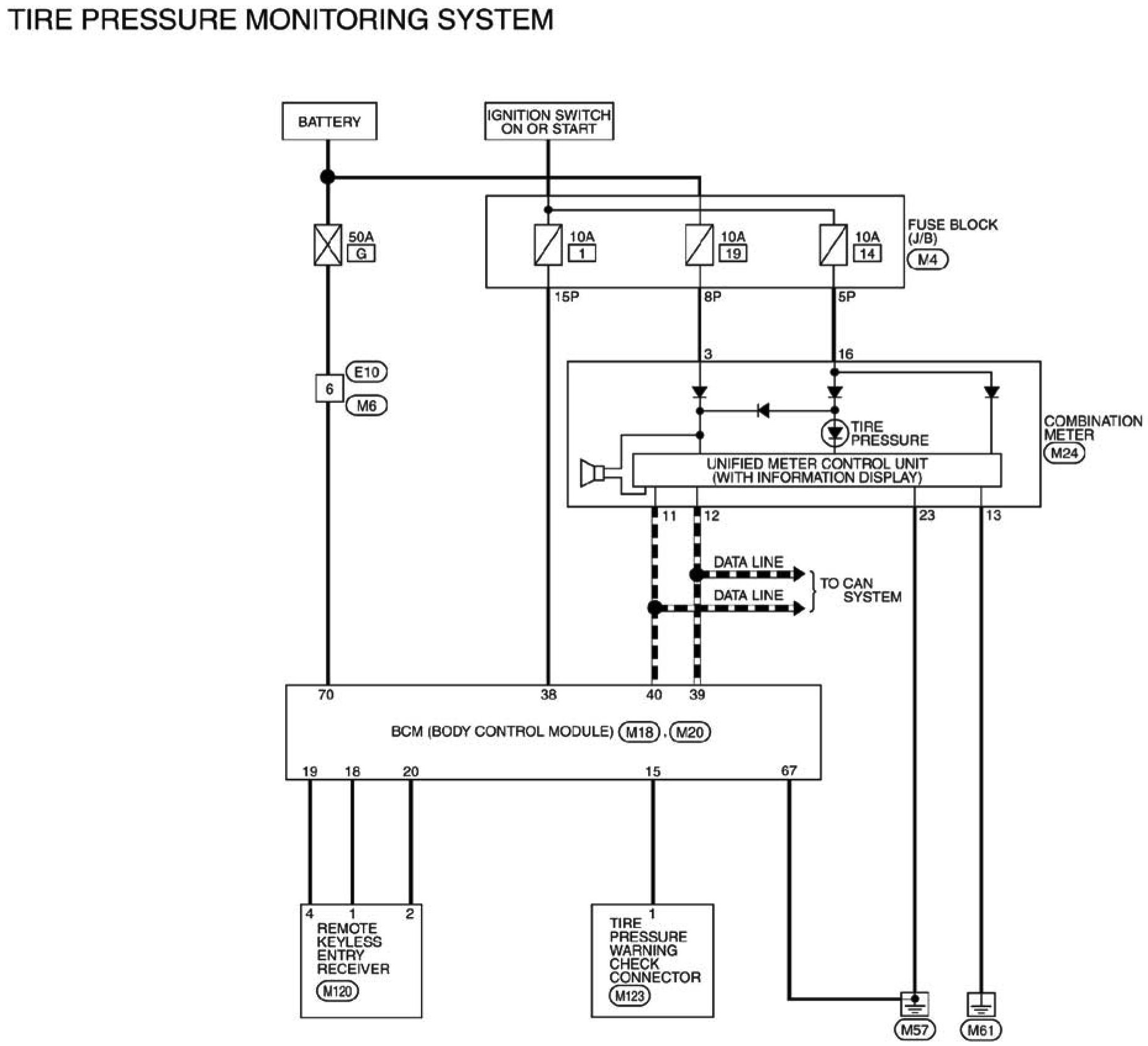

Tire Pressure Monitoring System: Wiring Diagram

Tire Pressure Monitoring System: Wiring Diagram

Tire Pressure Monitoring System:

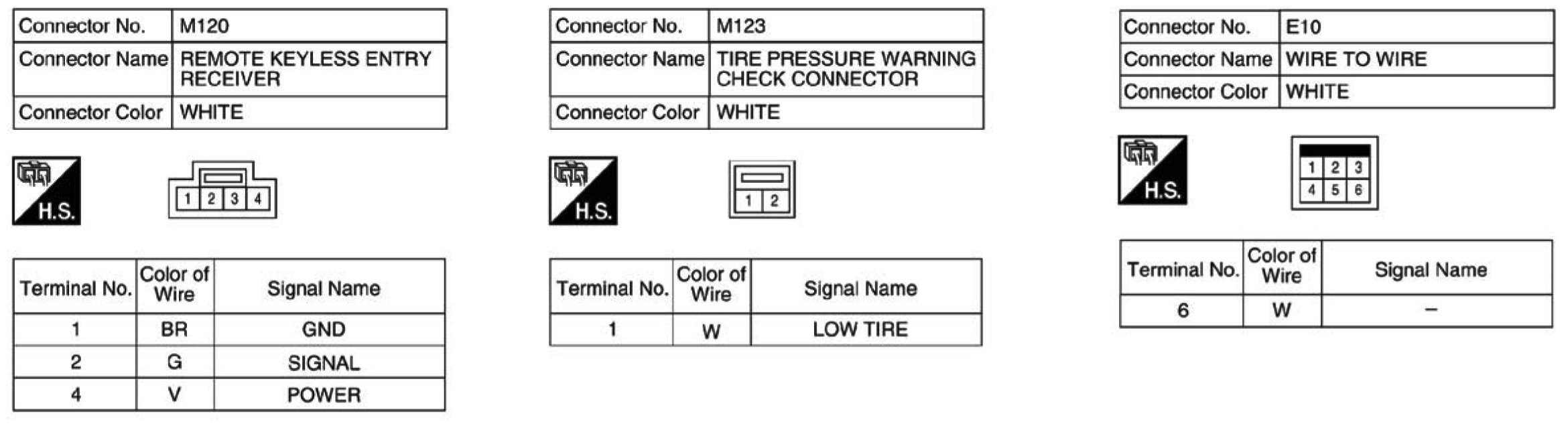

Tire Pressure Monitoring System Connectors

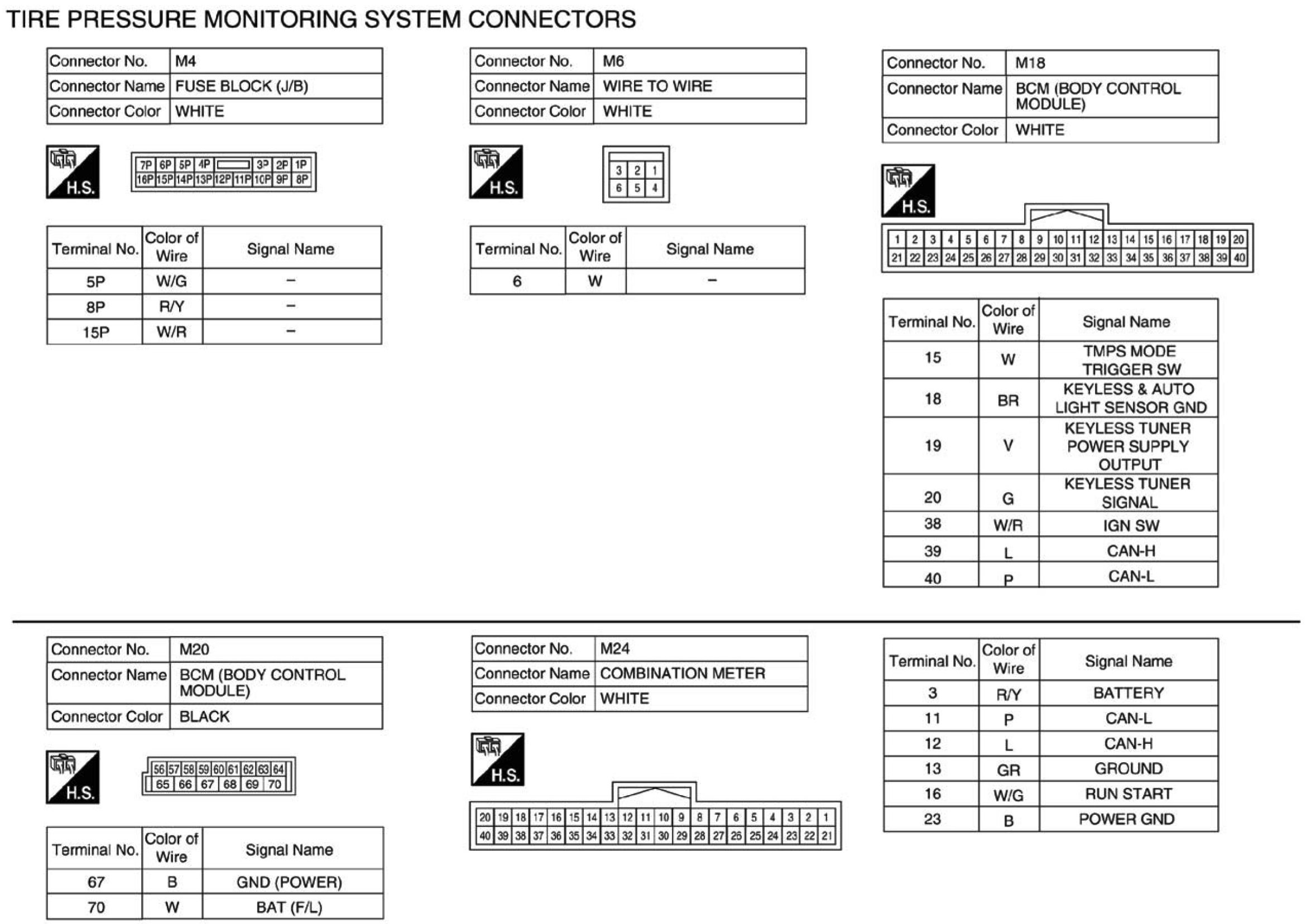

Tire Pressure Monitoring System Connectors (Part 1):




Tire Pressure Monitoring System Connectors (Part 2):
