IPDM E/R: Wiring Diagram

IPDM E/R: Wiring Diagram

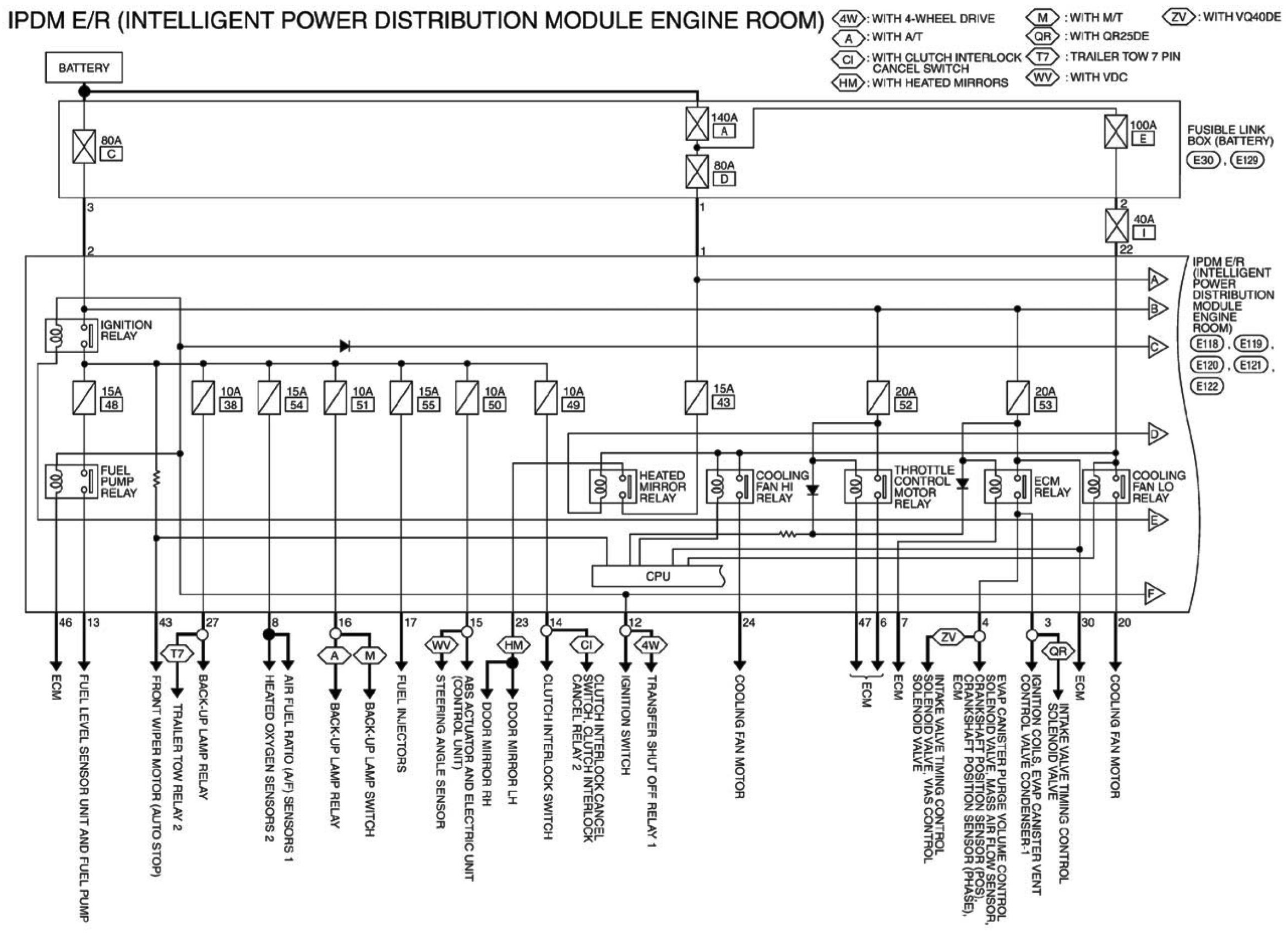

IPDM E/R (Intelligent Power Distribution Module Engine Room) (Part 1):

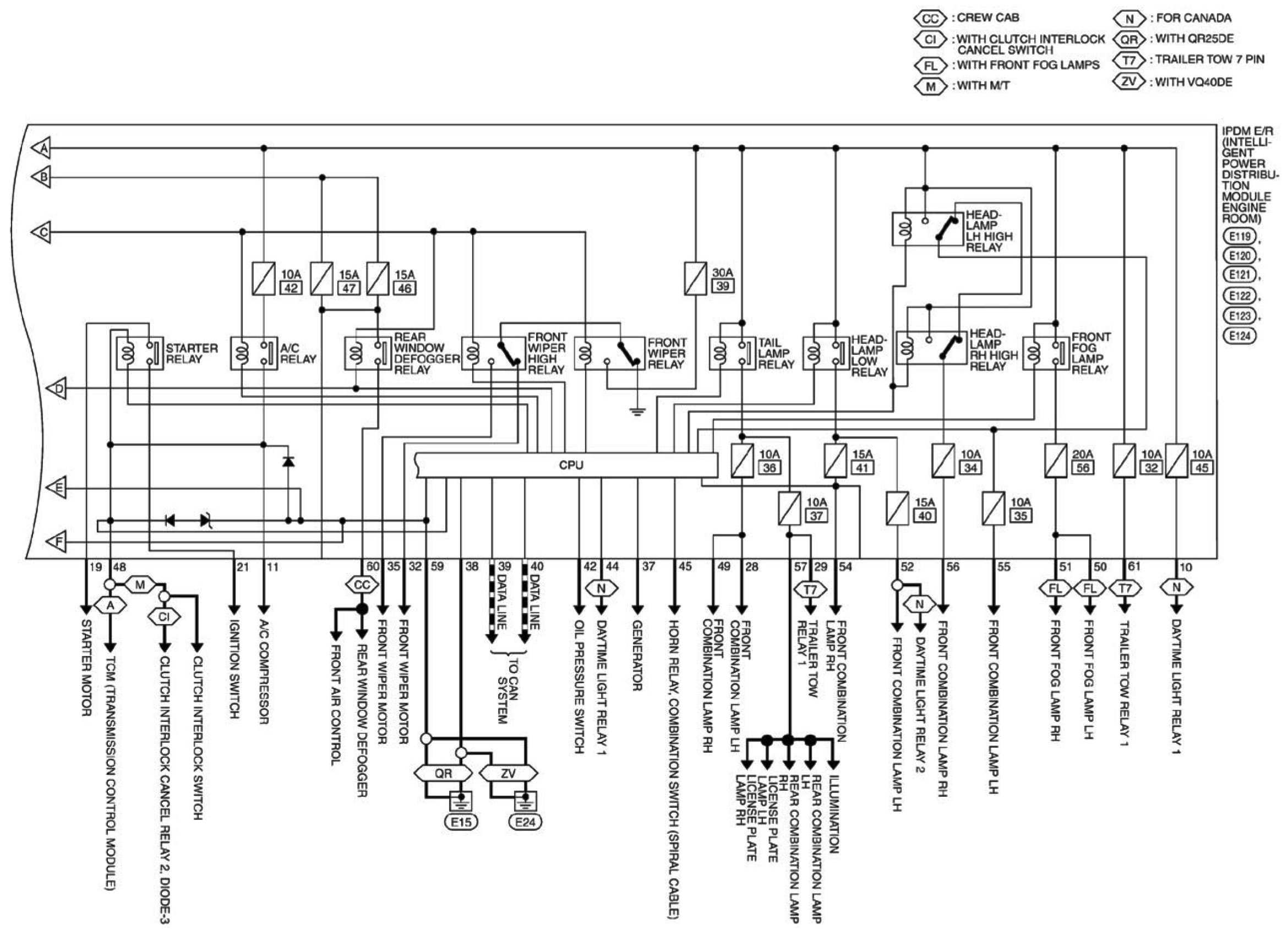

IPDM E/R (Intelligent Power Distribution Module Engine Room) (Part 2):






IPDM E/R (Intelligent Power Distribution Module Engine Room) Connectors

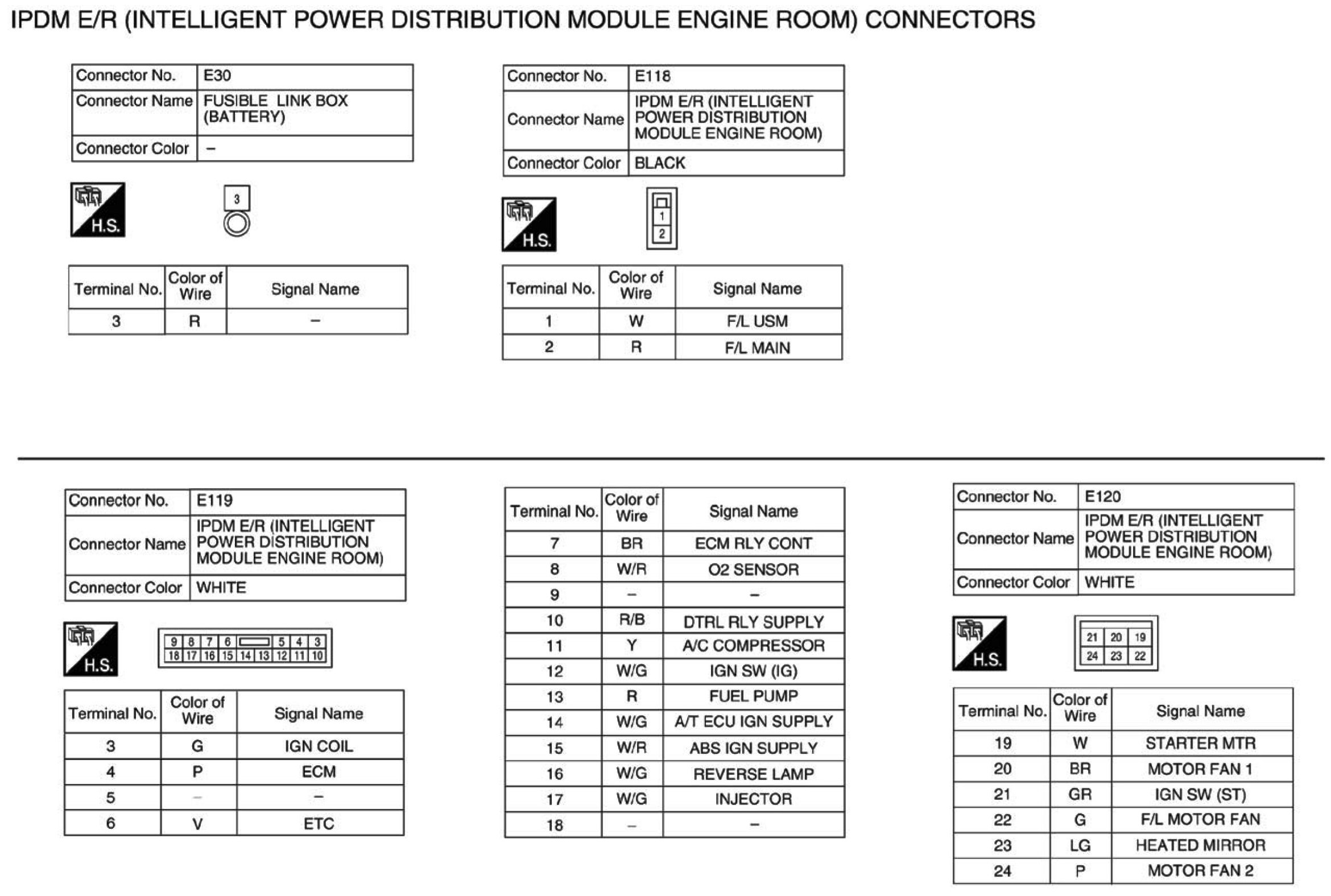

IPDM E/R (Intelligent Power Distribution Module Engine Room) Connectors (Part 1):

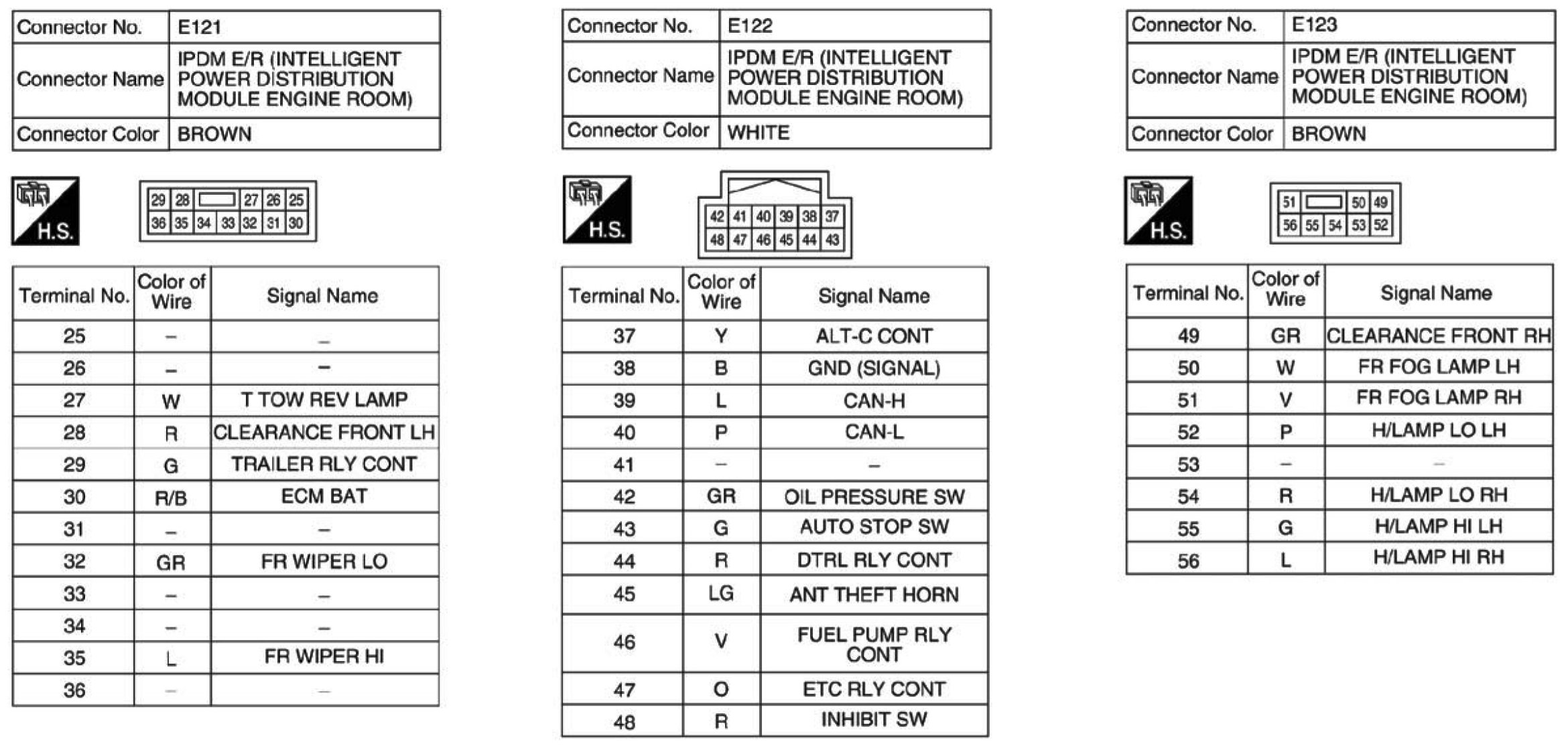

IPDM E/R (Intelligent Power Distribution Module Engine Room) Connectors 1 (4 Of 5):

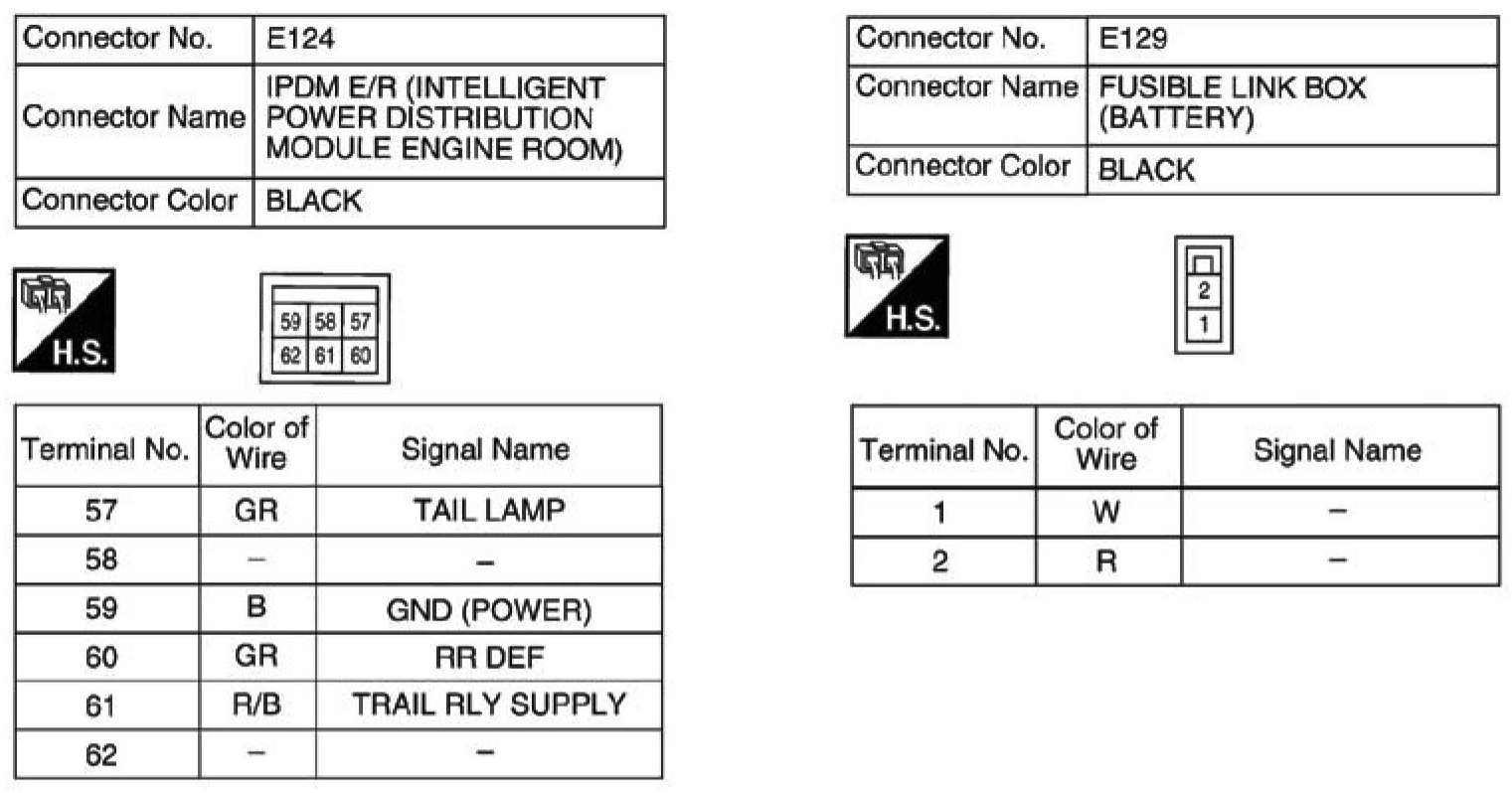

IPDM E/R (Intelligent Power Distribution Module Engine Room) Connectors (Part 3):
