Inside Mirror

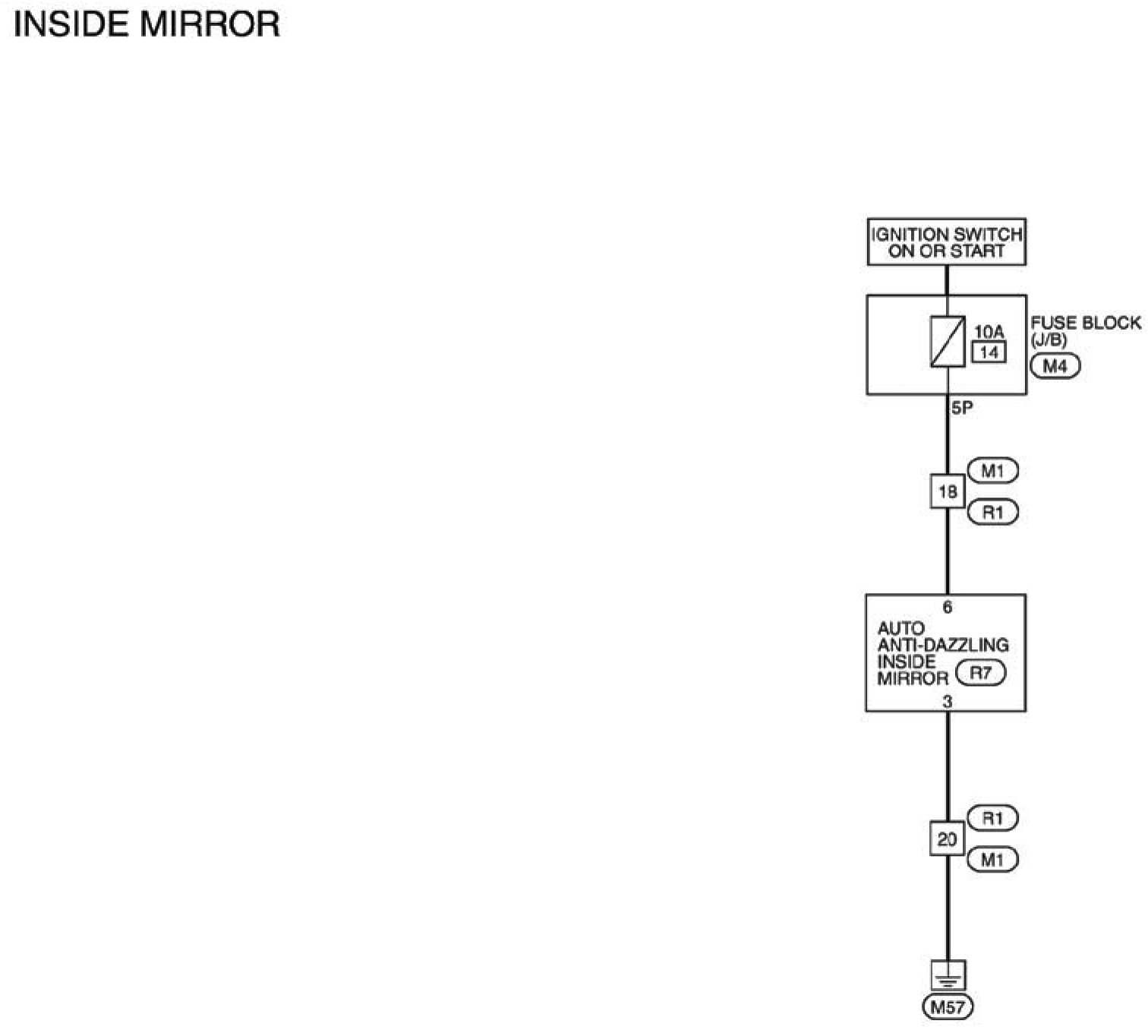

Inside Mirror: Wiring Diagram
Inside Mirror:

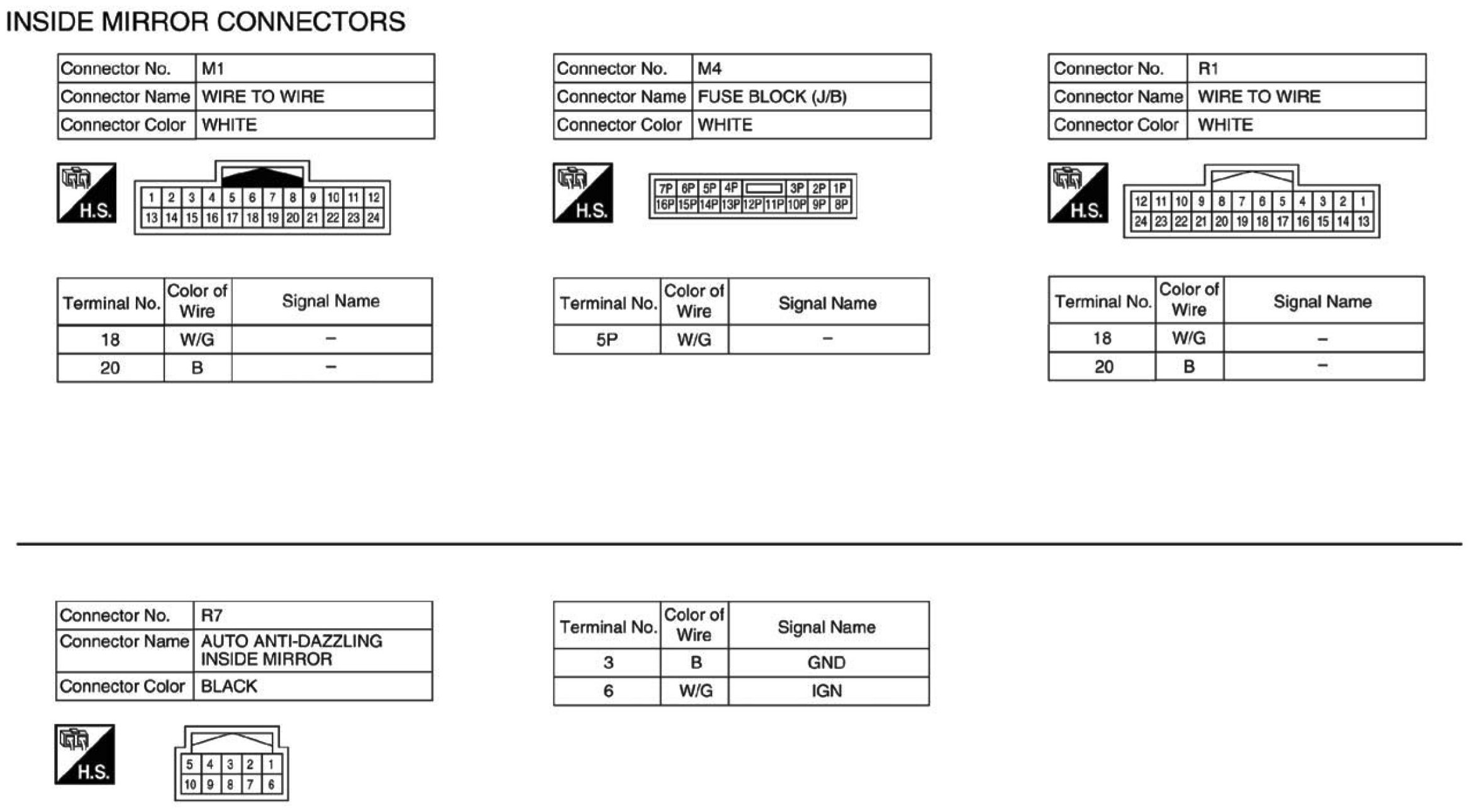

Inside Mirror Connectors
Inside Mirror Connectors:
