ABS

ABS: Wiring Diagram

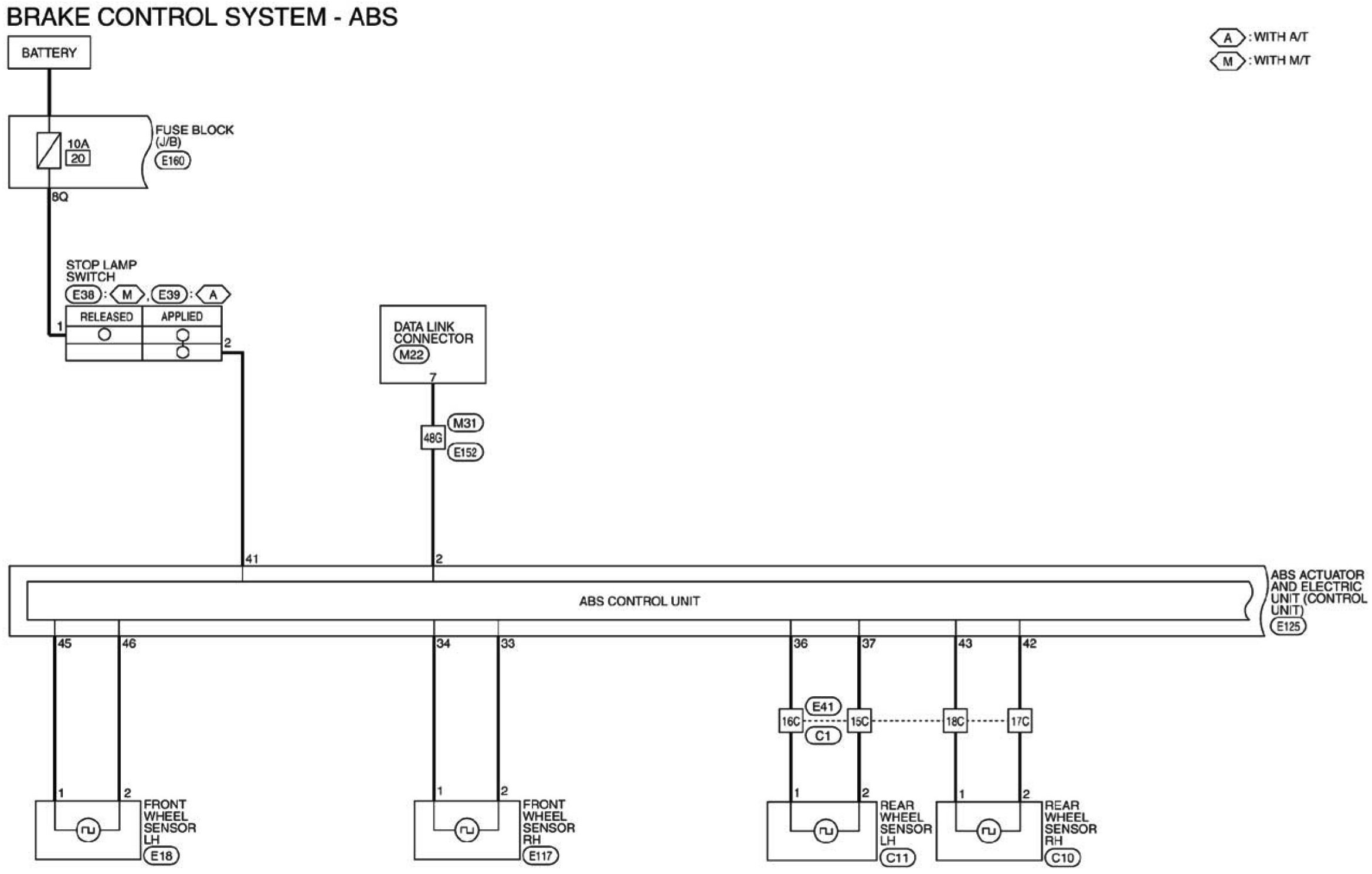

Brake Control System - ABS (Part 1):

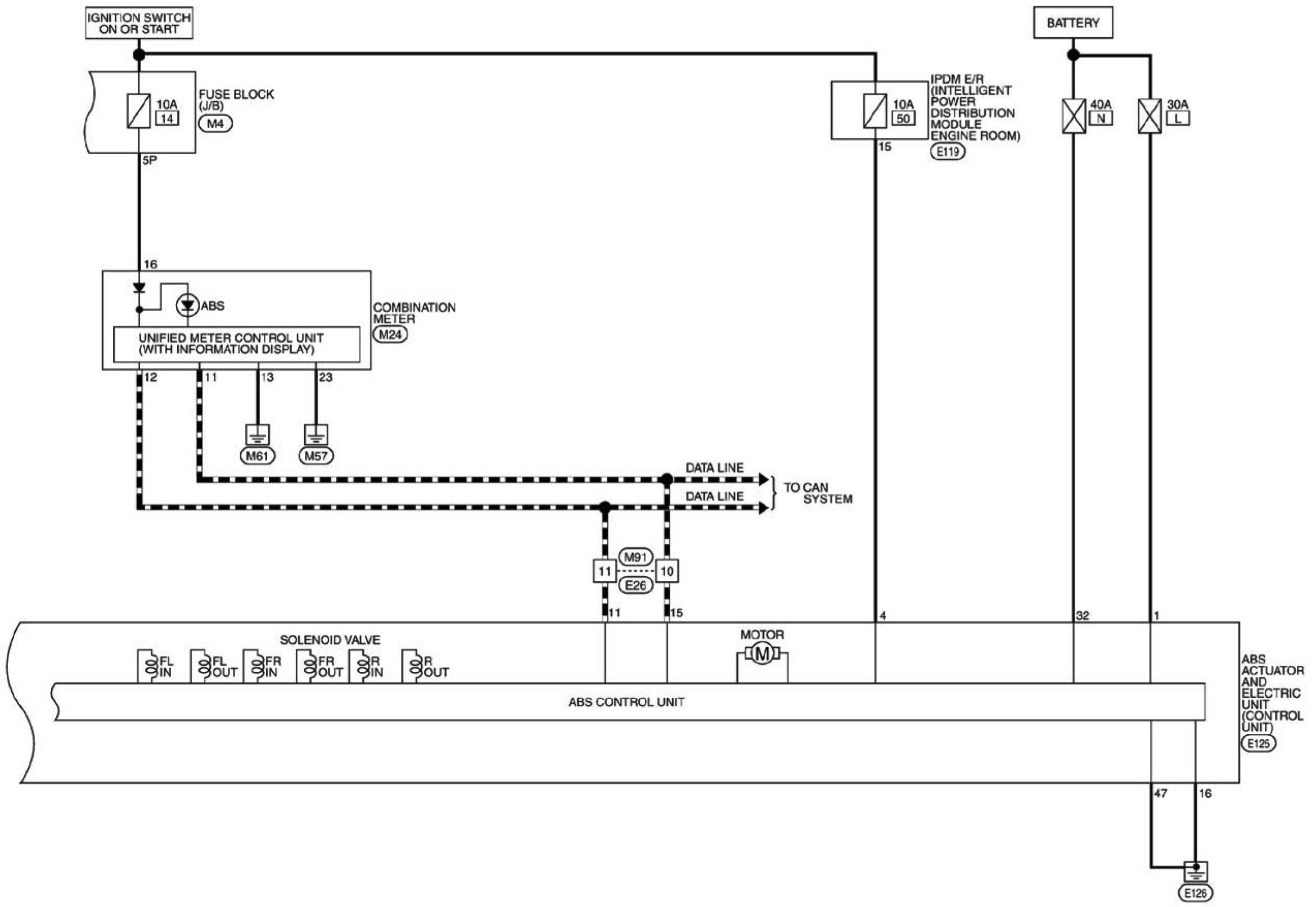

Brake Control System - ABS (Part 2):

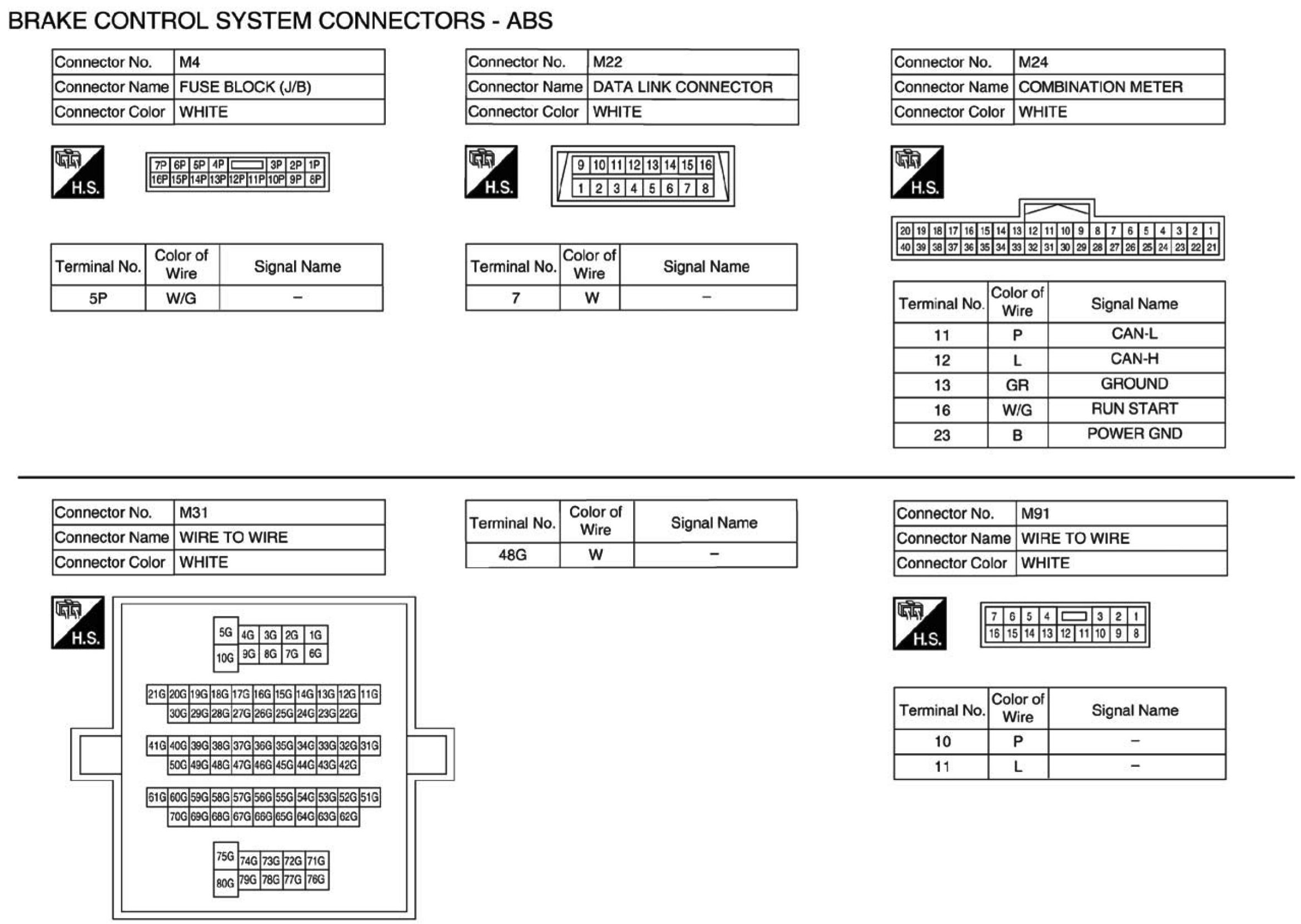

Brake Control System Connectors - ABS

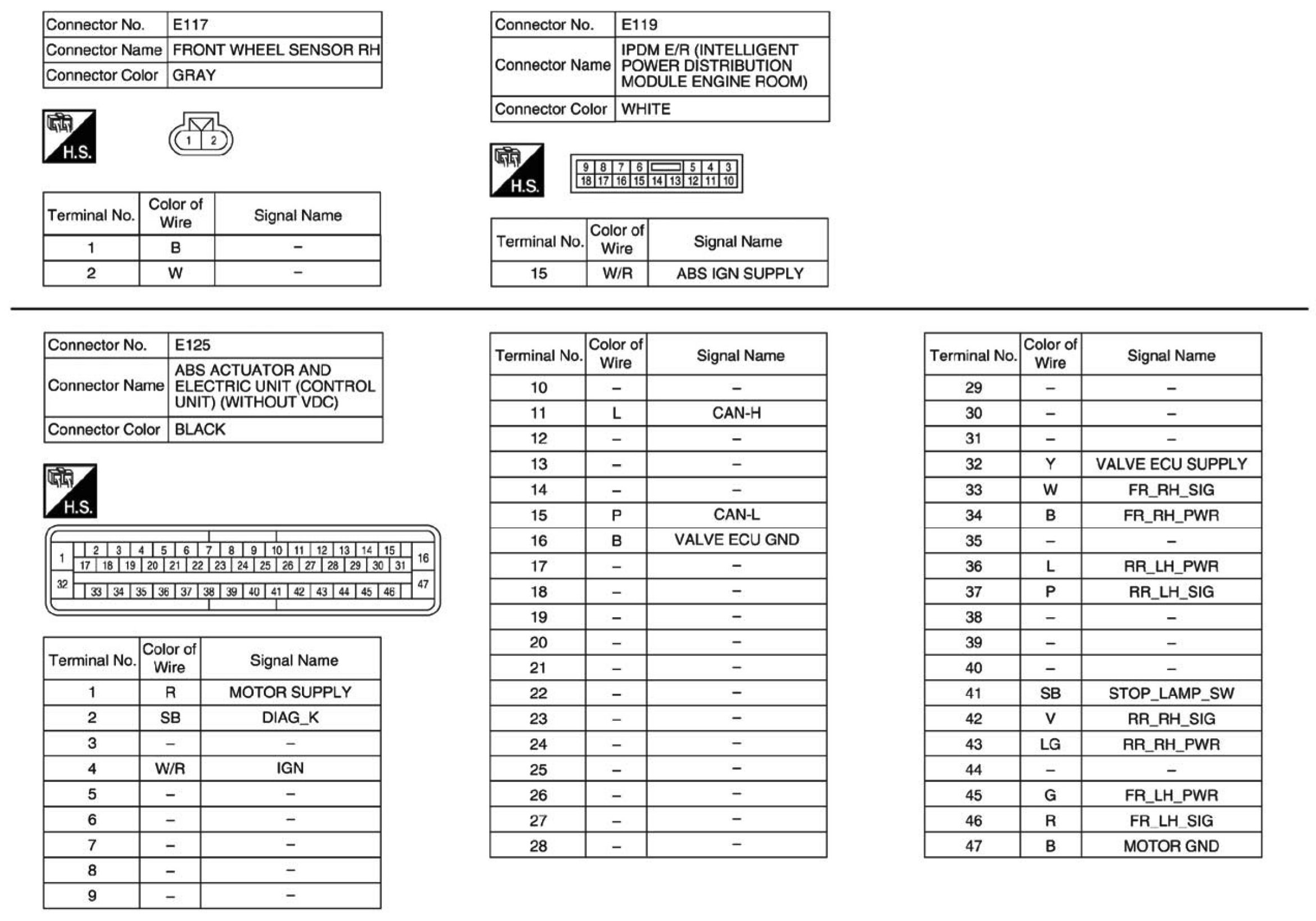

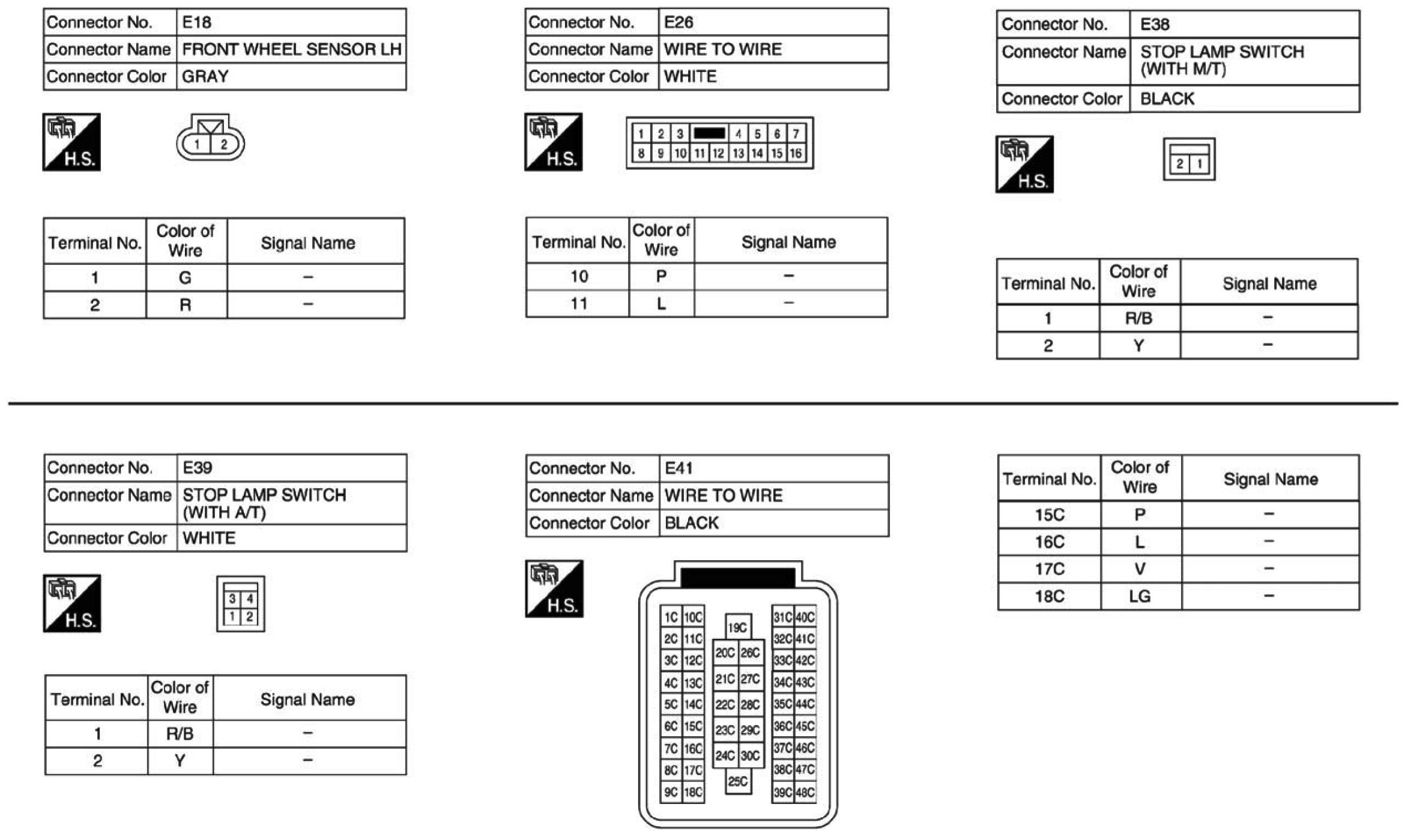

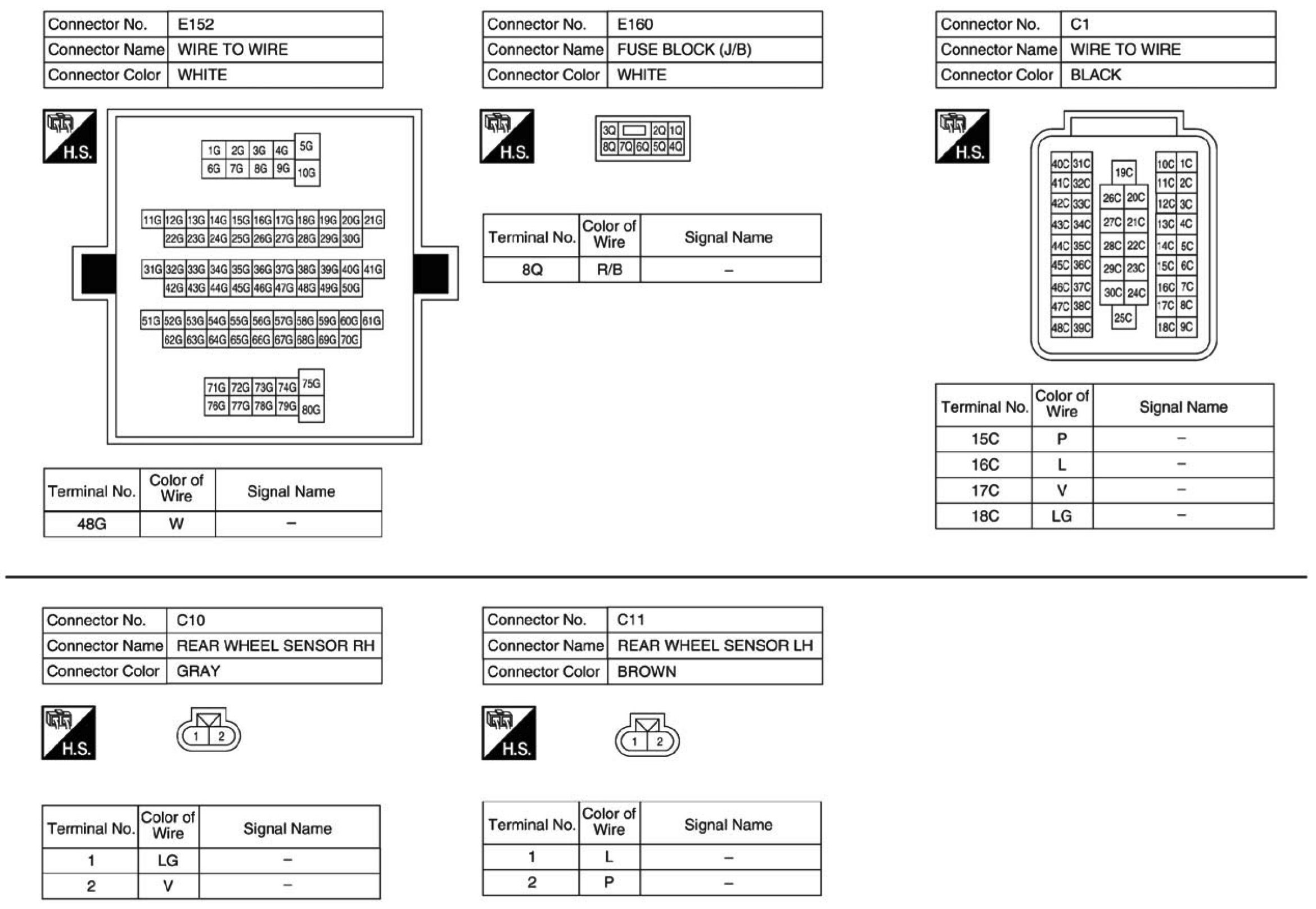

Brake Control System Connectors - ABS (Part 1):




Brake Control System Connectors - ABS (Part 2):




Brake Control System Connectors - ABS (Part 3):




Brake Control System Connectors - ABS (Part 4):
