SRS Airbag Control System Diagnosis Sensor Unit [With Power Seats]

SRS Airbag Control System Diagnosis Sensor Unit: Wiring Diagram [With Power Seats]

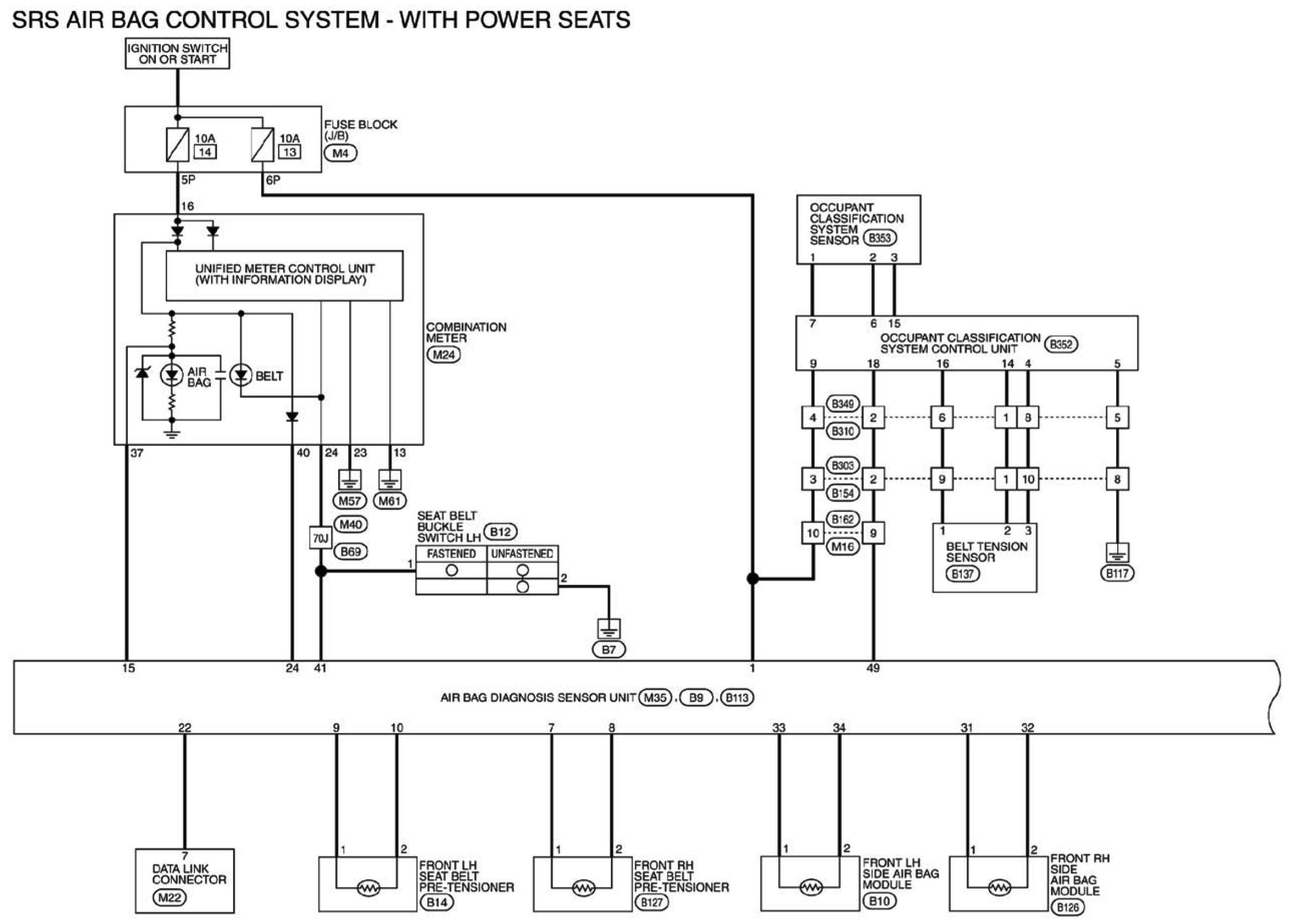

SRS Air Bag Control System - With Power Seats (Part 1):

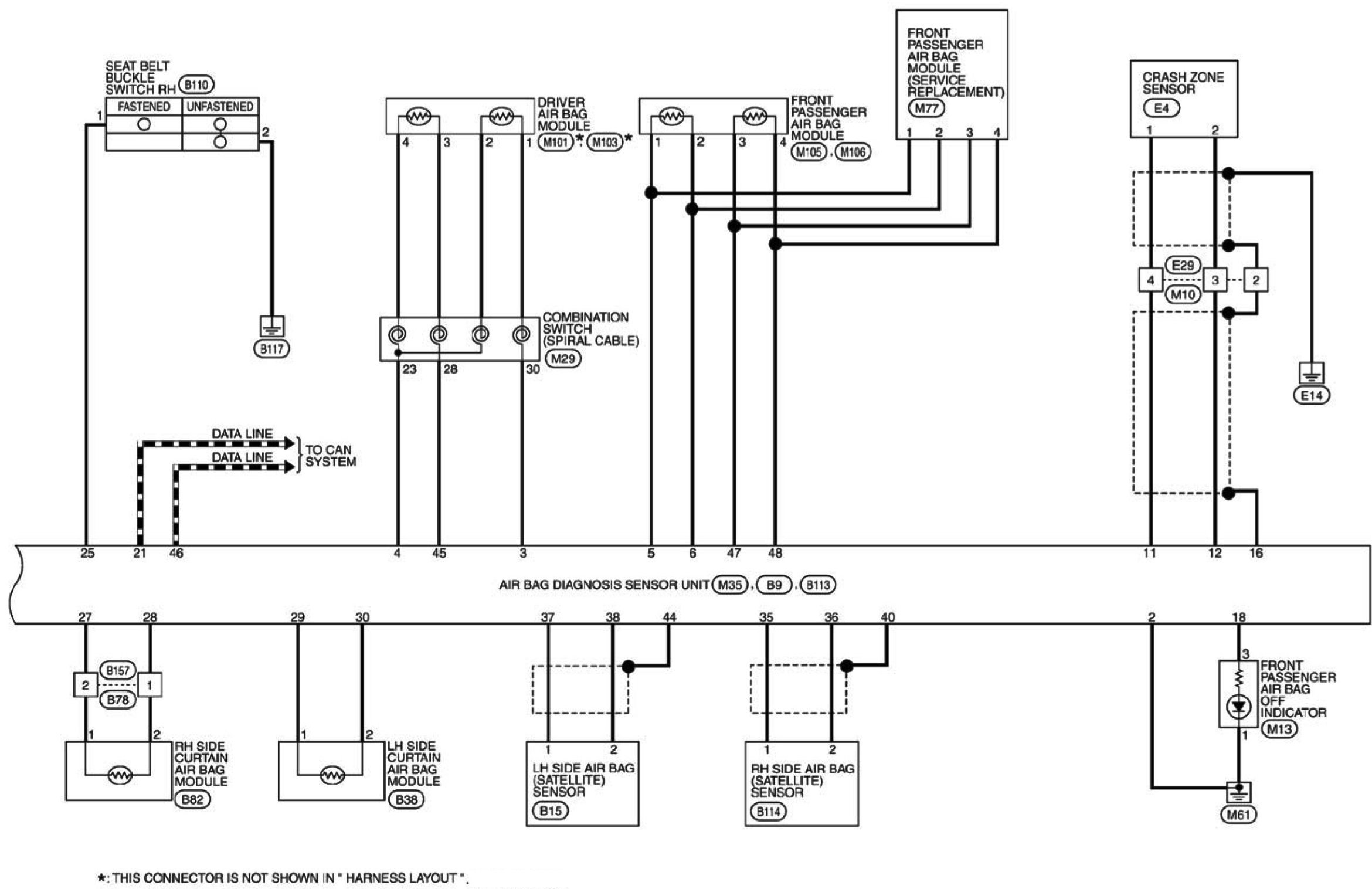

SRS Air Bag Control System - With Power Seats (Part 2):

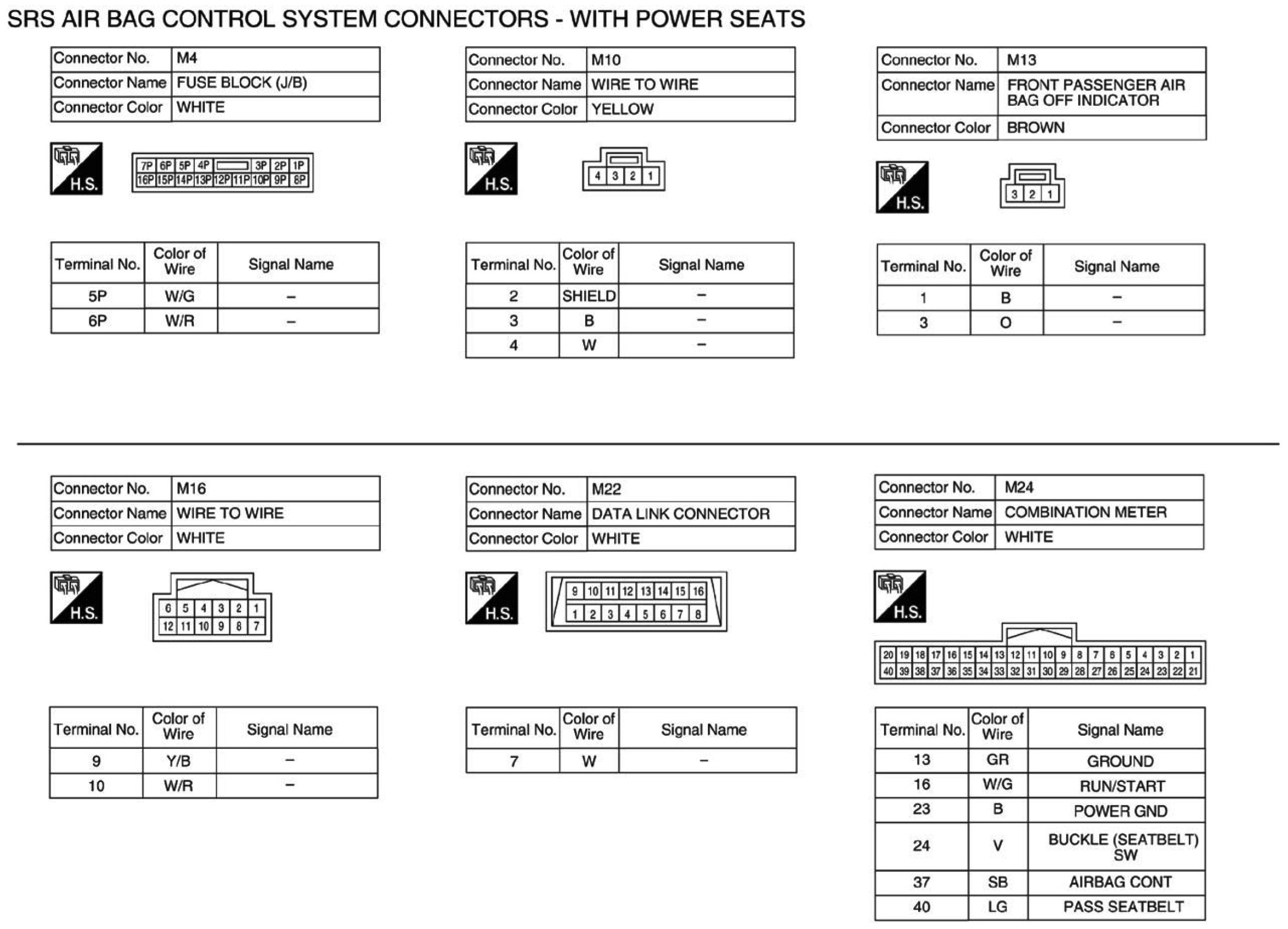

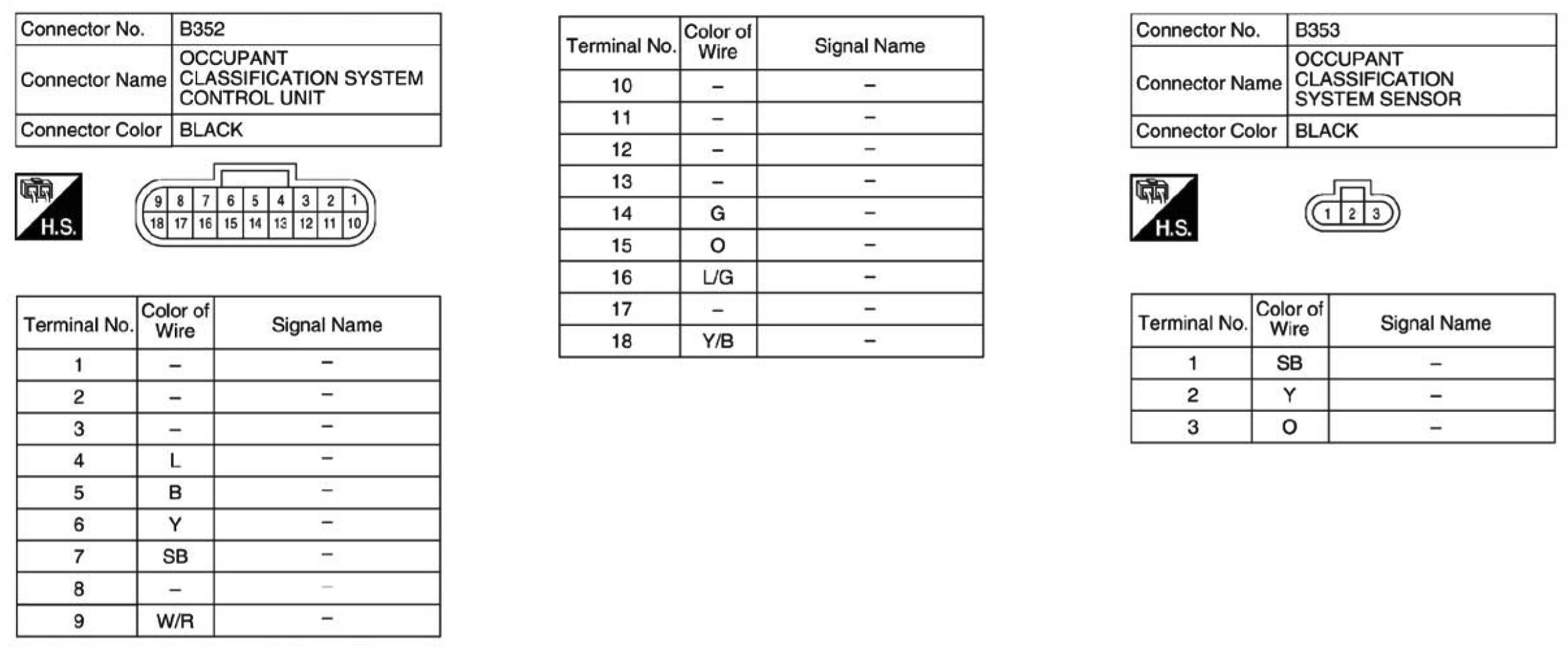

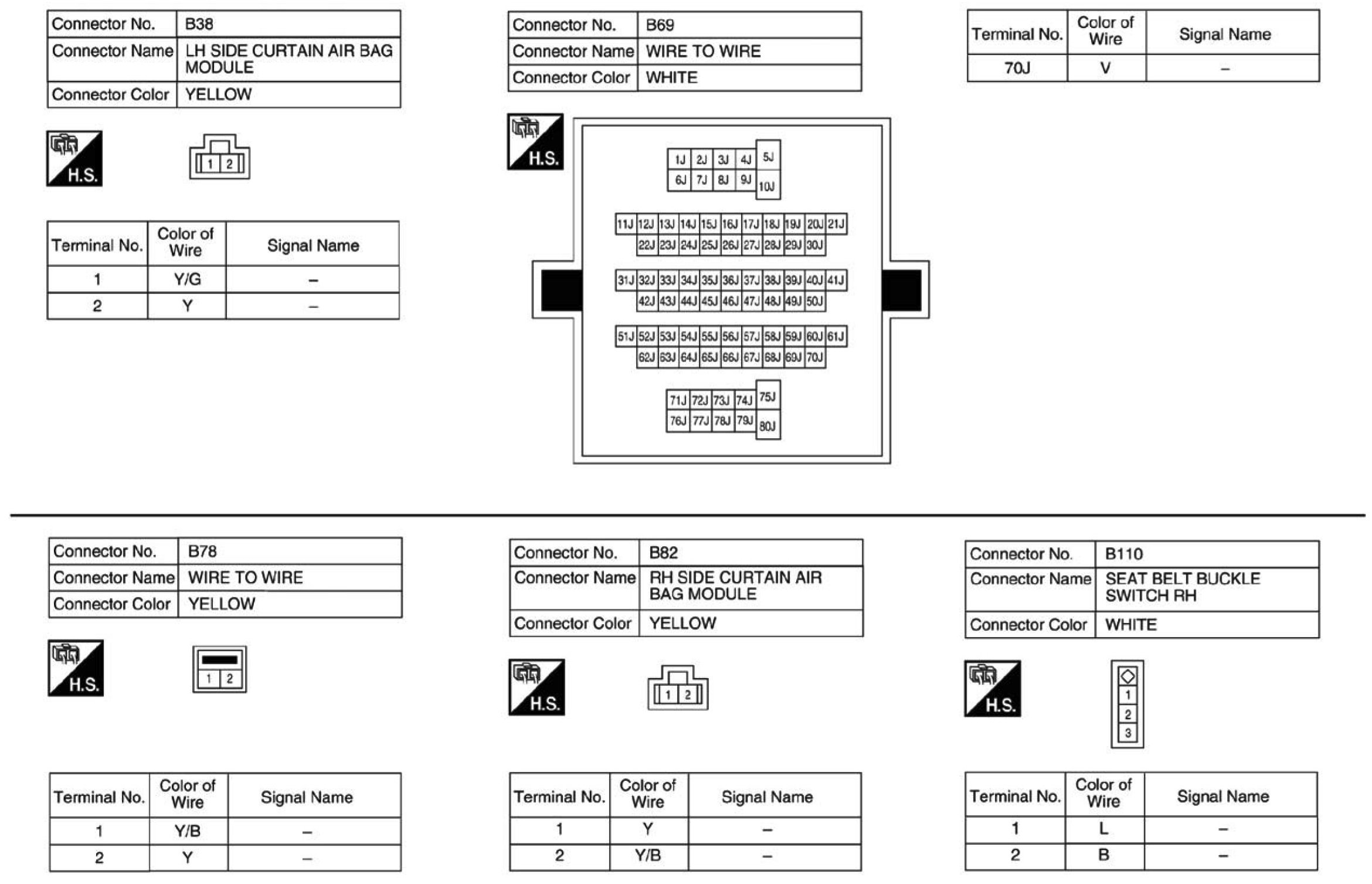

SRS Air Bag Control System Connectors - With Power Seats

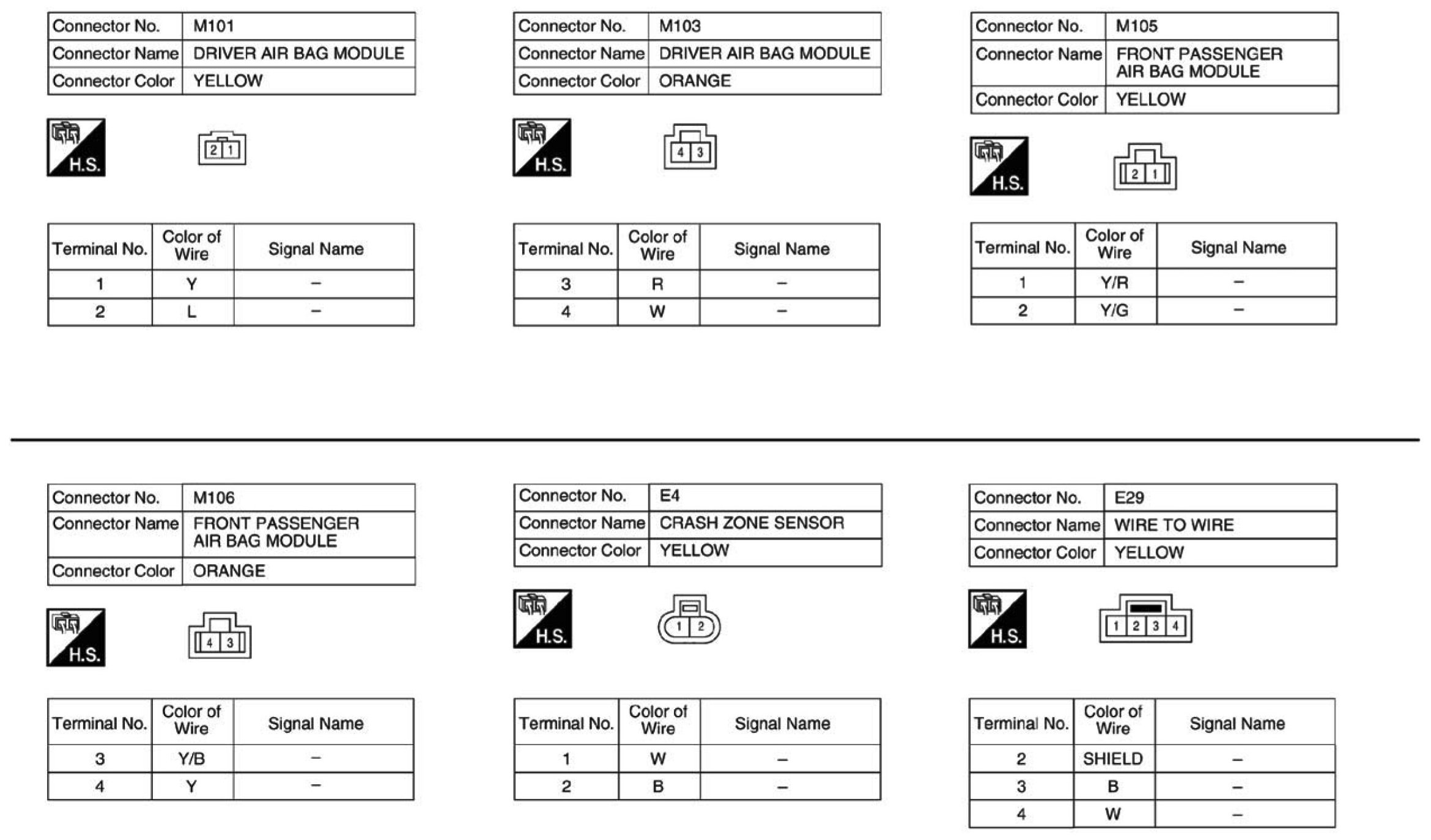

SRS Air Bag Control System Connectors - With Power Seats (Part 1):

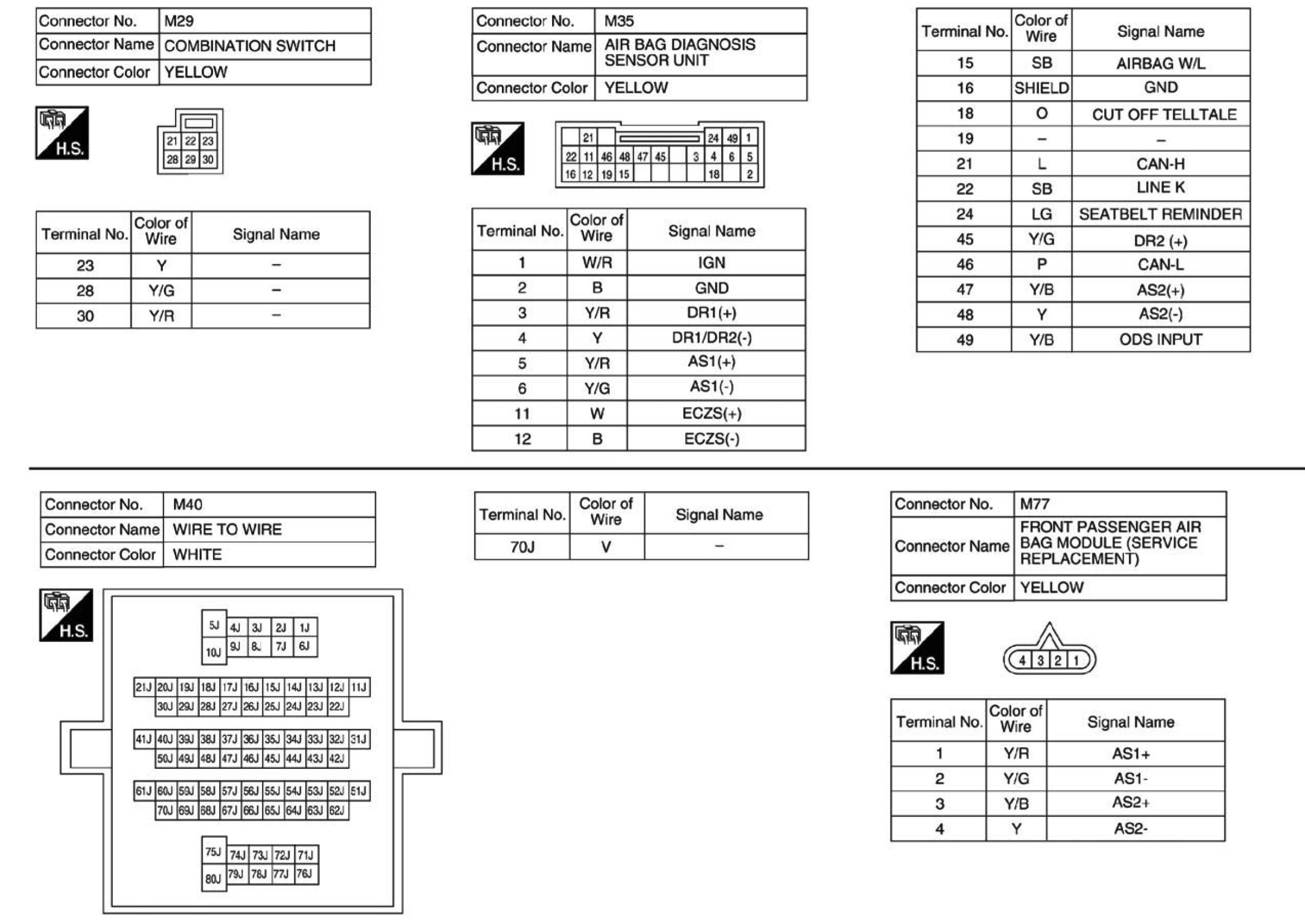

SRS Air Bag Control System Connectors - With Power Seats (Part 2):

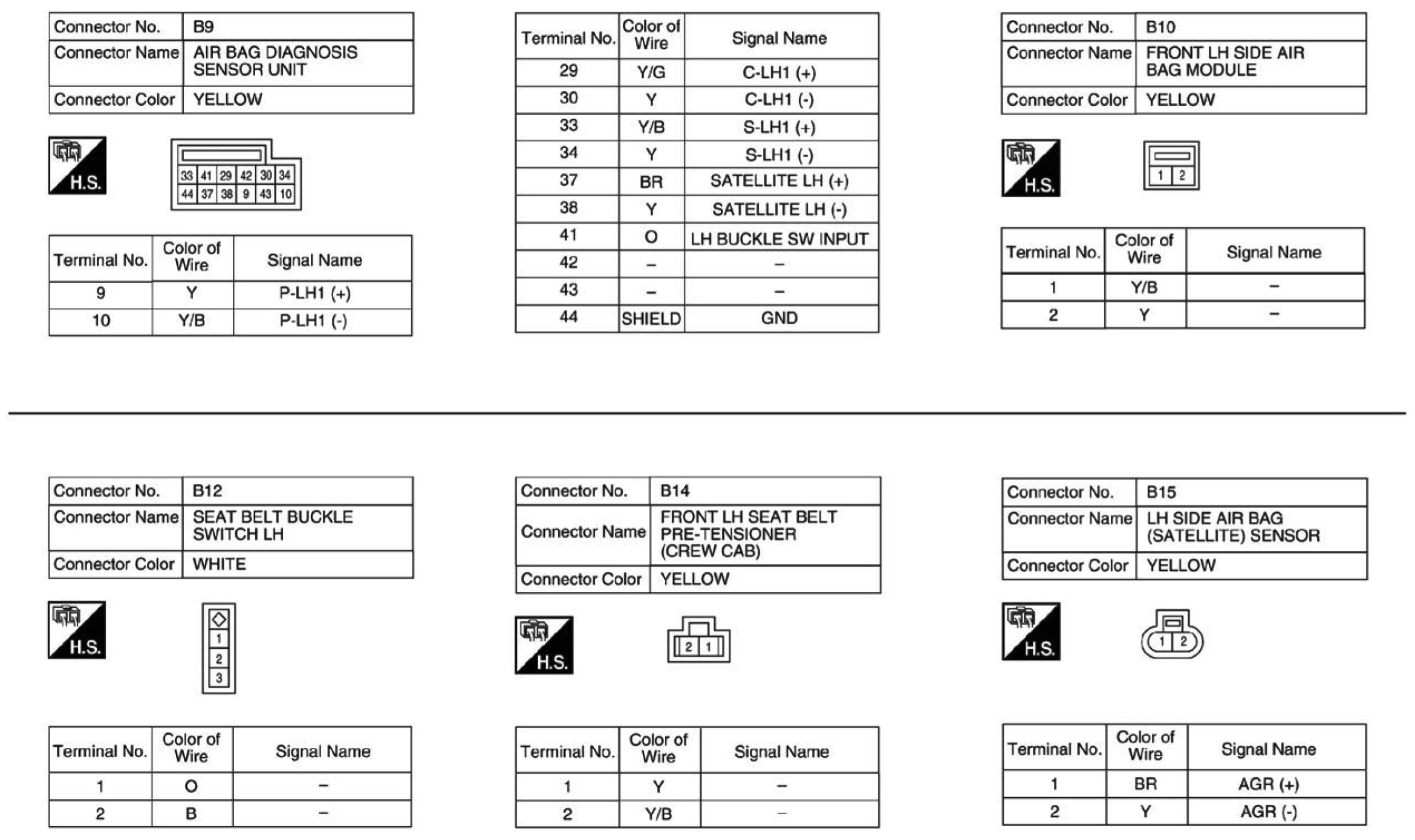

SRS Air Bag Control System Connectors - With Power Seats (Part 3):

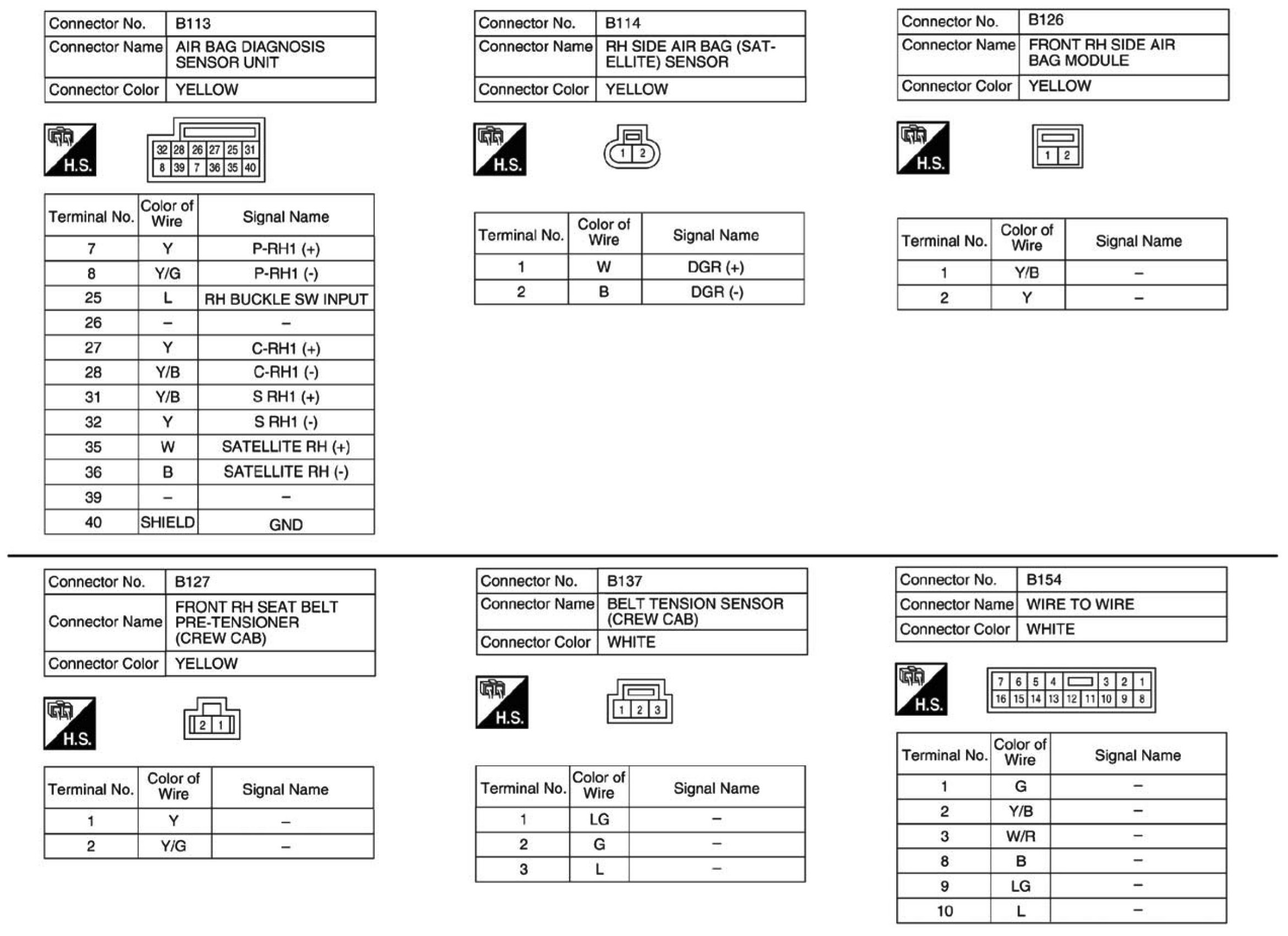

SRS Air Bag Control System Connectors - With Power Seats (Part 4):




SRS Air Bag Control System Connectors - With Power Seats (Part 5):

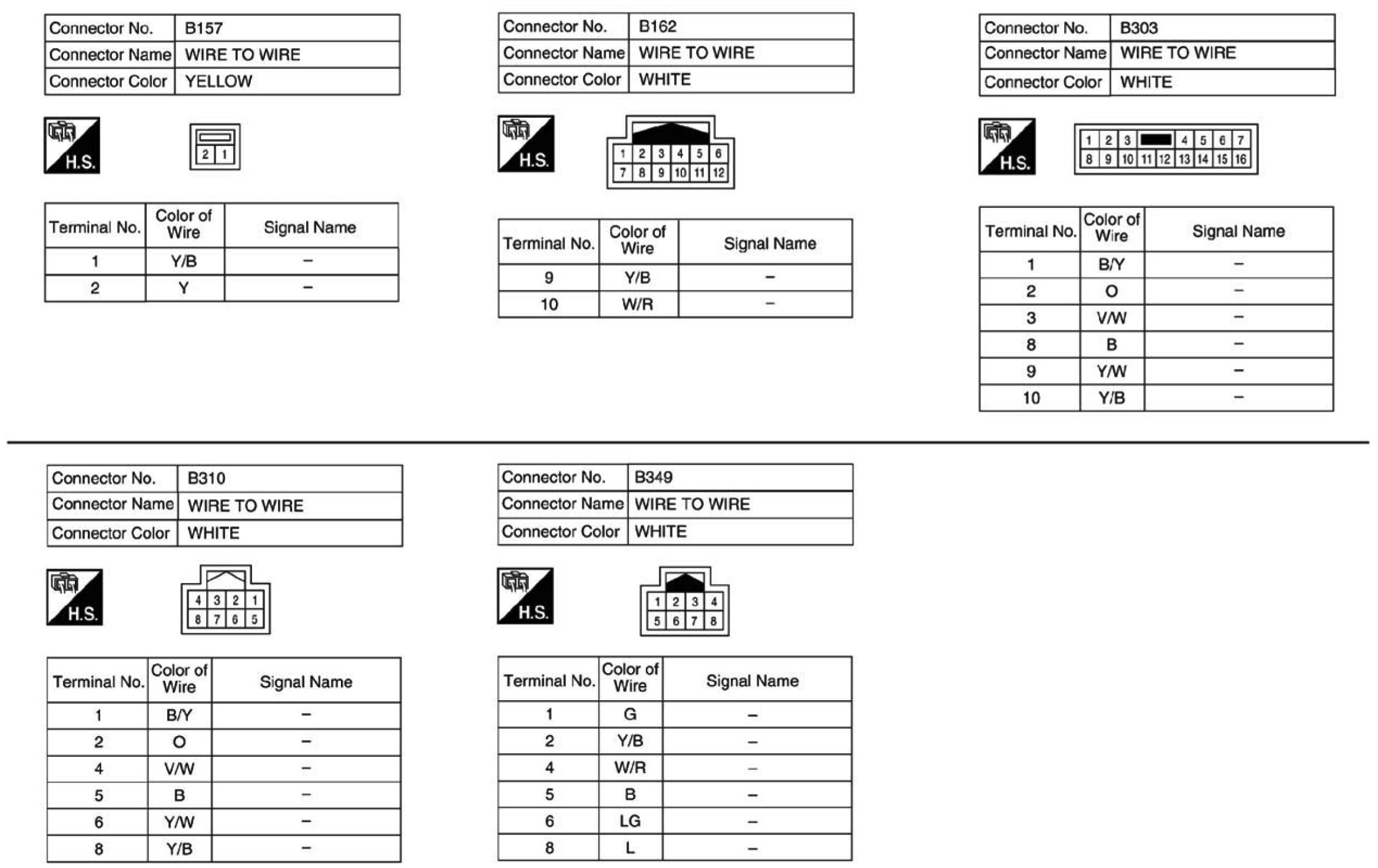

SRS Air Bag Control System Connectors - With Power Seats (Part 7):




SRS Air Bag Control System Connectors - With Power Seats (Part 8):




SRS Air Bag Control System Connectors - With Power Seats (Part 9):
