Door Mirror Defogger Circuit Check [RH]

Door Mirror Defogger Circuit Check [RH]

Description
Heats the heating wire with the power supply from the rear window defogger relay to prevent the door mirror from fogging up.

Step 1:

Component Function Check

Diagnosis Procedure
Regarding Wiring Diagram information, refer to [Defogger Control System: Wiring Diagram].

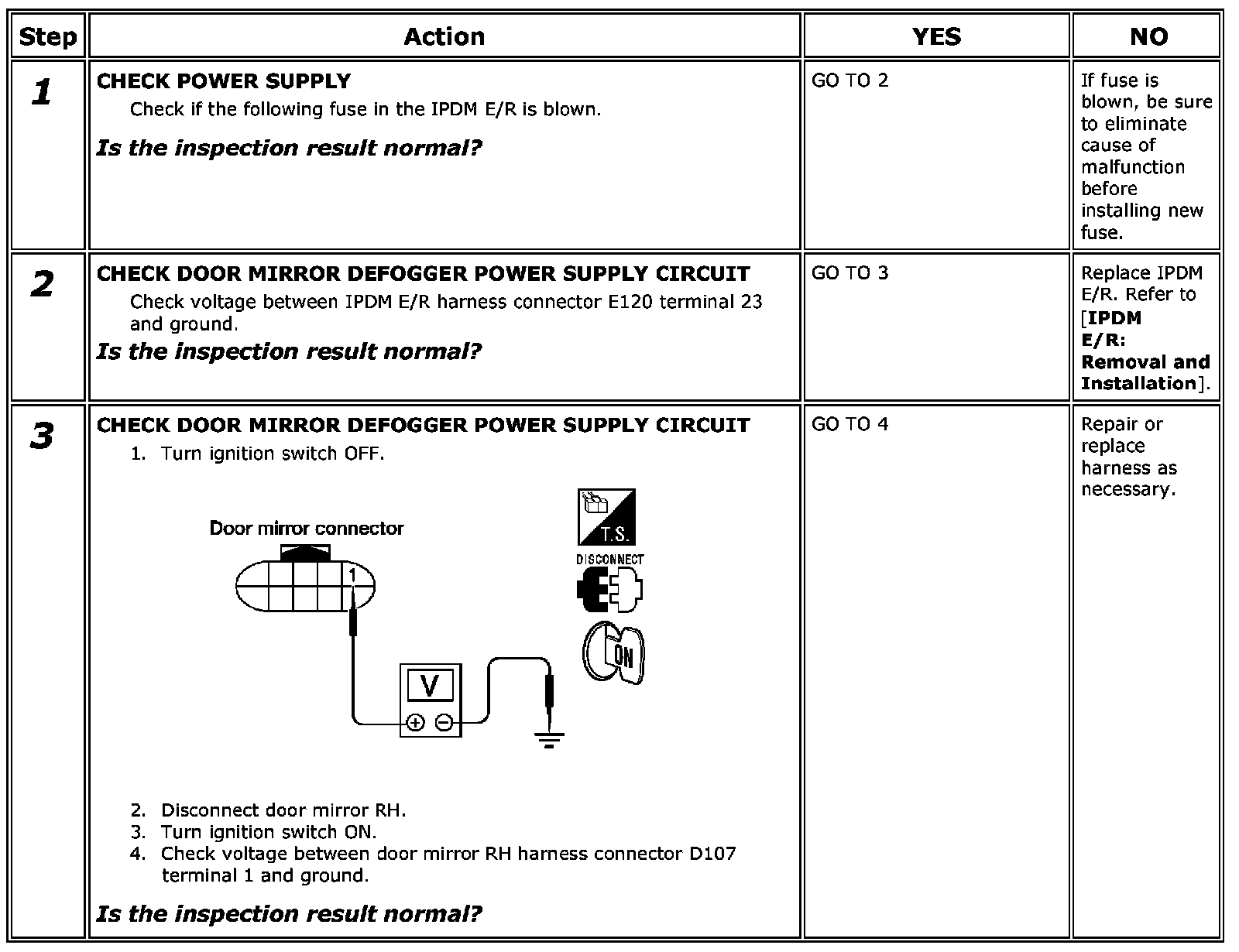

Step 1-3:

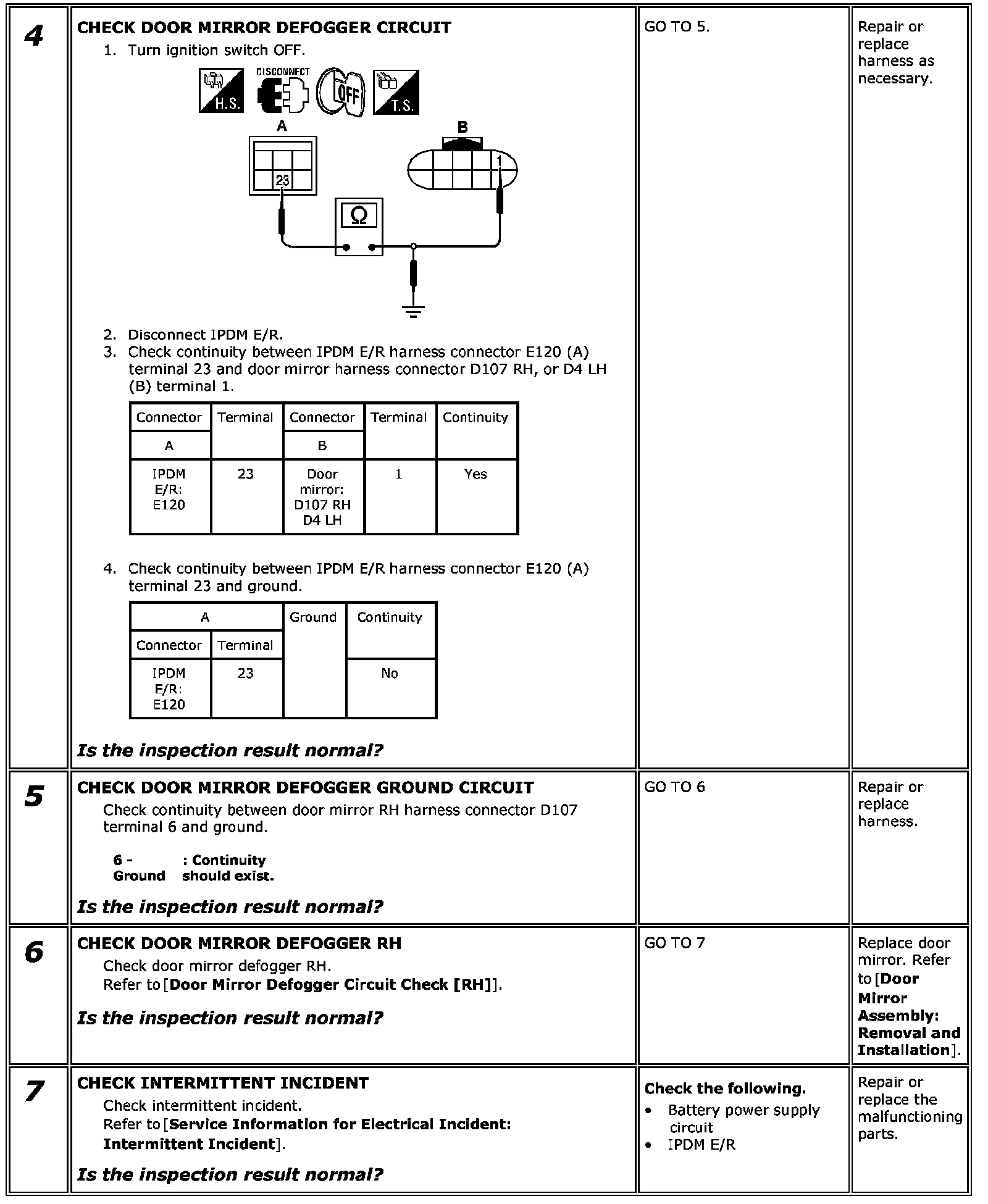

Step 4-7:

Component Inspection
