Overhaul

Mirror Actuator: Disassembly and Assembly

Disassembly and Assembly

Disassembly
1. Remove the mirror glass. Refer to [Door Mirror Glass: Removal and Installation]

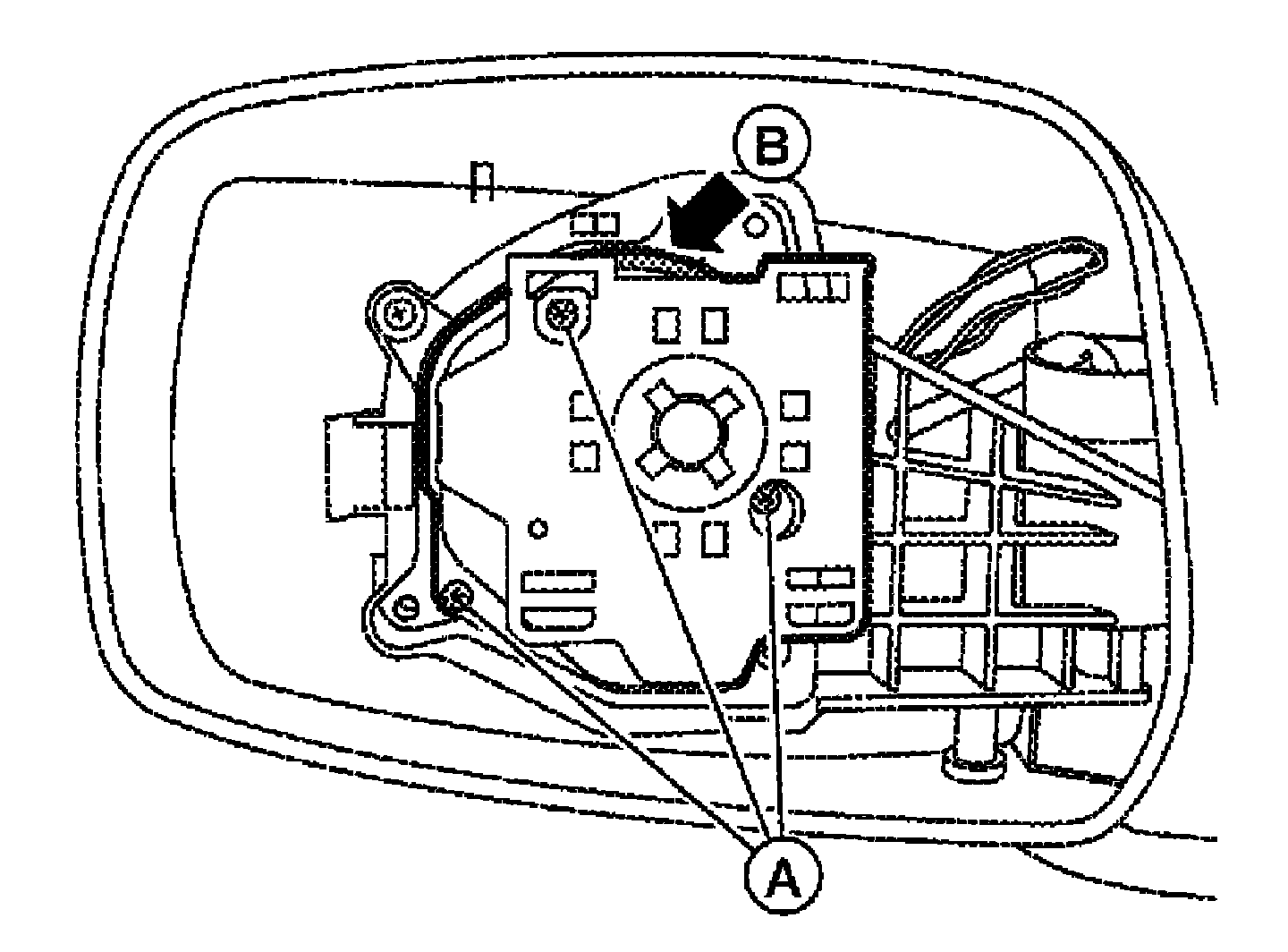

2. Remove the screws (A) and release the actuator from housing (B).

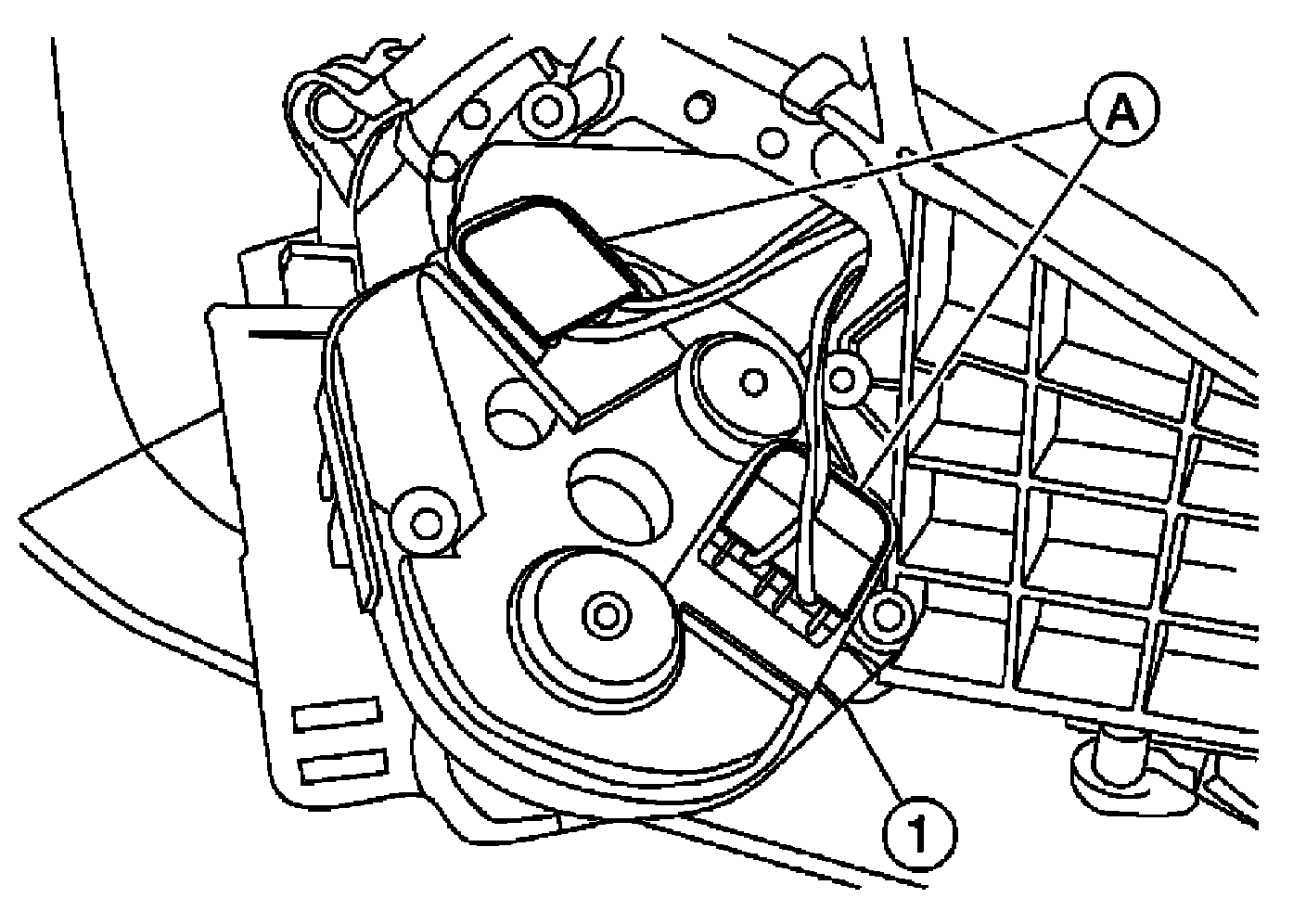

3. Disconnect the connectors (A) and remove the actuator (1).







Assembly
Assembly is the reverse order of disassembly.
