Initial Inspection and Diagnostic Overview

Diagnosis and Repair Workflow

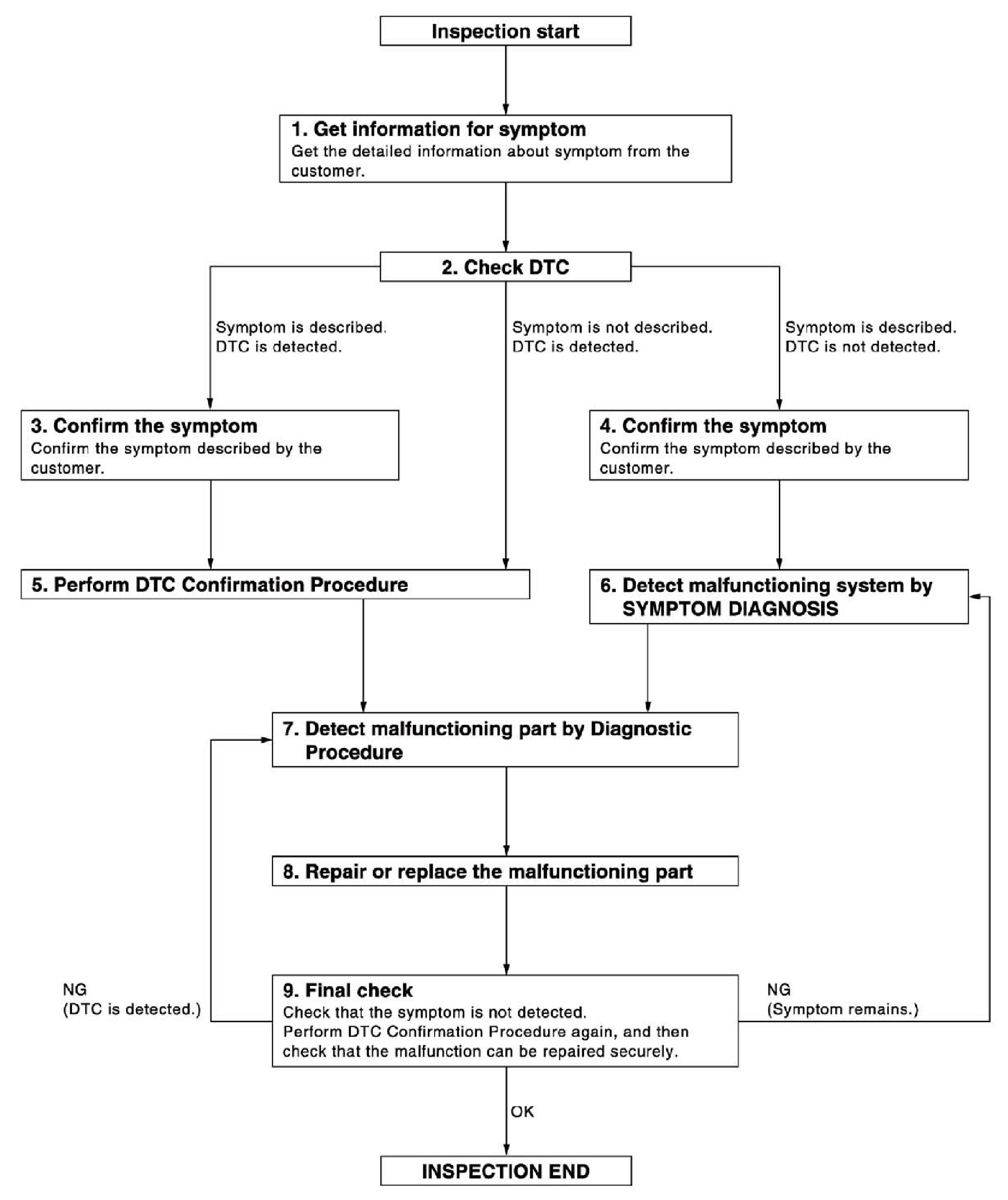

Overall Sequence

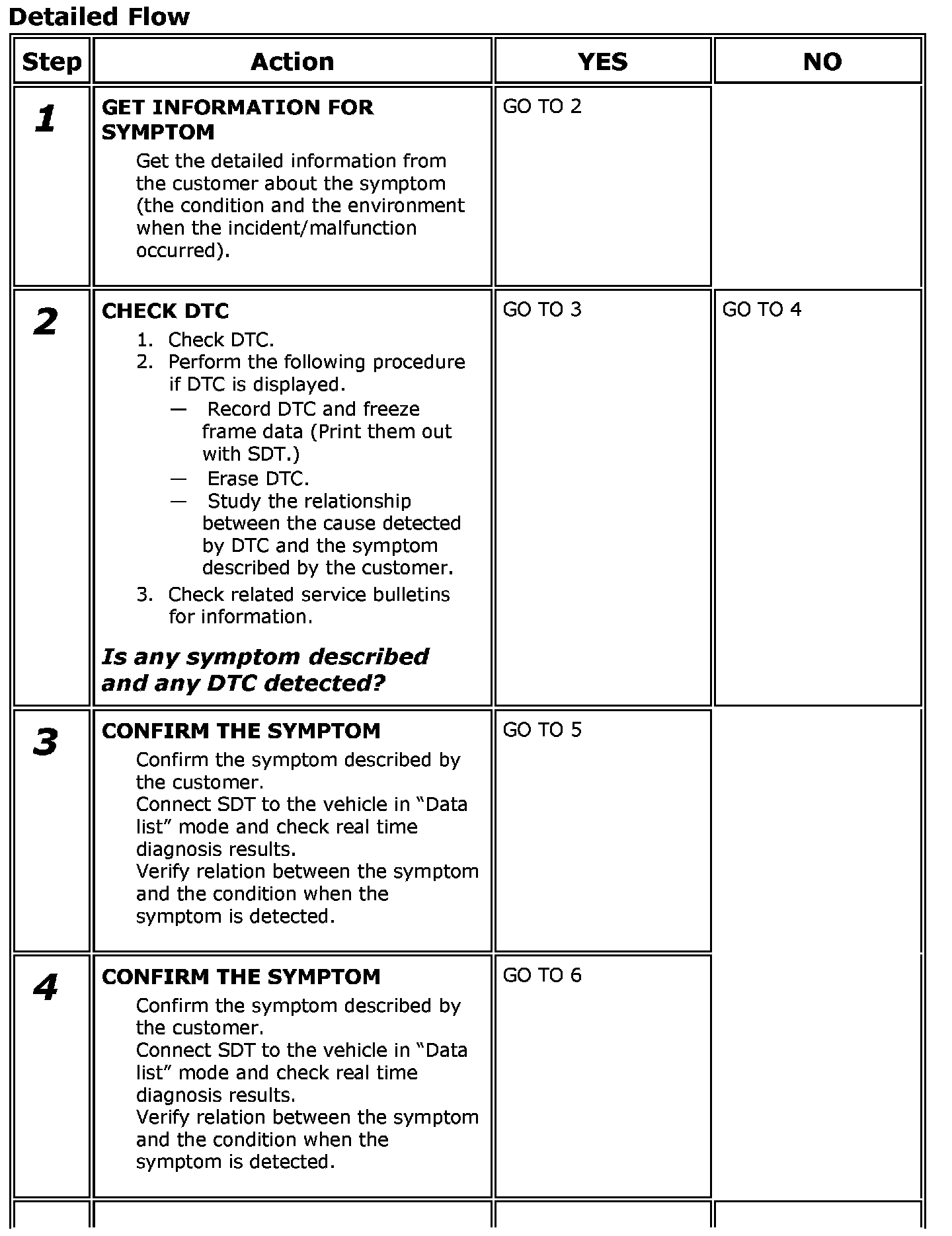

Detailed Flow

Step 1-4:

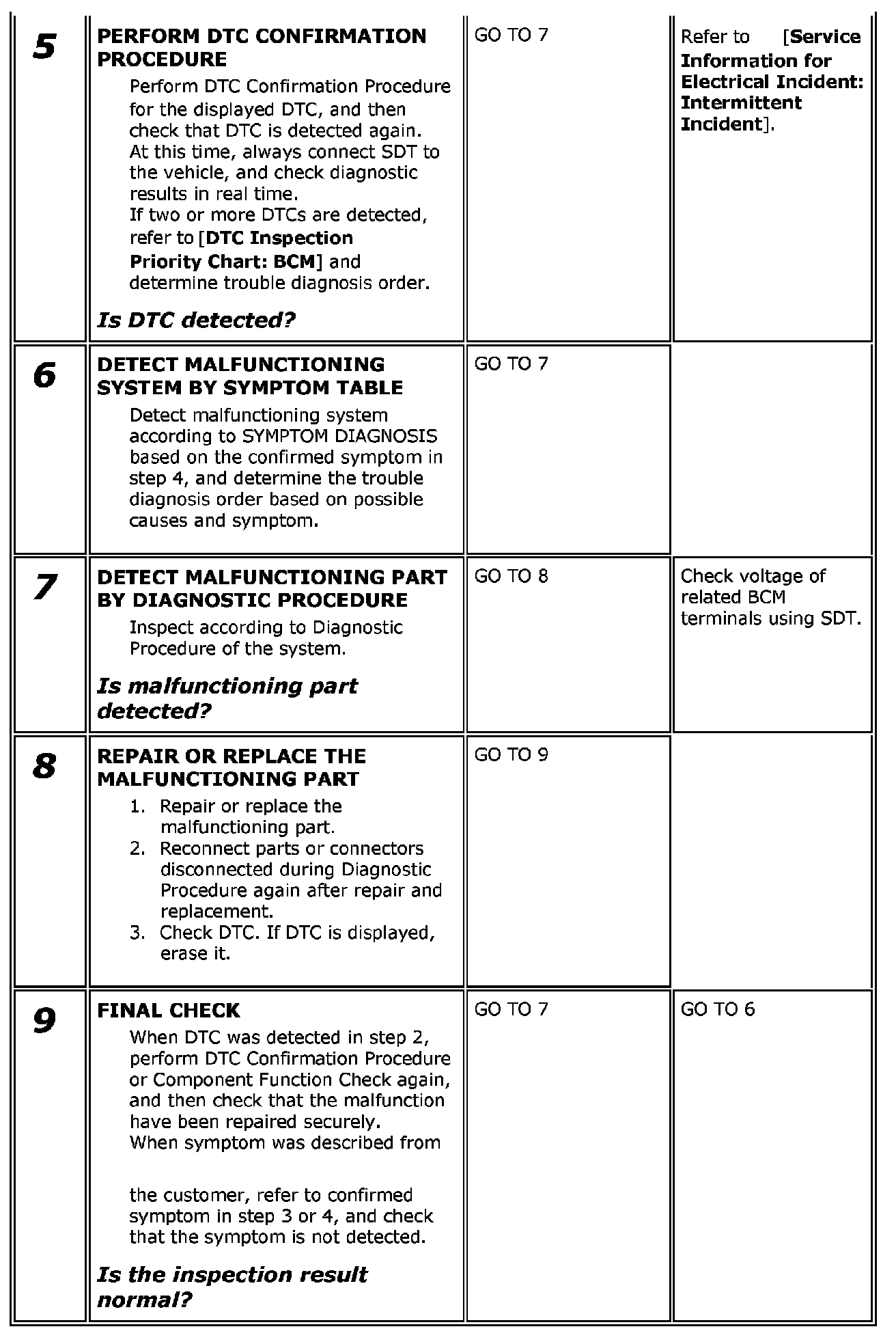

Step 5-9:
