Horn Function Circuit Check

Horn Function Circuit Check

Description
Perform answer-back for each operation with horn.

Component Function Check

Step 1:

Diagnosis Procedure
Regarding Wiring Diagram information, refer to [Remote Keyless Entry System: Wiring Diagram [King Cab]] Remote Keyless Entry System [King Cab] or [Remote Keyless Entry System: Wiring Diagram [Crew Cab]]. Remote Keyless Entry System [Crew Cab]

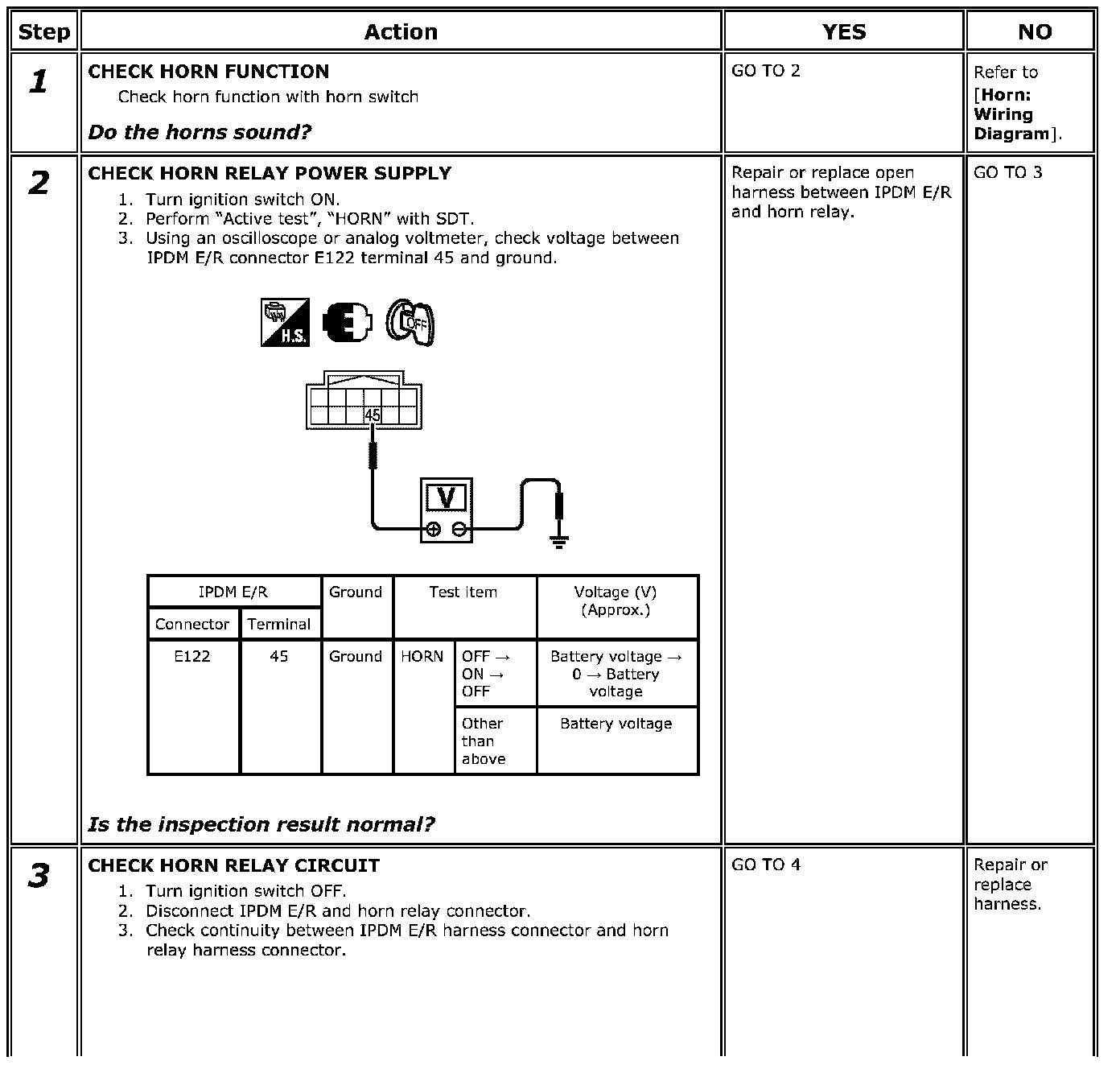

Step 1-3:

Step 3 (Continued)-4:
