Door Lock Actuator Circuit Check [Passenger Side]

Door Lock Actuator Circuit Check [Passenger Side]

Description
Locks/unlocks the door with the signal from BCM.

Component Function Check

Step 1:

Diagnosis Procedure
Regarding Wiring Diagram information, refer to [Power Door Lock System: Wiring Diagram [King Cab]] Power Door Lock System [King Cab] or [Power Door Lock System: Wiring Diagram [Crew Cab]]. Power Door Lock System [Crew Cab]

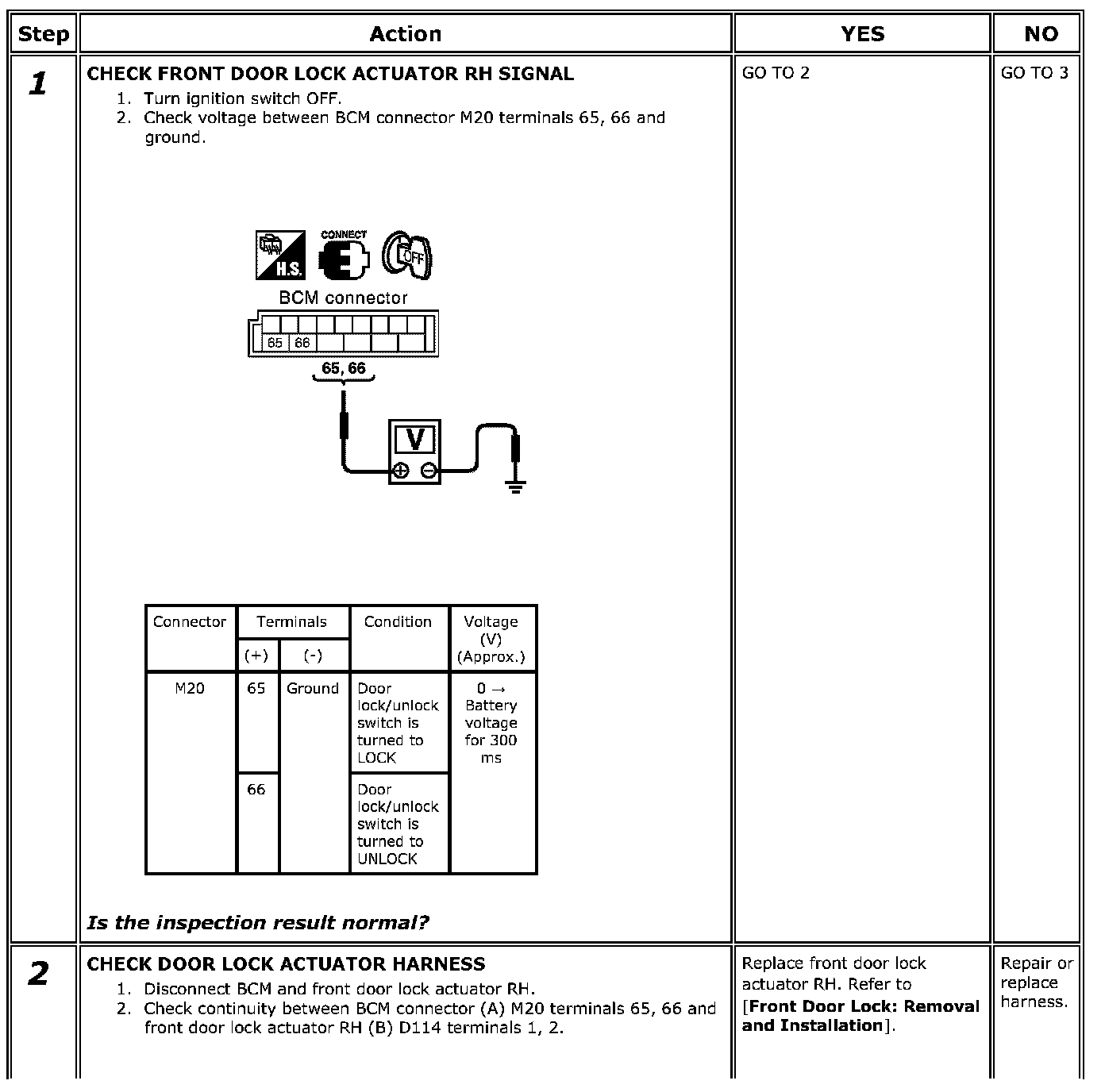

Step 1-2:

Step 2 (Continued)-3:
