Headliner: Service and Repair

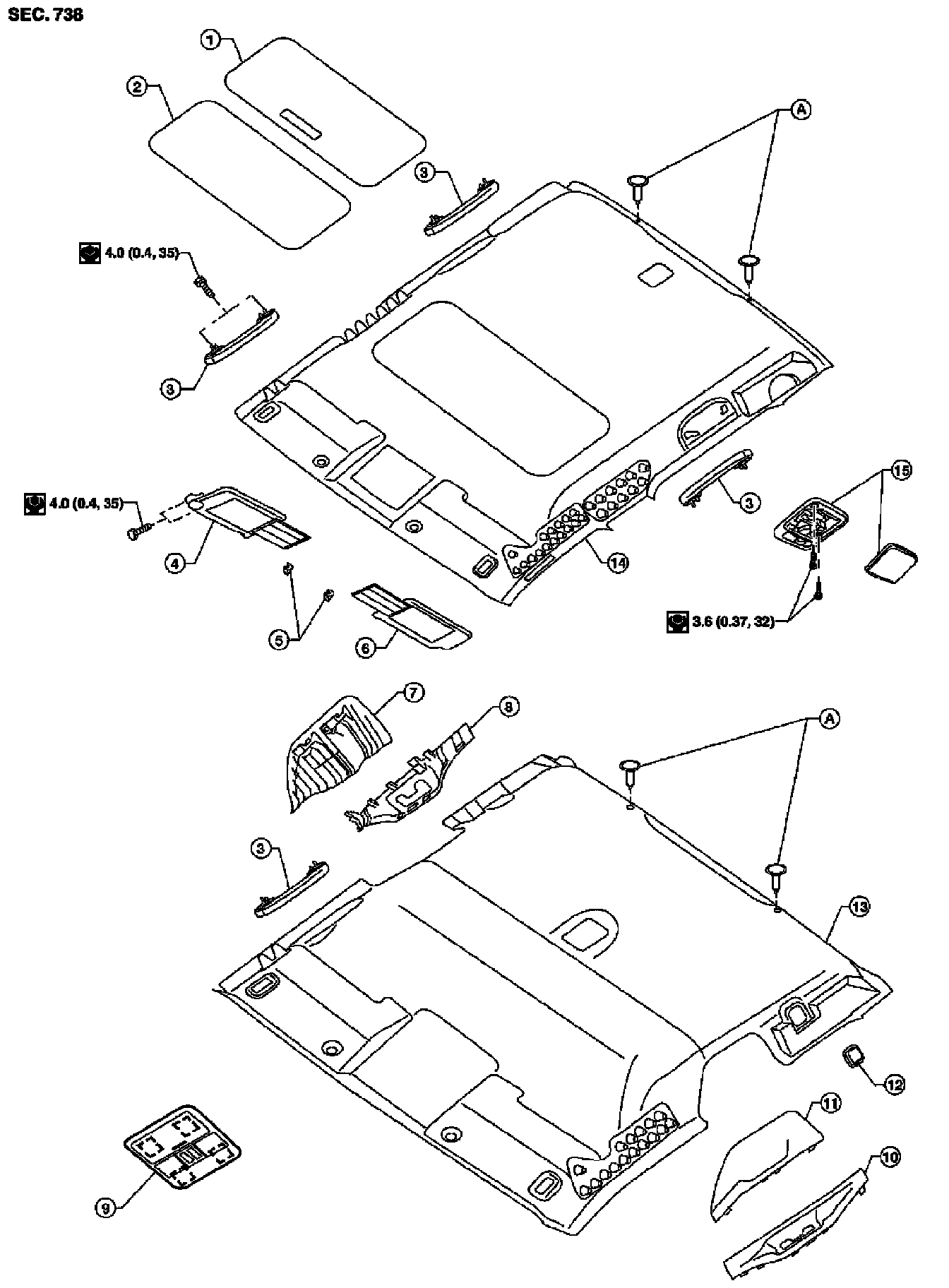

Headlining: Removal and Installation










Removal
1. Remove body side trim panels. Refer to [Body Side Trim: Component].
2. Remove rear trim. Refer to [Headlining: Removal and Installation].
3. Remove sun visor assemblies, both LH and RH.
4. Remove sun visor holders LH and RH.
5. Remove roof console (if equipped).
- Disconnect harness.

6. Remove room lamp. Refer to [Interior Room Lamp: Removal and Installation [with Power Door Locks]] (with power door locks) or [Interior Room Lamp: Removal and Installation [without Power Door Locks]] (without power door locks).
7. Remove striker covers (King Cab only).
8. Remove assist grips.
9. Remove rear window glass (Crew Cab only). Refer to [Rear Window Glass and Molding: Removal and Installation].
10. Remove headlining.

NOTE: Use an assistant to steady the headlining while lowering from roof.

- Remove clips from center of headlining (if equipped).
- Remove headlining by tilting through rear window opening on Crew Cab models.

11. Remove assist grip brackets from roof.

Installation
Installation is in the reverse order of removal.
