Amplifier: Service and Repair

Audio AMP: Removal and Installation

Removal
1. Remove the RH front seat. Refer to [Front Seat: Removal and Installation].
2. Remove the audio amp and kick shield screws.

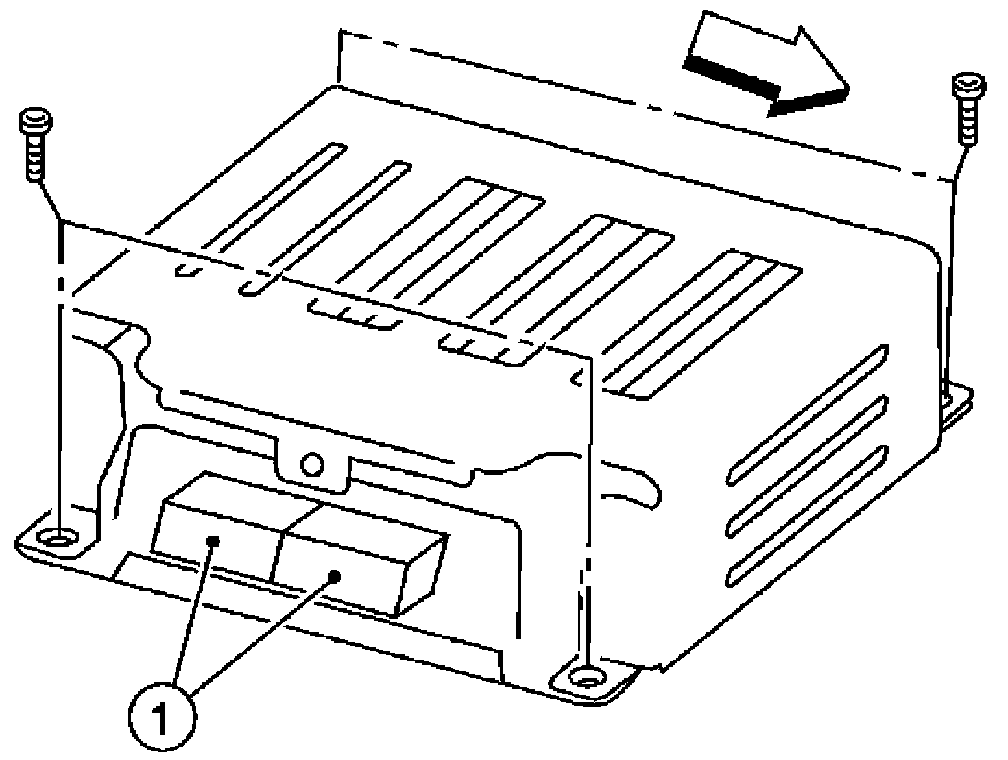

3. Disconnect the audio amp connectors (1) and remove the audio amp.
- :Vehicle front

Installation
Installation is in the reverse order of removal.
