Premium Audio (Crew Cab)

Bluetooth Control Unit: Removal and Installation






Removal
1. Remove the RH front seat. Refer to [Front Seat: Removal and Installation].

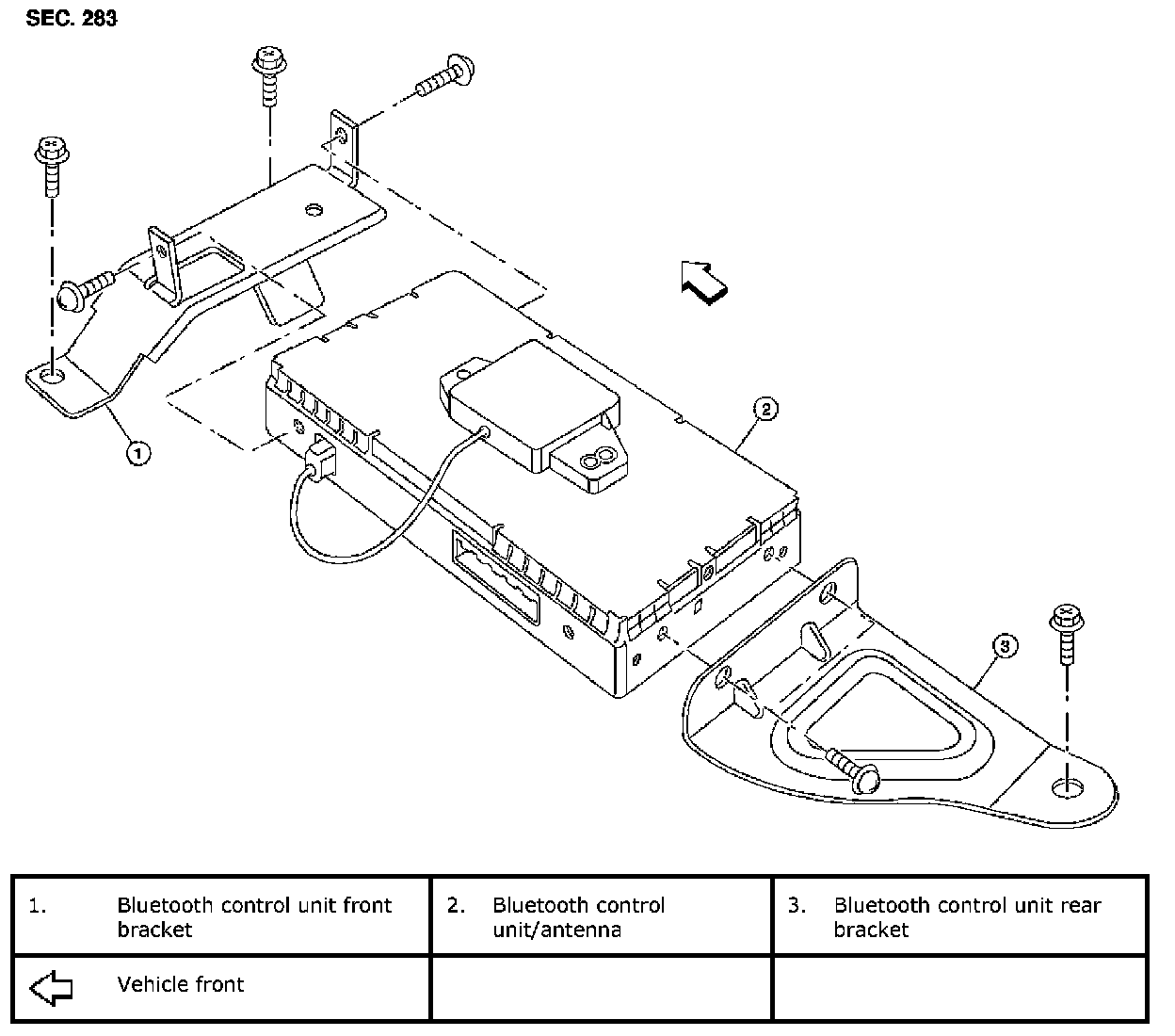

2. Disconnect the Bluetooth control unit harness connector (B).






3. Remove the Bluetooth control unit screws (A), then remove the Bluetooth control unit assembly.
4. Remove the Bluetooth control unit bracket screws and remove the Bluetooth control unit (1) front and rear brackets.

Installation
Installation is in the reverse order of removal.
