Diagnosis and Repair Workflow
Diagnosis and Repair Workflow

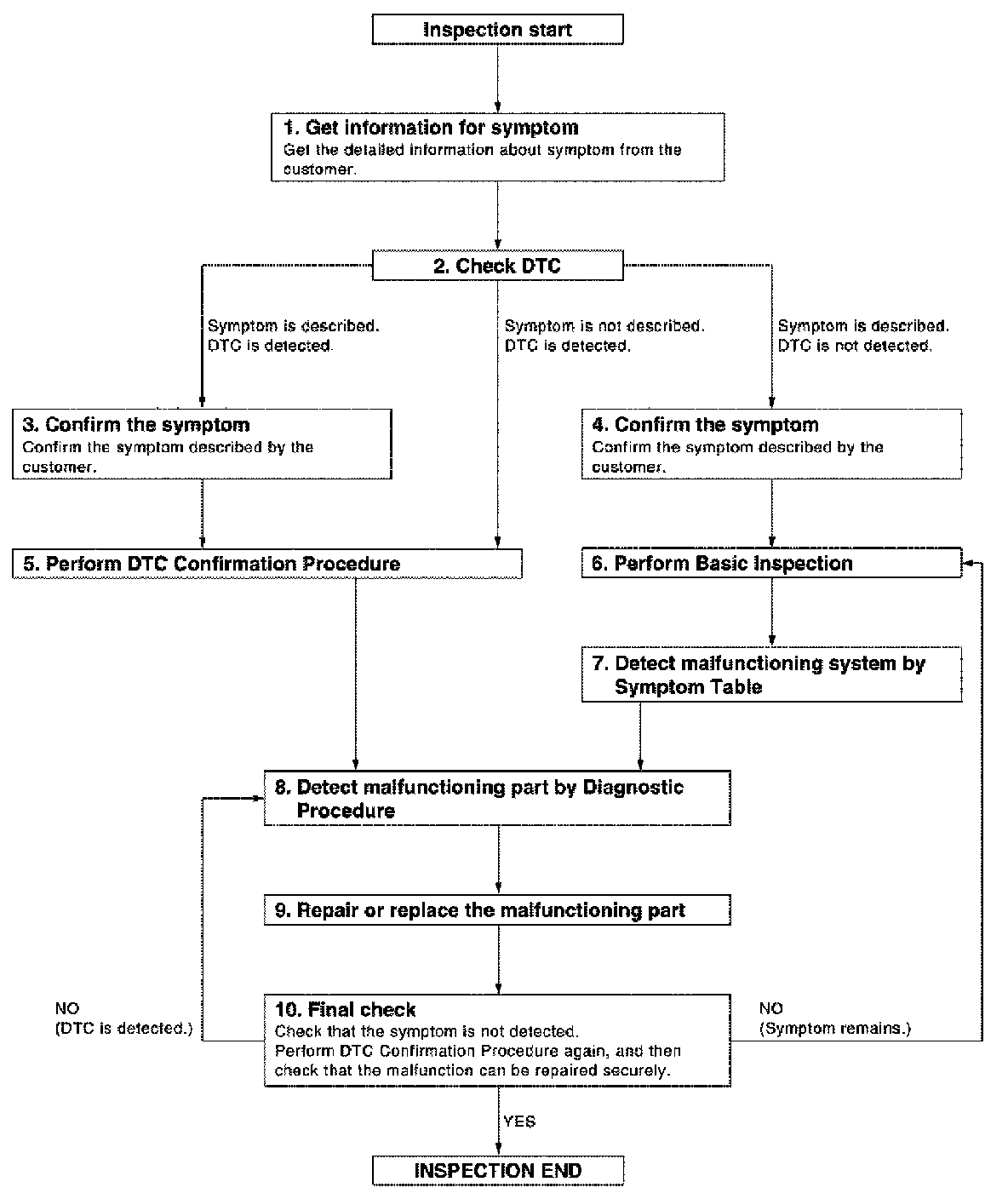

Overall Sequence

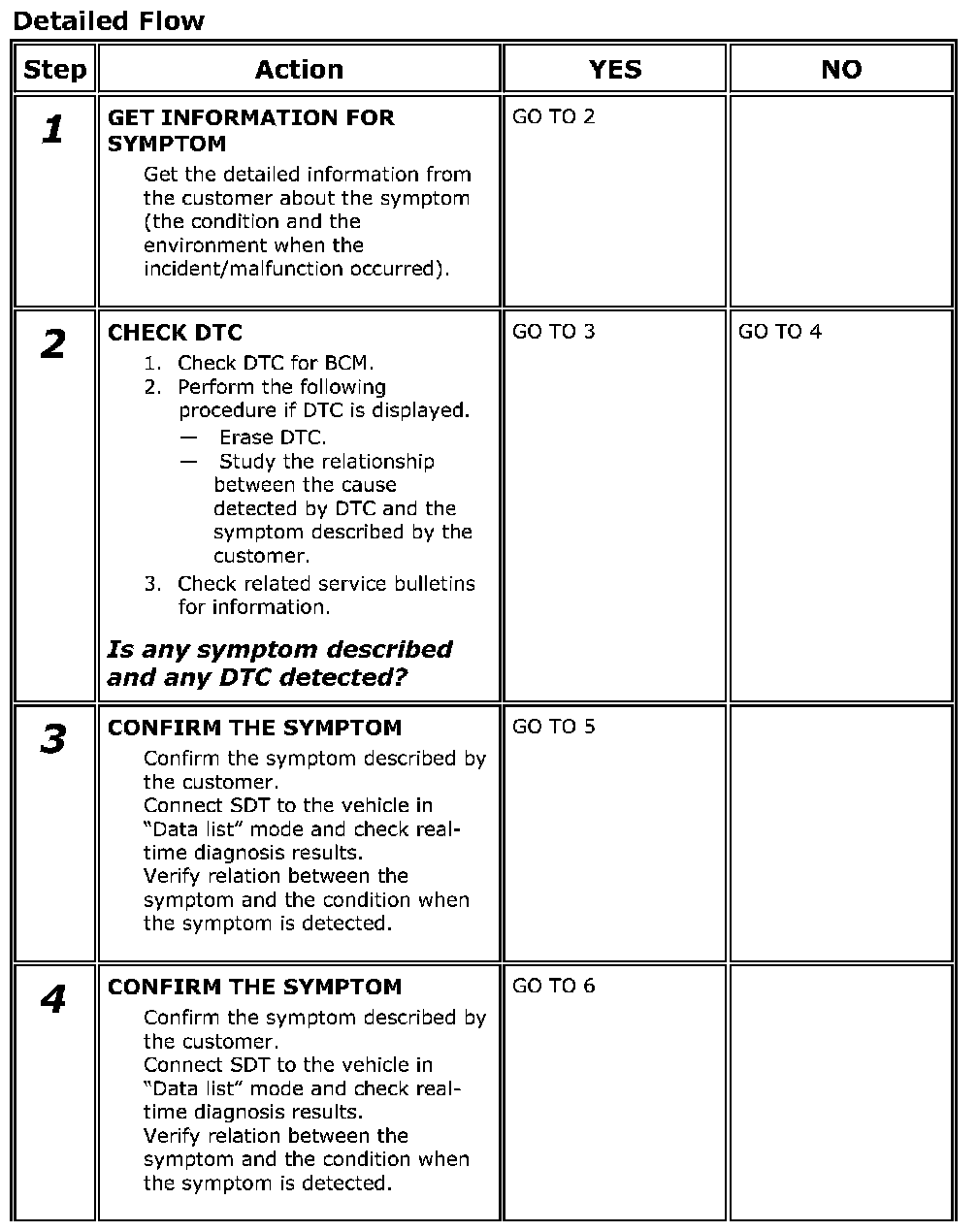

Detailed Flow
Step 1-4:

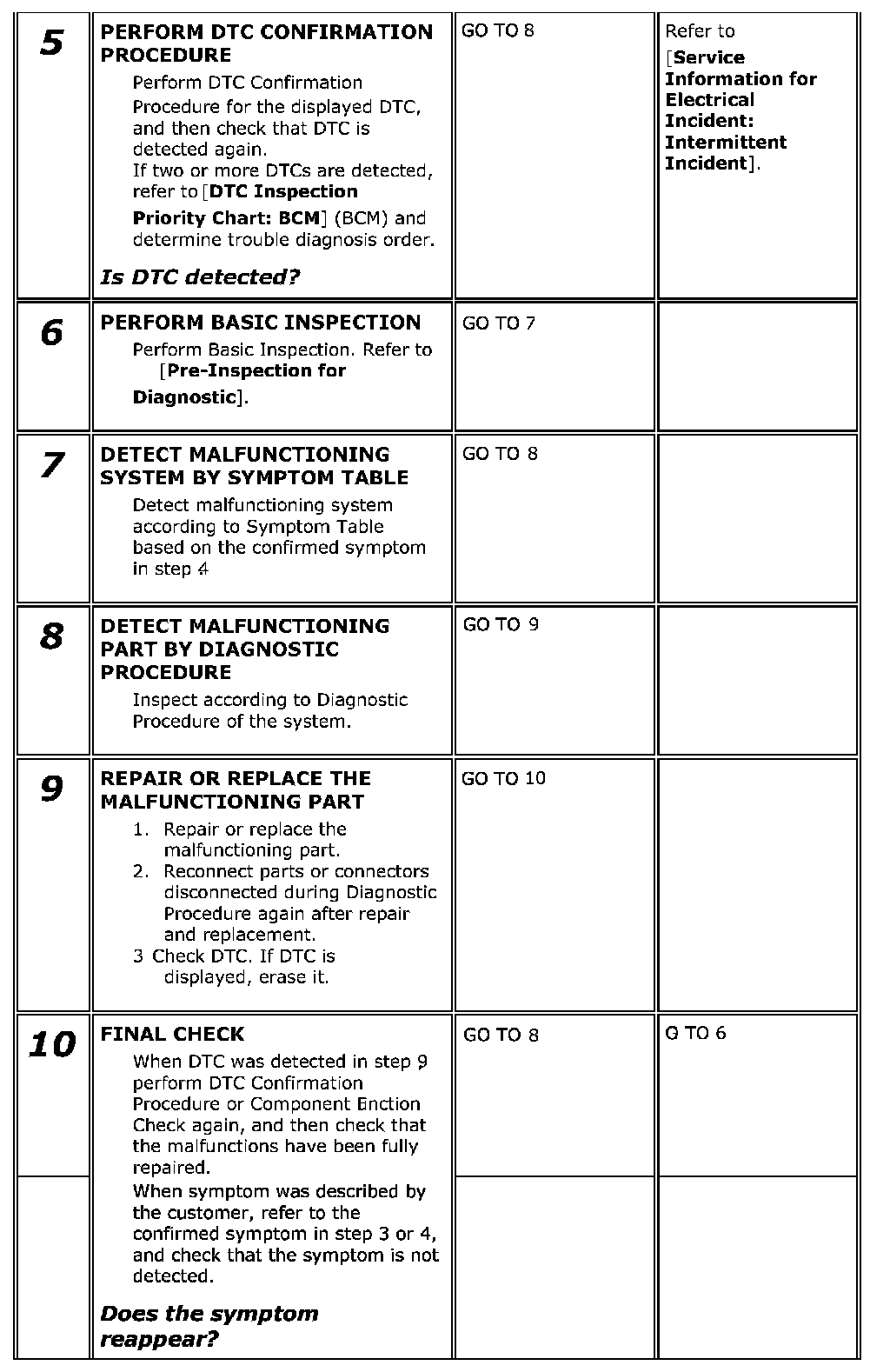

Step 5-10:
