P1848

P1848 Solenoid Disconnect

Description
When power and ground is supplied from the differential lock control unit, the differential lock solenoid will actuate to move the pressure plate against the cam ring to lock the differential. By reversing polarity at the differential lock control unit, the differential lock solenoid moves the pressure plate away from the cam ring to unlock the differential.

DTC Logic





Diagnosis Procedure
Regarding Wiring Diagram information, refer to [Differential Lock Control Unit: Wiring Diagram].

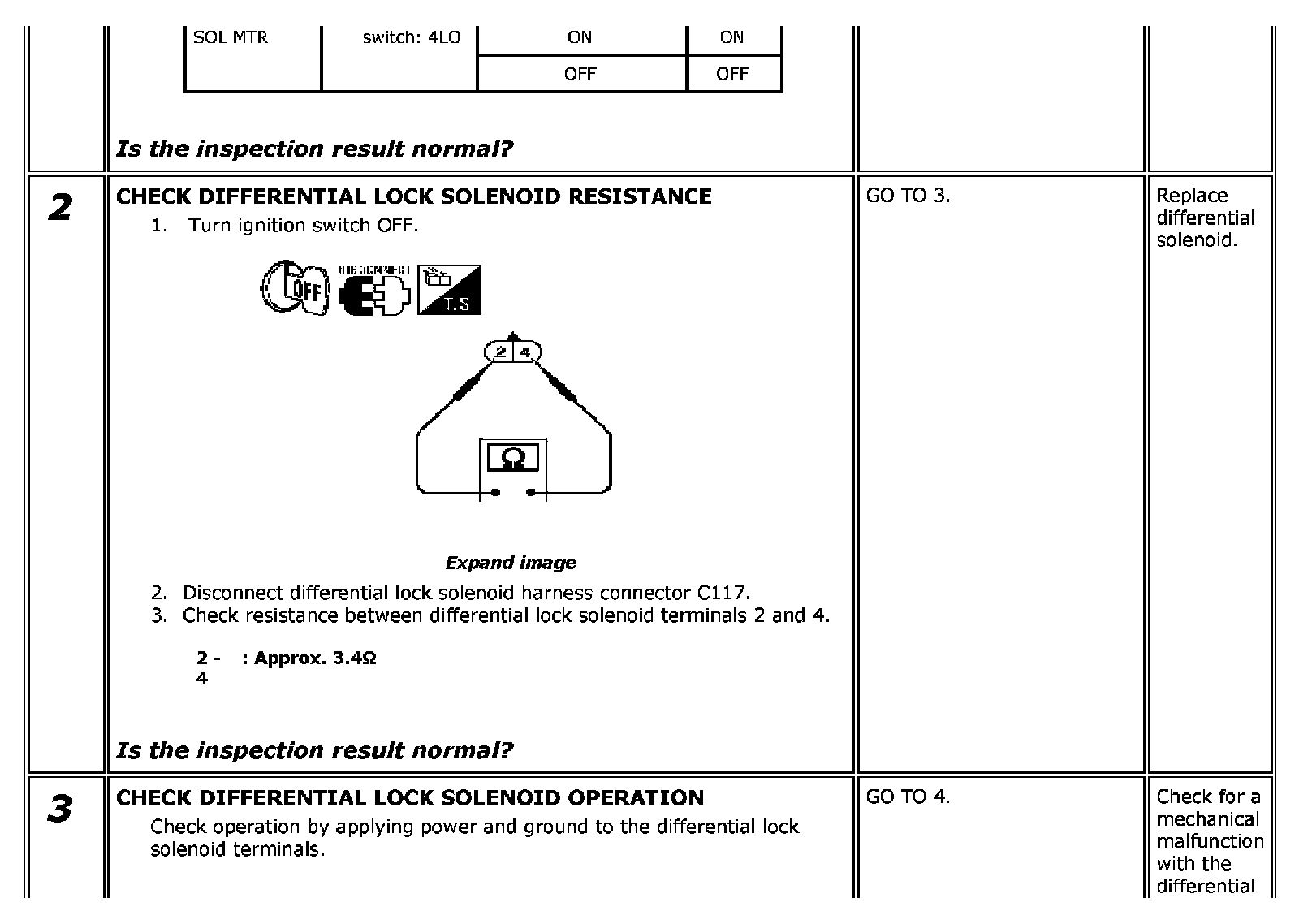

Step 1-3:

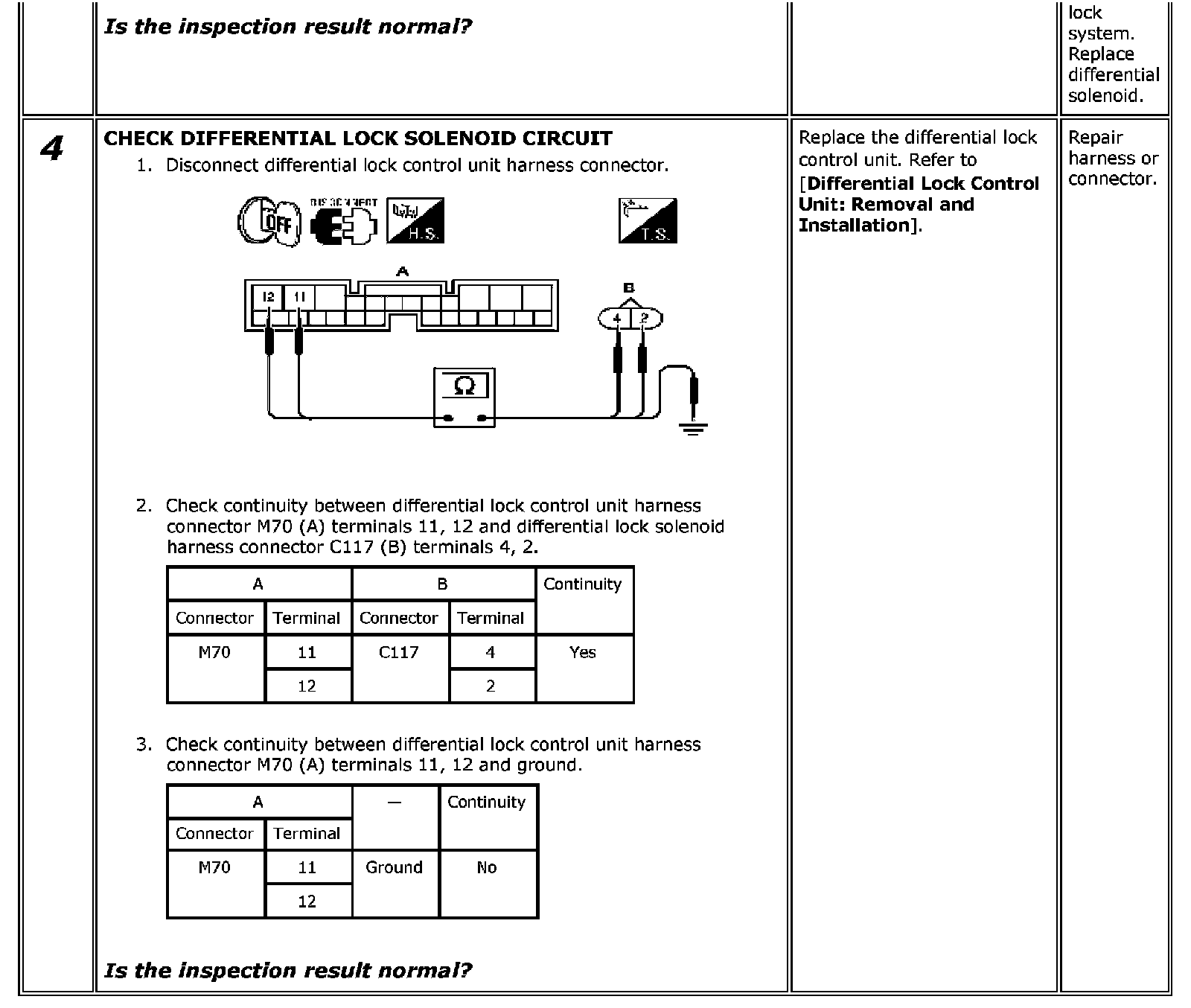

Step 3-4:
