P1705

P1705 TP Sensor

Description
Electric throttle control actuator consists of throttle control motor, accelerator pedal position sensor, throttle position sensor, etc. The actuator sends a signal to the ECM, and ECM sends signals to TCM with CAN communication.

SDT Reference Value in Data List Mode





On Board Diagnosis Logic
^ This is not an OBD-II self-diagnostic item.
^ Diagnostic trouble code "P1705" with SDT or 15th judgment flicker without SDT is detected when TCM does not receive the proper accelerator pedal position signals (input by CAN communication) from ECM.

Possible Cause
Harness or connectors
(The sensor circuit is open or shorted.)

DTC Confirmation Procedure

NOTE:
If "DTC Confirmation Procedure" has been previously performed, always turn ignition switch "OFF" and wait at least 10 seconds before performing the next test.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

With SDT
1. Turn ignition switch "ON". (Do not start engine.)
2. Select "Data list" mode for "AT" with SDT.
3. Start engine and let it idle for 1 second.
4. If DTC is detected, go to [P1705 TP Sensor].

Diagnosis Procedure

Step 1:

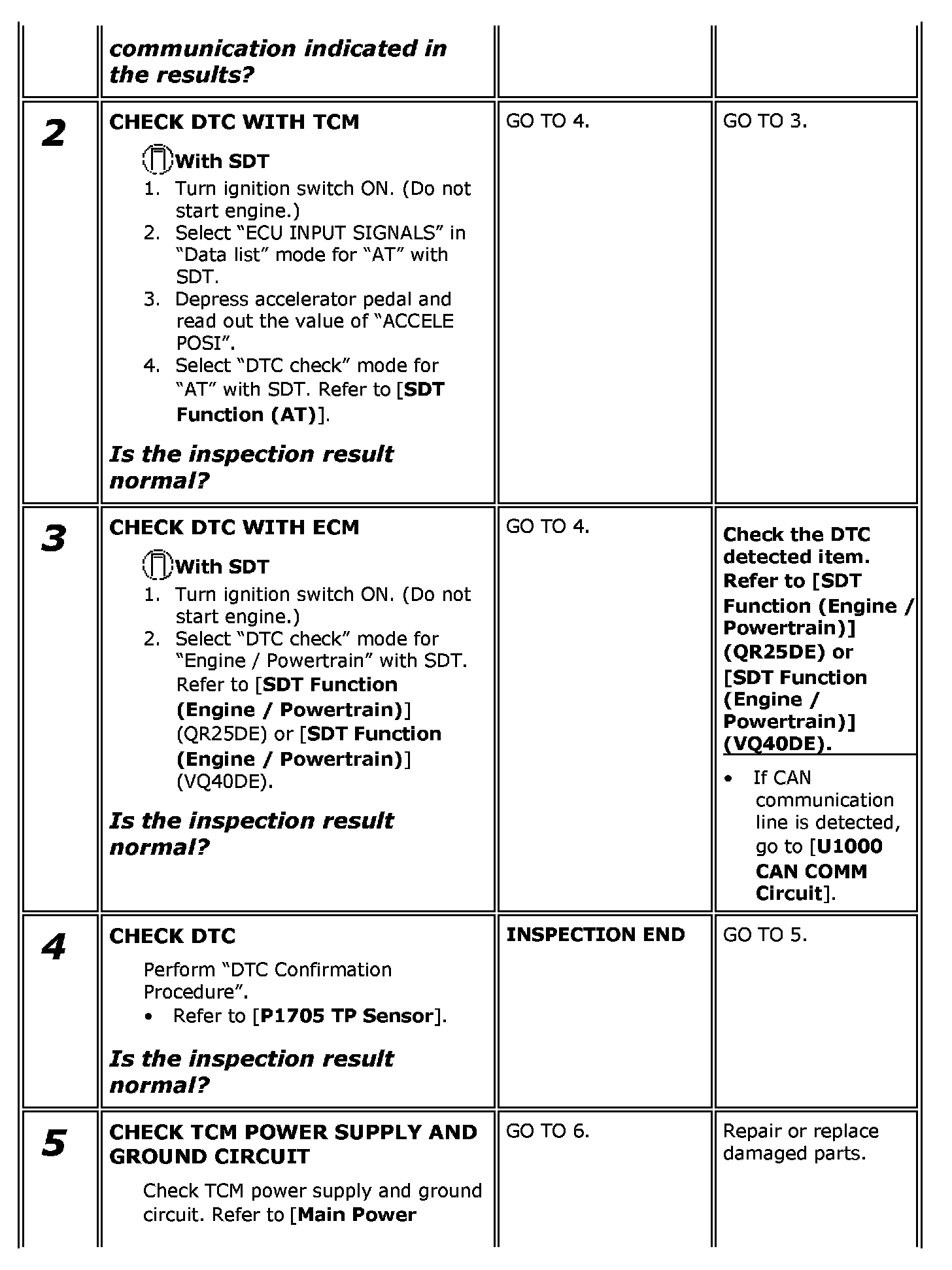

Step 1-5:

Step 5-6:
