P0455
P0455 EVAP Control SystemOn Board Diagnosis Logic
This diagnosis detects a very large leak (fuel filler cap fell off etc.) in EVAP system between the fuel tank and EVAP canister purge volume control solenoid valve.

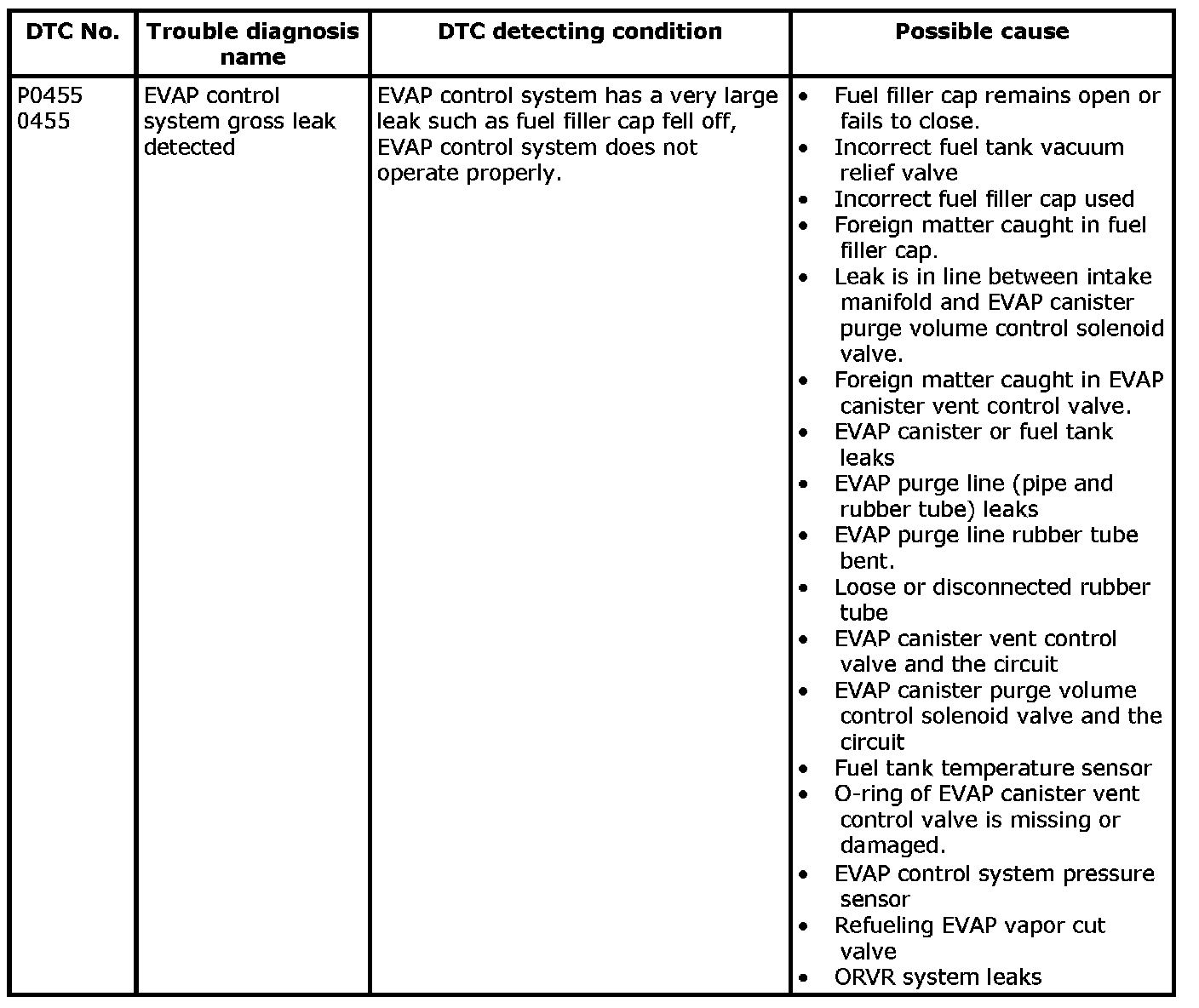

P0455:
CAUTION:
- Use only a genuine fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the MIL may illuminate.
- If the fuel filler cap is not tightened properly, the MIL may illuminate.
- Use only a genuine rubber tube as a replacement.
DTC Confirmation Procedure
CAUTION: Never remove fuel filler cap during the DTC Confirmation Procedure.
NOTE:
- Make sure that EVAP hose are connected to EVAP canister purge volume control solenoid valve properly.
- If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.
TESTING CONDITION:
- Perform "DTC work support" when the fuel level is between 1/4 and 3/4 full, and vehicle is placed on flat level surface.
- Open engine hood before conducting the following procedure.
With SDT
1. Tighten fuel filler cap securely until reteaching sound is heard.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON and select "Data list" mode with SDT.
5. Make sure that the following conditions are met.
COOLAN TEMP/S: 0 - 70 °C (32 - 158 °F)
INT/A TEMP SE: 0 - 60 °C (32 - 140 °F)
6. Select "EVAP SML LEAK P0442/P1442" of "EVAPORATIVE SYSTEM" in "DTC work support" mode with SDT.
Follow the instructions displayed.
NOTE: If the engine speed cannot be maintained within the range displayed on the SDT screen, go to [Basic Inspection]. Basic Inspection
7. Make sure that "OK" is displayed.
If "NG" is displayed, select "DTC check" mode with SDT and make sure that "EVAP GROSS LEAK [P0455]" is displayed. If it is displayed, refer to [P0455 EVAP Control System].
If P0442 is displayed, perform Diagnostic Procedure for DTC P0442, [P0442 EVAP Control System]. P0442
With GST
NOTE: Be sure to read the explanation of before driving vehicle.
1. Start engine.
2. Drive vehicle according to.
3. Stop vehicle.
4. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
5. Select SERVICE $07 with GST.
- If P0455 is displayed on the screen, go to [P0455 EVAP Control System].
- If P0442 is displayed on the screen, go to [P0442 EVAP Control System]. P0442
- If P0441 is displayed on the screen, go to [P0441 EVAP Control System]. P0441
Diagnosis Procedure

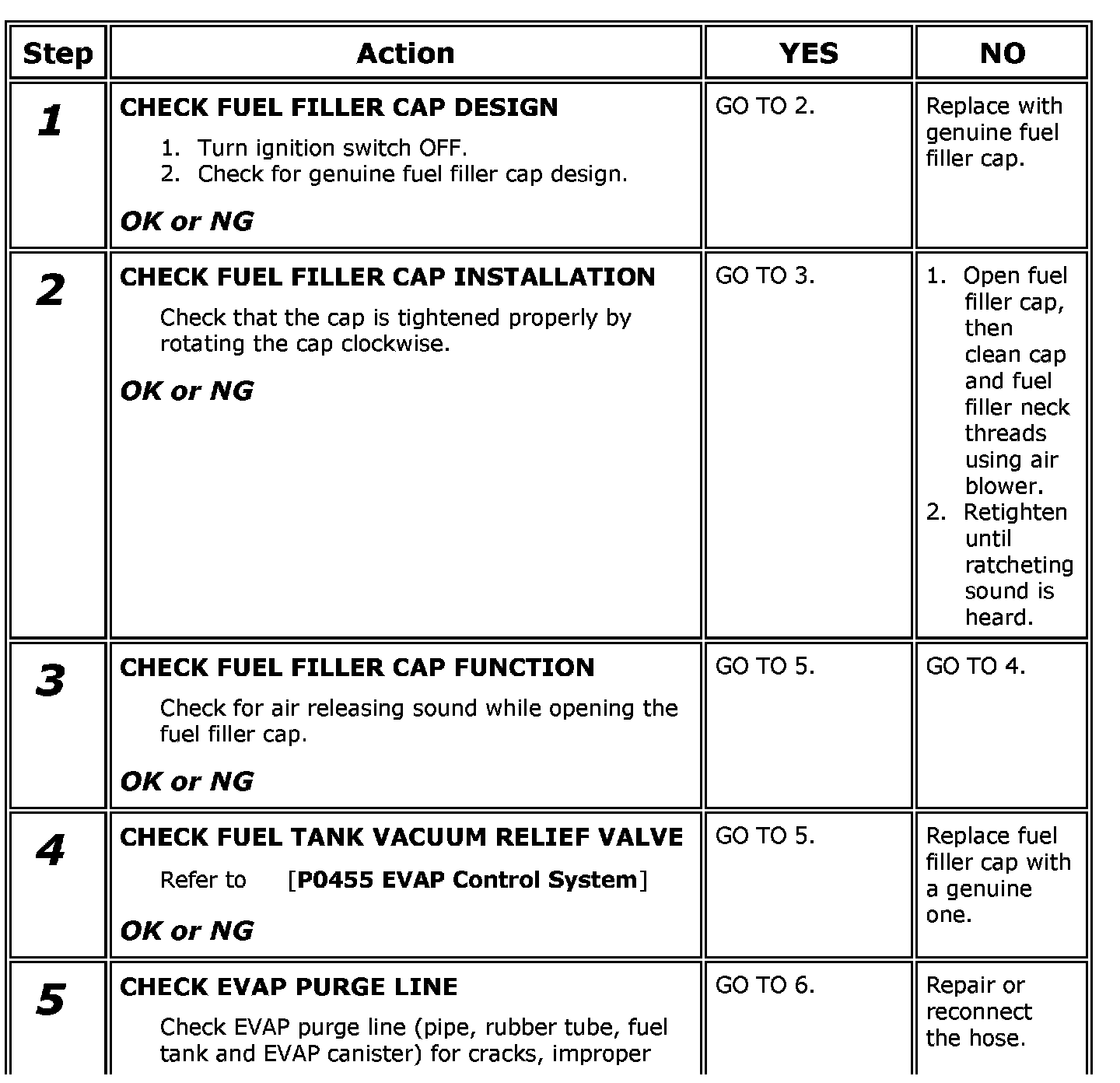

Step 1-5:

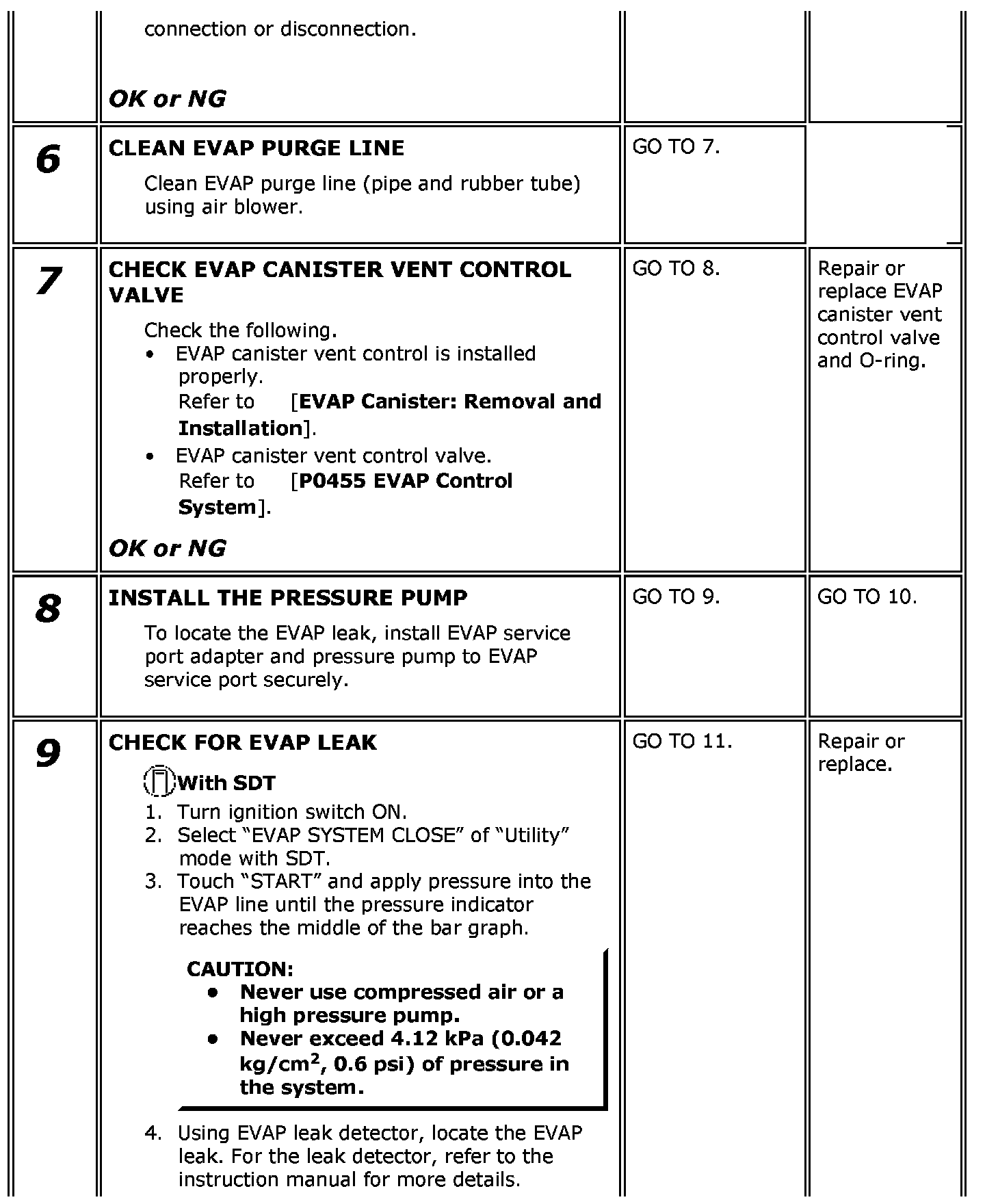

Step 5 (Continued)-9:

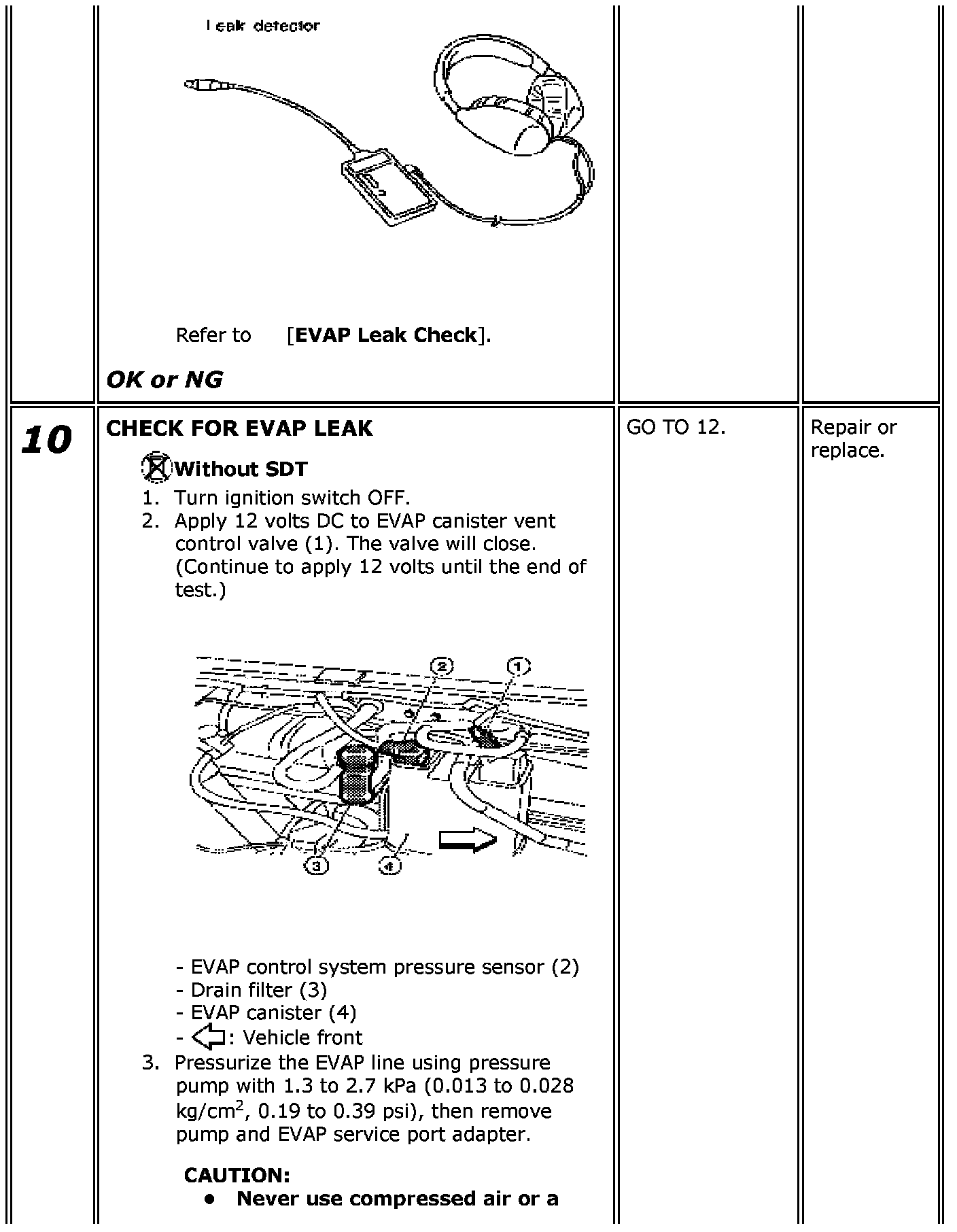

Step 9 (Continued)-10:

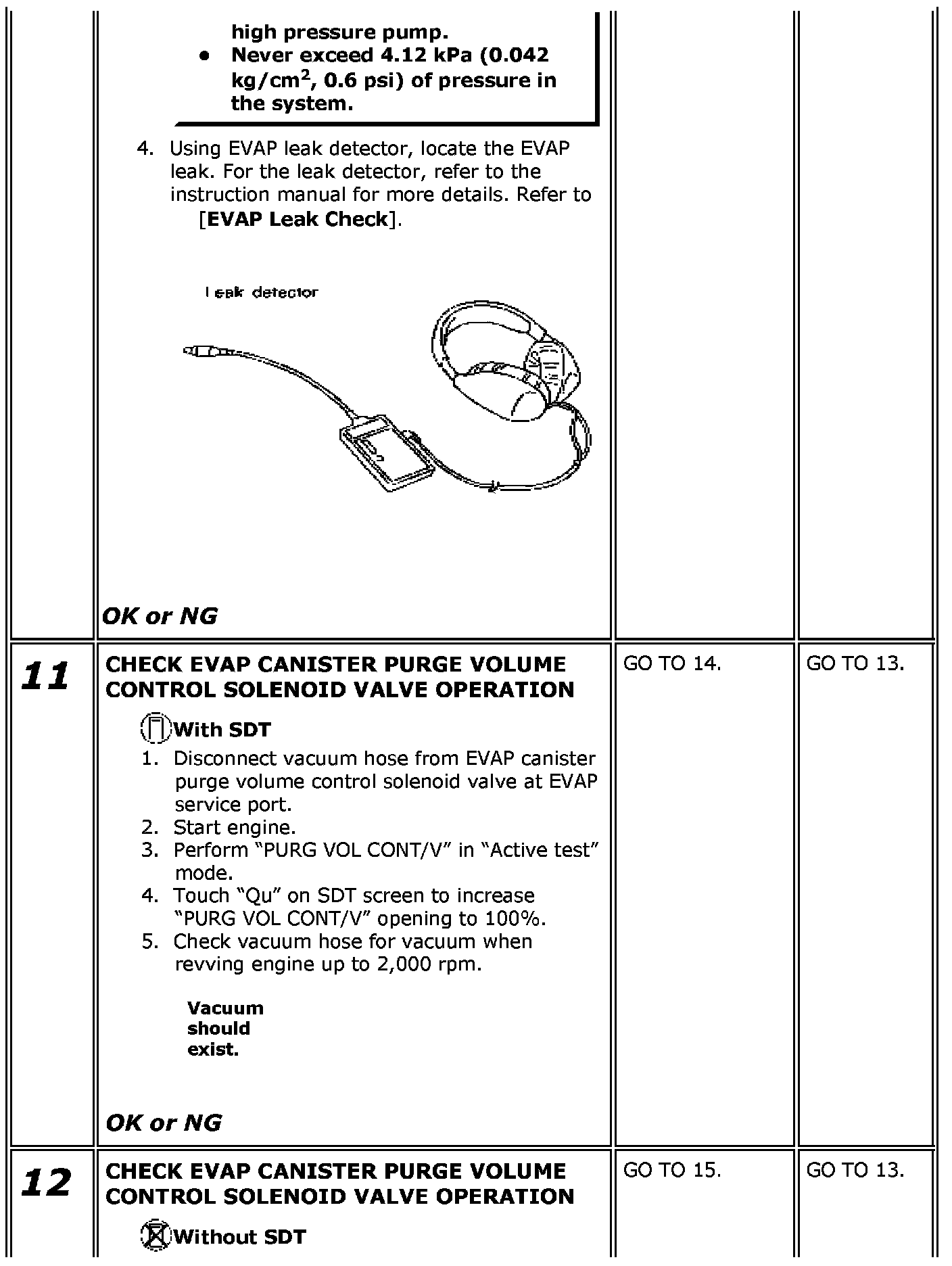

Step 10 (Continued)-12:

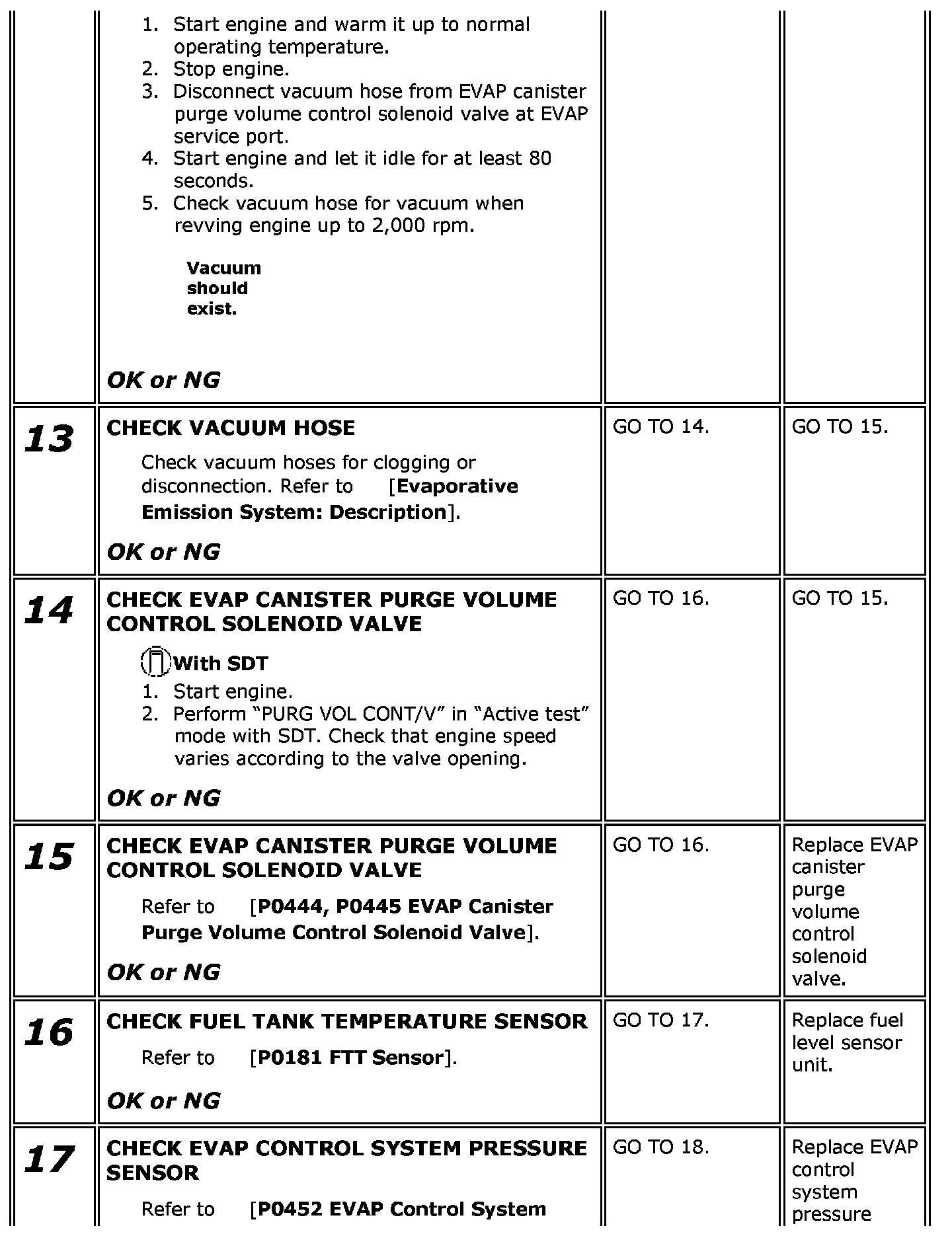

Step 12 (Continued)-17:

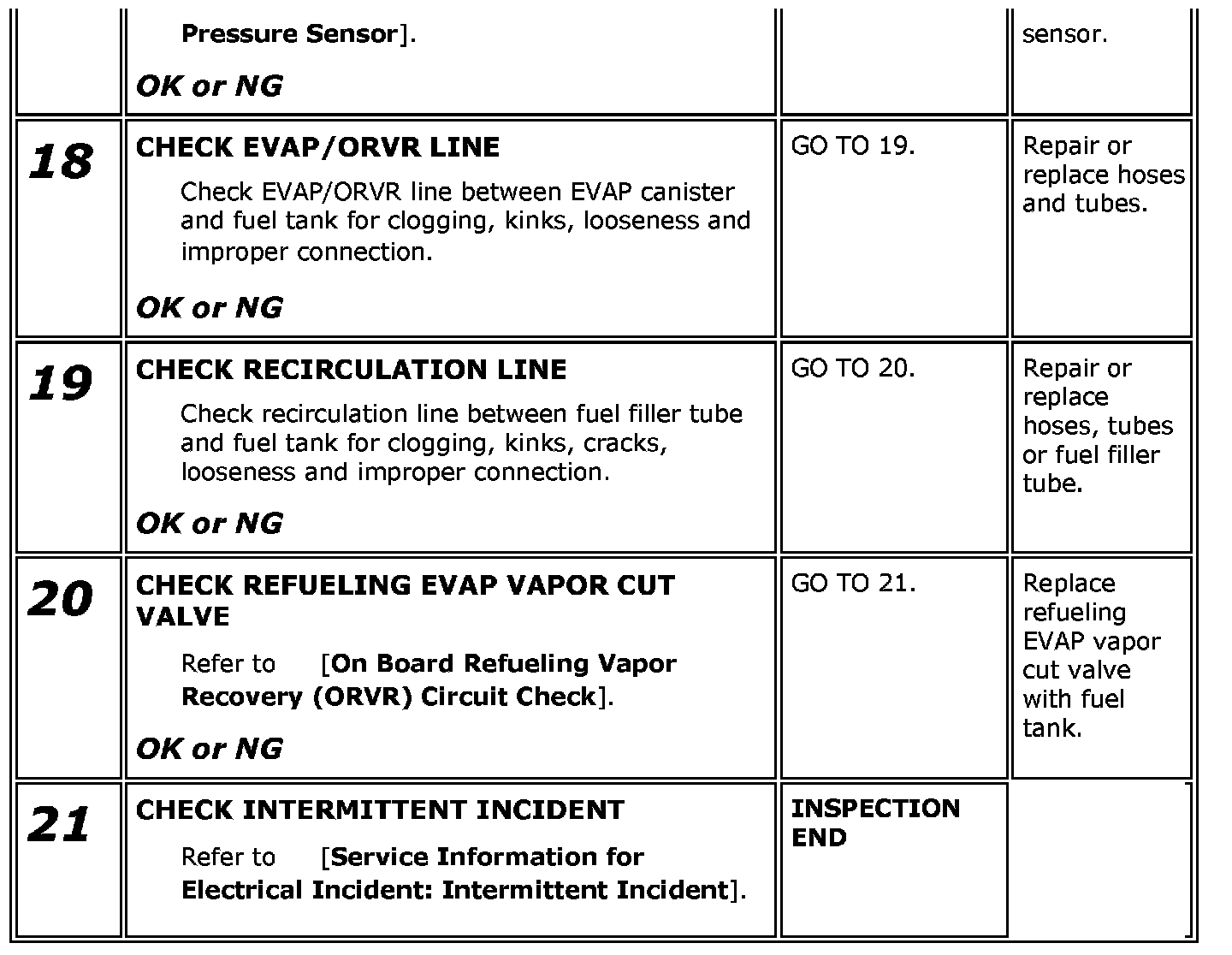

Step 17 (Continued)-21:
Component Inspection

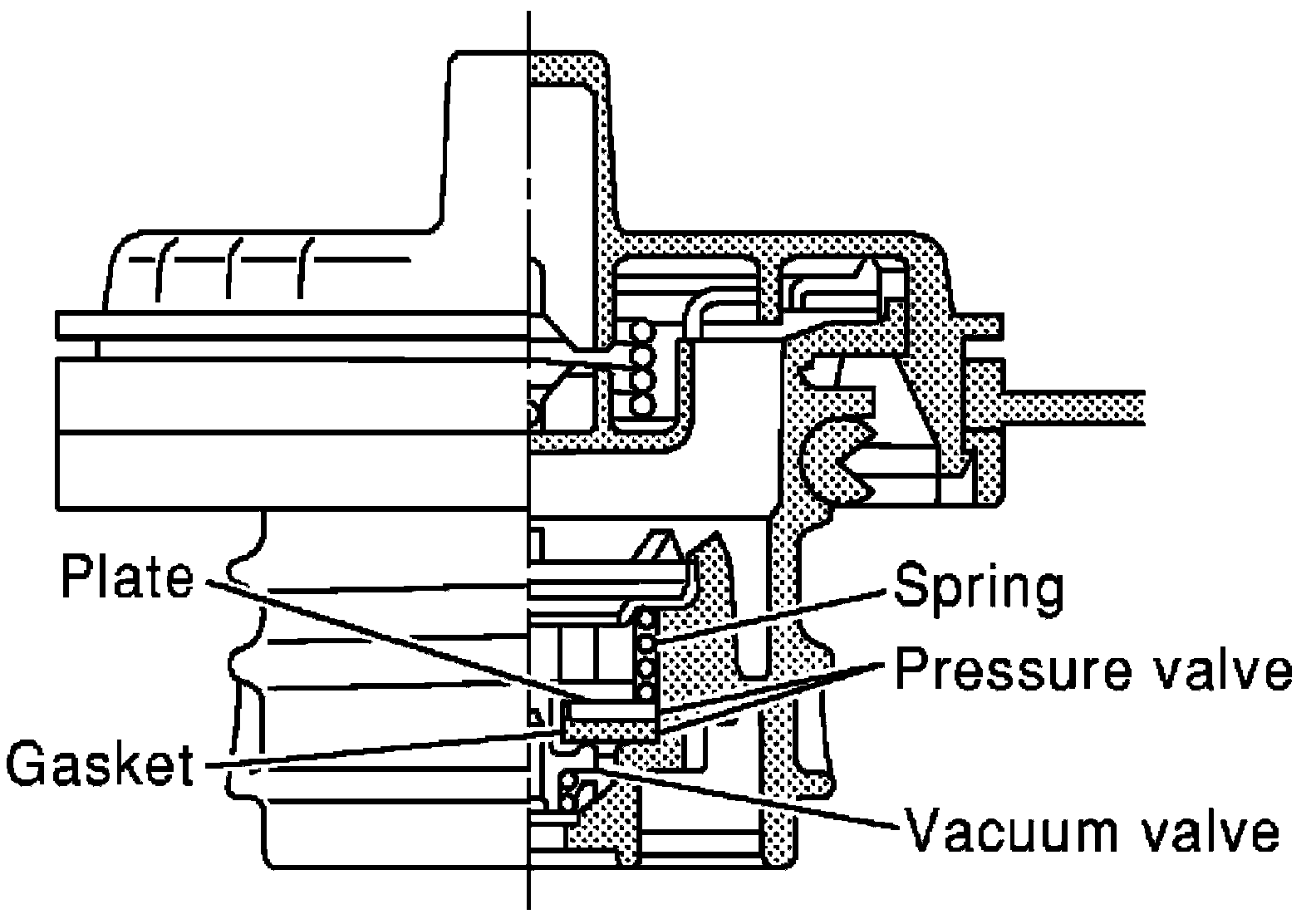

Fuel Tank Vacuum Relief Valve (Built Into Fuel Filler Cap)
1. Turn ignition switch OFF.
2. Remove fuel filler cap.
3. Wipe clean valve housing.

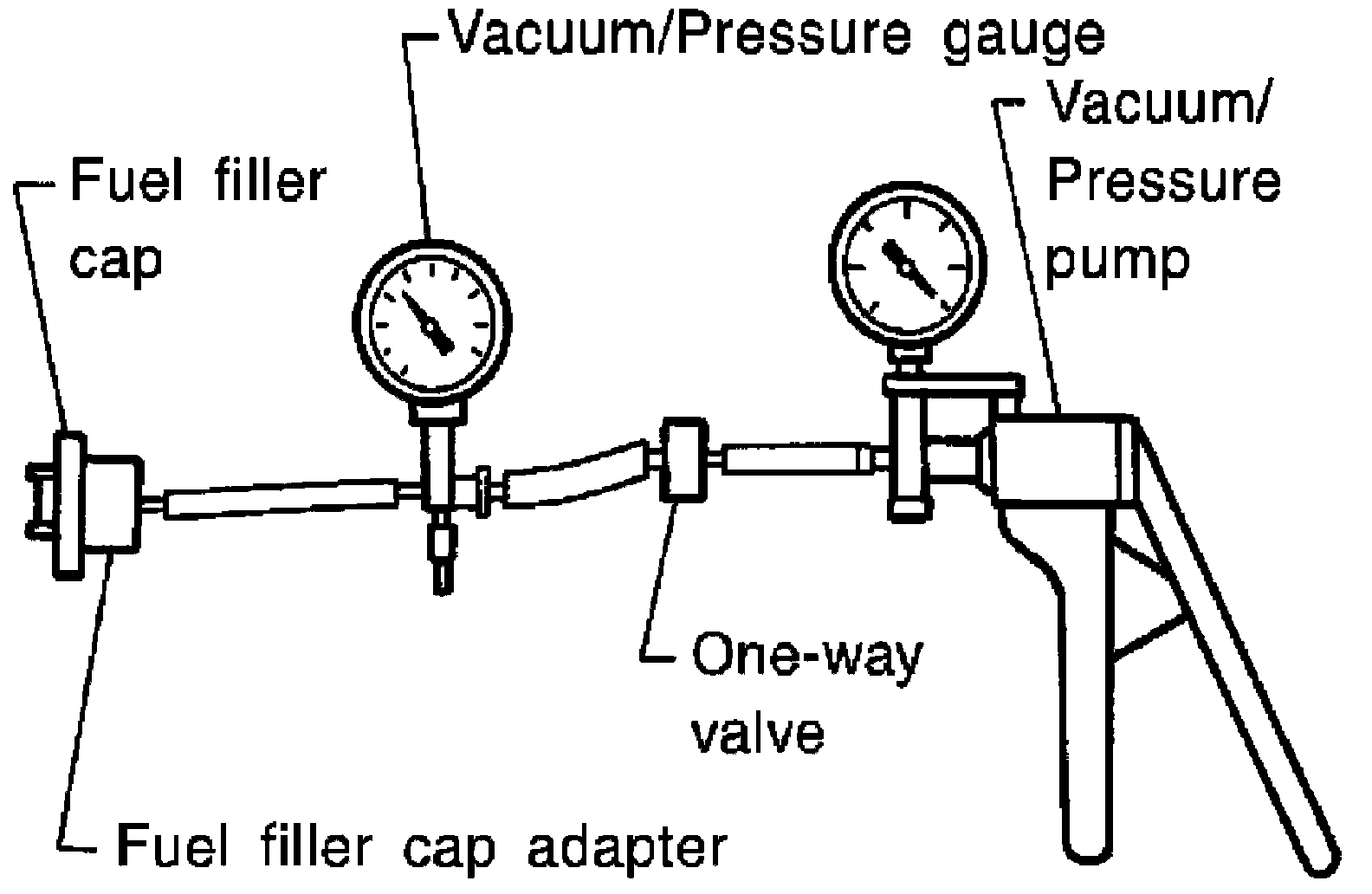

4. Install fuel filler cap adapter (commercial service tool) to fuel filler cap.
5. Check valve opening pressure and vacuum.
Pressure: 15.3 - 20.0 kPa (0.156 - 0.204 kg/cm2, 2.22 - 2.90 psi)
Vacuum: -6.0 to -3.3 kPa (-0.061 to -0.034 kg/cm2, -0.87 to -0.48 psi)
6. If out of specification, replace fuel filler cap as an assembly.
CAUTION: Use only a genuine fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the MIL may illuminate.
