C1709

C1708 - C1711 Data from Transmitter Not Being Received

Description
Tire pressure data for one or more transmitters is not being received by the BCM.

DTC Logic

DTC Detection Logic

C1708-C1711:

DTC Confirmation Procedure

Step 1:

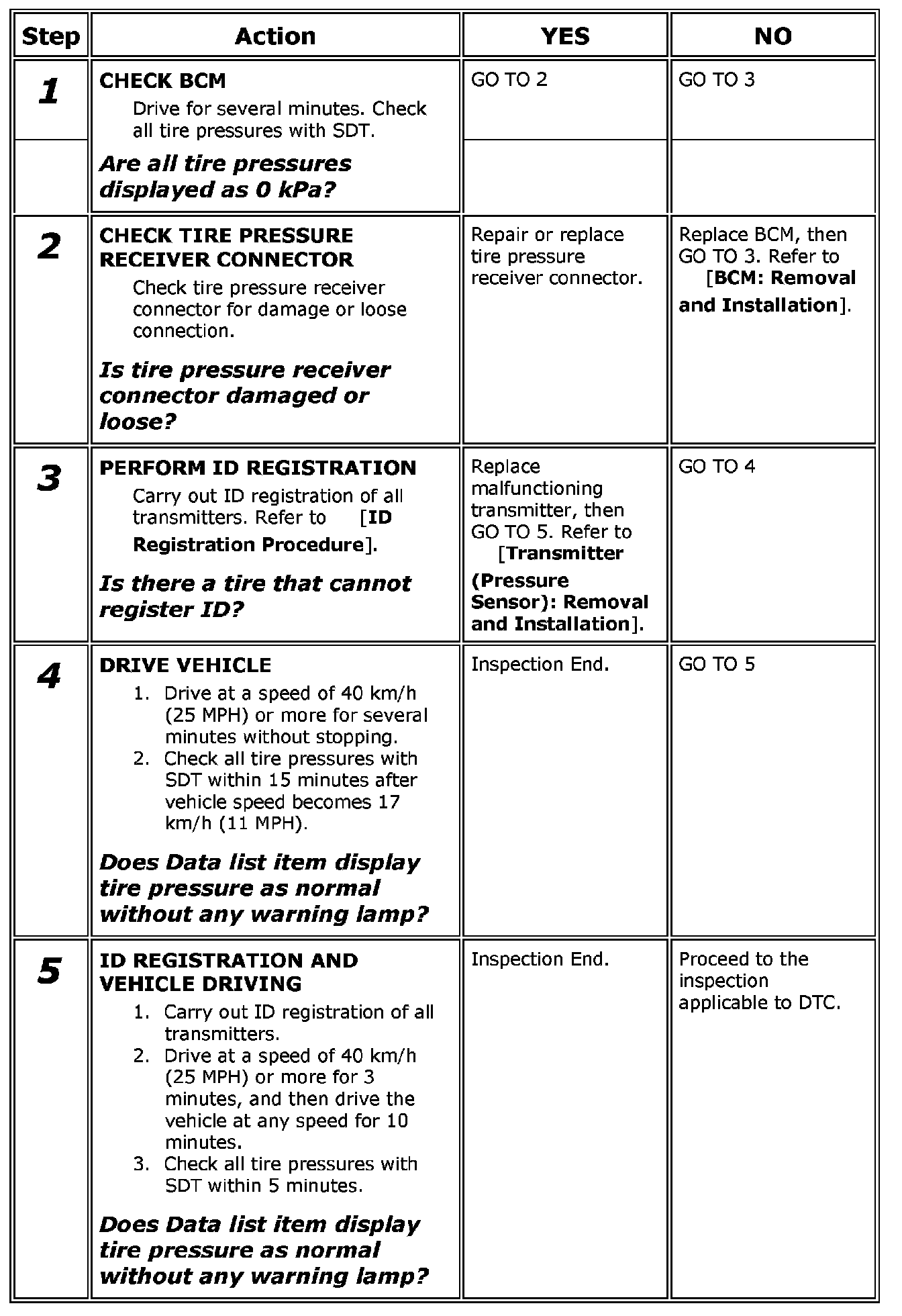

Diagnosis Procedure
Malfunction Code No. 21, 22, 23 or 24 (DTC C1708, C1709, C1710 or C1711)

Step 1-5:

Special Repair Requirement
Perform preliminary check. Refer to [Preliminary Check]. Preliminary Check
