B2205

DTC B2205 Vehicle Speed Circuit

Description
The ABS actuator and electric unit (control unit) provides a vehicle speed signal to the combination meter via CAN communication lines.

DTC Logic

B2205:






Diagnosis Procedure
Symptom: Displays "VEHICLE SPEED CIRC [B2205]" as a "DTC check" result of combination meter.

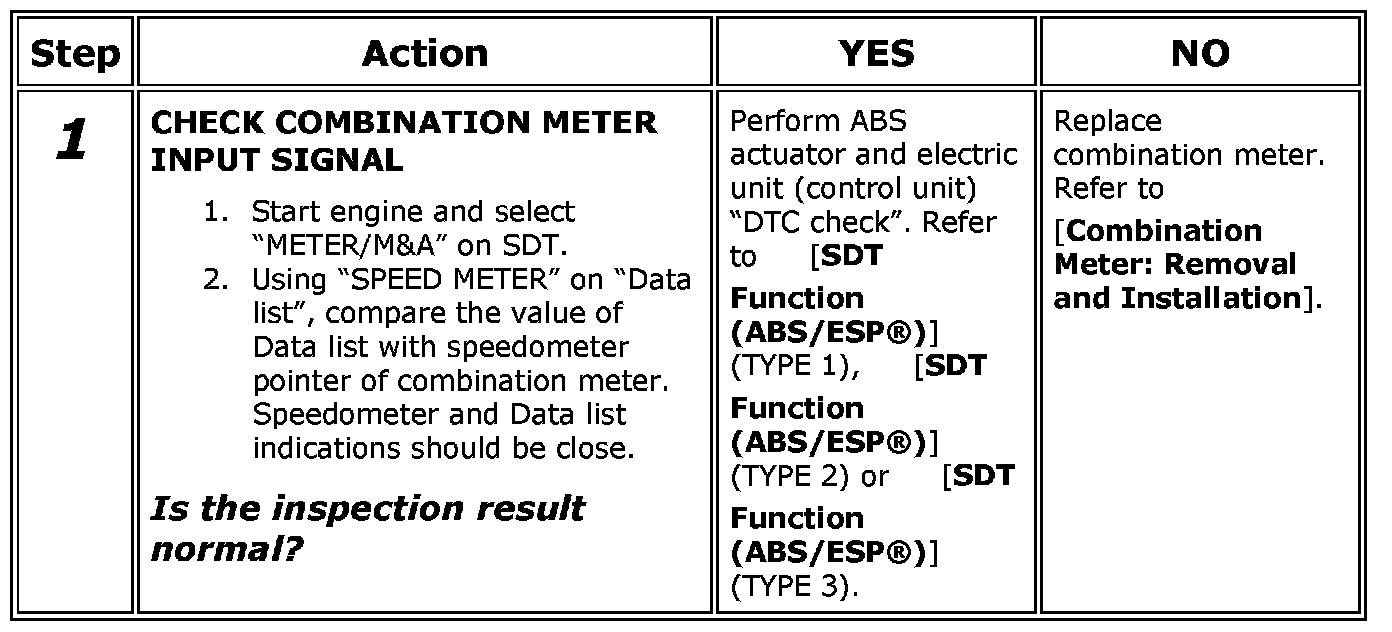

Step 1:
