B1023 Passenger Air Bag Off Indicator

Description

DTC B1023 Front Passenger Air Bag Off Indicator
The front passenger air bag off indicator is wired to the air bag diagnosis sensor unit. The air bag diagnosis sensor unit monitors the front passenger air bag off indicator and circuit for failures.

Part Location






DTC Logic

DTC Detection Logic

With SDT






Without SDT






DTC Confirmation Procedure (with SDT)

Step 1-2:

DTC Confirmation Procedure (without SDT)

NOTE: SRS will not enter diagnosis mode if no malfunction is detected in user mode.

Step 1-6:

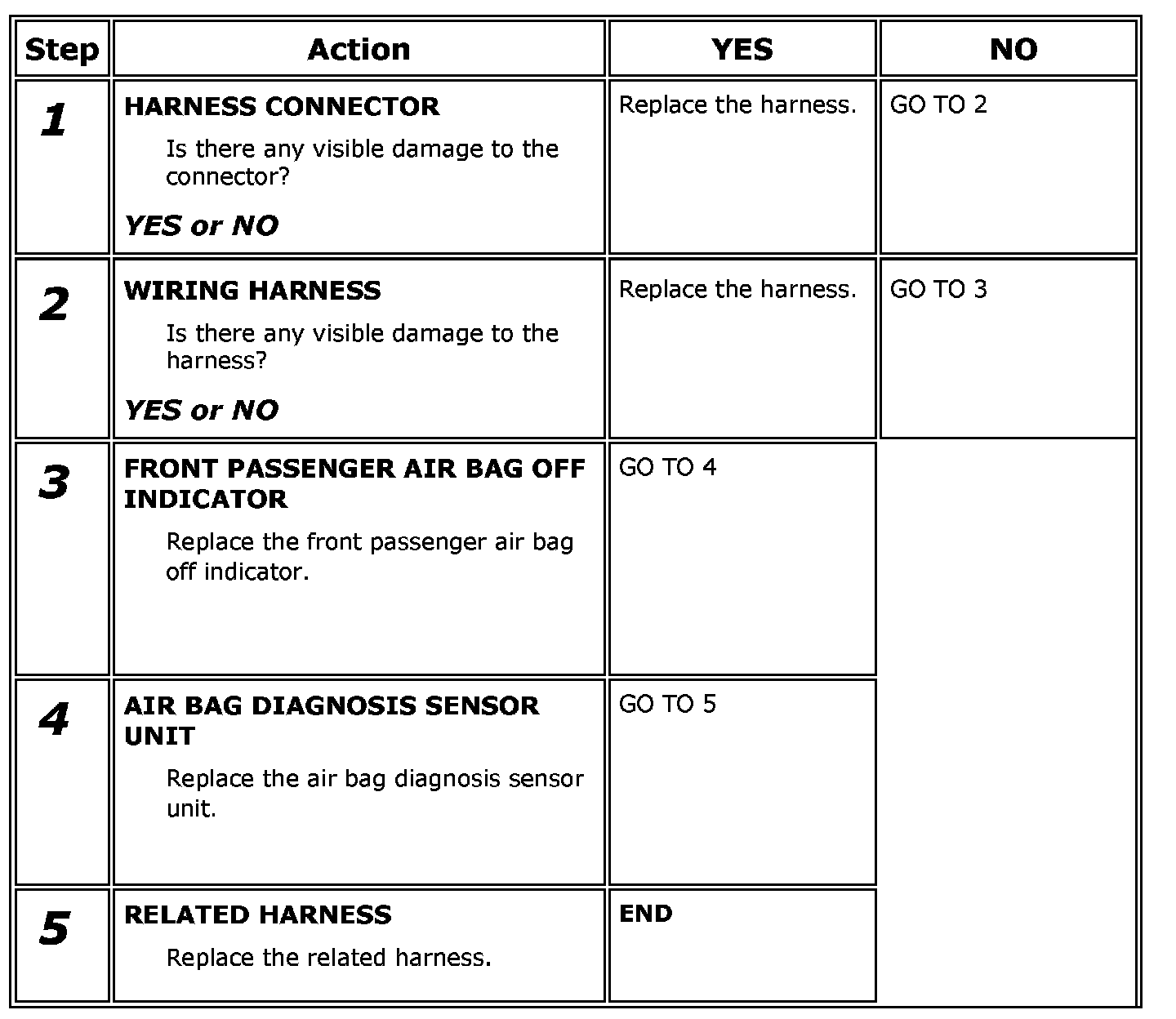

Diagnosis Procedure (Component Diagnosis)
Recheck SRS after each replacement.

Step 1-5:
